Cisco TelePresence MX700 Manual de usuario

Installation guide

for Cisco TelePresence MX700 Dual Camera

mounted on the wall

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 2

This guide covers the MX700 with dual camera, mounted on the wall.

Safety information

Due to the size and mass of this product it is important that

the wall mounted system is safely installed according to

these installation instructions.

The wall and mounting hardware must be able to safely

support the product.

The wall mounted system must be installed by qualified

personnel, in accordance with state and local building

regulations.

Manpower

We recommend three

people working together

to mount this system.

Follow local regulations.

Dimensions

Height: 1071 mm / 42.2 in.

Width: 2517 mm / 99.1in.

Depth: 148 mm / 5.9in.

Weight: 164kg / 362lb

Room setup

Explore the Cisco Project Workplace to find

inspiration and guidelines when preparing your

office or meeting room for video conferencing,

http://www.cisco.com/go/projectworkplace

User documentation

The user documentation for this product,

including compliance and safety information,

can be found on the Cisco web site,

http://www.cisco.com/go/mx-docs

EMC Class A declaration

WARNING: This is a class A product. In a domestic environment this

product may cause radio interference in which case the user may

be required to take adequate measures.

声

明

此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种

情况下，可能需要用户对其干扰采取切实可行的措施。

WARNING: This is a class A product. In a domestic environment

this product may cause radio interference in which case the user

may be required to take adequate measures.

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 3

Packaging

1Open the plastic snap locks and remove the

side walls.

Lift off box L/M. Lay box A flat on the floor

and remove the lid.

L/M

Boxes are labeled A to M. This

guide refers to the labels.

A M

...

B+E-G Shows which boxes are inside.

Tools and screws are in this box.

Screws

Countersunk, Allen key, 4 mm

M6x90

M6x35

M6x12

Pan, Allen key, 4 mm

M6x12

Pan, Allen key, 2.5mm

M4x8

Pan, Torx T20

PT4x10

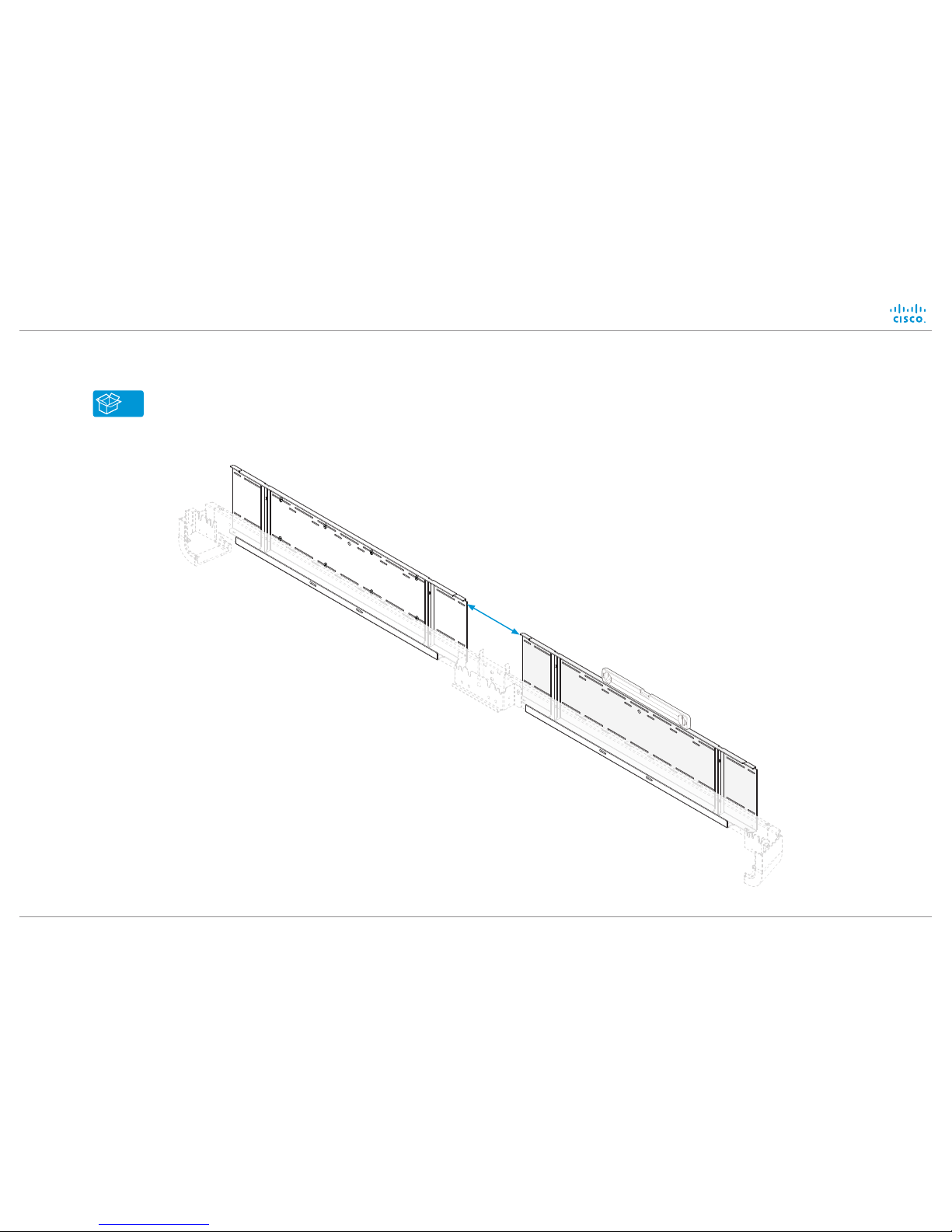

1Assemble lower frame

A, B

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 4

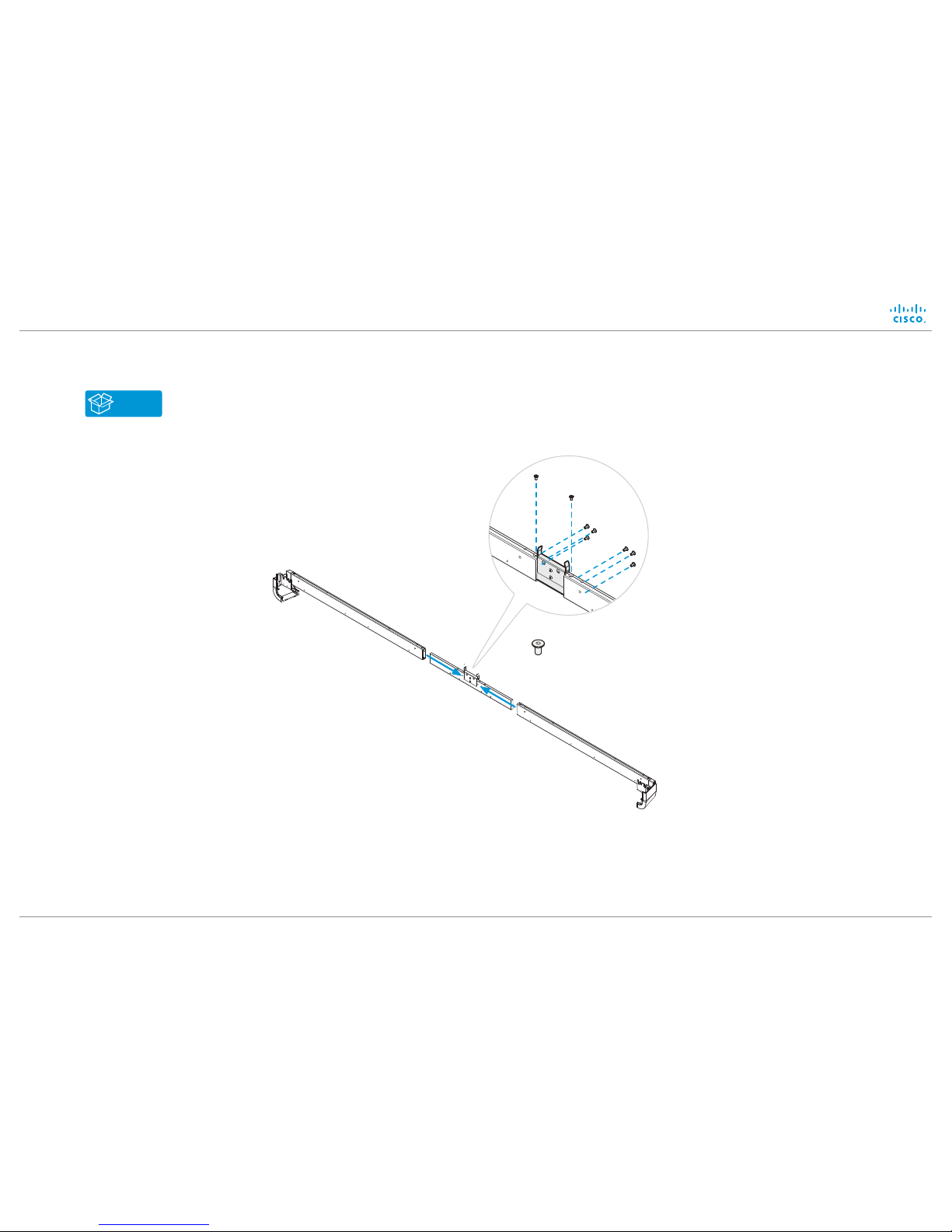

Six screws from the back

and two from the top.

8 × M6x12

(countersunk)

2Fasten center bracket

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 5

2 × M6x12

(pan)

3Mount left wall bracket

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 6

Check that the wall bracket is level and mark the required

screw hole positions on the wall. Use at least four screws

when fastening the wall bracket. The wall bracket can be

fastened through any of the horizontal slots.

Fasten the wall bracket in a secure manner ensuring that

the wall’s structure is sufficient to support the system load

(screws/mounting hardware not provided; not shown in

illustration). The lower edge of the

picture on screen will

be at this height.

4Mount right wall bracket

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 7

You may use the lower frame to check that the

two brackets are level.

Follow the mounting instructions in the same way

as you did for the left wall bracket.

254 mm

(10 in.)

5Mount spacers and top wall brackets

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 8

Snap the top bracket onto the

spacers.

Fasten the top bracket in a secure

manner ensuring that the wall’s

structure is sufficient to support

the system (screws/mounting

hardware not provided; not shown

in illustration).

Mount spacers onto the wall

brackets.

Fasten each spacer with two

screws (not provided; not shown

in illustration).

6Fasten lower frame

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 9

M6x90

M6x35

M6x12

M6x12 (pan)

M4x8 (pan)

4 × M6x12 (pan)

7Fasten clamps on monitors

A, D

Installation guide for Cisco TelePresence MX700 Dual camera - Wall mount

Page 10

While the monitors are still in the package, mount

the clamps on the rear side of the monitors.

Loosen the four pre-mounted screws on the

clamp, slide the clamp in place, and tighten the

screws.
