One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

1 | P a g e

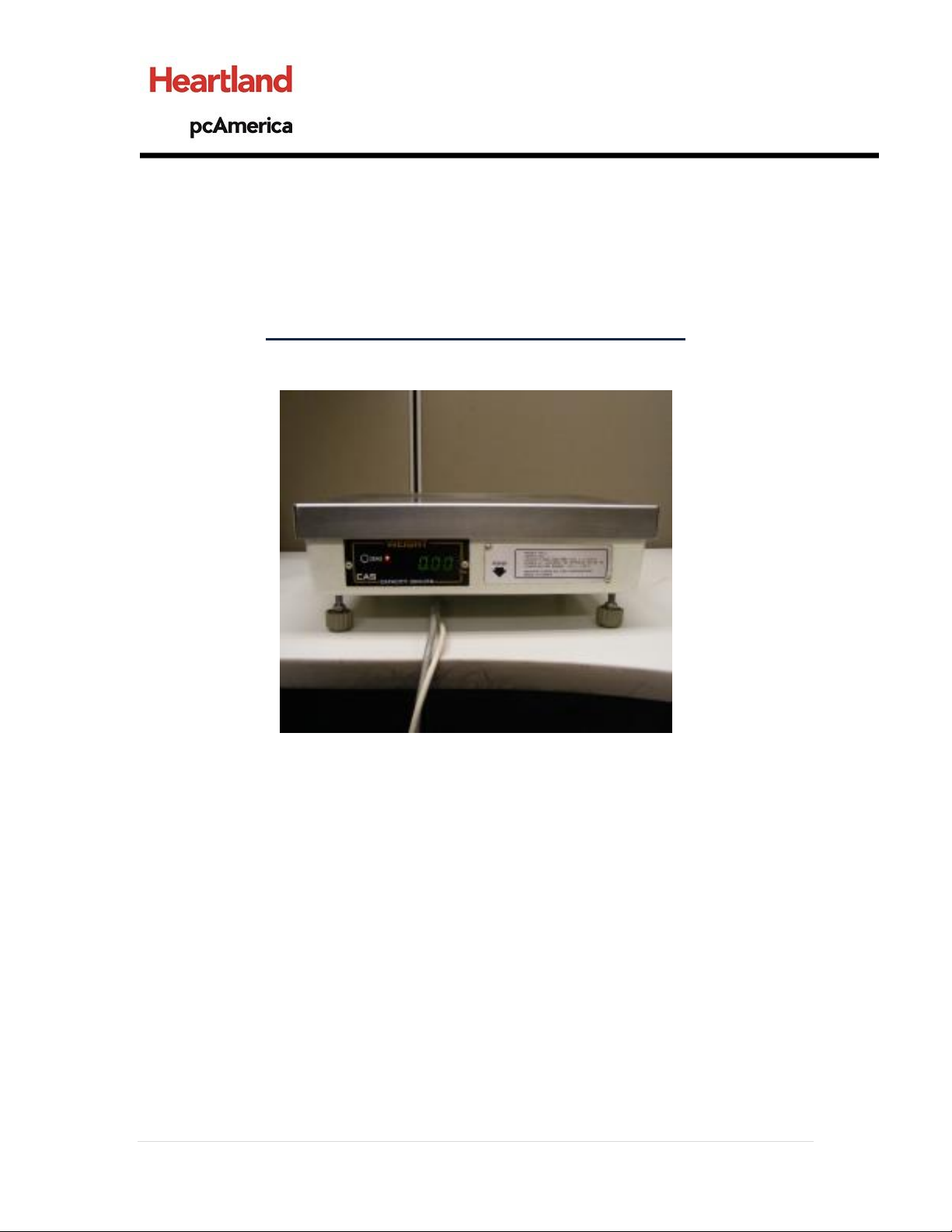

Setting up the CAS PD-I

This document contains step-by-step instructions for setting up the CAS PD-I to work with CRE.

To connect the CAS PD-I to your computer, you need the following cable:

The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128

2 | P a g e

Calibrating the CAS PD-I

To calibrate the scale, turn it off and follow these steps.

After making any of the following changes to the scale you will need to contact Weights and

Measures to make sure the scale are certified and weighing items properly.

1. Remove the calibration bolt and plate.

2. You will see three black micro-switches. Press

and hold down SW3.

3. Plug the scale in and turn it on. The power

button is located underneath the scale, to the

right of the micro-switches.

4. The weight display will flash “CAL” three times.

After this occurs, release SW3. You should see

“A-d 1” on the display.

3 | P a g e

5. Put the platter upside down (with the edges

facing up) and place it on the scale platform.

Make sure that the platter is pushed back far

enough as to allow access to all 3 micro-switches

and forward enough to be able to safely place 30

lb (or 15 kg) on the platter.

6. Make sure there is nothing on the platter and

press SW3 three times. You should see “CAPA”

and a number on the display. This number

determines the scale’s capacity:

CAPA #

CAPACITY

0

6 x 0.002 lb / 3

x 0.001 kg

1

15 x 0.005 lb /

6 x 0.002 kg

2

30 x 0.01 lb

/15 x 0.005 kg

7. Press SW4 to change the capacity and SW5 once

you have selected a capacity.

4 | P a g e

8. You should see “Unit” and a number on the

display. This number determines what unit the

scale will use:

Unit #

Unit used

0

Kilograms (kg)

1

Pounds (lb)

9. Press SW4 to change the unit and SW5 once you

have selected a unit.

10. You should see “tyPE” and a number on the

display. This number determines the scale’s

interface type. Press SW4 until the number is 5.

11. Press SW5. “End” will be displayed, “CAL” will

flash three times, and then “A-d1” will be

displayed.

5 | P a g e

12. Turn the scale off and place the platter properly

on the platform.

13. Turn the scale on.

14. If all went well, the scale will do a test cycle and

display 0.00.

If this does not occur, turn the scale off, remove

the platter, and repeat steps 2-13 until it does.

6 | P a g e

15. Remove the platter.

16. Replace the calibration bolt and plate.

17. Replace the platter.

7 | P a g e

Connecting the CAS PD-I to your computer

To connect the CAS PD-I to your computer, you need the following cable:

The CAS Part Number is: JPDB SHARP RS232 7880-PD0-4134 or IBM 7880-PD0-4128

Turn off your computer and follow these steps:

1. Find the serial port on your computer.

2. Plug the serial cable connected to the scale into

the port.

8 | P a g e

Setting up the CAS PD-I to work with CRE

To set up the scale to work with CRE, turn on the computer, start CRE, select Manager, provide

the requested credentials, and follow these steps.

1. Select Setup and then Setup

Screen.

2. Select the Hardware tab.

3. Select the COM port that the

scale is connected to. Many

systems have labels on the

ports that contain this

information. If yours does

not, select COM 1. You may

need to select other COM

ports later if CRE does not

find the scale.

Enter the optional tare amount.

Leave at 0 if you do not want to

use a tare.

4. Select CAS PD-I or PD II for

“Primary Scale Type”.

9 | P a g e

5. Select Page 2.

6. Select the radio button next

to 30x.01 lb under “Scale

Weight Formatting”.

7. Select Scale.

8. Activate the scale feature

and select Done.

9. Select Update.
