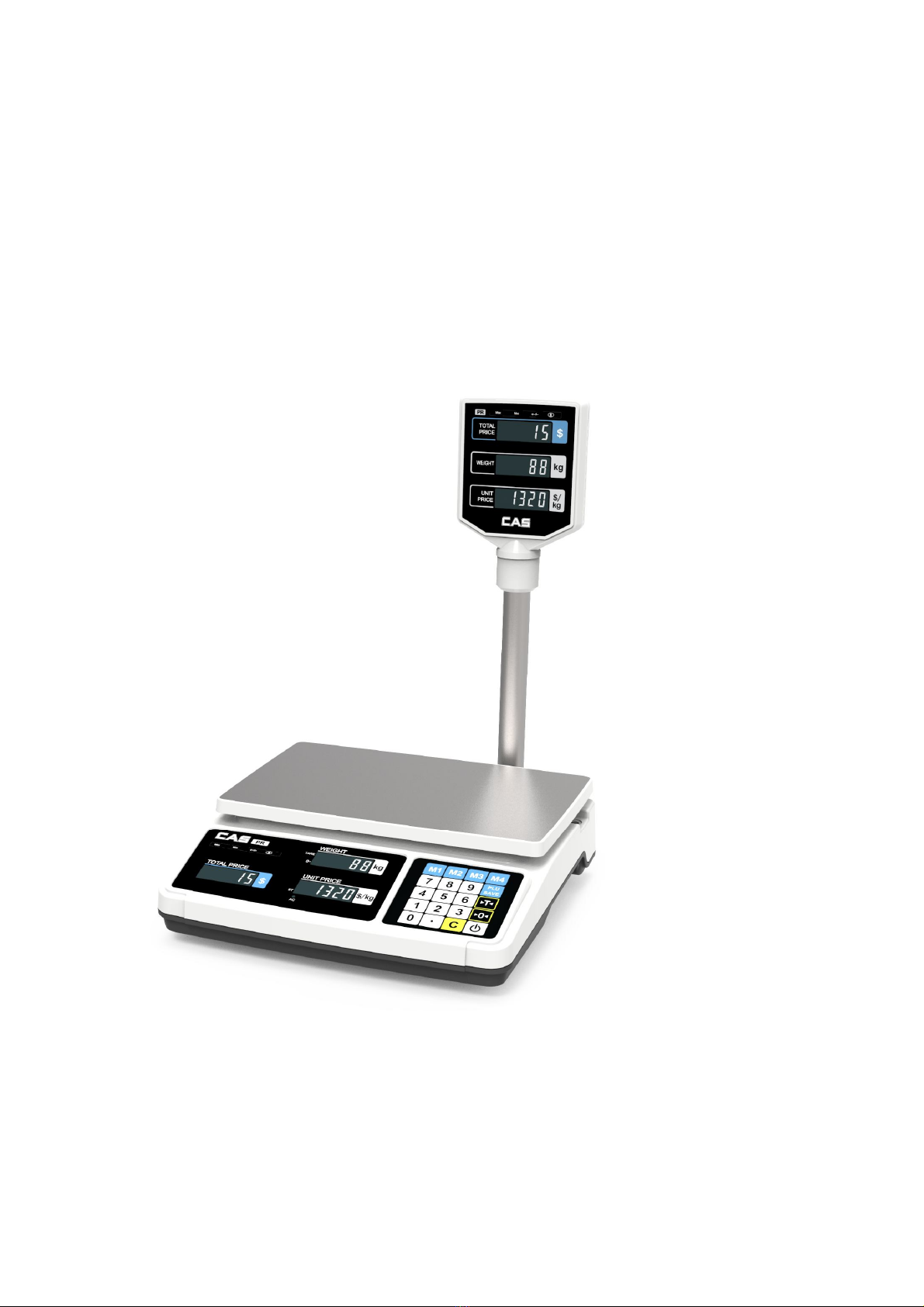

CAS PR Series Manual de usuario

PR-LCD SERVICE MANUAL

REV 0.1

1、Introduction

1.1 PREFACE

Thank you for the purchasing of our CAS PR Series.

This series have been designed with CAS reliability, under rigid quality control and with

outstanding performance. Your speciality departments can enjoy with these high quality

reliable CAS products.

We believe that your needs will be satisfied and you will have proper reliability in variable

weight.

This manual will help you with proper operations and care of the PR series.

Please keep it handy for the future reference.

Display & Key Pad

1.2 Sealing Method

Specifications

Capacity / e=d 6 kg / 2 g

6 kg / 0.2 g

15 kg / 5 g

15 kg / 1 g

15 kg / 0.5 g

30 kg / 10 g

30 kg / 2 g

30 kg / 1 g

Internal

Resolution 1/60000 1/60000 1/60000

External

Resolution

1/3000

1/30000

1/3000

1/15000

1/30000

1/3000

1/15000

1/30000

MAX Tare 0 – 2.998 kg 0 – 7.495 kg 0 – 14.99 kg

Display 25 x 19(mm, 2 Digit LED) x 3 EA 6 digit LED

Symbols STABLE, ZERO, TARE, Low Battery

HI / LO & PCS, Charge

Keys ZERO, TARE, MODE, POWER

Functions

Counting-Counting Sample Range :

10~100,200,300,400,500

Weight Comparison Function : hi, ok, low

Sleep Mode Function

Dimensions 340(W)x215(D)

Platter size 320(W) x 210(D)[mm]

Weight 5.5kg

Power 6V 4Ah 20HR Pb Battery or A.C Power

Operation Time Approx. 40hours (Normal mode)

Operating

Temperature -10°C ~ +40°C / 14°F ~ 104°F

Minimum Voltage

Level of The Battery About 5.6V

Option RS 232

1) General Calibration

- Pressing and holding calibration switch press [POWER] key to go to calibration Mode

1.4 WEIGHING SPECIFICATIONS

⑴ Single Capacity (Table 1)

NO. CAPA Min Tare

0 3kg 1g 0 – 1.499kg

1 6kg 2g 0 – 2.998kg

2 15kg 5g 0 – 7.495kg

3 30kg 10g 0 – 14.99kg

4 6lb 0.002lb 0 – 2.998lb

5 15lb 0.005lb 0 – 7.495lb

6 30lb 0.01lb 0 – 14.99lb

7 60lb 0.02lb 0 – 29.98lb

15 3kg 0.0002 kg(1/15000)

16 15kg 0.001 kg(1/15000)

17 30kg 0.002 kg(1/15000)

18 3kg 0.0001 kg(1/30000)

19 6kg 0.0002 kg(1/30000)

20 15kg 0.0005 kg(1/30000)

21 30kg 0.001 kg(1/30000)

22 15 lb 0.001 lb(1/15000)

23 30 lb 0.002 lb(1/15000)

24 6 lb 0.0002 lb(1/30000)

25 15 lb 0.0005 lb(1/30000)

26 30 lb 0.001 lb(1/30000)

27 60 lb 0.002 lb(1/30000)

⑵Dual Capacity (Table2)

NO. CAPA Min Tare

8 6kg （0 – 3kg）- 1g (3 – 6kg) – 2g 0 – 2.999kg

9 15kg （0 – 6kg）- 2g (6 – 15kg) – 5g 0 – 5.998kg

10 30kg （0 – 15kg）- 5g (15 – 30kg) – 10g 0 – 9.995kg

11 6lb （0 – 3lb）- 0.001lb (3 – 6lb) – 0.002lb

0 – 2.999lb

12 15lb （0 – 6lb）- 0.002lb (6 – 15lb) – 0.005lb

0 – 5.998lb

13 30lb （0 – 15lb）- 0.005lb (15 – 30lb) – 0.01lb

0 – 9.995lb

14 60lb （0 – 30lb）- 0.01lb (30 – 60lb) – 0.02lb

0 – 29.99lb

28 6 kg 0-3kg 0.0002 3-6kg 0.0005

29 15 kg 0-6kg 0.0005 6-15kg 0.0010

30 30kg 0-15kg 0.001 15-30kg 0.002

31 6 lb 0-3lb 0.0002 3-6lb 0.0005

32 15 lb 0-6lb 0.0005 6-15lb 0.0010

33 30 lb 0-15lb 0.001 15-30lb 0.002

34 60 lb 0-30lb 0.002 30-60lb 0.005

1.5 DISPLAY

● LCD Backlight

● Weighting Display：6 bits

● Unit Price Display：5 bits

● Total Price Display：6 bits

● Zero Point Indicator、Tare Indicator、Power Source Indicator、Low Battery Indicator

1.6 KEYBOARDS

KEYS FUNCTIONS

Used to enter all the numeric data.

PLU key.

Used to power on& off the scale.

Used to clear all the numeric price display.

Used to clear sum total price.

Used to clear all the daily total prices.

Used to correct the zero point.

To set or clear tare value.

PLU save key.

Display battery voltage %(push more than

2second)

Used to enter the decimal point when price is

entered.

1.7 Weighing Mode

.⑴Weighing with Tare

Tare Method：

Place the container on the platter，press TARE key。

.⑵Zero Set Range

Initial Zero ±The（2％，5%，10%，20%）Capacity

Zero Set Range ±The（2％，5%，10%，20%）Capacity

1.8 Battery Consumption Time

Battery specifications 6V/4AH, battery charging time 16 hours, 25 hours continuous use time.

When the battery voltage drops below 5.3V, the low battery indicator lights. For the protection of

battery over discharge, when the battery voltage is lower than 5.6V, the automatic shutdown.

2、Test Mode Introduction

I、 Power on to Enter Calibration Mode

Press [CAL] key, then press [ON/OFF] key and enter cal mode.

Display [ CAL ] three times, then show [C-1].Press [Zero] or Numeric keys to select

one of C1~C5 item, press [Tare] key to get into C1~C5 mode.

Notice：Because the keyboard of the scale will test the key value and the battery

voltage when enter into CAL mode, please unpress the [CAL] key, and no key will be pressed

between display [CAL] and dsplay [C1].

When keyboard can not be used, please try again.

II、 C1 Set Weighing Specification

C1：Weighing Specification Set：0～34

Display [C1 x ] Showed In Table 1 and Table2.

III、 CLEAR MEMORY

C2：EEPROM Initiation

Press [Tare] Key to Initiate EEPROM.

IV、 C3 Calibration

Display [ULoAd]

Press [Tare] Key, Confirm Zero Point。

Display [LoAd]

Load the poise, press [Tare]and wait a few seconds. If the weight loaded is just the

same as the full range, press [Tare] complete this calibration. Or you should modify the value

through Nemeric Key and Press [Tare] Key.

Notice：Calibration weighting value should not great than 10% of capacity.

V、 FUNCTION SET

C4-1:Initial Zero Range

[C4-1 0] 2% Full Range

[C4-1 1] 5% Full Range

[C4-1 2] 10% Full Range

[C4-1 3] 20% Full Range

C4-2: Zero Set Range

[C4-2 0] 2% Full Range

[C4-2 1] 5% Full Range

[C4-2 2] 10% Full Range

[C4-2 3] 20% Full Range

C4-3：Zero-Tracking Range

[C4-3 0] 1/4e

[C4-3 1] 1/2e

[C4-3 2] 1e

[C4-3 3] 2e

C4-4：BackLight On/Off

[C4-4 0] BackLight Off

[C4-4 1] BackLight ON

C6.

C6-1：RS232

[C6-1 0] Do Not Print

[C6-1 1] Manual Print (PR-LCD Non)

[C6-1 2] Auto Print when the scale is stable

[C6-1 3] Continue Auto Print when the scale is stable

[C6-1 4] Continue Print

C6-2：Baud rate 。

[C6-2 0] baud rate: 9600

[C6-2 1] baud rate: 4800

[C6-2 2] baud rate: 2400

[C6-2 3] baud rate: 1200

[C6-2 4] baud rate: 600

C7 . Percent Calibration

3、Circuit Diagram (PR-LCD)

3.1 MAIN PCB
