Car-Interface CI-RL4-UCON8-CP Manual de usuario

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Video-inserter

CI-RL4-UCON8-CP

Compatible with

Dodge and Jeep vehicles

with Uconnect Multimediassystem

with 8.4“ monitor

Video-inserter for front- and rear-view camera

and two additional video sources

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC and PAL compatible

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the interface compatibility of vehicle and accessories

1.3. Connectors

1.3.1. Connectors –video interface

1.3.2. Connectors - daughter PCB)

1.4. Dip-switch settings

1.4.1. 8 dip –black

1.4.1.1. Activating the front camera input (dip 1)

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

1.4.1.3. Rear-view camera setting (dip 5)

1.4.2. 4 dip - red

2. Installation

2.1. Place of installation

2.2. Connection scheme –with PNP harness

2.3. Connection scheme –without PNP harness

2.4. Installation - Ribbon cables into the monitor panel

2.4.1. Warning notes, concerning the installation of ribbon cables

2.5. Connection - picture signal cable

2.6. Connection –10pin Power / CAN cable with PNP harness

2.7. Connection –10pin Power / CAN cable without PNP harness

2.8. Power supply

2.9. Power supply output

2.10. Connection –video inputs

2.10.1. Audio insertion

2.10.2. After-market front camera

2.10.3. After-market rear-view camera

2.10.3.1. Case 1: Video-interface receives the reverse gear signal

2.10.3.2. Case 2: Video interface does not receive the reverse gear signal

2.11. Connection –external keypad

3. Interface operation by external keypad

4. Picture settings

5. Specifications

6. Frequently asked questions

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labour cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation.

Technical knowledge is necessary for installation. The place of installation must be free of

moisture and away from heat sources.

1.1. Delivery contents

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page4

Requirements

Brand

Compatible vehicles

Compatible systems

Dodge

Challenger since model year 2018

Charger since model year 2018

Durango since model year 2018

Uconnect 4C VP4R-A Multimediasystem

with 8.4inch monitor and all-in-one head-unit

Jeep

Compass model years 2018 –2019

Grand Cherokee model year 2018

Renegade Facelift model year 2019

Wrangler JL since model year 2019

Uconnect 4C NAV UAQ Multimediasystem

with 8.4inch monitor and all-in-one head-unit

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory audio-AUX-input

or a FM-modulator can be used.

In case that 2 AV sources shall be connected, a desired audio switching will

require additional electronic.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera

is only possible while the reverse gear is engaged. To delay the switch-back an

additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is possible by

external keypad.

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors

1.3.1. Connectors - video-interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options.

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page5

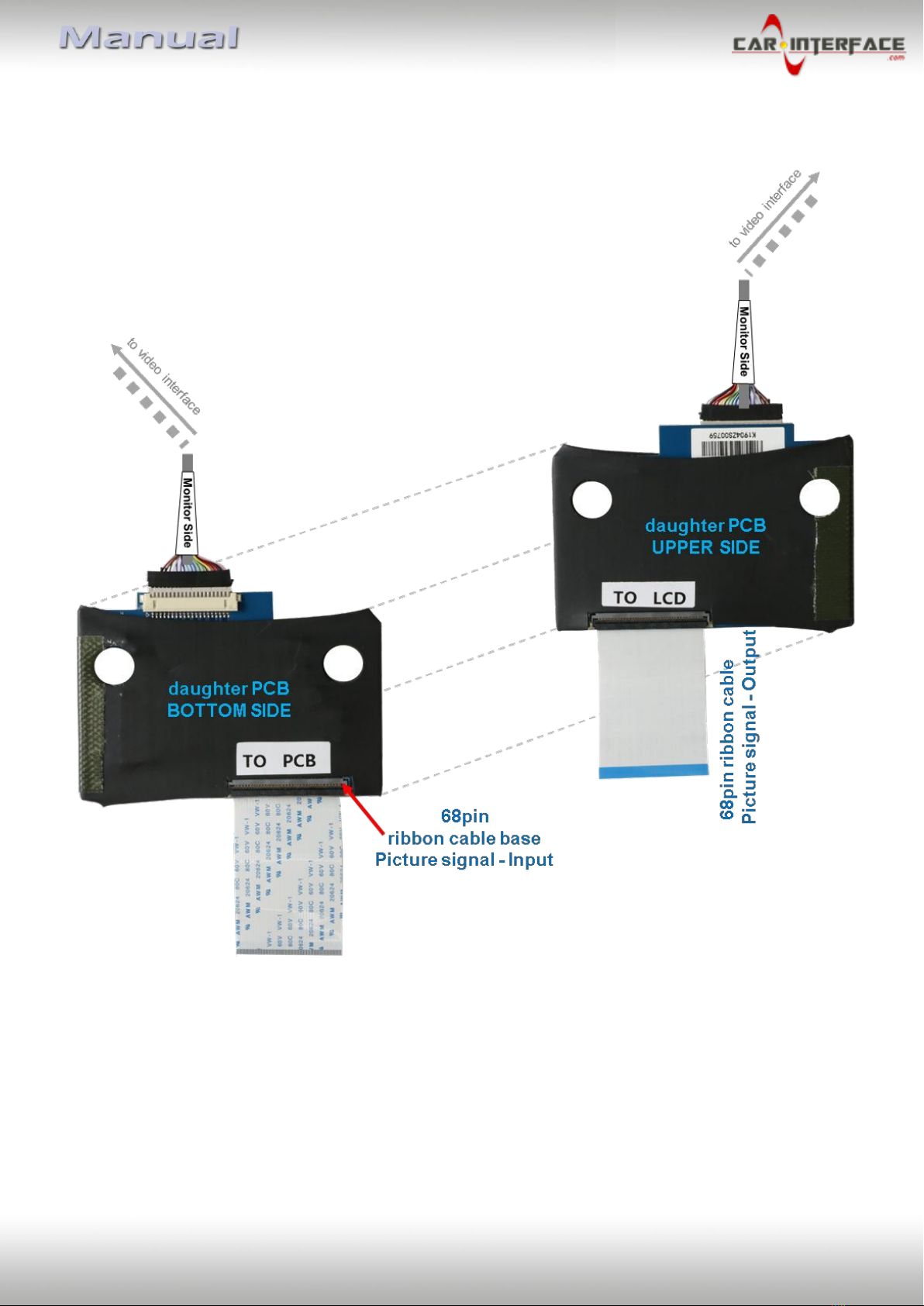

1.3.2. connectors –daughter PCB

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page6

1.4. Dip-switch settings

1.4.1. 8 dip - black

Some settings have to be selected by the dip-switches on the

video interface.

Dip position down is ON and position up is OFF.

*The front camera will automatically be switched for 10 seconds after disengaging the

reverse gear.

See the following chapters for detailed information.

Dip

Function

ON (down)

OFF (up)

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay

and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

Set to OFF

Rear-view cam type

after-market

factory or none

No function

Set to OFF

No function

Set to OFF

No function

Set to OFF

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page7

1.4.1.1. Activating the front camera input (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.1.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It is recommended to enable only the required inputs, disabled inputs

will be skipped when switching through the video-interfaces inputs.

1.4.1.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera.

If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the

reverse gear is engaged.

Note: Dips 4, 6, 7 and 8 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Video Interface has to be performed!

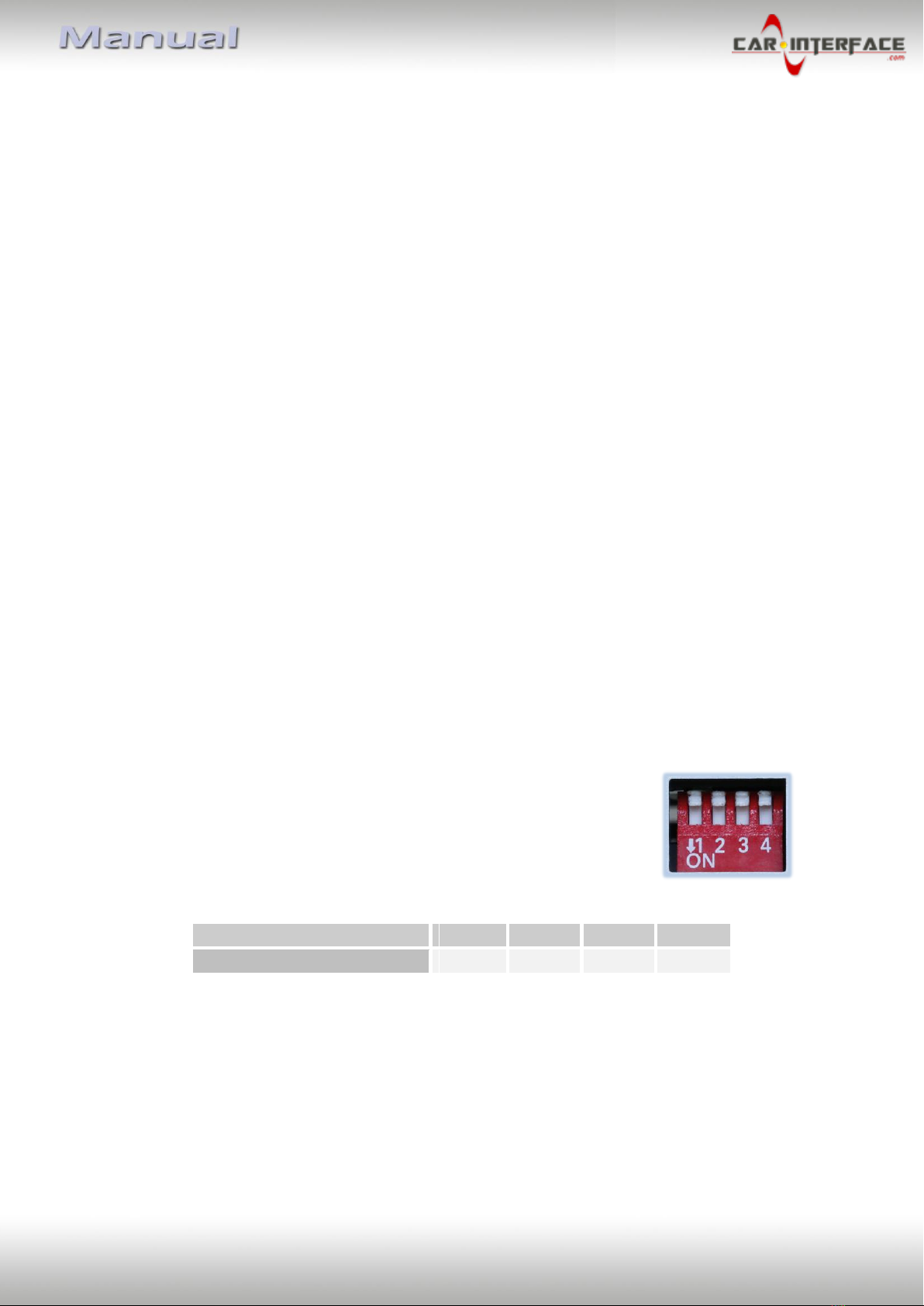

1.4.2. 4 dip - red

By using the Dip-switches, the factory Head-unit or vehicle can be

chosen which the interface will be connected to.

Dip position down is ON and position up is OFF.

Set all dip switches to off

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page8

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

The video interface is designated to be connected behind the vehicle`s head unit.

The daughter PCB shell be installed and connected inside the factory head unit behind the

monitor panel.

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page9

2.2. Connection Scheme –with PNP harness

Version 20.08.2021 HW CANM(V100)/(V36) CI-RL4-UCON8-CP

Page10

2.3. Connection Scheme –without PNP harness
