Canon EOS Rebel Ti SERIES Manual de usuario

INSTRUCTIONS

English

NNN E COVER 02.5.11 11:12 AM Page 3

Thank you for purchasing a Canon product.

The EOS REBEL Ti (DATE) / 300V (DATE) is a very compact autofocus,

single-lens reflex camera. It can be used for a wide variety of subjects

and situations with fully automatic and user-controlled shooting modes.

Read this Instructions and familiarize yourself with your new camera

before taking pictures.

Also read “Handling Cautions” on page 4 to prevent camera malfunction

and damage.

Keep this instruction booklet handy for easy reference.

Before Using Your Camera

• Before shooting an important event, be sure to take test shots to

make sure the camera operates properly.

• EOS cameras have a lens mount for dedicated operation

(autofocusing, exposure control, etc.) with Canon EF lenses. Using

a non-Canon EF lens with an EOS camera may not result in proper

camera or lens operation.

Note that the warranty does not cover any camera malfunction or

damage occurring with the use of non-Canon products.

Conventions Used in this Instructions

• The < > icon indicates the Main Dial.

• All operation procedures described in this booklet assume that the

Command Dial is set to a mode except < >. Before proceeding

with any operation, be sure that the Command Dial is set to a

shooting mode.

• Page numbers in parentheses (→page ■) indicate where you can

find additional relevant information.

• The camera control icons and markings used in this booklet

correspond to the actual icons and markings found on the camera.

See “Nomenclature” on page 8.

• The ( ) and ( ) icons indicate that the respective function

remains in effect for 4 and 6 sec. respectively after the button is

released.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 2

Contents

Symbols

The Caution symbol alerts you to actions to prevent shooting

problems.

The Note symbol gives supplemental information for basic

camera operation or picture-taking tips.

Conventions Used in this Instructions ............................................2

Handling Cautions ..........................................................................4

Quick Start Guide ...........................................................................6

Nomenclature .................................................................................8

Before You Start ..............................................................13

The things you need to do before taking pictures and the basic

operation are explained.

Fully Automatic Shooting ..............................................21

Since everything is automatic, all you do is press the shutter

button.

User-Controlled Shooting ..............................................31

Set the shutter speed, aperture, exposure compensation, AEB, and

other settings as you wish.

Reference ........................................................................52

Basic terminology, exposure warning displays, shooting mode

settings, and other information.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 3

Handling Cautions

Camera Care and Storage

(1) The camera is a precision instrument. Do not drop it or subject it to

physical shock.

(2) This camera is not waterproof and cannot be used underwater. If

the camera gets really wet, promptly consult your nearest Canon

Service Center. Wipe off any water droplets with a dry cloth. If the

camera has been exposed to salty air, wipe with a well-wrung damp

cloth.

(3) Do not leave the camera in places prone to excessive heat such as

in a car on a sunny day. Excessive heat can cause the camera to

malfunction.

(4) The camera contains precision electronic circuitry. Never attempt to

disassemble the camera.

(5) Use only a blower brush to blow away dust on the lens, eyepiece,

mirror, focusing screen, and film compartment. Do not clean the

camera body or lens with a cleaner containing an organic solvent.

For stubborn dirt, consult your nearest Canon Service Center.

(6) The shutter curtains are extremely thin. Use only a blower to clean

them. Be careful not to blow air too forcefully on the shutter curtains.

The shutter curtains can be easily deformed or damaged. Also,

when loading and unloading film, be careful not to touch the shutter

curtains.

(7) Do not touch the electrical contacts with your fingers. Otherwise

corrosion may develop on the contacts, resulting in improper

camera operation.

(8) If the camera is not to be used for an extended period, remove the

battery. Store the camera in a well-ventilated, cool, dry place. During

the storage period, press the shutter button to release the shutter a

few times once in a while.

(9) Avoid storing the camera in a laboratory, cabinet, etc., where

corrosive chemicals are present.

(10) If the camera has not been used for an extended period or if the

camera is to be used for an important event, check the operation of

all the camera controls or take it to your nearest Canon Service

Center for inspection.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 4

LCD Displays

In time, the camera’s LCD panel display and the LCD display in the

viewfinder may fade and become difficult to read. If this happens, have it

replaced (at cost) by a Canon Service Center.

At low temperatures, the LCD display response may become slower.

And at 60˚C/140˚F or higher temperatures, the display may blacken. In

either case, the display will return to normal at room temperature.

Lithium Batteries

(1) The camera operates on two CR2 lithium batteries. Check the

battery level in the following cases (→page 14):

• After replacing the batteries.

• After not using the camera for an extended period.

• The shutter stops working.

• The camera is being used in a low-temperature environment.

• You will be shooting an important event.

(2) Before installing the batteries, wipe the battery contacts to remove

any fingerprints and smudges. This is to prevent faulty connections

and corrosion.

(3) Never disassemble or recharge the batteries. Also, never store a

battery in high-temperature places or short circuit the battery

contacts or toss a battery into a fire.

(4) Although the batteries work well even at low temperatures, battery

performance may decline slightly at freezing temperatures. In such a

case, keep spare batteries warm in a pocket, etc., and use and warm

the batteries alternately.

How Low Battery Levels Affect Camera Operation

On the LCD panel, if the < > icon blinks or it is not displayed, a

proper exposure can still be obtained as long as the shutter releases.

However, when the battery level is low, film advance and auto rewind

might stop midway or not work at all and < > may blink on the LCD

panel. After the batteries are replaced with new ones, film advance will

be possible and film rewind can resume by pressing the < > button.

Lens Electrical Contacts

After detaching the lens from the camera, put

on the lens caps or put down the lens with the

rear end up to avoid scratching the lens surface

and electrical contacts.

Contacts

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 5

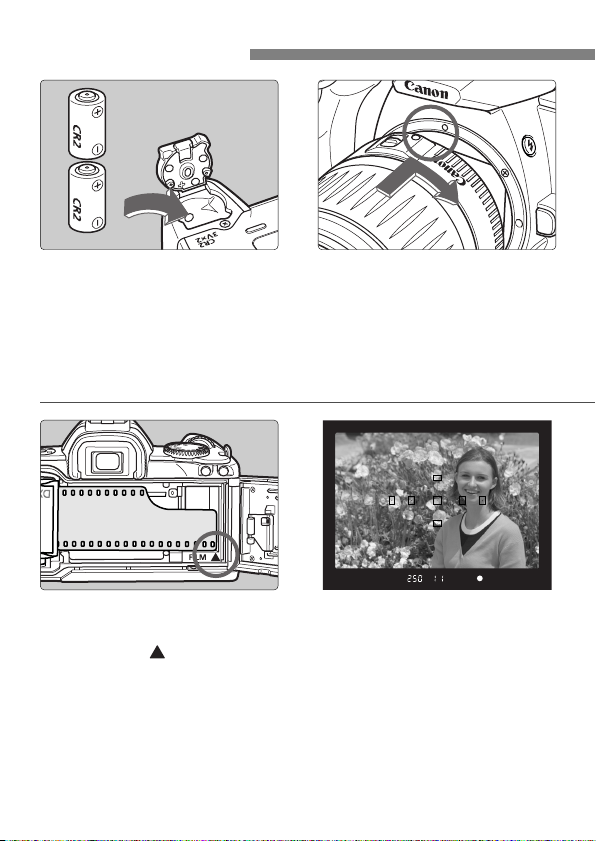

Quick Start Guide

1Install the batteries.

Insert two CR2 lithium bat-

teries as shown by the bat-

tery orientation diagram on

the battery compartment

cover. (→page 14)

2Attach a lens.

Align the red dots on the

lens and camera and turn

the lens as shown by the

arrow until it snaps into

place. (→page 16)

5Load the film.

Align the edge of the film

with the < > mark, and

close the back cover until it

snaps shut. (→page 18)

• The film will then advance

to the first frame

automatically.

6Focus the subject.

Aim the AF point on the

subject and press the shut-

ter button halfway to auto-

focus. (→page 22)

•

Under low-light or backlit

conditions, the built-in flash

will pop-up and fire

automatically. (→page 49)

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 6

3On the lens, set the

focus mode switch to

<AF>.

(→page 16)

4Turn the Command Dial

to < > (Full Auto).

(→page 22)

7Take the picture.

Press the shutter button

fully to take the picture.

(→page 17)

8Unload the film.

At the end of the roll, the

film rewinds automatically.

Open the back cover to

remove the film cartridge.

(→page 19)

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 7

Nomenclature

Command Dial

(→page 12)

< > Main Dial

(→

page 2)

Shutter button

(→page 17)

< >Film plane mark

Grip / Battery

compartment

(→page 14)

*Remote control

sensor

(→page 28)

Self-timer

(→page 27)/

*Remote control

lamp

(→page 28)

Built-in flash (→page 49)

AF-assist beam (→page 23)

Red-eye reduction lamp (→page 26)

Remote control

terminal

(→page 51)

Flash-sync contact

Hot shoe

Strap mount

(→page 13)

< > Flash button

(→page 49)

< > /

Film advance mode/

Self-timer/*Remote

control button

(→page 35/27)

Manual focusing ring (→page 34)

Zoom ring

Lens release button

(→page 16)

Depth-of-field preview button

(→page 41)

Focus mode switch (→page 16)

* DATE Model only

•The reference page is indicated in parentheses.

•The camera controls are indicated as icons in brackets < >.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 8

Function

button

(→page 19,

26, 29, 46,

48, 50, 51)

LCD panel

(→page 10)

< > AF point

selection button

(→page 32)

Eyecup (→page 28)

Back cover

< > AE lock

(→page 44)

/FE lock button

< > Exposure

compensation (→page 45)

Manual aperture setting

(→page 42)

*SET button (→page 30)

Battery compartment

release lever

(→page 14)

compartment cover

Guide hole

Viewfinder eyepiece

< > Midroll rewind button

(→page 20)

Film check window

Tripod socket

Back cover

release lever

(→page 18)

Battery

< > LCD panel illumination button

(→page 51)

* DATE Model only

Take off the eyecup, then slide the diop-

tric adjustment lever left or right until the

AF point in the viewfinder looks sharp.

The dioptric adjustment range is –2.5 dpt

to +0.5 dpt.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 9

Nomenclature

LCD Panel

< > Beeper

< > AEB

Aperture ( - )

Red-ey reduction

setting ( , )

Beeper setting ( , )

AEB amount ( - )

Date

< > Manual focus

< > Function pointer

Shutter speed

(-,)

FE lock ( )

ISO film speed ( - )

Date

Film advance mode

< > Single frame

< > Continuous shooting

< > Self-timer/

Remote control

Shooting mode

AF point mark

< > Film mark Exposure level

Exposure compensation amount

AEB level

Film transport indicator

Red-eye reduction lamp-on indicator

Battery level mark

Multiple exposures

Red-eye reduction

< > Date

DATE

Model

ISO film speed

Frame counter ( - )

Multiple-exposure setting

(- )

Self-timer operation ( - )

Remote control operation ( , )

Non-DATE Model

•The LCD panel is shown with all the

information displayed. The actual display

will look different.

NNN E SEC0 (2-12) 02.5.11 11:13 AM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Canon

Canon

Canon SD Manual de usuario

Canon

Canon EOS REBEL T6i Manual de usuario

Canon

Canon POWERSHOT A75 Manual de usuario

Canon

Canon 2807B005 Manual de usuario

Canon

Canon IXUS 170 Manual de usuario

Canon

Canon 40D - EOS 40D DSLR Manual de usuario

Canon

Canon DIGITAL IXUS 65 Manual de usuario

Canon

Canon Powershot A650 IS Manual de usuario

Canon

Canon Power Shot A 720 IS Manual de usuario

Canon

Canon EOS 7D Mark II (G) Manual de usuario

Canon

Canon PowerShot SD630 Digital ELPH Camera Manual de usuario

Canon

Canon EOS REBEL T2I Manual de usuario

Canon

Canon PowerShot A570IS - PowerShot A570 IS Digital... Instrucciones de montaje

Canon

Canon EOS-1D Mark II Digial Manual de usuario

Canon

Canon PowerShot A2600 Manual de servicio

Canon

Canon IXUS90IS Manual de usuario

Canon

Canon POWERSHOT A75 Manual de usuario

Canon

Canon Powershot SX40 HS Manual de usuario

Canon

Canon EOS 60D Manual de usuario

Canon

Canon MP480 series Manual de usuario

Canon

Canon PowerShot S110 Digital ELPH Manual de usuario

Canon

Canon PowerShot SX500 IS Manual de usuario

Canon

Canon A-1 Manual de usuario

Canon

Canon PowerShot A4050 IS Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Nikon

Nikon Coolpix 100 Manual de usuario
