Campbell CR9000X Manual de usuario

CR9000X Measurement an

Control System Overvie

Revision: 3/07

Campbell Scientific, Inc.

CR9000X Overview Table of Contents

Overview..................................................................... OV-1

OV1. Physical Description ......................................................................OV-1

OV1.1 Basic System.........................................................................OV-1

OV1.2 Measurement Modules..........................................................OV-3

OV1.3 Communication Interfaces ....................................................OV-7

OV2. Memory and Programming Concepts............................................OV-8

OV2.1 Memory.................................................................................OV-8

OV2.2 Measurements, Processing, Data Storage..............................OV-8

OV2.3 Data Tables............................................................................OV-9

OV3. PC9000 Application Software .......................................................OV-9

OV3.1 Hardware and Software Requirements..................................OV-9

OV3.2 PC9000 Installation.............................................................OV-10

OV3.3 PC9000 Software Overview................................................OV-10

OV4. Specifications...............................................................................OV-15

CR9000X Overview Table of Contents

OV-1

Overview

The CR9000X is a modular, multi-processor system that provides precision measurement capabilities

in a rugged, battery-operated package. The system makes measurements at a rate of up to 100 K

samples/second with 16-bit resolution. The CR9000X Base System includes CPU, power supply, and

A/D modules. Up to nine I/O modules are inserted to configure a system for specific applications.

The on-board, BASIC-like programming language includes data processing and analysis routines.

PC9000 Windows

™

Software provides program generation and editing, data retrieval, and realtime

monitoring. LoggerNet software can be used for multiple station applications requiring modem

communications and/or where schedule data collection to a PC is required.

CR9000

ACADAPTOR

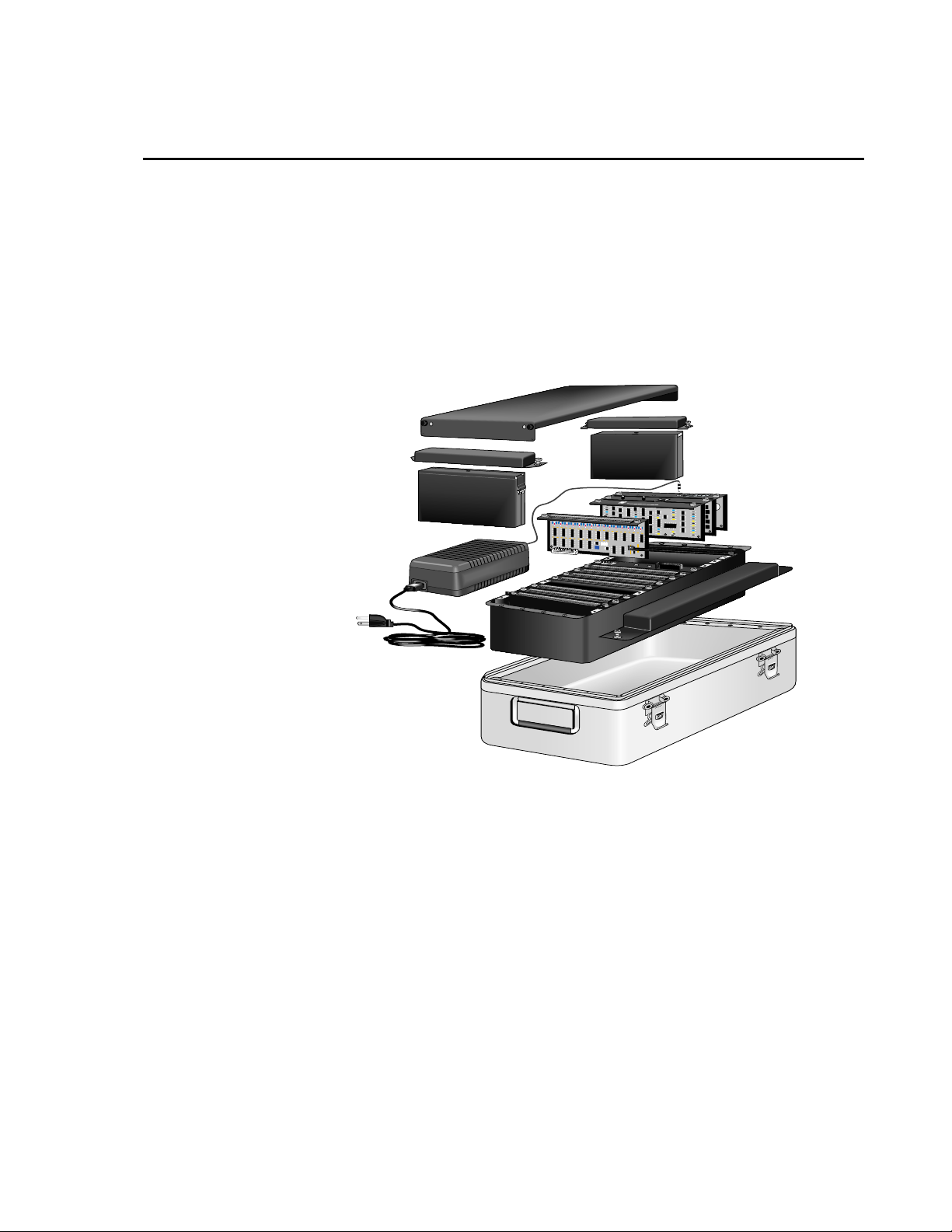

FIGURE OV1-1. CR9000X Measurement and Control System

OV1. Physical Description

OV1.1 Basic System

CR9032 CPU Module

The CR9032 CPU Module provides system control, processing, and

communication to a PC via the built-in 10BaseT/100BaseT Ethernet port or the

RS-232 port. The CR9032 also has built-in Serial Device for Measurement

(SDM) terminals and a CSI 9-pin port for communication with Campbell

Scientific peripherals. The SDM 12 volt supply is current limited to 1.85

amps. The main processor is a 180 MHz Hitachi SH-4 microprocessor. The

module has 128 MB SDRAM and 2 MB Flash EEPROM.

Overview

OV-2

MEASUREMENTS:

Analog Output Peripheral (AO4)

CANBus Interface Peripheral (CANBUS)

CSAT3 Sonic Anemometer (CSAT3)

DSP4 Display (DSP4)

I/O Port Peripheral (CD16AC)

Interval Timer Peripheral (INT8)

Output Data to PC Card (CardOut)

Serial Input/Output Peripheral (SIO4)

Switch Closure Measurement Peripheral (SW8A)

CR9032 CPU

RS-232 CS I/O ETHERNET CARD PC-CARD

MADE IN USA

STATUS

Top of Card Faces Down

CONTROL

SDM +12 G C1 C2 C3

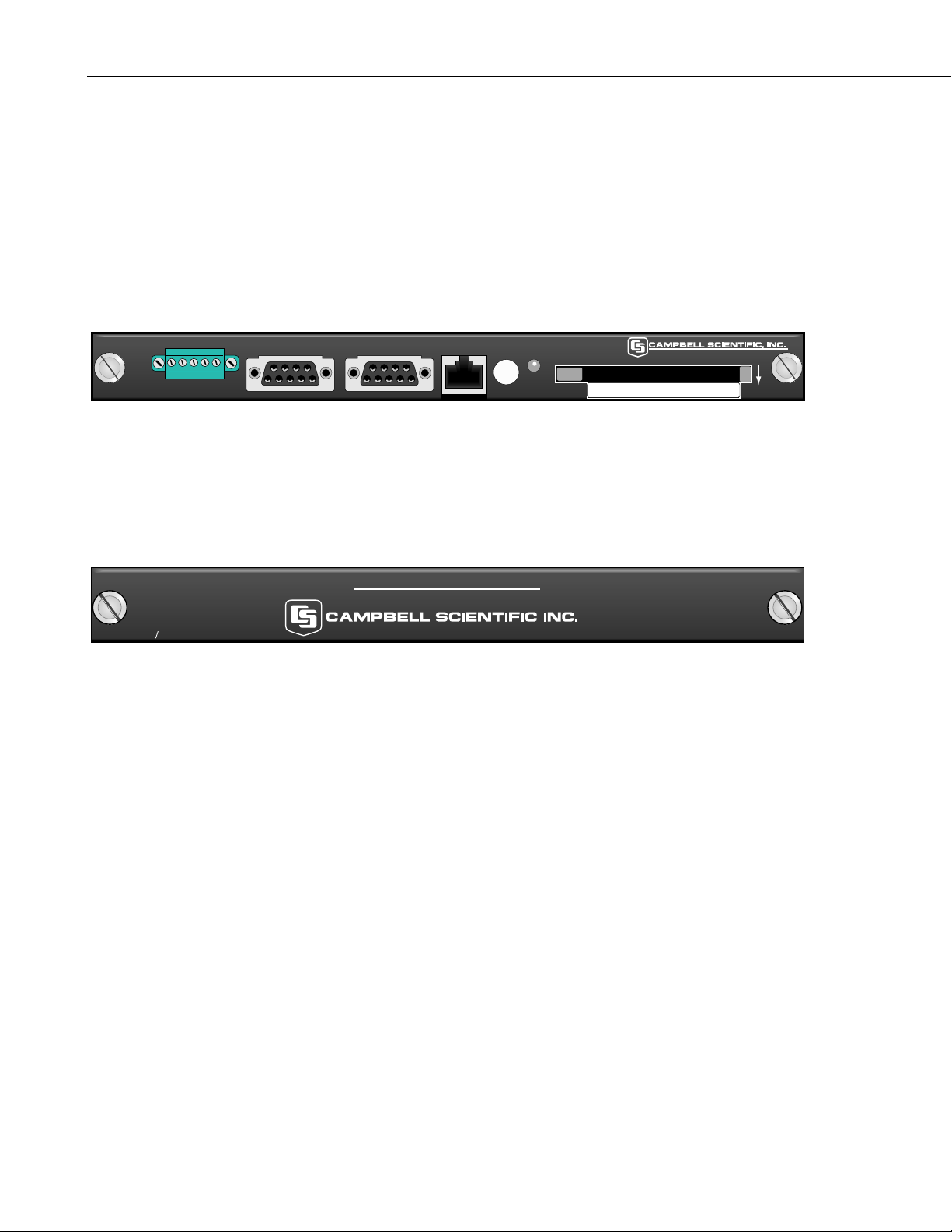

FIGURE OV1-2. CR9032

CR9041 A/D and Amplifier Module

The CR9041 A/D and Amplifier Module provides signal conditioning and 16

bit, 100 kHz A/D conversions.

CR9041 A D

CR9000X

MEASUREMENT & CONTROL SYSTEM

LOGAN, UTAH

MADE IN USA

FIGURE OV1-3. CR9041

CR9011 Power Supply Module and AC Adapter

The CR9011 Power Supply Module provides regulated power to the CR9000X

from the internal battery modules. It also regulates battery charging from

power supplied by the AC adapter, a DC input, or other external sources. The

AC adapter may be used where AC power is available (100 - 240 volts) to

provide power to the CR9000X and charge its batteries.

The CR9011 has a relay that allows shutting off power under program control.

The Power Up inputs allow an external signal to awaken the CR9000X from a

powered down state (PowerOff, Section 9). When the CR9000X is in this

power off state the On/Off switch is in the on position but the internal relay is

open. The power LED is not lit. If the "<0.5 " input is switched to ground or

if the ">2" input has a voltage greater than 2 volts applied, the CR9000X will

awake, load the program in memory and run. If the "< 0.5" input continues to

be held at ground while the CR9000X is powered on and goes through its 2-5

second initialization sequence, the CR9000X will not run the program in

memory. The CR9011's 12VOUT supply is current limited to 300 mA.

Overview

OV-3

MEASUREMENTS:

Battery (voltage and current)

CONTROL:

PowerOff

9011 POWER SUPPLY

POWER

ON OFF

CHARGE(9-18VDC)

<0.8V

CHARGE

>2.0V

12VOUT POWER UP

MADE IN USA

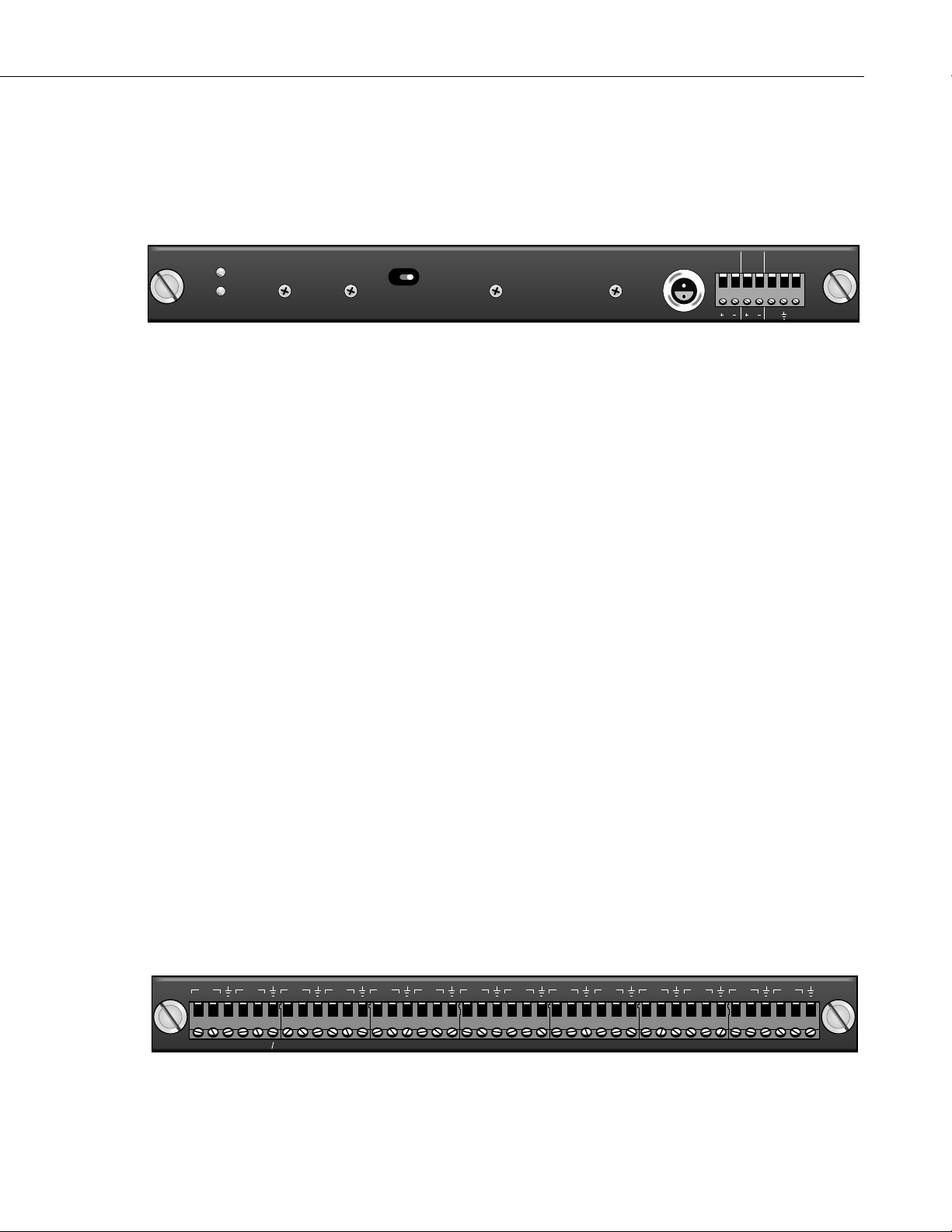

FIGURE OV1-4. CR9011

OV1.2 Measurement Modules

CR9050 Analog Input Module

The CR9050 Analog Input Module has 14 differential or 28 single-ended

inputs for measuring voltages up to ±5 V. Voltages exceeding ±9 V may cause

errors on other channels. An on-board PRT provides the reference temperature

for thermocouple measurements, while a heavy copper grounding bar and

connectors combine with the case design to reduce temperature gradients for

accurate thermocouple measurements. Resolution on the most sensitive range

is 1.6 µV.

MEASUREMENTS:

Voltage

Differential Voltage (VoltDiff)

Single-Ended Voltage (VoltSE)

Thermocouple, Differential Voltage (TCDiff) Thermocouple, Single-Ended

Voltage (TCSE)

Bridge measurements (also require CR9060 Excitation Module)

Full Bridge (BrFull)

6 Wire Full Bridge (BrFull6W)

Half Bridge (BrHalf)

3 Wire Half Bridge (BrHalf3W)

4 Wire Half Bridge (BrHalf4W)

Module Temperature (ModuleTemp)

9050 ANALOG INPUT W RTD

DIF 1

L10

L11

L12

L13

L14

MADE IN USA

FIGURE OV1-5. CR9050

Overview

OV-4

CR9051E Fault Protected 5 V Analog Input Module

The number of channels and measurements are the same as for the CR9050

Analog Input Module. Each input channel is fault-protected so as to permit

over-voltages between +50 V and –40 V without corruption of measurements

on other input channels. All the CR9051E input channels become open

switches when the CR9000X is powered off. The CR9051E is recommended

over the CR9050E for applications where fault voltages beyond ±9 V could

come in contact with the inputs, or when the CR9000X could be powered off

while still connected to sensors that have power applied to them. The

CR9051E supports the same instruction set as the CR9050.

CR9051E FAULT MADE IN USA

CR9050EC

5V ANALOG INPUT CONNECTOR FOR CR9050E OR CR9051E MADE IN USA

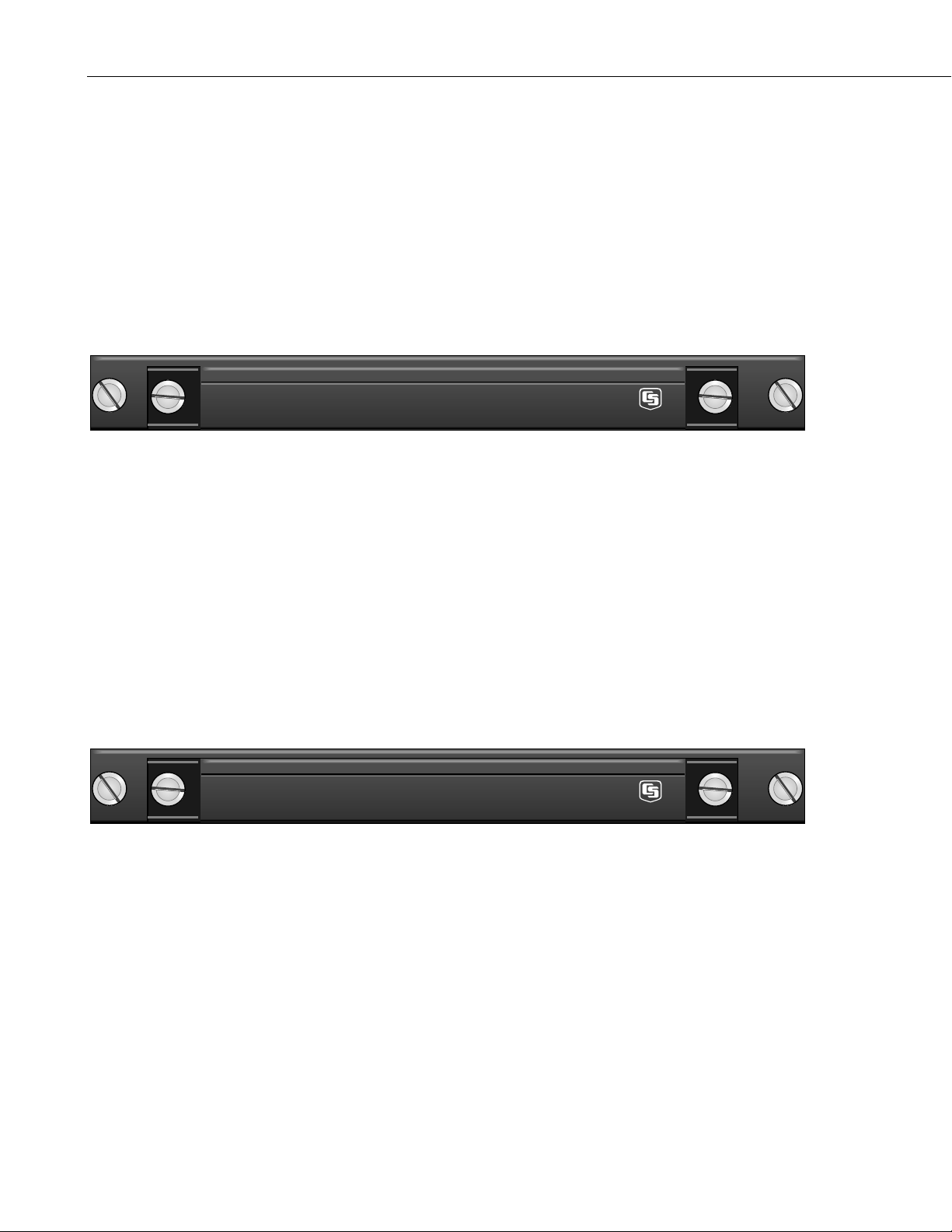

FIGURE OV1-6. CR9051E

CR9052DC Anti-Alias Filter Module with DC Excitation

The CR9052DC is a high-performance anti-alias filter module that extends the

capability of the CR9000X Measurement and Control System. The module

includes six anti-aliased analog measurement channels with differential input

ranges from ±20 mV to ±5 V. Each input channel has current and voltage

excitation options. Measurement rates up to 50 kHz per channel are possible.

MEASUREMENTS:

VoltFilt

FFTFilt

CR9052DC MADE IN USA

CR9052EC

FILTER MODULE CONNECTOR DC EXCITATION MADE IN USA

FIGURE OV1-7. CR9052DC

CR9052IEPE Anti-Alias Filter Module with DC Excitation

The The CR9052IEPE module allows direct connection of Internal Electronics

Piezo-Electric (IEPE) accelerometers and microphones to CR9000- or

CR9000X-series dataloggers. Each CR9052IEPE includes six channels. Each

channel has a BNC connector, an open circuit indicator LED, and a short

circuit indicator LED which can indicate if the channel is over-or under-driven.

Each channel has a built-in constant current source which is software

programmable to 0, 2, 4, or 6 mA.

Overview

OV-5

MEASUREMENTS:

VoltFilt

FFTFilt

CR9052IEPE

MADE IN USA

OPEN

CH 1

SHORT

OPEN

CH 2

SHORT

OPEN

CH 3

SHORT

OPEN

CH 4

SHORT

OPEN

CH 5

SHORT

OPEN

CH 6

SHORT

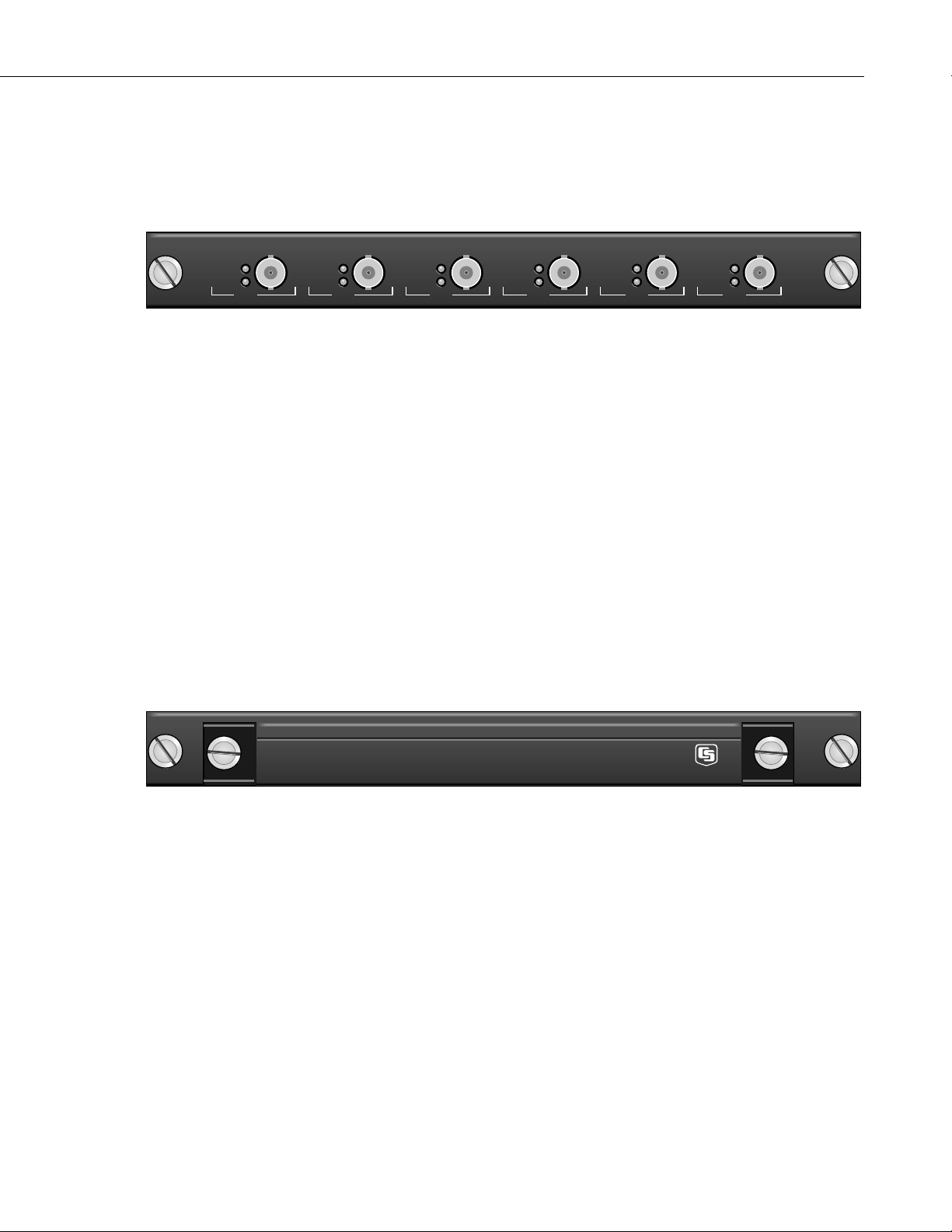

FIGURE OV1-8. CR9052IEPE

CR9058E Isolation Module

The CR9058E is a 10-channel, differential input isolation module. Each

channel has a 24-bit A/D converter which supplies input isolation for up to ±60

V continuous common mode voltage conditions. The full-scale ranges

available are ±60 V, ±20 V, and ±2 V with a resolution to 2 µVolts. Due to its

superb signal to noise ratio, and good resolution, an accurate thermocouple

measurement can be made on the 2 Volt range code. An on-board

programmable DSP provides digital filtering.

MEASUREMENTS:

VoltDiff

TCDiff

CR9058E 60V ISOLATED ANALOG INPUT MODULE W/RTD MADE IN USA

CR9058EC

60V ISOLATED ANALOG INPUT CONNECTOR FOR CR9058E MADE IN USA

FIGURE OV1-9. CR9058E

CR9055 50-Volt Analog Input Module

The CR9055 50-Volt Analog Input Module has 14 differential or 28 single-

ended inputs for measuring voltages up to ±50 V. Resolution on the most

sensitive range is 16 µV. The CR9055 has a common mode range of ±50 V.

MEASUREMENTS:

Voltage

Differential Voltage (VoltDiff)

Single-Ended Voltage (VoltSE)

Overview

OV-6

Normally thermocouple measurements would be made on the CR9050 Analog

Input Module (±5 Volt) because of its greater resolution, however they can be

made on the CR9055 if the ±50 V common mode range is necessary.

Thermocouple, Differential Voltage (TCDiff)

Thermocouple, Single-Ended Voltage (TCDiff)

9055 50V ANALOG INPUT

DIF 1

L10

L11

L12

L13

L14

MADE IN USA

FIGURE OV1-10. CR9055

CR9060 Excitation Module

The CR9060 Excitation Module has six continuous analog outputs with

individual digital-to-analog converters for PID Algorithm, waveform

generation, and excitation for bridge measurements. Ten switched excitation

channels provide precision voltages for bridge measurements. Each analog

output will provide up to 50 mA between ±5 V. Also includes eight digital

control outputs (0 V low, 5 V high).

MEASUREMENTS:

Excite

PortSet

Full Bridge (BrFull)

6 Wire Full Bridge (BrFull6w)

Half Bridge (BrHalf)

3 Wire Half Bridge (BrHalf3W)

4 Wire Half Bridge (BrHalf4W)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 3 6 82457

9060 EXCITATION C.A.O. SWITCHED EXCITATION DIGITAL CONTROL OUTPUT MADE

IN USA

FIGURE OV1-11. CR9060

CR9070 Counter - Timer / Digital I/O Module — Obsolete

Features 12 channels capable of high-level

(5 V square wave) pulse counting at frequencies up to 5 MHz. Four channels

can also count switch closures; the other eight can count low-level A/C signals.

In addition, there are 16 independent digital I/O channels for digital control,

communications, and triggering.

Tabla de contenidos

Otros manuales de Instrumento de medición de Campbell

Campbell

Campbell CS225 Manual de usuario

Campbell

Campbell TEMPERATURE PROBE 109SS Manual de usuario

Campbell

Campbell TE525 Manual de usuario

Campbell

Campbell CR-PVS1 Manual de usuario

Campbell

Campbell OBS-3 Manual de usuario

Campbell

Campbell 109 Manual de usuario

Campbell

Campbell SI-111 Manual de usuario

Campbell

Campbell 27106T Manual de usuario

Campbell

Campbell CS135 Manual de usuario

Campbell

Campbell Nor150 Manual de usuario

Campbell

Campbell Wind Monitor Series Manual de usuario

Campbell

Campbell LI200R Manual de usuario

Campbell

Campbell Oxyguard CS510 Manual de usuario

Campbell

Campbell CRS451 Manual de usuario

Campbell

Campbell CNR1 Manual de usuario

Campbell

Campbell CS300 Manual de usuario

Campbell

Campbell CS140 Manual de usuario

Campbell

Campbell FluoreSENS 10 Manual de usuario

Campbell

Campbell 107 Manual de usuario

Campbell

Campbell SkyVUE 8 Manual de usuario

Campbell

Campbell Open Path Eddy Covariance System Manual de usuario

Campbell

Campbell 27106T Manual de usuario

Campbell

Campbell 05103 Manual de usuario

Campbell

Campbell OBS-5+ Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
