Brickcom OB-E200Nf-S Hoja de datos

Easy Installation Guide

Megapixel Network Camera

OB-E200Nf-S

During installing and using the device, please follow local electrical safety regulations strictly.

Please install an easy-to-use breaker during installation and wiring in case it is necessary to make an

emergency break.

Please prevent the power cord from being trampled or pressed especially the plug, socket and the connecting

part led out from the device.

Please connect cables of power, alarm, audio and RS-485 with the power off. Hot-line wiring is not allowed.

Please use power supply in the safe voltage range of our product. Make sure if the power supply is correct

before running the device.

This product is not water-proof and cannot be used outdoor alone.

vibration and soaking.

Do not expose it in damp, dusty, extremely hot or cold places or places with intense electromagnetic radiation

or with unstable lighting.

Do not focus the camera lens on strong light such as the sun or incandescent lamp; otherwise the strong light

will cause overexposure or light leak (not camera malfunction), which may shorten camera lifetime.

While shipping the camera, pack it in the factory packing or use materials with equivalent quality.

To avoid heat accumulation, please do not block the ventilation around the device.

Keep the camera away from water or any liquid to avoid damage to internal components.

When shipping, storing and installing the device, try to prevent it from damages caused by pressure, violent

Please transport, use and store the device within defined humidity and temperature ranges.

1. Power Supply

2.Working Environment

I. Preface

II. Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or

property loss. Please read this Guide carefully before using the product, and keep it properly for future

reference. If the product cannot work normally or is damaged because the user does not follow the safety

instructions, we shall not assume any responsibility. Thanks for your cooperation.

Thank you for purchasing our product. If there is any question, please do not hesitate to contact us.

Working Environment

DC12V±10% / POE

-40℃~70℃

10%~95% (non-condensing)

86kPa~106kPa

-60m~3000m

Voltage

Temp.

Humidity

Altitude

Pressure

3. Daily Maintenance

4. Special Statement

Do not touch the heat component of the device directly to avoid empyrosis.

When the lens is contaminated by dust or grease, use cotton cloth or lens clean cloth to wipe it off. When it is

hard to clean, dip some lens cleanser and wipe gently and rotate outward from the middle until it is clean.

Never apply any organic solvent with ethanol or benzene to clean the lens and housing.

Do not disassemble or repair the device in any way by yourself. We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.

If the product does not work properly, please contact your dealer or the nearest service center.

Accessing this device to the internet is at user's own risk, including but not limited to the possible network

attack, hacker attack, virus infection and etc. This company will not assume any responsibility for problems of

product abnormality and information disclosure caused thereof. We shall provide technical support relating to

the products in time.

This device can be used after being activated through IPCSearch. During activation please fill a valid email

address for finding back the password.

This Guide is made for multiple models but it will not illustrate one by one. Please refer to it according to the

actual products you are using.

Every effort has been made to ensure the accuracy and validity of this Guide. Any update of this Guide caused

by version upgrade is subject to change without notice.

To ensure the safety of device on internet, it is strongly recommended that you set a strong password which is

composed of at least 2 kinds of the following, digits, case-sensitive letters or specific symbols, and whose

length ranges from 8 to 16 bits. Please modify the password periodically and once every 3 months is

recommended. If the device is used in highly risky environment, suggest modifying the password monthly or

weekly. Please keep your user name and password safe.

The product appearance is subject to the actual device and picture in this Guide is for reference only.

III. Appearance and Interface

Components:

Dimensions:

No.

Mount Base

Sun Shade

Lens

Locknut

Side Cable Hole

Component Name

161.5

∅57

3-∅4.5

Unit: mm

Buttcock line:

Table 1 Wiring Interface

Interface

Connect to power supply of DC12V

Connect to network access devices like a switch

Power Supply

Network

Interface Name Function

IV. DC12V Wire Diameter VS. Transmission Distance

Requirements of max length and power for power cords of different diameters (for your reference).

The recommended max transmission distance when the wire diameter is certain and the voltage loss rate is

less than 10%

Power (W)

Distance

(m)

Diameter

(mm) 0.80

(AWG20)

1.00

(AWG18)

1.25

(AWG16)

1.63

(AWG14)

2.00

(AWG12)

100

110

120 -

119

179

107

The camera supports wall bracket mount and pendent mount.

You can perform ceiling or wall mount when the wall or ceiling are thick and solid enough for ﬁxing self-tapping

screws and meanwhile strong enough for bearing the device.

Pendent mount

Wall bracket mount

Camera weight: 460g (net)

V. Installation

When installing the device outdoor, a waterproof joint box is necessary to get good waterproofness. As the

waterproof joint box is optional, please contact your supplier or customer service personnel to purchase.

The waterproof joint box and its installation sketch are shown below. Please refer to the Quick Start Guide of

the waterproof joint box for detailed installation.

Wall Bracket Mount:

The installation steps of wall bracket mount and pendent mount are the same. This part will take wall bracket

mount as an example to introduce the installation steps.

Install TF card (optional). Some models support TF card. Insert a TF card into the slot as shown in the following

picture. The max supported memory of TF card is 128G. After insertion, hot-swapping the TF card is not

recommended.

Drill holes on the mounting surface. Pick out the installation sticker from the attachment and stick it to the

mounting surface Drill holes according to the hole marks on the sticker and insert the 3 expansion screw bolts .

thoroughly into the holes.

If routing cables from the top of the mounting surface, a cable outlet hole is also needed on the wall. If routing

cables from the proﬁle side of the device, lead the cables out through the U-shaped groove at the side of the

base.

Loosen screw, take down the cover

and insert TF card

③Insert expansion

screw bolts

②Align and drill holes

①Paste sticker on the wall

Cable Hole

Cable Groove

∅=6mm

70mm

68mm

35mm

Side wiring

Top wiring

Route cables. When routing cables from the top, route cables through the mounting surface. When routing

cables from the proﬁle side, route cables through the U-shaped groove at the side of the bracket base.

Adjust lens surveillance direction. Loosen the locknut on the base, rotate the camera manually in horizontal

and vertical directions. After adjusting directions, tighten the locknut on the base and peel off the protective

ﬁlm on the lens.

90°

Rotate vertically by 90°

Locknut

Rotate horizontally by 360°

Connect cables and power on the device.

Fix device base onto the wall. Align the 3 screw holes on the device base to those 3 expansion screw bolts on

the mounting surface. Screw up the 3 tapping screws through the base and tighten them into the 3 expansion

screw bolts. Lock them up and ﬁx the device onto the mounting surface.

Screw up the 3 tapping screws through the base

and tighten them into the 3 expansion screw bolts.

VI.Login to Client

1. Minimum conﬁgurations and system requirements:

2. Device Activation

When using the device for the first time, run IPCSearch: it will search devices in LAN automatically and display

the list of device IP address, gateway and etc. If the network provides DHCP service, DHCP server will assign

IP for the camera automatically.

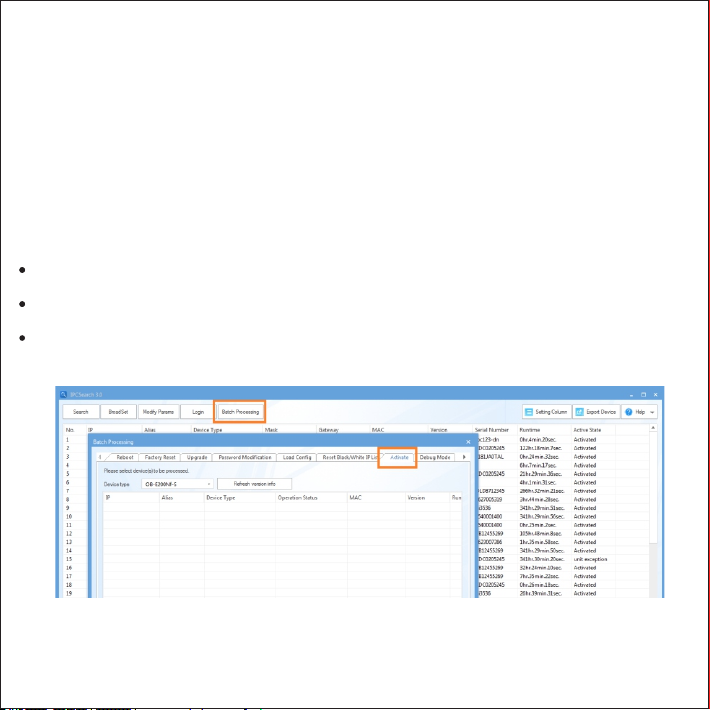

Batch: Select the device and click “Batch processing”. In the popup interface, set admin user's password and

the email address to ﬁnd back the password. Click “Activate” and wait for rebooting.

Individual: Select the device from IPCSearch and right click to select “Active”. Fill admin user name and

password and the e-mail address to ﬁnd back the password. Click “Activate” and wait for rebooting.

Web client: the device can also be activated through the web client. Set PC and the device in the same network

segment and login to the web. User can set admin password and password reset email on the interface and

click "Activate".

ŸProcessor: 3.3 GHz CORE®i3 series or other equivalent processors

ŸDirectX：9.0c

ŸRAM Memory: 4GB or above

ŸOperating System: Windows XP or newer version

ŸBrowser: IE7.0 and newer version, Firefox, Google Chrome (41 and lower)
