DRA Remote Annunciators

DRA-5 and DRA-12/24

en Installation Guide

Table of contents

1Introduction 4

2Connection 5

3Technical data 10

DRA Remote Annunciators Table of Contents | en 3

Bosch Security Systems, Inc. Installation Guide 09/2012 | 01 | F.01U.275.209

Introduction

The DRA Annunciator is designed to provide remote annunciation of alarms for a number of

Bosch Security Systems’ fire alarm detectors. It is designed to be mounted to a single gang

box, but it can also be surface mounted.

4en | Introduction DRA Remote Annunciators

09/2012 | 01 | F.01U.275.209 Installation Guide Bosch Security Systems, Inc.

Connection

Warning!

Failure to follow the connection instructions in this manual can result in damage to the

annunciator.

Two-wire conventional bases

The D287 or D288 base used for two-wire conventional detectors requires use of the DRA-5

Annunciator. Connect the positive (RED) lead to terminal 3 and the negative lead (WHITE) to

terminal 4.

Figure 2.1: Wiring a DRA Annunciator to a conventional 2-wire base

Four-wire bases

The D292, D293A, D293E, or D293S base used for two-wire conventional detectors requires

use of the DRA-5 Annunciator. Connect the positive (RED) lead to terminal 3 and the negative

lead (WHITE) to terminal 4.

Figure 2.2: Wiring a DRA Annunciator to a 4-wire base

Multiplex bases

The D7050-B6 base used for multiplex detectors requires use of the DRA-12/24 Annunciator.

Connect the positive (RED) lead to terminal 1 and the negative lead (WHITE) to terminal 2.

DRA Remote Annunciators Connection | en 5

Bosch Security Systems, Inc. Installation Guide 09/2012 | 01 | F.01U.275.209

Figure 2.3: Wiring a DRA Annunciator to multiplex bases

F220 bases

The F220-B6, F220-B6C, F220-B6E, F220-B6PM, F220-B6PS, F220-B6R, or F220-B6RS base

used for F220 detectors requires use of the DRA-5 Annunciator. Connect the positive (RED)

lead to terminal b1 and the negative lead (WHITE) to terminal c.

Figure 2.4: Wiring a DRA Annunciator to F220_Bases

FAA-440 standard bases

The FAA-440-B4 or FAA-440-B6 base used for FAP-440 and FAH-440 detectors requires use of

the DRA-5 Annunciator or the DRA-12/24 Annunciator. Connect the positive (RED) lead to

terminal S and the negative lead (WHITE) to terminal C.

Figure 2.5: Wiring a DRA Annunciator to FAA-440 standard bases

6en | Connection DRA Remote Annunciators

09/2012 | 01 | F.01U.275.209 Installation Guide Bosch Security Systems, Inc.

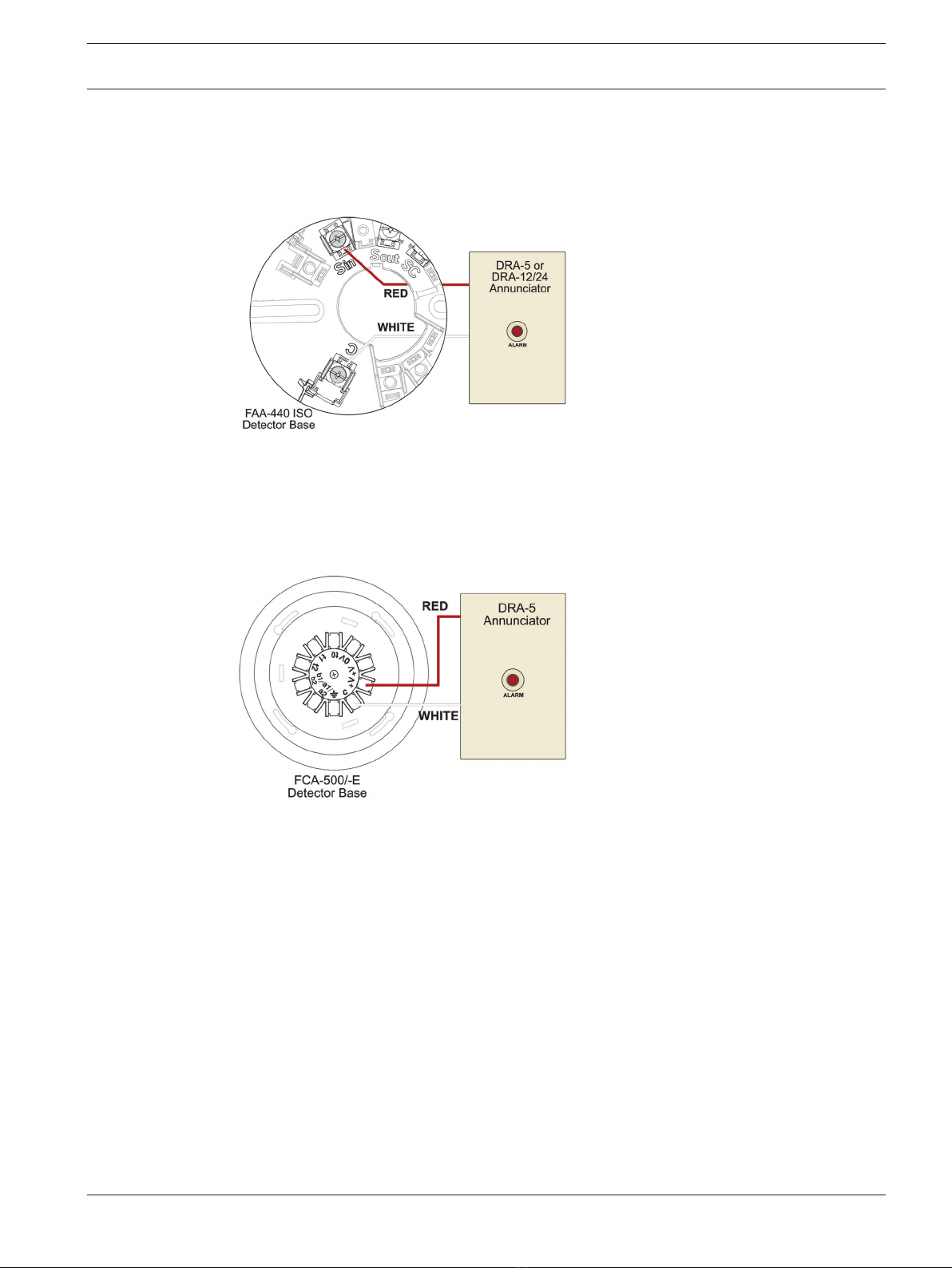

FAA-440 isolator bases

The FAA-440-B4-ISO or FAA-440-B6-ISO base used for FAP-440 and FAH-440 detectors

requires use of the DRA-5 Annunciator or the DRA-12/24 Annunciator. Connect the positive

(RED) lead to terminal Sin and the negative lead (WHITE) to terminal C.

Figure 2.6: Wiring a DRA Annunciator to FAA-440 isolator bases

FCA-500 bases

The FCA-500 or FCA-500-E base used for F220 detectors requires use of the DRA-5

Annunciator. Connect the positive (RED) lead to terminal V+ and the negative lead (WHITE) to

terminal C.

Figure 2.7: Wiring a DRA Annunciator to FCA-500 bases

D340 duct smoke housing

The D340 duct smoke housing used for D285DH photoelectric smoke detection head requires

use of the DRA-5 Annunciator. Connect the positive (RED) lead to terminal 12 (RMT LED) and

the negative lead (WHITE) to terminal 9 (LOOP -).

DRA Remote Annunciators Connection | en 7

Bosch Security Systems, Inc. Installation Guide 09/2012 | 01 | F.01U.275.209

Figure 2.8: Wiring a DRA Annunciator to a D340 duct smoke housing

D341/D342 duct smoke housings

The D341 or D342 duct smoke housings used for the D285DH photoelectric smoke detection

head or the D286 ionization smoke detection head requires use of the DRA-5 Annunciator.

Connect the positive (RED) lead to terminal 3 (RED LED) and the negative lead (WHITE) to

terminal 8 (GROUND).

Figure 2.9: Wiring a DRA Annunciator to a D34 or-D342 duct smoke housing

D343 MUX duct smoke housing

The D343 MUX duct smoke housing used for the D7050DH photoelectric smoke detection

head requires use of the DRA-5 Annunciator. Connect the positive (RED) lead to terminal 8

(RED LED) and the negative lead (WHITE) to terminal 5 (GROUND).

8en | Connection DRA Remote Annunciators

09/2012 | 01 | F.01U.275.209 Installation Guide Bosch Security Systems, Inc.

Figure 2.10: Wiring a DRA Annunciator to a D343 duct smoke housing

DRA Remote Annunciators Connection | en 9

Bosch Security Systems, Inc. Installation Guide 09/2012 | 01 | F.01U.275.209

Technical data

Electrical

Voltage: DRA-5: 5VDC

DRA-12/24: 12 VDC – 24 VDC

Current Draw: DRA-5: 10 mA at 5 V

DRA-12/24: 10 mA at 24 V

Mechanical

Dimensions (HxWxD): Standard single-gang wall plate;

4.85 in. x 3.1 in. x 0.25 in. (123.2 mm x 78.7 mm x 6.35 mm)

10 en | Technical data DRA Remote Annunciators

09/2012 | 01 | F.01U.275.209 Installation Guide Bosch Security Systems, Inc.
