Siemens FDM273 Manual de usuario

FDM273

Radio manual call point

Mounting

A6V10347888_h_en_-- Smart Infrastructure

2020-03-31

Imprint

Technical specifications and availability subject to change without notice.

Transmittal, reproduction, dissemination and/or editing of this document as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages.

All rights created by patent grant or registration of a utility model or design patent

are reserved.

Issued by:

Siemens Switzerland Ltd.

Smart Infrastructure

Global Headquarters

Theilerstrasse 1a

CH-6300 Zug

Tel. +41 58 724-2424

www.siemens.com/buildingtechnologies

Edition: 2020-03-31

Document ID: A6V10347888_h_en_--

Imprint

2 | 18 A6V10347888_h_en_--

A6V10347888_h_en_-- 3 | 18

Table of contents

1 About this document................................................................................. 5

2 Mounting and installation.......................................................................... 6

2.1 Preparation ............................................................................................... 6

2.2 Installing the housing................................................................................ 7

2.3 Installation ................................................................................................ 8

2.4 Installing the protective cover ................................................................... 11

2.5 Inserting the door sign .............................................................................. 12

3 Details for ordering ................................................................................... 13

3.1 Switching unit FDME273 .......................................................................... 13

3.2 Housing FDMH273-R ............................................................................... 13

3.3 Battery pack BAT3.6-10 ........................................................................... 13

3.4 KeyDMZ1195........................................................................................... 14

3.5 Glass insert DMZ1196-AC........................................................................ 14

3.6 Protective cover DMZ1197-AC................................................................. 14

3.7 Door sign .................................................................................................. 14

4 Specifications ........................................................................................... 15

4.1 Technical data .......................................................................................... 15

4.2 Dimensions............................................................................................... 16

4.3 Master gauge for recesses ....................................................................... 17

4.4 Environmental compatibility and disposal................................................. 17

4 | 18 A6V10347888_h_en_--

1 About this document

Overview

The FDM273 radio manual call point is intended for use in areas of a house where

a fire can be detected by people who can manually trigger an alarm.

The FDM273 radio manual call point consists of a housing, a switching unit, and a

battery pack.

Goal and purpose

This document contains all the information required to install the FDM273 manual

call point.

Prerequisites:

● The installation location of the radio manual call point has been established.

● Mounting should be performed by a specialist in compliance with safety

regulations.

You will find more information on the FDM273 radio manual call point in document

A6V10347733.

Applicable documents

Document ID Title

A6V10271323 Data sheet SWING Neural radio fire detector FDCW241,

FDOOT271, FDM273, FDM275, FDM275(F)

A6V10227631 Planning Radio fire detection system SWING

A6V10347733 Technical Manual Radio manual call point FDM273

Intended use

The radio manual call pointFDM273 may only be used together with a radio

gatewayFDCW241 in a fire detection system FS20/FS720.

About this document 1

A6V10347888_h_en_-- 5 | 18

2 Mounting and installation

2.1 Preparation

Secure the housing at a height of 0.9…1.6m on an even surface. Observe the

country-specific regulations for the exact mounting height!

180°

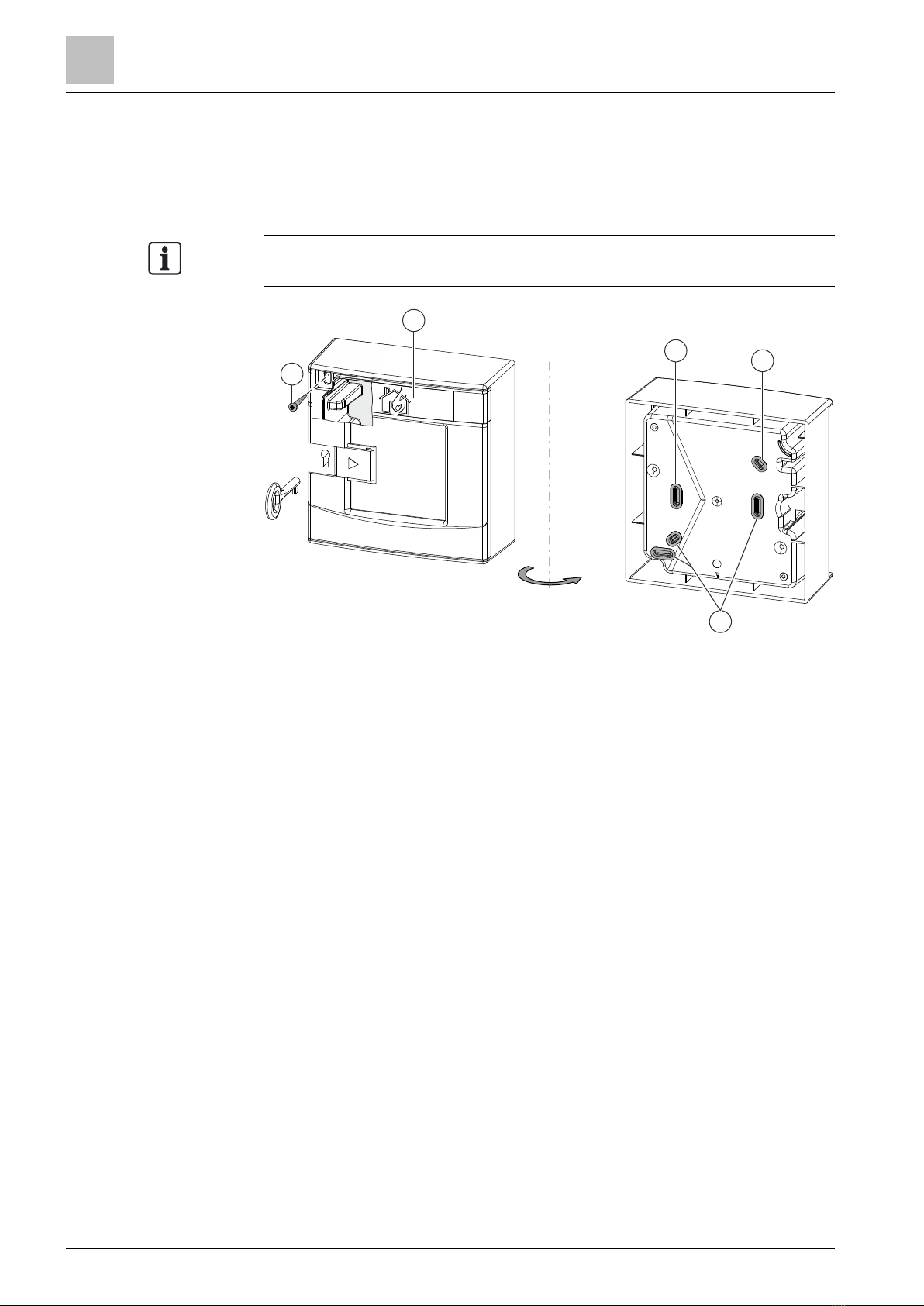

Figure 1: Opening the housing and identifying the screw holes

1 Screw opening 3 Break-out points

2 Door sign

wThe position of the radio manual call point has been established.

wYou have the housing, switching unit, and battery pack to hand.

wYou have a tool and two screws for securing purposes. The screws have a

Ø2.5…3mm shaft and a Ø>8mm head surface.

1. Push the keyhole cover to the right.

2. Open the door with the key supplied.

3. NOTICE!Keep the key in a safe place.

4. Push the keyhole cover back into place.

5. For securing purposes, select two screw positions that are spaced far apart

from one another. Use screw position(1) if possible. There are additional

securing points in the back box.

– Working from the rear of the housing, break out an appropriate screw hole

at one of the marked break-out points(3) in the back box.

6. Replace the window sign(2) if necessary.

aThe housing is now ready for installation.

Mounting and installation

Preparation

6 | 18 A6V10347888_h_en_--

2.2 Installing the housing

>8 mm

2,5...3 mm

Figure 2: Example of securing onto the substructure using two screws

wThe housing is ready for mounting. See the chapter 'Preparation'.

lScrew the housing securely onto the substructure using two screws.

aThe housing has been installed.

Mounting and installation

Installing the housing 2

A6V10347888_h_en_-- 7 | 18

2.3 Installation

1 Screws 6 Battery pack BAT3.6-10 1

2 Switching unit FDME273 7 Holders

3 Battery connector 8 Locking lever

4 Housing FDMH273-R 9 Internal alarm indicator

5 Door 10 Alarm button

1Not included in the scope of delivery

The flashing behavior of the internal alarm indicator is described in document

A6V10347733 in the 'Internal alarm indicator' chapter.

wThe housing has been installed.

wThe radio gateway has been activated and switched to maintenance mode.

wThe battery pack and switching unit are available.

wThe switching unit is set to the factory settings.

wThe door(5) is open.

wThe alarm button(10) on the switching unit(2) has not been pressed and is

protruding by about 5mm.

1. If the alarm button has been pressed, push the black locking lever(8) in the

direction of the arrow until it clicks.

aThe alarm button is now protruding by approx. 5mm.

Mounting and installation

Installation

8 | 18 A6V10347888_h_en_--

2. Remove the adhesive label with the serial number from the type plate on the

switching unit. Use the adhesive label to mark the position of the radio manual

call point FDM273 on the device location plan.

3. Turn over the window sign if necessary, or use a different one.

4. Label the battery pack(6) with the current date.

5. Lay the connection cable and connect the battery connector(3).

aWhen the battery connector is connected, the internal alarm indicator(9)

lights up red for five seconds.

aAfter a further 10 seconds, the radio manual call point signals that it is not

mounted in the housing, and the internal alarm indicator flashes every two

seconds:

– If it flashes red, this indicates the factory settings.

– If it flashes green, this indicates that the radio manual call point has already

been logged on to a radio gateway.

aIf this does not happen, this means the battery pack is defective and must

not be used.

6. Insert the battery pack into the switching unit FDME273 so that it snaps into

place in the holders(7).

7. Insert the switching unit with the battery pack into the housing, paying attention

to the position of the battery cable.

8. Connect the switching unit securely to the housing using two screws(1).

aThe internal alarm indicator flashes green and the radio manual call point is

logged on to the radio gateway.

aIf the process of logging on to the radio gateway is successful, the internal

alarm indicator stops flashing.

9. If the logon process has not been successful after a long period of time, briefly

remove the switching unit from the housing and then re-insert it.

aThe search for the radio network starts again.

10. Close the door.

aThe radio manual call point is now mounted and is ready for commissioning.

WARNING

Deactivated manual call points prevent alarms from being transmitted.

The alarm is not triggered.

● Mark deactivated manual call points or those which are not fully functional

with the notice 'NOT IN USE'!

Mounting and installation

Installation 2

A6V10347888_h_en_-- 9 | 18

OUT OF ORDER

AUSSER BETRIEB

HORS SERVICE

FUORI SERVIZIO

FUERA DE SERVICIO

BUITEN GEBRUIK

Figure 3: 'NOT IN USE' label

Mounting and installation

Installation
