Bosch DB24C4200R2 Manual de usuario
DiBos/DiBos Micro
en Operation Manual
DiBos/DiBos Micro Table of Contents | en 3
Bosch Sicherheitssysteme GmbH Operation Manual F.01U.033.372 | V5 | 2009.09
Table of Contents
1 Program Start/Login 7
1.1 Starting the Program 7
1.2 Logging on to the System 7
1.2.1 Logging on to the System (Standard) 7
1.2.2 Logging on to the System with LDAP Access 8
2TheUserInterface 9
2.1 Live Mode 9
2.2 Playback Mode 10
3LiveMode 11
3.1 The User Interface 11
3.2 The Menu Bar 12
3.3 The Display Bar 14
3.3.1 Buttons for Live and Playback Mode 14
3.3.2 Button for Full Image 14
3.3.3 Buttons for Image Display 14
3.3.4 Button for Camera Round 16
3.3.5 Button for Switching the Sound On and Off 16
3.4 The Device List 17
3.5 The Image Area 19
3.5.1 The Image Area Layout 19
3.5.2 The Image Window 21
3.6 The Control and Status Field 24
3.6.1 Control field for Dome Cameras and Pan/Tilt Cameras 25
3.6.2 Displaying the Relays 27
3.6.3 Displaying the Alarm Inputs 28
3.6.4 Instant Playback 29
3.6.5 Control Field for Monitors 31
3.7 The Event Field 33
3.7.1 The Event List 33
3.7.2 Button for Filtering the Events 34
3.7.3 Button for Displaying the Logbook 34
4en | Table of Contents DiBos/DiBos Micro
F.01U.033.372 | V5 | 2009.09 Operation Manual Bosch Sicherheitssysteme GmbH
4 Playback Mode 35
4.1 The User Interface 35
4.2 The Menu Bar 36
4.3 The Display Bar 41
4.3.1 Buttons for Live and Playback Mode 41
4.3.2 Button for Full Image 41
4.3.3 Buttons for Image Display 41
4.3.4 Button for Camera Round 43
4.3.5 Button for Switching the Sound On and Off 43
4.4 The Device List 44
4.5 The Image Area 46
4.5.1 Image Area Layout 46
4.5.2 The Image Window 48
4.6 The Timeline Area 50
4.6.1 Camera List with Timeline/List of Search Results 52
4.6.2 Camera List with Timeline 52
4.6.3 List of Search Results 54
4.6.4 Timeline Measuring Unit/Search Results Title Bar 54
4.6.5 Date and Time 55
4.6.6 Searching for a Previous or Next Event 55
4.6.7 The Recorder Buttons 56
4.6.8 Reducing the Size of/Enlarging the Timeline Area 57
4.6.9 Changing the Playback Speed 58
4.6.10 Calling up the Search Functions 59
4.6.11 Exporting Image Data 60
5 Operation - Live/Playback Mode 61
5.1 Displaying Incoming Alarms 61
5.1.1 Non-automatic Display of Incoming Alarms 61
5.1.2 Automatic Display of Incoming Alarms 62
5.2 Automatic Alarm Recording 63
5.3 Creating/Editing Favorites 64
5.4 Displaying the Logbook 66
5.5 Starting/Exiting a Camera Round 68
5.6 Logging Off/Changing User 68
DiBos/DiBos Micro Table of Contents | en 5
Bosch Sicherheitssysteme GmbH Operation Manual F.01U.033.372 | V5 | 2009.09
6 Operation - Live Mode 69
6.1 Filtering the Event List 69
6.2 Zooming/Controlling Dome Cameras and Pan/Tilt Cameras 71
7 Operation - Playback Mode 74
7.1 Searching for Date and Time 74
7.2 Searching for Events 74
7.3 Searching for Motion 76
7.4 Searching for Additional Data 78
7.5 Authenticating Images from Several Cameras 80
7.6 Authenticating a Single Image 80
7.7 Exporting Files 81
7.8 Showing Exported Files 83
7.9 Protecting Video 84
7.10 Removing the Protection from a Recording 85
7.11 Deleting a Video 86
8TheIconOverview 87
6en | Table of Contents DiBos/DiBos Micro
F.01U.033.372 | V5 | 2009.09 Operation Manual Bosch Sicherheitssysteme GmbH
DiBos/DiBos Micro Program Start/Login | en 7
Bosch Sicherheitssysteme GmbH Operation Manual F.01U.033.372 | V5 | 2009.09
1 Program Start/Login
1.1 Starting the Program
When installation is complete, you can start the program.
1. Switch on the computer and wait until the desktop
interface appears.
2. Double-click the DiBos icon on your desktop or select Start
- Programs - DiBos. The computer starts the program and
displays the login dialog box.
1.2 Logging on to the System
When the program has started, the dialog box for logging on to
the system appears. The dialog box will have a different
appearance, depending on whether you have logged on with or
without LDAP access.
1.2.1 Logging on to the System (Standard)
For systems that are not connected to an LDAP server, only the
name and password will be required.
1. Enter your user ID in the name input field.
2. Enter your password in the password input field.
3. Click OK. You are now in live mode.
8en | Program Start/Login DiBos/DiBos Micro
F.01U.033.372 | V5 | 2009.09 Operation Manual Bosch Sicherheitssysteme GmbH
1.2.2 Logging on to the System with LDAP Access
For systems that are connected to an LDAP server, an
additional selection field will be displayed.
1. Enter your user ID in the name input field.
2. Enter your password in the password input field.
3. Click the down arrow and select the LDAP server if you
wish to log on via LDAP. To log on locally, the local system
must be selected.
4. Click OK. You are now in live mode.
DiBos/DiBos Micro The User Interface | en 9
Bosch Sicherheitssysteme GmbH Operation Manual F.01U.033.372 | V5 | 2009.09
2 The User Interface
You will automatically access live mode every time the system is
re-started and every time you log on. You can look at live images
from selected cameras in this mode.
To rapidly switch between playback and live mode, just click
the button of the mode you want. The button you select is then
color-highlighted.
2.1 Live Mode

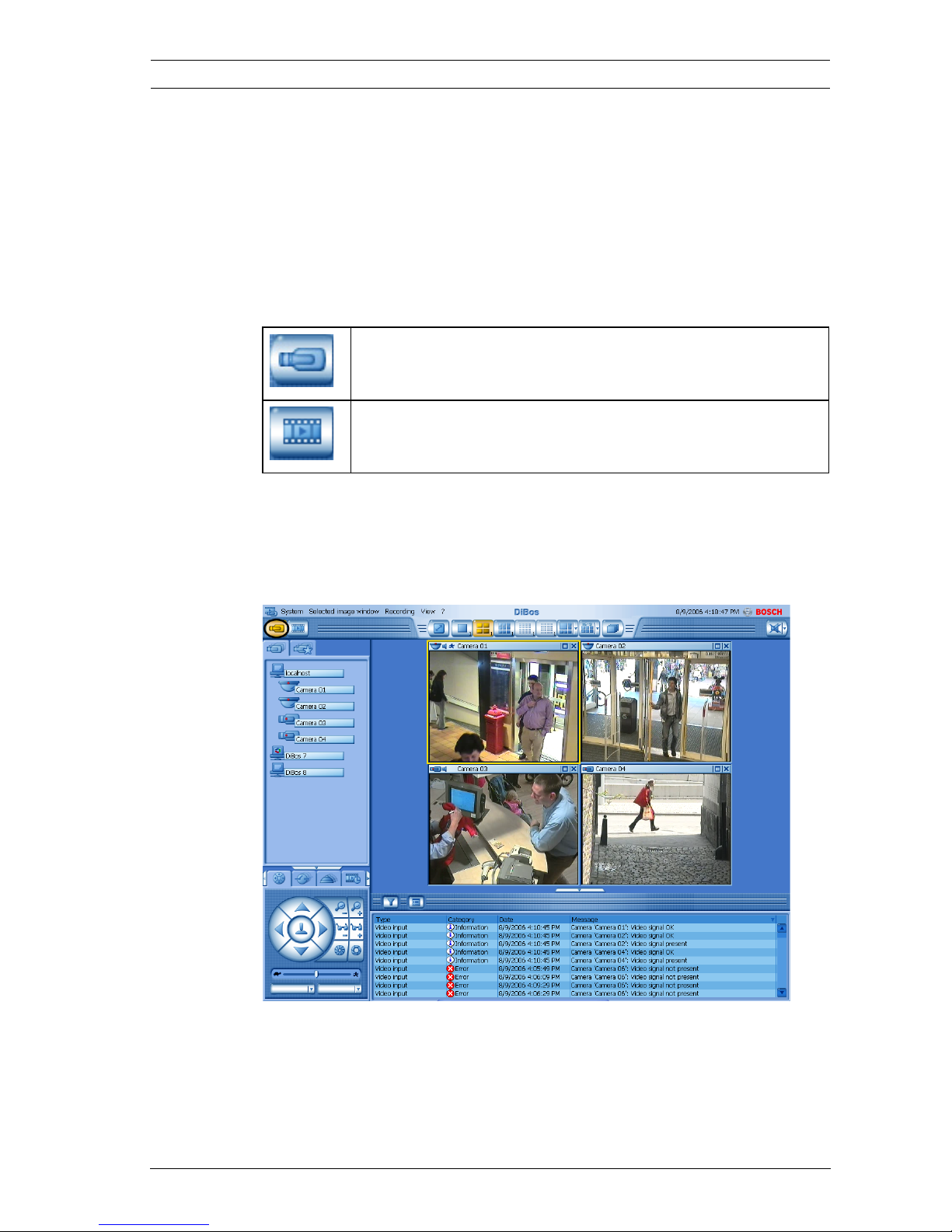

In live mode, you will be able to view live images from the
connected cameras.
Button for live mode
Button for playback mode
10 en | The User Interface DiBos/DiBos Micro
F.01U.033.372 | V5 | 2009.09 Operation Manual Bosch Sicherheitssysteme GmbH
2.2 Playback Mode
In playback mode, you will be able to view saved images.
