General safety instructions

DB-CO | D-SetCO – 6721848552 (2022/02)

1 General safety instructions

All instructions must be observed. Failure to comply with instructions may result in

material damage and personal injury, including danger to life.

Safety of electrical devices for domestic use and similar purposes

ThefollowingrequirementsapplyinaccordancewithEN60335-1in ordertoprevent

hazards from occurring when using electrical appliances:

“This appliance can be used by children of 8 years old or older, as well by people with

reduced physical sensory or metal capabilities or lacking in experience and

knowledge, if they are supervised and have been given instruction in the safe use of

the appliance and understand the resulting dangers. Children shall not playwith the

appliance. Cleaning and user maintenance must not be performed by children

without supervision.”

Danger to life from carbon monoxide

Carbon monoxide (CO) is a poisonous gas, which arises during the incomplete

combustion of fossil fuels such as oil, gas, or solid fuels.

Dangers arise if CO escapes from the heating system due to a fault or a leak and

collects unnoticed in enclosed spaces.

You can neither see, taste nor smell CO.

The device may not prevent chronic effects of CO exposure. The product will not

completely safeguard individuals at special risk.

Havethe heating systeminspectedandserviced regularlybyanapprovedcontractor.

WARNING

Installationofthe alarm should notbeused as a substituteforproperinstallation,use

and maintenance of fuel-burning appliances including appropriate ventilation and

exhaust systems.

General safety instructions

DB-CO | D-SetCO – 6721848552 (2022/02)

In the presence of carbon monoxide alarm

▶ Keep calm and open all doors and windows to increase the rate of ventilation.

▶ Stop using all the fuel-burning appliances and ensure, if possible, that they are

turnedoff.Forexample,forgasappliances, please isolatetheemergencycontrol

valve.

▶ If the alarm continues activated, leave the building and only re-enter when the

alarm has stopped. In multi-occupancy and multi-story properties, alert all the

occupants of the risk.

▶ Get medical help for anyone with the effects of carbon monoxide poisoning and

advice that carbon monoxide inhalation is suspected.

▶ Get in contact with the appropriate servicing and/or maintenance agency. When

necessary, get in contact with the fuel supplier through their emergency number

and with the national Gas Emergency Service Provider. This way, the source of

carbon monoxide emissions can be identified and corrected.

▶ Do not use fuel-burning appliances again until it gets checked and cleared by a

competent person according to national regulations.

WARNING

Danger to life!

In case you consider muting the device, be aware of the fact that the alarm has been

activated because of dangerous levels of carbon monoxide, and being in the

environment of the device is dangerous.

Product Information

DB-CO | D-SetCO – 6721848552 (2022/02)

2ProductInformation

2.1 Product overview

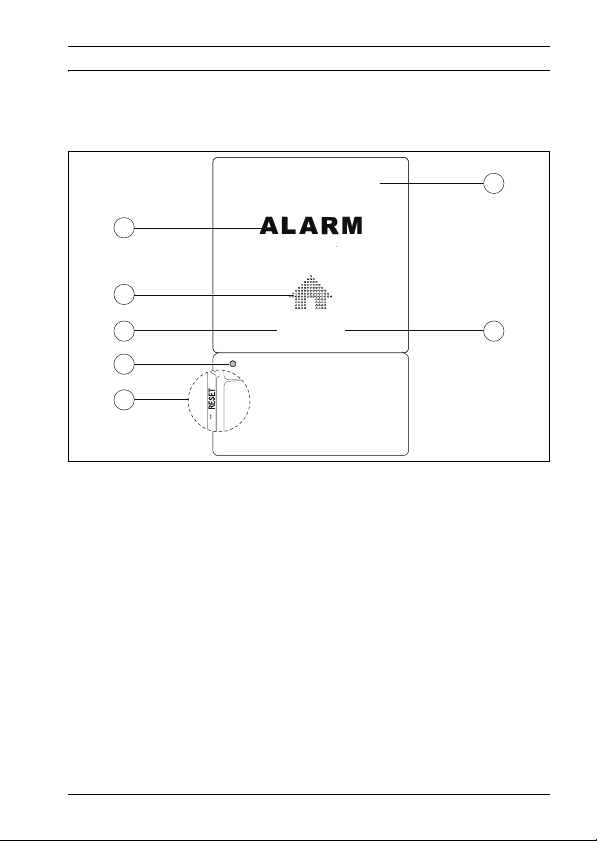

Fig. 1 Product overview

[1] Reset hole

[2] Status(red,yellowandgreenflashinwhenthebaseisconnectedtothepower.

Green flash every minute once the product is working normally)

[3] Power (green light)

[4] Sound output

[5] Alarm warning (red light)

[6] Test/silence button

[7] Fault (yellow light)

2.2 Intended use

This product may only be used indoors in a domestic situation. It is intended to detect

the presence of carbon monoxide (CO) at the sensor. Any other use is considered

inappropriate. Any damage that may result from misuse is excluded from liability.

0010043205-001

POWER FAULT

STATUS

Installation

DB-CO | D-SetCO – 6721848552 (2022/02)

2.3 Battery

Long-life lithium battery (3V) sealed for the life of the product. No replacement is

necessary.

When the low battery voltage warning occurs, a CO alarm signal is produced from

four minutes to 30 days. Replace the device as soon as theproductentersthis status.

2.4 Alarm conditions

Audible indicators:

• 30 ppm: without alarm before 120 minutes

• 50 ppm: alarm between 60 to 90 minutes

• 100 ppm: alarm between 10 to 40 minutes

• 300 ppm: alarm within three minutes

• Continuous sound: CO alarm

2.5 Materials, vapours, gases

The following substances can affect the product reliability: silicone, vapours, dew

condensation, hydrogen sulphide, sulphuric acid gas, dust, oil mist, cleaning fluids,

polishes, paints and cooking operations.

3 Installation

3.1 Electrical work

NOTICE

When selecting the mounting position and before drilling the mounting holes:

▶ Ensure that no electrical cables or other supply lines can be damaged.

Electrical work must only be carried out by electrical installation contractors.

Inspection and maintenance

DB-CO | D-SetCO – 6721848552 (2022/02)

Before starting the electrical work:

▶ Isolate all poles of the mains voltage and secure against reconnection

▶ Make sure the mains voltage is disconnected

▶ Observe the wiring diagrams of the other system components as well

4 Inspection and maintenance

In order to activate a full test cycle where lights, messages, and audible sounds are

performed:

▶ Press the TEST/SILENCE button for one second

During the entire test, the red light of the status indicator on the DB-CO will flash, and

the relay COM NO is disconnected. After the test, the DB-CO returns to normal – the

greenlightof the statusindicatoris continuously on andtherelayCOMNOisconnected.

Test the device every month. If the product does not perform as described, replace it

immediately.

The product will not protect against the risk of carbon monoxide poisoning when the

battery has drained.

4.1 Modifications and repairs

Improper modifications and repairs can result in personal injury and/or material damage.

1. Do not open the product housing. There are no user-serviceable parts inside.

2. Do not modify or repair the product.

3. Do not use the product in case of defects or visible damages.

Graphic-based manual

DB-CO | D-SetCO – 6721848552 (2022/02)

WARNING

Risk to life!

Do not try to repair the device. It has the risk of electrical shock or malfunction if the

device is tampered with.

5 Graphic-based manual

When reading the graphic-based manual, please consider the following:

Graphic number and relevant title

Each graphic has a number associated that can be found at the bottom of the frame.

Some graphics have a relevant correspondent legend, such as:

• Graphic 11 – warm up

• Graphic 13 – normal operation

• Graphic 14 – warm up

• Graphic 15 – device test

• Graphic 16 – alarm

• Graphic 17 – silencing the CO alarm warning

• Graphic 19 – alarm memory

• Graphic 20 – a) blocked device, b) reset blocked device

• Graphic 21 – alarm faults

Table 1 Symbol description

Carbon monoxide warning Humidity

Five years warranty Information

Waste Electrical and Electronic Equipment

(WEE) - European Directive (2012/19/EU)

Installation

Product type Maintenance

Battery life Warning

Temperature Danger to life

Graphic-based manual

DB-CO | D-SetCO – 6721848552 (2022/02)

Importer

Bosch Thermotechnology Ltd.

Cotswold Way, Warndon

Worcester WR4 9SW

United Kingdom

Allgemeine Sicherheitshinweise

DB-CO | D-SetCO – 6721848552 (2022/02)

1 Allgemeine Sicherheitshinweise

Alle Anweisungen müssen befolgt werden. Bei Nichtbeachten sind Sachschäden und

mitunter lebensgefährdende Personenschäden möglich.

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke

Zur Vermeidung von Gefährdungen durch elektrische Geräte gelten entsprechend

EN 60335-1 folgende Vorgaben:

"Dieses Gerät kannvon Kindern ab 8 Jahren und darüber sowie von Personen mit

eingeschränkten physischen, sensorischen oder mentalen Fähigkeiten oder Mangel

an Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt oder bezüglich des

sicheren Gebrauchs des Gerätes unterwiesen wurden sowie die daraus resultieren-

den Gefahren verstehen. Kinder dürfen nicht mit dem Gerät spielen. Reinigung und

Wartung dürfen nicht von Kindern ohne Beaufsichtigung durchgeführt werden."

Lebensgefahr durch Kohlenmonoxid

Kohlenmonoxid (CO) ist ein giftiges Gas, das unter anderem bei der unvollständigen

Verbrennung fossiler Brennstoffe, z. B. Öl, Gas oder Festbrennstoffe, entsteht.

Wenn Kohlenmonoxid aufgrund einer Störung oder einer Undichtigkeit aus der Hei-

zungsanlage austritt und sich unbemerkt in Innenräumen ansammelt, besteht Ge-

fahr.

Kohlenmonoxid ist geruch- und geschmacklos sowie nicht sichtbar.

Das Gerät ist nicht geeignet, chronische Auswirkungen einer CO-Exposition zu ver-

hindern. Es dient nicht zum vollständigen Schutz von Personen mit besonderen Risi-

ken.

Heizungsanlage regelmäßig durch einen zugelassenen Fachbetrieb inspizieren und

warten lassen.
