Black Box SW970A Manual de usuario

1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

NOVEMBER 1995

SW970A

SW971A

SW972A

SW973A

SW974A

KVMS/RS6000 Switch 2-1

KVMS/RS6000 Switch 3-1

KVMS/RS6000 Switch 4-1

KVMS/RS6000 Switch 5-1

KVMS/RS6000 Switch 6-1

A B

KVMS SWITCH

KVMS/RS6000 SWITCHES

TRADEMARKS USED IN THIS MANUAL

XGA is a registered trademark of International Business Machines

Corporation.

Any other trademarks mentioned in this manual are acknowledged

to be the property of the trademark owners.

KVMS/RS6000 SWITCHES

1. Specifications

Leads Supported — DB15HD: 1–8, 10–14, (pin 9 is keyed); mini-DIN,

6-pin, 2 each: all six leads supported

Switches — (1) rotary switch for selecting the processor

Connectors — Mouse and keyboard: 6-pin DIN (female); Monitor: DB15HD

(female)

MTBF — 25,000 switching cycles

Temperature — -4 to +158°F (-20 to +70°C)

Humidity — Up to 95%, noncondensing

Power — None required; unit is nonpowered

Size — SW970A: 3.5"H x 6"W x 6.3"D (8.9 x 15.2 x 16 cm); All models except

SW970A: 3.5"H x 19"W x 5.9"D (8.9 x 48.3 x 15 cm)

Weight — SW970A: 1.5 lb. (0.7 kg); All models except SW970A: 8.4 lb.

(3.8 kg)

KVMS/RS6000 SWITCHES

2. Introduction

2.1 Overview

The RS6000 Keyboard/Video/Mouse Switch is an economical way to let two

(or more) RS6000 processors be accessed by a single keyboard/video/mouse

display station. This manual Switch is designed for those RS6000 systems that

require keyboard audio, so you won’t lose the keyboard’s audio capability.

2.2 Features

• The Switch allows two different RS6000 processors to be accessed by a

single keyboard and monitor without the keyboard “freezing.” You save

time because you won’t waste time rebooting the computer each time you

switch. And you save money—no extra keyboards and monitors to buy.

• The Switch is easy to install and operate. No more frustration plugging

and unplugging bundles of tangled cable.

• Supports VGA, SVGA, and XGA®.

KVMS/RS6000 SWITCHES

3. Installation and Operation

Follow these steps to install the Switch.

1. Turn off all power to the RS6000 processor and monitor.

2. Plug the cables from the mouse, keyboard, monitor, and processor into

the Switch. (See the diagrams below and on the next page.)

• The common component plugs into the socket marked “C” on the rear

panel.

• The components to be switched plug into the sockets marked “A” and “B.”

These correspond to the positions of the front-panel selector knob.

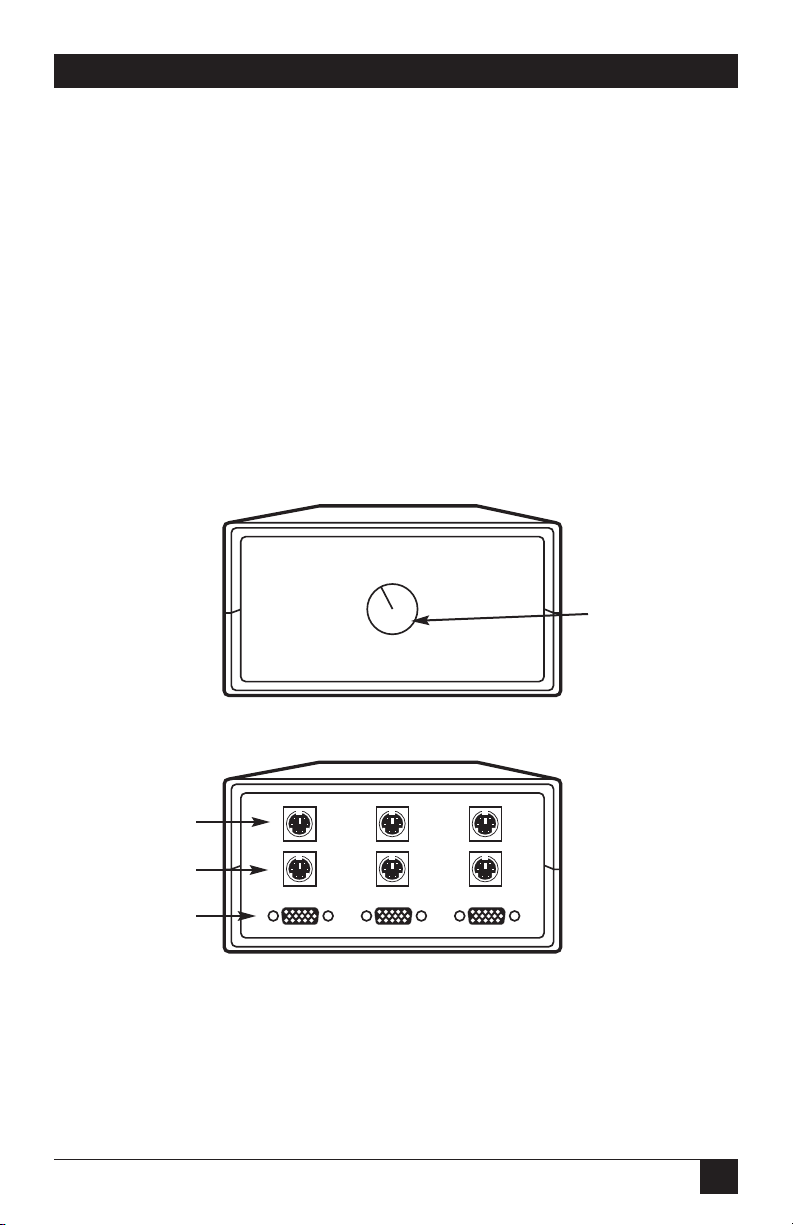

Front and Rear Views of the Switch.

CAB

Selector

Knob

Video Ports

Mouse Ports

Keyboard Ports

KVMS/RS6000 SWITCHES

3. With multiple CPUs, power up the CPU indicated by the selector knob.

Select another CPU with the selector knob, and then power up that

CPU.

Two RS6000 Processors Accessed by a Single Workstation.

VGA Monitor

Mouse

Mouse Cable

System B

Keyboard

Cable VGA DB15HD

Extension Cable

(EVNPS05)

KVMS/RS6000

Switch 2-1

(SW970A)

VGA DB15HD

Extension Cable

(EVNPS05)

6-Pin Mini-

DIN Cable

6-Pin Mini-

DIN Cable

System A

RS6000

RS6000 Monitor Cable
