Avenview C-HDMI-COMPVGA Manual de usuario

www.avenview.com

HDMI / DVI to Component / VGA with

Audio Converter

Model #: C -HDMI-COMPVGA

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 7

1.6 Before Installation.................................................................................................................. 7

1.7 Panel Description................................................................................................................... 8

1.7.1 Front Panel ............................................................................................................................ 8

1.7.2 Rear Panel ............................................................................................................................. 8

1.7.3 DIP Switch.............................................................................................................................. 8

1.8 Installation ............................................................................................................................. 9

Section 2: Specifications....................................................................................................................... 10

2.1 Supported Resolutions......................................................................................................... 11

2.1.1 DVI or VGA.................................................................................................................... 11

2.1.2 HDMI or Component Video (YPbPr)............................................................................. 11

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-HDMI-COMPVGA, HDMI / DVI to Component / VGA with Audio Converter has been tested for

conformance to safety regulations and requirements, and has been certified for international use. However,

like all electronic equipment’s, the C-HDMI-COMPVGA should be used with care. Read the following safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-HDMI-COMPVGA HDMI / DVI to Component / VGA with Audio Converter provides an easy and

instant approach for converting digital HDMI and/or digital DVI video signal to Component or VGA with digital

S/PDIF or analog stereo audio. With C-HDMI-COMPVGA converter, HDMI and/or DVI based devices such as

DVD players, PS3, camcorders, set-top-boxes or PC can connect to Component or VGA TV or projector at low

cost. The embedded HDMI / DVI selector switches between HDMI and DVI input sources.

-HDMI 1.2 compatible

-HDMI video input supports up to 1080p resolution

-Supports HD (1080i / 720p) component video output

-Supports up to UXGA PC video output

-Coaxial S/PDIF audio input

-Stereo analog audio input

-Front panel LED indicators and push button for switch between DVI or HDMI sources

-Easy installation

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-HDMI-COMPVGA x 1

-VGA to Component Y Adapter x 1

-Power Adapter (+5VDC, 2A) x 1

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

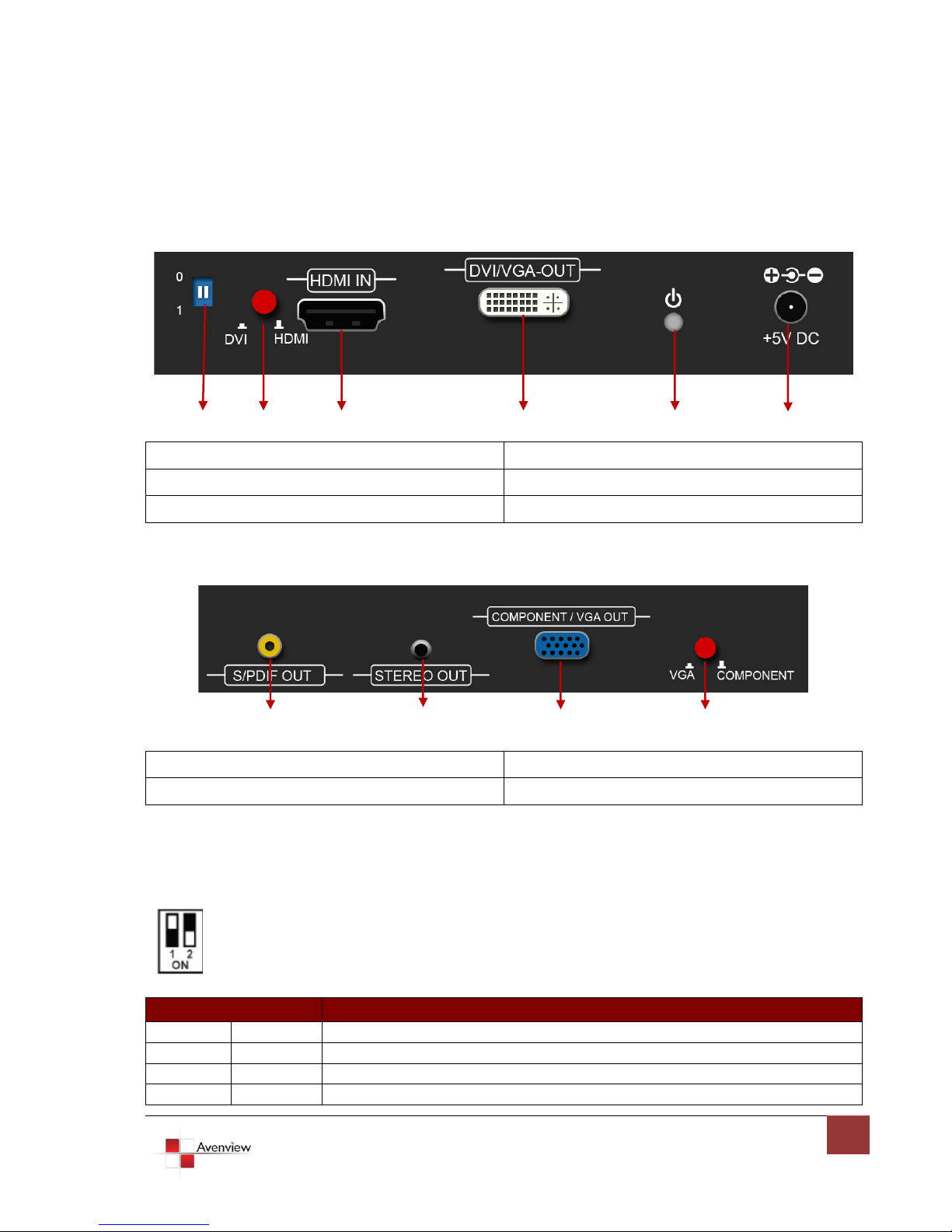

1.7 Panel Description

1.7.1 Front Panel

12 3 4 5 6

1. DIP Swtich

2. HDMI / DVI Switch Button

3. HDMI Input

4. DVI / VGA Input

5. Power Indicator

6. Power Connector

1.7.2 Rear Panel

1 2 3 4

1. S/PDIF OUT

2. STEREO OUT

3. COMPONENT / VGA OUT

4. VGA / COMPONENT Switch Button

1.7.3 DIP Switch

PIN #

Mode

ON 

Learn EDID from VGA socket and save EDID to HDMI socket

OFF 

Write back default EDID to HDMI socket

ON 

Learn EDID from VGA socket and save EDID to DVI socket

OFF 

Write back default EDID to DVI socket

www.avenview.com

1.8 Installation

To setup Avenview C-HDMI-COMPVGA follow these steps for connecting to a device:

1. Power off display source such as DVD Player, Set-top box etc

2. Connect your HDMI and/or DVI source to HDMI input and/or DVI input

3. Connect S/PDIF or Stereo Audio source to RCA Jack or 3.5mm Jack

4. Connect VGA/Component Y cable to C-HDMI-COMPVGA

5. Connect other end of VGA/Component Y cable to VGA or Component input of display

6. Plug in 5V DC power cord to power jack of C-HDMI-COMPVGA

7. Power on C-HDMI-COMPVGA converter

8. Power on HDMI and/or DVI source and display with VGA or Component input.

S/PDIF format is dependent on the embedded digital audio part in the HDMI stream. The S/PDIF

receiver must be able to recognize the input S/PDIF format. C-HDMI-DVIA only separates the

digital audio in HDMI stream and bypasses this decoded audio to the output.

This version does NOT support 8 Channel analog audio applications

S/PDIF audio input can support 2 out of 8 channel audio inputs. S/PDIF audio only supports 48

KHz audio sample rate.

www.avenview.com

Section 2: Specifications

Item

Description

Units

C-HDMI-COMPVGA

Unit Description

HDMI / DVI to Component / VGA with Audio Converter

HDMI Compliance

HDMI 1.2a

DVI Compliance

DVI 1.1

Video Bandwidth

Single Link: 165MHz (4.95Gbps)

Video Support

Single Link: 1080p 60, WUXGA (1920x1200@60Hz)

Component Video: 720p / 1080i

Audio Support

Stereo Audio

Input TMDS Signal

1.2 Volts (peak-to-peak)

Input DDC Signal

5 Volts (peak-to-peak, TTL)

Input

1 x HDMI

1 x DVI

Output

1 x VGA

1 x RCA digital Audio

1 x 3.5mm analog Audio

Component through VGA to Component Adapter

HDMI Connector

Type A (19 pin female)

DVI Connector

DVI-I (29-pin female digital only)

VGA Connector

HD-15 (15-pin D-sub female)

RCA Connector

Coaxial S/PDIF Digital Audio (PCM 48kHz)

3.5mm Audio Connector

Analog Stereo Audio

Switch Control

2x Push Button

(1. HDMI / DVI Input button / 2. VGA / Component Output button)

DIP Switch

2-pin for EDID learning

Dimensions (L x W x H)

5” X 3.9” x 1.1”

Power Supply

5V 2A DC

Power Consumption

4 Watts (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)
