Avenview SPLIT-DPDL-4A Manual de usuario

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

AV Connectivity, Distribution And Beyond...

1X4 DisplayPort Splitter with

PCM 7.1 and 2560x1600 support

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any

express or implied warranty, relating to its products are is strictly prohibited.

Model #: SPLIT-DPDL-4A

Military Residential

Medical Aviation

Education Industrial

Corporate House Of Worship

www.avenview.com

Product Application & Market Sectors

www.avenview.com Page 3

TABLE OF CONTENTS

1. GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS..............................................................................................................1

1.2 SAFETY INSTRUCTIONS ..................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................4

2.2 BEFORE INSTALLATION...................................................................................................................4

2.3 CABLE SPECIFICATION ....................................................................................................................5

2.4 APPLICATION DIAGRAM..................................................................................................................6

2.5 PANEL DESCRIPTION.......................................................................................................................7

2.5.1 INPUT PANEL (SPLIT-DPDL-4A) Back Panel ...........................................................................7

2.5.2 INPUT PANEL (SPLIT-DPDL-4A) Front Panel ..........................................................................7

3. INSTALLATION (SPLIT-DPDL-4A) ....................................................................................................8

4. GENERAL TROUBLESHOOTING.....................................................................................................8

5. SPECIFICATIONS ...............................................................................................................................9

www.avenview.com Page 1

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

•Any product, on which the serial number has been defaced, modified or removed.

•Damage, deterioration or malfunction resulting from:

•Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

•Repair or attempted repair by anyone not authorized by us.

•Any damage of the product due to shipment.

•Removal or installation of the product.

•External causes to the product, such as electric power fluctuation or failure.

•Use of supplies or parts not meeting our specifications.

•Normal wear and tear.

•Any other causes which does not relate to a product defect.

•Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The SPLIT-DPDL-4A 4 Port DisplayPort Splitter has been tested for conformance to safety regulations and requirements, and

has been certified for international use. However, like all electronic equipments, the SPLIT-DPDL-4A should be used with care.

Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

!Do not dismantle the housing or modify the module.

!Dismantling the housing or modifying the module may result in electrical shock or burn.

!Refer all servicing to qualified service personnel.

!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards

!Keep the module away from liquids.

!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to the housing, unplug the module immediately.

!Have the module checked by a qualified service engineer before using it again.

!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

1. GETTING STARTED

www.avenview.com Page 2

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL

VOID THE WARRANTY AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

www.avenview.com Page 3

2. INTRODUCTION

The Avenview SPLIT-DPDL-4A 4 port splitter has the ability to duplicate a single DP (DisplayPort) source to any four DP

screen /display. This unit also has two useful features – supports resolutions up to 2560x1600 and extends PCM 7.1 audio to the

supported DP screens/displays attached.

Video Signals - up to 2560x1600

Audio Signals - PCM 7.1

The SPLIT-DPDL-4A includes one unit: 4 Port Splitter with one (1) DisplayPort Input that can and four (4) DisplayPort Outputs.

Features

•Support DisplayPort specification

•Deep Color video up to 12-bit, resolution support up to 2560x1600

•Supports audio up to PCM 7.1CH (32-192kHz Fs sample rate)

•Supports pixel component format with RGB; YCbCr 422; YCbCr 444

•Color space conversion between RGB and YCbCr color space

•Supports 1.62/2.7 Gbps data rate (Low/High bit rate)

•Supports flexible 1/2/4 lanes configurations;

•Full 10.8Gbps data rate support (4lanes at 2.7Gbps)

•Supports EDID switch and setting

www.avenview.com Page 4

2.1 PACKAGE CONTENTS

Before you start the installation of the HDMI Extender, please check the package contents.

1SPLIT-DPDL-4A

POWER ADAPTER 5V/3A

USER’S MANUAL

2.2 BEFORE INSTALLATION

•Put the product in a level and stable location. If the product falls, it may cause damage or malfunction to components

within the casing.

•Do not place the product in temperatures under 0˚C or over 50˚C. High humidity may also cause the unit to malfunction.

•Use the DC power adapter with correct specifications supplied with the unit. If the improper power supply is used, this

may result in malfunction of the unit and may cause fire.

•Do not twist or pull by force the ends of the Displayport cable. It can cause malfunction

www.avenview.com Page 5

2.3 CABLE SPECIFICATION

We highly recommend achieving best results with our SPLIT-DPDL-4A you acquire a high quality 26 or 24 AWG HDMI cable

with the below specifications to maintain signal integrity and distances.

UltraAV DisplayPort to DisplayPort Version 1.1a Cable

The DisplayPort cable is fully compliant to DPCP (DisplayPort Content Protection) ensuring full compatibility and successful

transmission of all audio and video content. The cable supports PC resolutions of up to 2560x1600 and all HDTV resolutions

including 1080p. It also supports uncompressed audio and extended color depths of up to 12-bits per component ensuring

flexibility to meet most display application needs.

Please note, features are subject to the capabilities of the computer and graphics solution

DisplayPort to DisplayPort Version 1.1a Cabl

•Connect a DisplayPort Enabled Computer to a DisplayPort Monitor, TV or Projector

•Transfers Both Uncompressed Audio and High-Definition Video Signals

•2.7 Gbps data rate x 4 lanes - Effective total throughput 8.64 Gbps

•Supports HDTV Resolutions up to 1080p and 2560x1600 for Computers

•DisplayPort Version 1.1a compliant - VESA Authorized Test Center (ATC) certified

•Locking DisplayPort Connectors Keep the Cable Securely Connected

www.avenview.com Page 6

2.4 APPLICATION DIAGRAM

www.avenview.com Page 7

2.5 PANEL DESCRIPTION

2.5.1 INPUT PANEL (SPLIT-DPDL-4A) Back Panel

1. EDID: EDID switch INT/EXT: This switch allows user to select the built-in EDID (INT) or the display’s EDID

(EXT). Note: When the EDID switch is on EXT, the unit will detect Output 1’sdisplay EDID and record in the

unit. If the first Detected Output 1 is Not connected, it will pass to the next which is Output 2...... and so on

until the display’s EDID is recorded in the unit

2. RESET: Press this button every time when switch the EDID allowing the device to update the EDID selection.

3. DP OUT 1-4: connect the DP cable to the output for displaying a single source on four screens simultaneously.

4. DP IN: Connect the DP cable from the source Equipment for signal sending.

5. Power Supply: 5V/3A only insert adaptor supplied.

2.5.2 INPUT PANEL (SPLIT-DPDL-4A) Front Panel

6. Power LED: The LED will illuminate in green when power on and in red when in reset mode.

1 2 4 43

Tabla de contenidos

Otros manuales de Convertidor de medios de Avenview

Avenview

Avenview VGA-C5-SP-12 Manual de usuario

Avenview

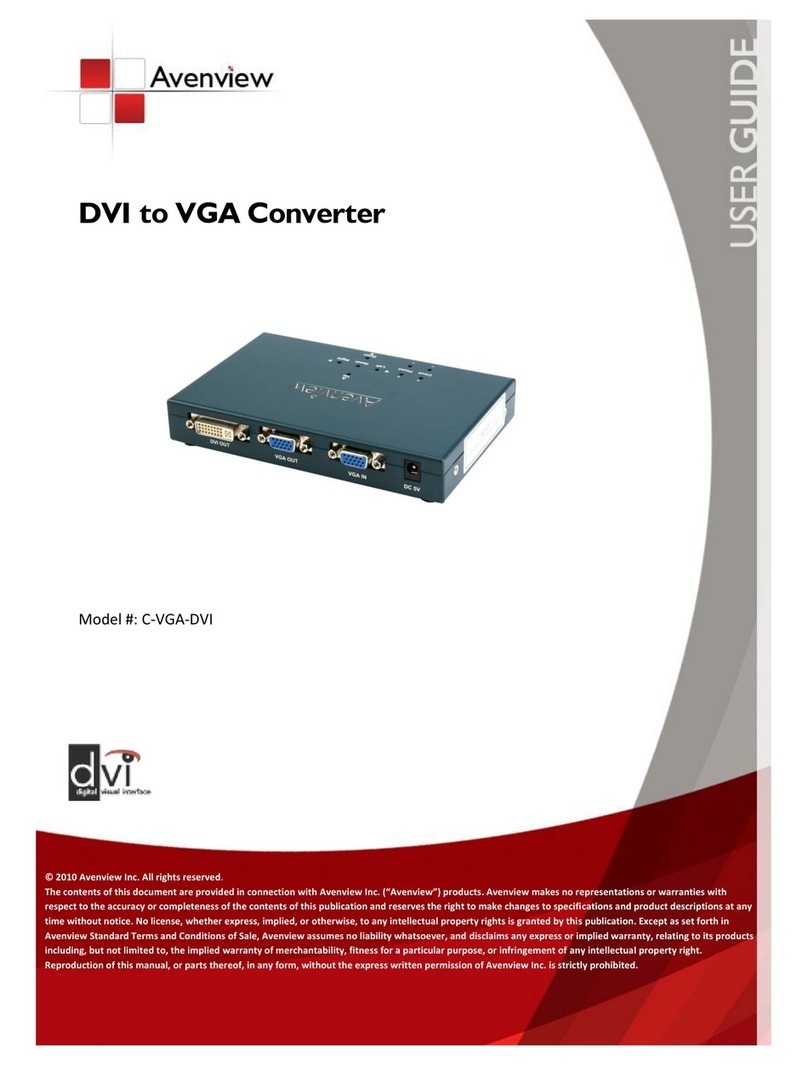

Avenview C-VGA-DVI Manual de usuario
