Avenview C-SC-UNI Manual de usuario

www.avenview.com

Universal Video Converter / Scalar with

Audio

Model #: C-SC-UNI

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 6

1.6 Before Installation.................................................................................................................. 7

1.7 Panel Description................................................................................................................... 8

1.8 Installation ............................................................................................................................. 9

1.9 IR Remote Control................................................................................................................ 10

1.10 General Troubleshooting ..................................................................................................... 11

Section 2: Specifications....................................................................................................................... 12

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-SC-UNI, Avenview Universal Video Converter and Scalar with Audio has been tested for conformance to

safety regulations and requirements, and has been certified for international use. However, like all electronic

equipment’s, the C-SC-UNI should be used with care. Read the following safety instructions to protect yourself

from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-SC-UNI Universal Video Converter / Scalar with Audio offers the highest compatibility among

composite, component, DVI, VGA, HDMI and S-Video to VGA and DVI in the market. This unique device

supports analog and digital conversion and scaling without loss of quality. With the embedded advanced

de-interlace, interlaced video inputs, such as component, composite and S-Video, can be further improved.

The wide range video support in both input and output can be up to WUXGA or 1080p. C-SC-UNI supports the

insertion of stereo analog audio and S/PDIF inputs into HDMI output! With this advanced feature, users can

combine asynchronous video and audio sources into the state-of-art HDMI compliant A/V signal for further

long range lossless transmission and high standard A/V experience.

C-SC-UNI is designed to ease the conversion among the available video formats with affordable cost. With

C-SC-UNI, the bothersome video format issues will not become a bottleneck in your applications. With

versatile IR remote control, C-SC-UNI offers a very easy way to convert, switch, and adjust video at your

convenience. With PIP and PAP support, users can display two video inputs at the same time.

-HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant

-Scales up and down VESA compliant formats (VGA and DVI)

-Scales SD/ED/HD video inputs to VESA compliant formats

-PIP and PAP support

-Advanced video processing supports: noise reduction, color management, flesh tone control, dynamic

contrast control, closed caption support for CVBS, 3-D de-interlacing, 3:2/2:2 pull down detection and

recovery

-Selectable analog stereo and S/PDIF audio support for HDMI audio

-RS-232 Firmware upgradable

-Equivalent to 4x1 video switch

-Video output supports up to WUXGA, UXGA or 1080p

-Dual DVI and VGA outputs

-Internal timer

-Versatile IR control

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-SC-UNI x 1

-Breakout cable for Composite & S-Video x 1

-VGA to Component Cable x 1

-3.5mm to RCA Audio Cable x 1

-IR Remote Control x 1

-Power Adapter (+5VDC) x 1

-User Guide x 1

www.avenview.com

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.7 Panel Description

FRONT PANEL

1. 5V DC Power Jack

2. Composite & S-Video Jack

3. DVI-I Input Connector

4. Stereo Audio Jack

5. S/PDIF Audio Jack

6. Power Indicator

REAR PANEL

1. DVI-I Connector

2. RS232 Connector

DIP SWITCH

www.avenview.com

Switch Position

OFF (Normal Operation)

ON (Reset)

OFF (Normal Operation)

ON (Reset)

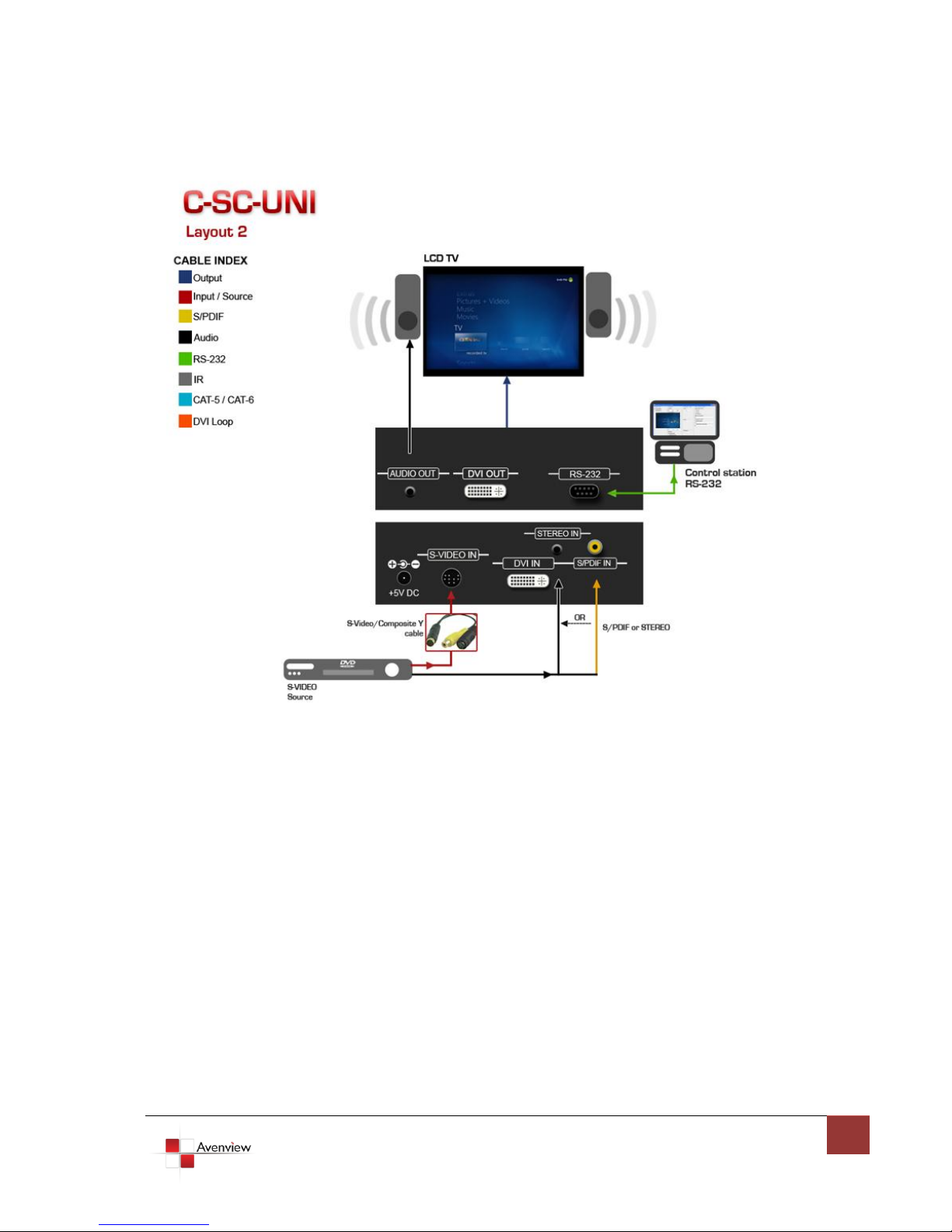

1.8 Installation

To setup Avenview C-SC-UNI follow these steps for connecting to a device:

1. Connect your Video sources to Input connectors

2. Connect your VGA, DVI, HDMI enabled monitors to DVI-I Output connector

3. Plug in 5V DC power cord to power jack of C-SC-UNI

4. Use IR Remote to select the input, setup the output resolution and adjust your video format

a. PIP and PAP only support digital and analog display or dual display for single input.

b. Analog stereo audio can merely support 2-channel audio. This version does NOT support

8-channel analog audio applications.

c. S/PDIF audio input can support 2 out of 8-channel audio input.

d. S/PDIF supports only 48KHz audio sample rate.

www.avenview.com

1.9 IR Remote Control

Idle

PIP/PAP Menu

Freeze Video

Sleep ON

Menu Control

Buttons

Source: Sequential source switch

Info: Display input type and time

Auto: Auto adjustment for VGA input

C.C.: No use in this model

HDMI: No use in this model

Aspect: Aspect ratio change

TV: No use in this model

CV1: CVBS

CV2: No use in this model

YUV1: No use in this model

YUV2: No use in this model

SV1: S-Video

SV2: No use in this model

VGA: VGA

DV1: DVI/HDMI

F1: No use in this model

F2: Display input timing

F3: Auto color balance
