Avalue Technology RITY150 Manual de usuario

Part No. E2017RT50A0R

RITY150

15” XGA Flat Touch Panel PC Intel® Atom™ Processor with

Intel® NM10 Express Chipset

Quick Reference Guide

1st Ed –16 March 2015

RITY150

2 RITY150 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

RITY150 Quick Reference Guide

Content

1. Getting Started ........................................................................................................4

1.1 Safety Precautions....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications...............................................................................................5

1.4 System Overview......................................................................................................8

1.4.1 Right View................................................................................................................................ 8

1.4.2 Bottom View............................................................................................................................. 8

1.5 System Dimensions ..................................................................................................9

2. Hardware Configuration .......................................................................................10

2.1 RITY150 connector mapping ..................................................................................11

2.1.1 External Serial Port 1 connector (COM1).............................................................................. 11

2.1.2 External Serial Port 2 connector (COM2).............................................................................. 12

2.1.3 External Serial Port 6 connector (COM6).............................................................................. 13

2.1.4 VGA/HDMI connector (VGA/HDMI)....................................................................................... 13

2.2 Installing Memory, Mini PCI-e device & Hard Disk...................................................14

RITY150

4 RITY150 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x RITY Series Panel PC

1 x Power Adapter

1 x Power Cord

1 x Stand (option)

Quick Reference Guide

RITY150 Quick Reference Guide

1.3 System Specifications

Panel

LCD size

15", 4:3

Display Type

XGA

Resolution

1024 x 768

Color

16.2M

Luminance

400cd/m²

Contrast ratio

700

Viewing angle

80(H) x 70(V)

Response time

8 ms

Backlight

LED

Touch Type

5 Wires resistive/ PCT

Touch Light

Transmission

RES 75 %/ PCT 90%

Touch Controller

Onboard RS232 touch (PenMount)/ USB touch (EETI)

System

SBC

ACP-CDVPOS

Processor

Intel® Atom™ D2550 Dual-Core 1.8 GHz CPU

System Chipset

Intel® NM10 Express Chipset

I/O Chipset

EC ITE IT8518E

System Memory

1 x 204-Pin DDR3 1066MHz SO-DIMM up to 4 GB

Watchdog Timer

H/W Reset: 1sec.~255min. and 1sec. or 1min./step

Expansion &

Storage

Expansion

1 x Mini PCIe Supports mSATA

Storage

1 x 2.5” Drive Bay

1 x mSATA

I/O

USB

6 x USB 2.0

COM Port

2 x RS-232/422/485 (BIOS)

1 x RS-232

Display

Chipset

Intel® Cedarview Integrated Graphics

Supports dual display

Resolution

LVDS: Max. resolution 1024x768 @ 60Hz

VGA: Max. resolution 1024x768 @ 60Hz

RITY150

6 RITY150 Quick Reference Guide

Audio

Chipset

Realtek ALC892 supports 2-CH

Audio Interface

Line-Out

Speaker Output

2 x 2W

Ethernet

Chipset

2 x Realtek 8111E

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

LAN Port

1 x RJ-45

Power

Requirement

Power Connector

minidin 4P for DC in w/ lock type

Power

Requirement

+19V ~ +24V

Power Type

AT/ATX (ATX is default setting)

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Output: 90W Adapter (24V @ 3.75A Adapter)

AC-DC Adapter

Mechanical &

Environmental

Power Connector

Fanless

Construction -

Front

Black Coverlens

Construction -

Rear

Black

Dimension

362.1 x 290.08 x 51 mm

Weight

6/with Stand Kgs

Operating

Temperature

0°C ~ 35°C (32°F ~ 95°F)

Storage

Temperature

0°C ~ 60°C (0°F ~ 140°F)

Operating

Humidity

0% ~ 90% Relative Humidity, Non-condensing

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64,

Random, 5 ~ 500Hz, 30min/axis

Shock Test

With SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

Certifications &

Software Support

Certification

Information

FCC Class B

Quick Reference Guide

RITY150 Quick Reference Guide

VCCI

OS Information

POS Ready, Win 7, Win XP

Note: Specifications are subject to change without notice.

RITY150

8 RITY150 Quick Reference Guide

1.4 System Overview

1.4.1 Right View

1.4.2 Bottom View

Connectors

Label

Function

Note

COM1/2/6

External Serial Port 1/2 connector

(For RS-232/422/485)

External Serial Port 6 connector (For

RS-232)

DB-9 male connector

VGA/HDMI

VGA connector

HDMI connector

C/D

Cash Drawer connector

USB

6 x USB 2.0 connector

LAN

2 x RJ-45 Ethernet connector

DC-IN

DC Power-in connector

DC 24V OUT

DC Power-out connector

KB/MS

Keyboard & Mouse connector

USB

Quick Reference Guide

RITY150 Quick Reference Guide

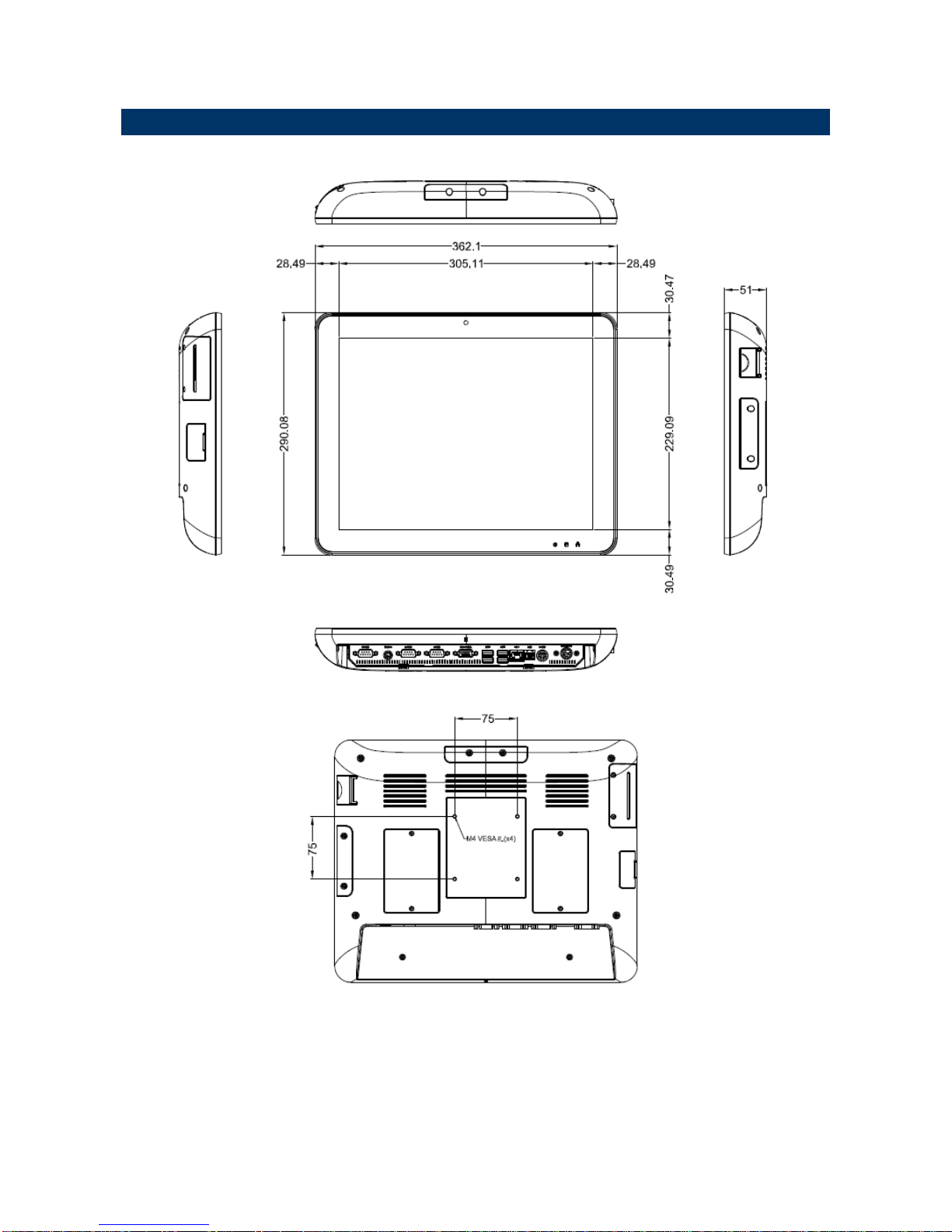

1.5 System Dimensions

(Unit: mm)

RITY150

10 RITY150 Quick Reference Guide

2.Hardware

Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
