Avalue Technology LPC-1503 Manual de usuario
Part No. E2017L155A0R
LPC 15”Series
15”Multifunctional Touch Panel PC
Quick Reference Guide
1st Ed –9 Mar 2011
Copyright Notice
Copyright 2007-2011 Avalue Technology Inc., ALL RIGHTS RESERVED.
LPC 15”Series
2 LPC 15”Series Quick Reference Guide
Contents
1. Getting Started ........................................................................................................3
1.1 Safety Precautions....................................................................................................3
1.2 Packing List...............................................................................................................3
1.3 System Specifications...............................................................................................4
1.4 System Overview......................................................................................................6
1.4.1 Front View................................................................................................................................ 6
1.4.2 Rear View................................................................................................................................ 6
1.5 System Dimensions ..................................................................................................7
2. Hardware Configuration .........................................................................................8
2.1 COM port BIOS Setting.............................................................................................9
2.1.1 LPC-1503 RS232/422/485 setting by BIOS.......................................................................... 9
2.1.2 LPC-1505 RS232/422/485 setting by SW2 .......................................................................... 9
2.2 Installing Hard Disk & Memory................................................................................10
Quick Reference Guide
LPC 15”Series Quick Reference Guide
3
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x LPC 15" Series Panel PC
1 x Quick Reference Guide
1 x DVD-ROM contains the followings:
—User’s Manual (this manual in PDF file)
—Ethernet driver and utilities
—VGA drivers and utilities
—Audio drivers and utilities
—WiFi drivers and utilities
—Touch controller drivers and utilities
1 x Power Adapter
LPC 15”Series
4 LPC 15”Series Quick Reference Guide
1.3 System Specifications
Panel
Model
LPC-1503
LPC-1505
LCD size
15”, 4:3
Display type
XGA
Resolution
1024 x 768
Color
262K
Pixel pitch
0.297mm(H) x 0.297mm(V)
Luminance
300 cd/m²
Contrast ratio
500
Viewing angle
65(U), 60(D), 70(L), 70(R)
Response time
8 ms
Backlight
CCFL
Touch type
5 Wires resistive
Touch interface
USB
System
Board
EBM-945GSE
EBM-PNV
CPU
Onboard Intel Atom N270 1.6GHz
Onboard Intel Pineview D525 1.8GHz
BIOS
Award 8 Mbit Flash BIOS
Award 512KB Flash BIOS
System Chipset
Intel 945GSE + ICH7-M
Intel ICH8-M
I/O Chipset
ITE 8712F
Nuvoton W83627DHG-P
System Memory
Onboard 1GB DDR2and one SODIMM
supports up to 2GB
Onboard 1GB DDR3 and one SODIMM
supports up to 3GB
SSD
One CF socket supports Type I / II Compact Flash Card.
HDD
Optional 2.5”SATA HDD
WiFi
Optional USB WiFi 802.11b/g
Watchdog Timer
Reset: 1 ~ 65535 sec./min. and 1 min./step
Audio
Realtek ALC 892 supports 5.1-CH Audio
Realtek ALC888 supports 5.1-CH Audio
Ethernet
Dual Realtek RTL8111C Gigabit LAN,
supports wake on LAN
Intel® 82574L Gigabit LAN, Optional
Dual LAN
Quick Reference Guide
LPC 15”Series Quick Reference Guide
5
External I/O Ports
COM Port
1 x RS-232/422/485 setting by BIOS*,
optional extra 1 x RS-232/422/485
1 x RS-232/422/485 setting by SW2*,
optional extra 1 x RS-232/422/485
Ethernet Port
Dual RTL8111C Giga LAN
Intel® 82574L Gigabit LAN
VGA / LCD Port
1 x DB-15
Audio Port
Line-out
USB Port
2 x USB 2.0
Power Supply Unit
Power Input
12V
Power Output
5A (60W)
Environment & Mechanical
Operating Temperature
0~40°C (32~104°F)
Storage Temperature
-20 to 60°C (-4~140°F)
Relative Humidity
5 to 90% @ 40°C (104°F), relative humidity, non-condensing
Dimension (W x D x H)
351.5 x 272 x 52 mm
Weight
4.2 Kgs
Mounting
Desktop (VESA Compliance)
Note: *To know more detail of RS232/422/485 setting, please refer to chapter 2.1.
LPC 15”Series
6 LPC 15”Series Quick Reference Guide

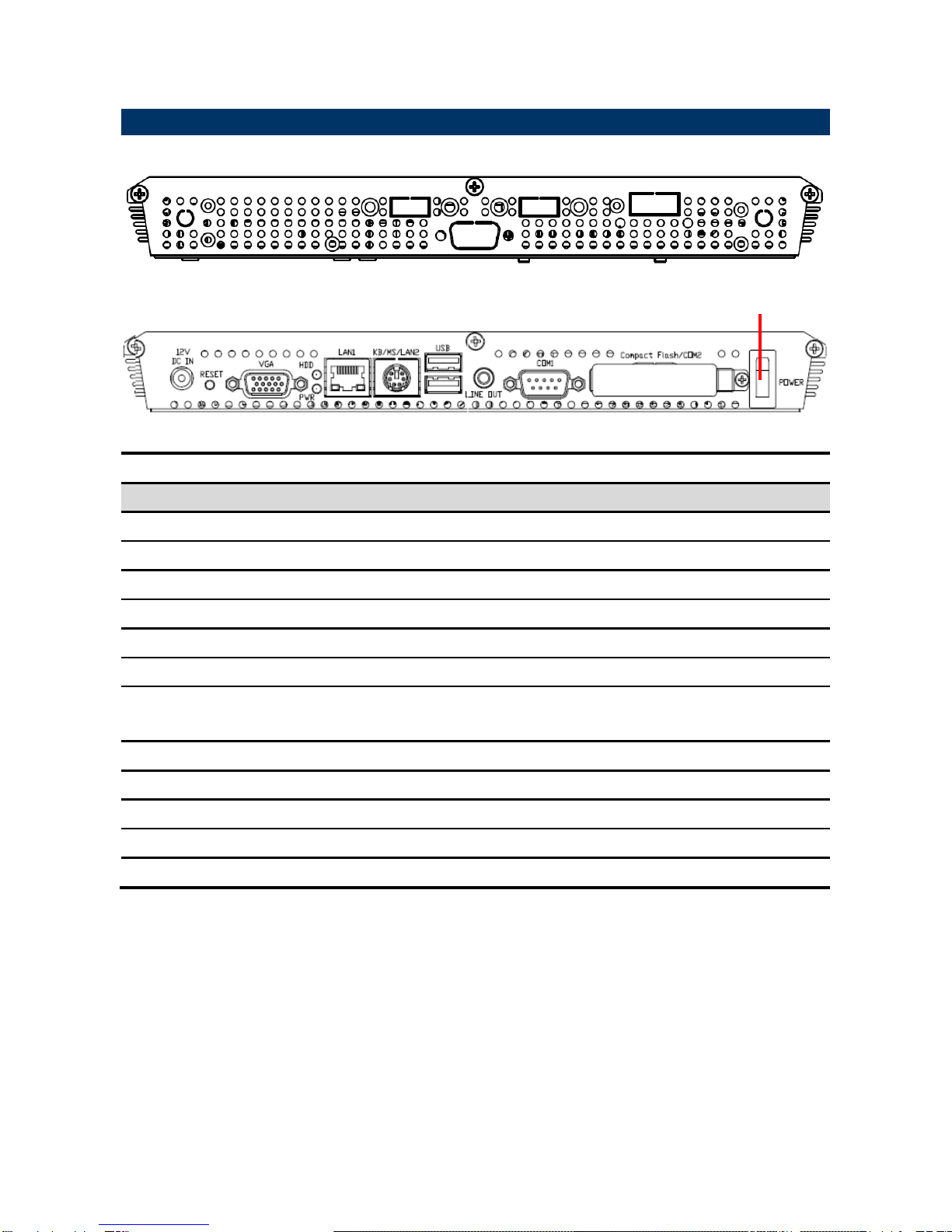

1.4 System Overview
1.4.1 Front View
1.4.2 Rear View
Connectors
Label
Function
Note
POWER
Power on button
CF
CF Type I/II Socket with Ejector
Optional for 2nd COM port
COM1
Serial port
DB-9 male connector
LINE OUT
Line-out audio jack
USB
2 x USB 2.0 connector
Dock USB
LAN1
RJ-45 Ethernet connector 1
LAN2
(KB/MS)
LPC-1505 -- PS/2 connector
LPC-1503 -- LAN2
HDD
HDD indicator
PWR
System power indicator
VGA
CRT connector
DB-15 female connector
RESET
Reset button
DC-IN
DC Power-in connector
POWER
Quick Reference Guide
LPC 15”Series Quick Reference Guide
7
1.5 System Dimensions
LPC 15”Series
8 LPC 15”Series Quick Reference Guide
2.Hardware
Configuration
Note: If you need more information, please visit our website:
http://www.avalue.com.tw
Quick Reference Guide
LPC 15”Series Quick Reference Guide
9
2.1 COM port BIOS Setting
2.1.1 LPC-1503 RS232/422/485 setting by BIOS
The COM port setting of LPC-1503, which applying EBM-945GSE M/B, can be configured
by BIOS. The path is shown as below.
[BIOS Menu] [Integrated Peripherals] [Super IO Device]
[COMPORT 232/422/485]
The panel backlight of LPC-1503, which applying EBM-945GSE M/B, can be configured by
BIOS as well. The path is shown as below.
[BIOS Menu] [Advanced Chipset Features] [LVDS Back Light]
To know more about other settings, please refer to EBM-945GSE Quick Installation Guide
or User’s Manual.
2.1.2 LPC-1505 RS232/422/485 setting by SW2
The COM port setting of LPC-1505, which applying EBM-PNV M/B, can be configured by
SW2. Please refer to EBM-945PNV Quick Installation Guide or User’s Manual.
LPC 15”Series
10 LPC 15”Series Quick Reference Guide
2.2 Installing Hard Disk & Memory
Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis.
Step 2. Insert the SODIMM into the memory socket.
Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off.
