Avalue Technology SPC-1209 Manual de usuario

Part No. E2017S291A3R

SPC-1209/1709

Full IP-65 Stainless Steel Chassis

Fanless Touch Panel PC

Quick Reference Guide

4th Ed –21 April 2016

SPC-1209/1709

2 SPC-1209/1709 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

SPC-1209/1709 Quick Reference Guide

Content

1. Getting Started ........................................................................................................4

1.1 Safety Precautions....................................................................................................4

1.2 Packing List...............................................................................................................4

1.3 System Specifications...............................................................................................5

1.4 System Overview......................................................................................................7

1.4.1 SPC-1209 Rear View .............................................................................................................. 7

1.4.2 SPC-1709 Rear View .............................................................................................................. 7

1.5 System Dimensions ..................................................................................................8

1.5.1 SPC-1209 Front, rear and side view ....................................................................................... 8

1.5.2 SPC-1709 Front, rear and side view ....................................................................................... 9

2. Hardware Configuration .......................................................................................10

2.1 SPC-1209/1709 connector mapping.......................................................................11

2.1.1 Waterproof DB-9 connector (COM)....................................................................................... 11

SPC-1209/1709

4 SPC-1209/1709 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x SPC-1209/1709 Panel PC

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Wi-Fi drivers and utilities

—Touch controller drivers and utilities

1 x Power Adapter

1 x DC-in extended cable

1 x USB+LAN+COM External cable 2000cm (only for SPC-1209)

Note:

User must use waterproof type connector and cable when connect to I/O ports including DC

jack, RJ45, COM and USB port.

Quick Reference Guide

SPC-1209/1709 Quick Reference Guide

1.3 System Specifications

Panel

Model

SPC-1209

SPC-1709

LCD size

12.1”, 4:3

17", 4:3

Display type

XGA

SXGA

Resolution

1024 x 768

1280 x 1024

Pixel pitch

0.240mm(H) x 0.240mm(V)

0.264mm(H) x 0.264mm(V)

Luminance

600 cd/m²

350 cd/m²

Contrast ratio

700

800

Viewing angle

70(U), 70(D), 80(L), 80(R)

80(U), 80(D), 85(L), 85(R )

Response time

16 ms

30 ms

Backlight

LED

Touch type

5 Wires resistive

Touch Light

transmission

Touch interface

USB

System

Board

EBM-BYT

CPU

Onboard Intel® Atom Quad-Core E3845 1.91GHz with Integrated Chipset

I/O Chipset

E/C IT8528E

System Memory

One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1333 SDRAM

SSD

One CompactFlash Type I/ II Socket

Hard Driver Bay

One 2.5" SATA HDD

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec./1sec.step

H/W Status

Monitor

Monitoring system temperature, voltage, and cooling fan status. Auto throttling

control when CPU overheats

Expansion

1 x mPCIe with SIM Slot, 1 x mPCIe Supports mSATA

Rear I/O

Serial Port

1 x RS-232

Ethernet

1 x RJ-45

USB

3 x USB 2.0

Speaker

2 x 5W

SPC-1209/1709

6 SPC-1209/1709 Quick Reference Guide

Display

Chipset

Intel Bay Trail SoC Integrated Graphics

Resolution

HDMI 1.4a resolutions up to 1920x1200@ 60 24bpp

Audio

AC97 Codec

Realtek ALC892 supports 5.1-CH Audio

Ethernet

LAN Chip

Intel® I210IT Gigabit LAN, Optional Dual LAN

Ethernet

10/100/1000 Base-Tx Fast Ethernet compatible

Mechanical & Environment

Color

Front & Rear Panel Silver

Mounting

Wall/Stand/VESA 75 mm x 75 mm

Power

Requirement

+12 V ~ +26 V

Power Adapter

Input: 100~240 Vac/ 50~60 Hz

Output: +24 Vdc / 2.5 A (60W)

Power Type

AT/ATX

Operating Temp.

0 ~ 40°C

Storage Temp.

-20 ~ 60°C

Operating

Humidity

5%~90% relative humidity, non-condensing

Demensions

311 x 272 x 58 mm

405 x 353 x 66.6 mm

Weight

4.23 Kgs

7.5 Kgs

Note:

1. For thermal concern, turbo boost feature of SPC true flat rear case SKUs with INTEL J1900 processor has

been turned off in BIOS default setting.

2. Specifications are subject to change without notice.

Quick Reference Guide

SPC-1209/1709 Quick Reference Guide

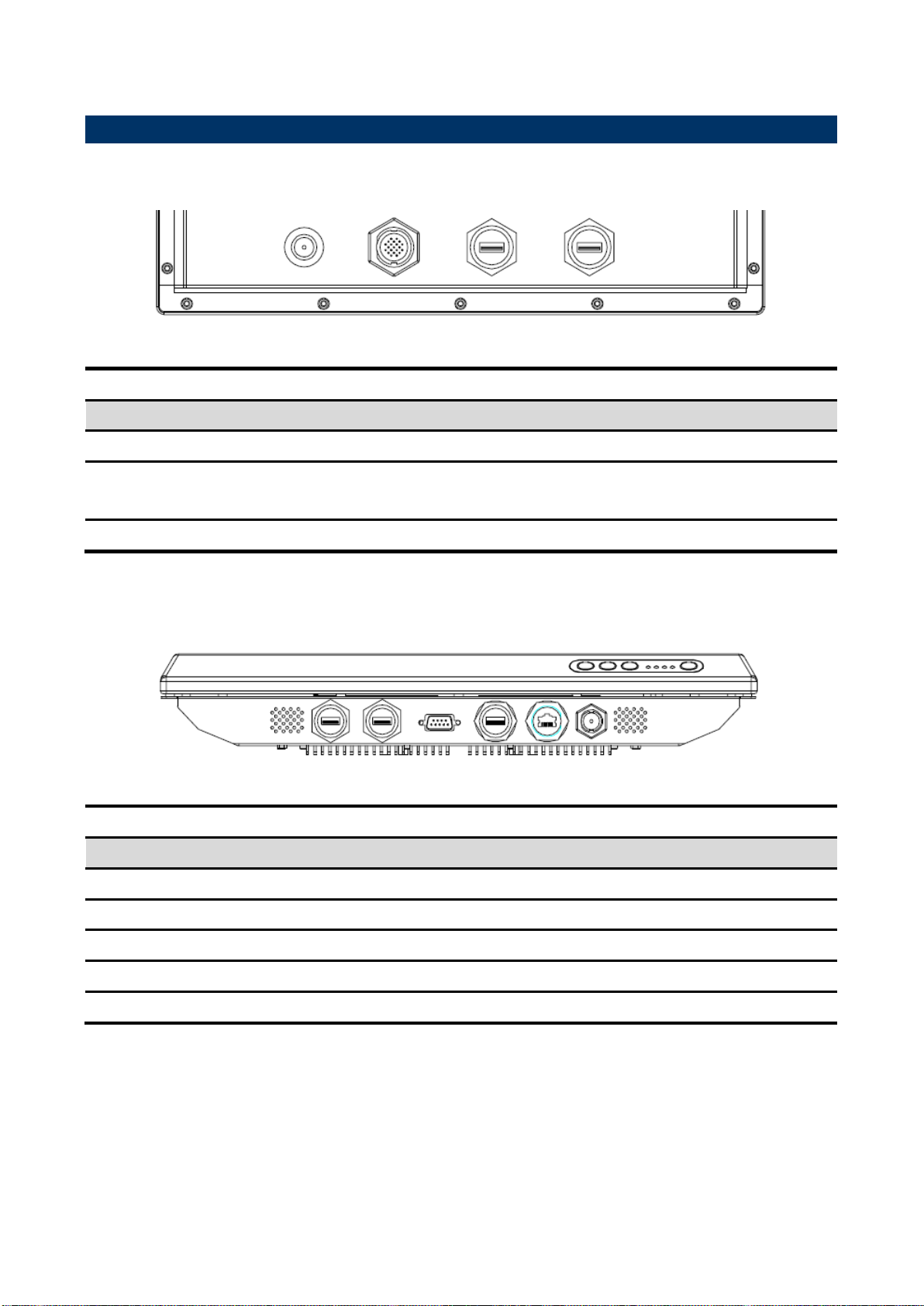

1.4 System Overview

1.4.1 SPC-1209 Rear View

Connectors

Label

Function

Note

DC-IN

Waterproof DC Power-in connector

18pin

Waterproof 18pin connector

(Use attached cable to convert 1xUSB/1xLAN/1xCOM)

USB

Waterproof USB 2.0 connector x 2

1.4.2 SPC-1709 Rear View

Connectors

Label

Function

Note

Membrane

Power & 3 programmable buttons

USB

Waterproof USB 2.0 connector x 3

COM

Waterproof DB-9 connector

LAN

Waterproof RJ-45 connector

DC-IN

Waterproof DC Power-in connector

SPC-1209/1709

8 SPC-1209/1709 Quick Reference Guide

1.5 System Dimensions

1.5.1 SPC-1209 Front, rear and side view

(Unit: mm)

Quick Reference Guide

SPC-1209/1709 Quick Reference Guide

1.5.2 SPC-1709 Front, rear and side view

(Unit: mm)

SPC-1209/1709

10 SPC-1209/1709 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- EBM-BYT User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
