Avalue Technology BFC-1208 Manual de usuario

Part No. E2017B280A0R

BFC-1208

12” Multifunctional Full Flat Multi-Touch Panel Computer

Quick Reference Guide

1st Ed –16 May 2017

BFC-1208

2 BFC-1208 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

BFC-1208 Quick Reference Guide

Content

1. Getting Started............................................................................................................4

1.1 Safety Precautions ................................................................................................4

1.2 Packing List...........................................................................................................4

1.3 System Specifications ...........................................................................................5

1.4 System Overview...................................................................................................8

1.4.1 Front View.................................................................................................................................... 8

1.4.2 Rear View..................................................................................................................................... 8

1.5 System Dimensions...............................................................................................9

1.5.1 Front, rear and side view ............................................................................................................. 9

2. Hardware Configuration...........................................................................................10

2.1 BFC-1208 connector mapping.............................................................................11

2.1.1 External Serial Port connector 1(COM1) ................................................................................... 11

2.2 Installing Hard Disk & Memory (BFC-1208).........................................................12

BFC-1208

4 BFC-1208 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x BFC-1208 12” Multifunctional Full Flat Multi-Touch Panel Computer

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers

Other major components include the followings:

—60W adapter and power cord

—4 x M4*6mm screw for VESA mount

—2 x M3*4mm screw for HDD bracket

Quick Reference Guide

BFC-1208 Quick Reference Guide

1.3 System Specifications

Component

Mother Board

EBM-QM87U

CPU

Intel UTL Core i5-4300U 1.9GHz onboard CPU

CPU Cooler (Type)

Heatsink

Memory

2 x 204-pin DDR3L SO-DIMM Up to 8GB Per DIMM

Power Supply

DC in

Adapter

60W 12V/5A (ACC-ADP-060N-04R)

Speaker

2W *2

Expansion Card

2* mini PCIe slot

Other Component

Line Out

Panel

LCD Panel

12.1" XGA TFT LED PANEL CMO G121X1-L03

Touch Screen

12.1" PCAP H8573A+EETI EXC3188

Touch Controller

EETI EXC3188 (come with touch)

External I/O

Serial Port

1 x RS-232/422/485, 1 x RS-232 (option by cable)

USB Port

2 x USB3.0, 2 x USB2.0 (option by cable)

Video Port

1 x HDMI

Audio Port

Line-out

LAN Port

1 x Intel I210AT, 1 x Intel I218LM GbE PHY

Switch

Power button switch

Indicator Light

HDD & Power LED

Expansion Slots

2* mini PCIe slot

Mechanical

Power Type

DC in +12V ~ 26V

Power Connector

Type

Lockable DC jack

Dimension

292.9 x 225.4 x 49mm

Weight

3.1kg

Color

Black/ silver

Fanless

Yes

OS Support

Windows 7/8.1/10, Linux

Reliability

EMI Test

CE/ FCC class B

Dust and Rain Test

Front Panel IP65

Vibration Test

Ramdom Vibration Operation

BFC-1208

6 BFC-1208 Quick Reference Guide

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1 Test PSD : 0.00454G²/Hz , 1.5 Grms

2 Test frequency : 5~500 Hz

3 Test axis : X,Y and Z axis

4 Test time : 30 minutes each axis

5 System condition : operation mode

6 Test curve

Sine Vibration Test

Reference IEC60068-2-6 Testing procedures

Test Fc : Vibration sinusoidal

1 Test Acceleration : 2G

2 Test frequency : 5~500 Hz

3 Sweep：1 Oct/ per one minute. (logarithmic)

4 Test axis : X,Y and Z axis

5 Test time :10 min. each axis

6 System condition : Non-Operating mode

7 Test curve

Package Vibration Test:

Reference IEC60068-2-64 Testing procedures

Test Fh : Vibration boardband random Test

1 Test PSD : 0.026G²/Hz , 2.16 Grms

2 Test frequency : 5~500 Hz

3 Test axis : X,Y and Z axis

4 Test time : 30 minutes each axis

5 Test curve

Mechanical Shock

Test

With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms

Drop Test

Package drop test

Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed

Test Ea : Drop Test

1 Test phase : One corner, three edges, six faces

2 Test high :

3 Package weight :

4 Test drawing

Operating

Temperature

0 ~ 40 degree

Operating Humidity

0 ~ 90% Relative Humidity, Non-condensing

Storage Temperature

-20 ~ 60 degree

Quick Reference Guide

BFC-1208 Quick Reference Guide

Note: Specifications are subject to change without notice.

BFC-1208

8 BFC-1208 Quick Reference Guide

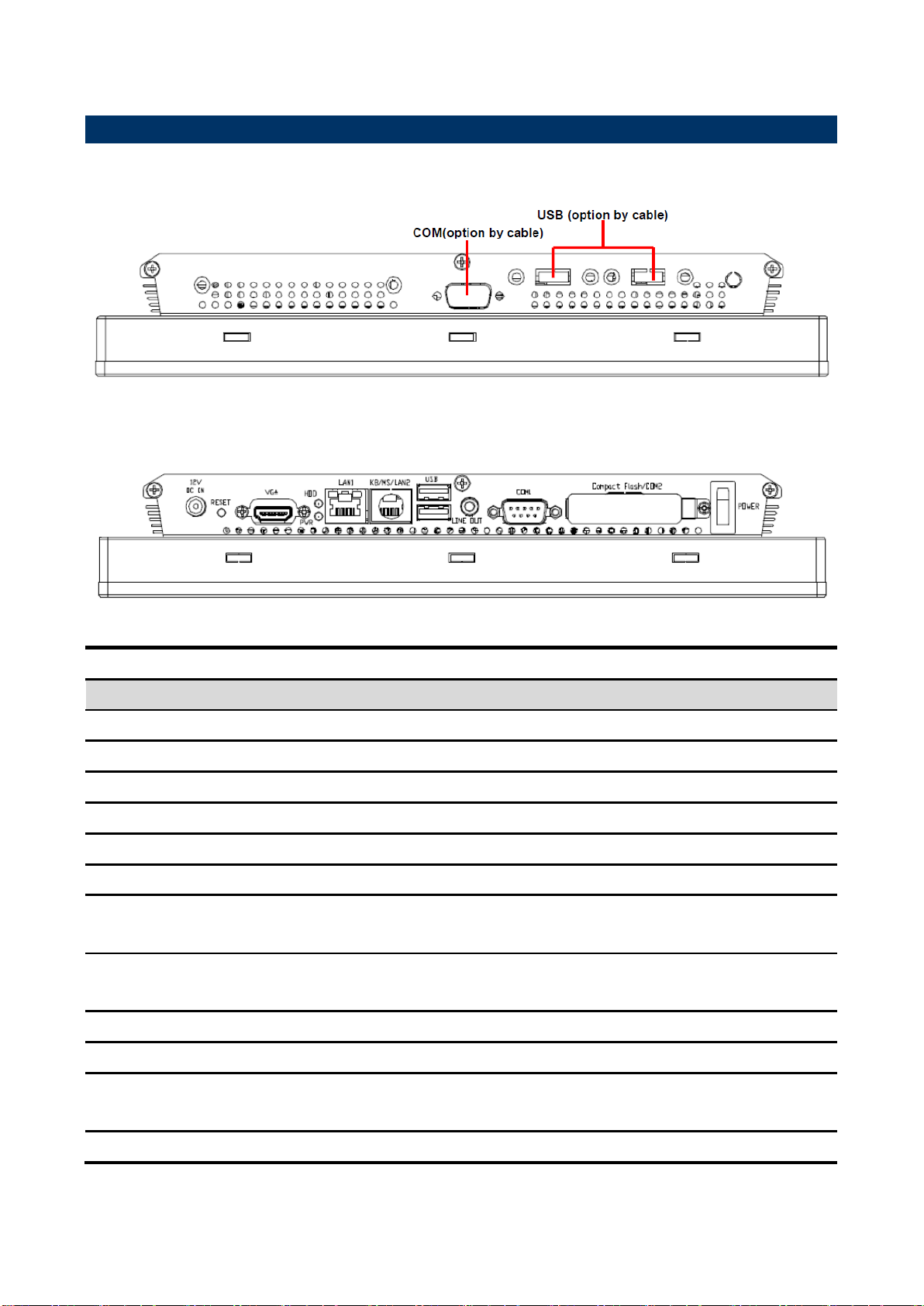

1.4 System Overview

1.4.1 Front View

1.4.2 Rear View

Connectors

Label

Function

Note

DC IN

DC Power-in connector

RESET

Reset button

VGA/HDMI

HDMI connector

HDD

HDD LED

PWR

Power LED

LAN1

RJ-45 Ethernet 1

KB/MS/LAN2

2nd LAN

Optional PS/2 connector

USB

2 x USB 3.0 connector

2 x USB2.0 connector(option by cable)

LINE OUT

Line-out audio jack

COM1

External Serial Port connector 1

DB-9 male connector

Compact

Flash/COM2

CF Type I/II Socket with Ejector

Optional for 2nd COM port

Power

System power switch

Quick Reference Guide

BFC-1208 Quick Reference Guide

1.5 System Dimensions

1.5.1 Front, rear and side view

(Unit: mm)

BFC-1208

10 BFC-1208 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- EBM-QM87U User’s Manual

Note: If you need more information, please visit our website:

http://www.avalue.com.tw
