Avalue Technology BFC-10W7 Manual de usuario

Part No. E201710W7A2R

BFC-10W7

10.1" Multifunctional Bezel Free Multi-Touch Panel Computer

Quick Reference Guide

3rd Ed –05 September 2013

BFC-10W7

2 BFC-10W7 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x BFC-10W7 10.1" Multifunctional Bezel Free Multi-Touch Panel

Computer

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers

Other major components include the followings:

—60W adapter and power cord

Quick Reference Guide

BFC-10W7 Quick Reference Guide

1.3 System Specifications

System

Board

ECM-CDV

CPU

Intel® Atom™ Dual-Core D2550 1.86GHz CPU

BIOS

AMI 8M-bit SPI BIOS

System Chipset

Intel® NM10 Express Chipset

I/O Chip

Nuvoton W83627DHG-P

System Memory

One SODIMM socket supports up to 4GB DDR3 800/1066

SDRAM

SSD

One CompactFlash Type I/II socket

Hard Driver Bay

Optional One 2.5”HDD or SSD (Total height: 66.05mm )

WiFi

Optional Mini PCIe WiFi 802.11b/g/n

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status Monitor

Monitoring system temperature and voltage. Auto throttling

control when CPU overheats

Expansion

1 x Mini-PCIe (mSATA supported)

Panel

LCD size

10.1", 16:9

Display type

LED

Resolution

1024 x 600

Pixel pitch

0.2175 (H) x 0.2088 (V)

Luminance

200 cd/m²

Contrast ratio

500

Viewing angle

20(U), 45(D), 45(L), 45(R )

Response time

25 ms

Backlight

LED Backlight

Touch Type

Projected Capacitive Touch

Touch Light

Transmission

86%

Touch Interface

USB

Rear I/O

Serial Port

1 x RS232, 1x RS232/422/485 (selected by jumper)

Ethernet

2 x RJ-45 (Dual Intel 82574L Gigabit Ethernet)

VGA

1 x HDMI & 1 x VGA

Audio port

1 x Mic in

USB

3 x USB

Speaker

2 x 2W (or optional Line out x 1)

BFC-10W7

4 BFC-10W7 Quick Reference Guide

Display

Chipset

Intel NM10 Express Chipset

Resolution

CRT: up to 2048x1536@ 60 Hz

Dual Display

CRT + LVDS with clone mode

LVDS

Dual 18/24-bit LVDS

Audio

AC97 Codec

Realtek ALC892 supports 5.1CH Audio

Audio Interface

Line out (audio jack), AMP Line-in, Line-out, Mic-in (in header)

Mechanical & Environmental

Mounting

Wall/Stand/VESA 75 mm x 75 mm

Power Input

Wall/Stand/VESA 75 mm x 75 mm

Power Output

100~250 Vdc/ 47~63 Hz

Power Type

AT/ATX

Operating Temp.

32 to 104°F (0 to 40°C)

Storage Temp.

-14 to 140°F (-10 to 60°C)

Operating Humidity

5%~90% relative humidity, non-condensing

Dimensions

251.94mm x 154.5mm x 45.25mm

Weight

251.94mm x 154.5mm x 66.05mm (w/ HDD)

Reliability

EMI Test

CE/FCC Class B

Dust and Rain Test

Front side IP65

Operating Temperature

0°C ~ 40°C

Operating Humidity

0%~90% relative humidity, non-condensing

Storage Temperature

-10°C ~ 60°C

Quick Reference Guide

BFC-10W7 Quick Reference Guide

1.4 System Overview

1.4.1 Front & Top View

1.4.2 Rear View

Connectors

Label

Function

Note

COM1~2

Serial port connector1~2

DB-9 male connector

HDMI

HDMI connector

VGA

VGA connector

HDD

HDD Indicator

BFC-10W7

6 BFC-10W7 Quick Reference Guide

LAN

RJ-45 Ethernet

LINE OUT

Line-out audio jack

(optional)

Power

System power switch

USB

USB connector

PWR

Power Indicator

DC-IN

DC power-in connector

MIC IN

Microphone-in audio jack

Quick Reference Guide

BFC-10W7 Quick Reference Guide

2.Hardware

Configuration

For advanced information, please refer to:

1- BFC-10W7 Quick Reference Guide or User’s Manual

2- ECM-CDV included in this manual.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

BFC-10W7

8 BFC-10W7 Quick Reference Guide

2.1 BFC-10W7 connector mapping

2.1.1 External Serial Port 1 connector (COM1)

Signal

DCDA#

RxDA

TxDA

DTRA#

GND

DSRA#

RTSA#

CTSA#

RIA#

2.1.2 External Serial Port 2 connector (COM2)

Signal

DCDB#

RxDB

TxDB

DTRB#

GND

DSRB#

RTSB#

CTSB#

RIB#

Quick Reference Guide

BFC-10W7 Quick Reference Guide

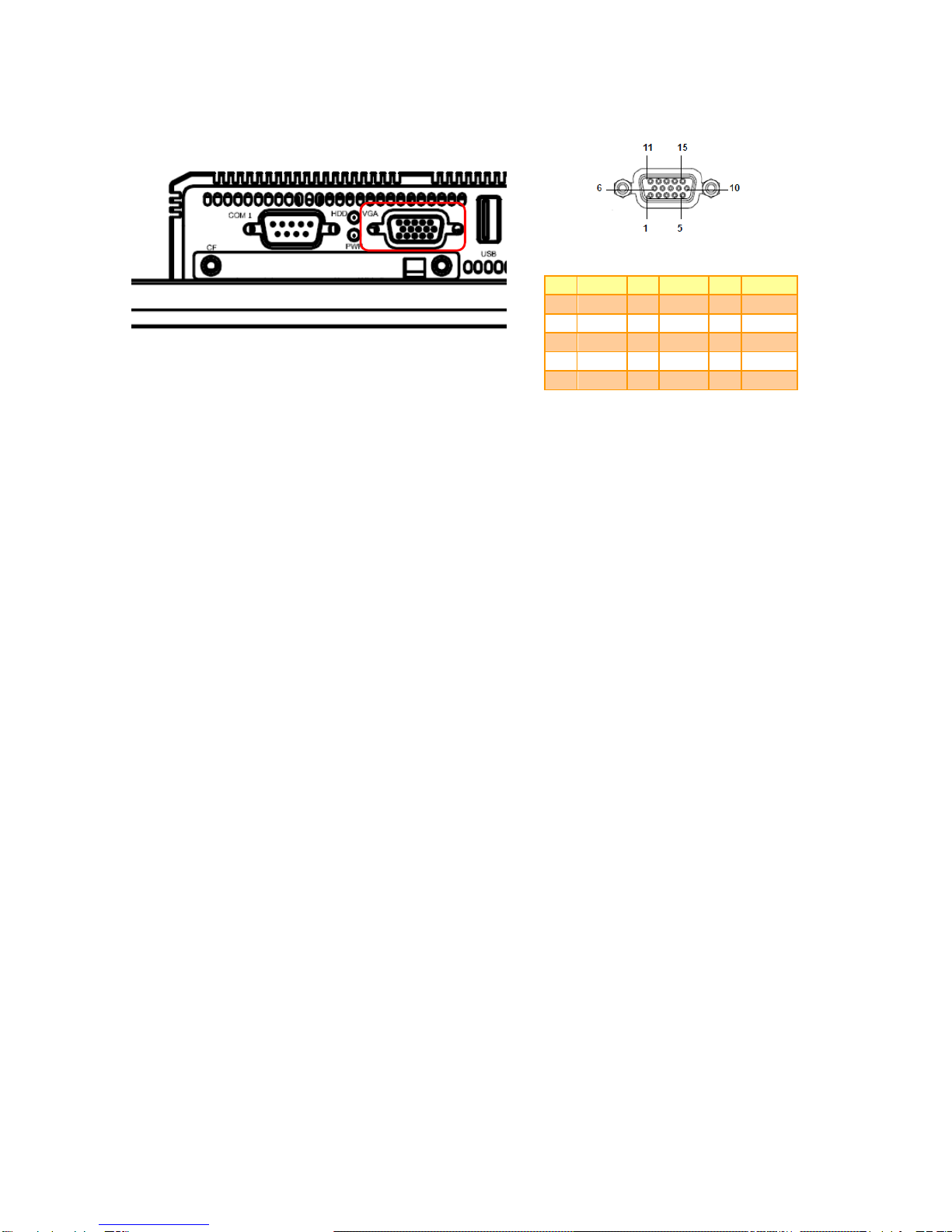

2.1.3 VGA connector (VGA)

Signal

GND

DATA

GND

HSYNC

+5V

VSYNC

GND

CLK

BFC-10W7

10 BFC-10W7 Quick Reference Guide

2.2 Installing Memory (BFC-10W7)

Step 1. Remove the 8 screws to disassemble your system back cover.

Step 2. Remove the 3 screws to disassemble your panel pc bezel.
