Audiovox D1917PK Manual de usuario

D1917PK

PORTABLE 9" LCD MONITOR AND DVDPLAYER

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

AnLCDpanel and/or videomonitormaybeinstalled in amotor vehicle

and visible to the driver ifthe LCD panelor videomonitor is used for

vehicle information, system control, rear or side observationor

navigation.If the LCDpanelor video monitor is usedfortelevision

reception, video or DVD play, the LCDpanel or video monitor must be

installedsothat these featureswill onlyfunction when the vehicle is in

park”orwhenthevehicle’s parkingbrake isapplied.

AnLCD panelor video monitor used for television reception, videoor

DVDplay thatoperateswhenthevehicleis ingear or whentheparking

brakeis not appliedmust be installedtothe rearofthe driver’sseat

where itwill notbevisible, directly or indirectly, to theoperator of the

motor vehicle.

Notice:

This Productincorporates copyrightprotection technologythat is pro-

tectedby methodclaims of certain U.S. Patents andotherintellectual

property rights ownedby Macrovision Corporationandother rights own-

ers. Use ofthiscopyright protectiontechnologymust be authorizedby

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

inguses onlyunless otherwise authorized byMacrovision Corporation.

Reverse engineeringor disassemblyis prohibited.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Content

A.Introduction............................................................................ 4

B.Cautionsand Warnings........................................................ 4

C.Contents ............................................................................... 6

D.PoweringandInstallation ..................................................... 6

E.Vehicle Installation.....................................................7

F. Controls, Indicators and Connectors ................................... 8

G. Loading andPlayinga Disc .................................................. 9

H.BasicOperation......................................................................10

I. Menu .................................................................... 11

J.Display................................................................................... 11

K.PlayingAudio CDS................................................................ 14

L. Playing MP3 Discs ..........................................................15

M.Connectingto OtherElectronic Equipment ........................17

N.PlayingJPEGfile....................................................................18

O.Setup....................................................................................20

P.Specifications ...................................................................... 23

QRechargeableBattery Installationand Use......................... 23

R.Troubleshooting ................................................................. 25

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

A.Introduction

Thankyou forchoosingtheD1917PKportableDVDplayer. Themain

featuresincludea9" Wide Screen(16:9AspectRatio) LiquidCrystal

Display(LCD)monitorand aDVD player. The unitisdesigned for

usewith SD/MMC,MS memorycardsandUSBmemorydevices.

The unitapplies the latest stateof the artelectronics andisde-

signed for use in vehicles, hotels, offices or your home. The unit is

constructedto provide years of reliable, trouble-free service, and is

compact so that you can take it with you anywhere and is designed

forquick andeasyinstallation. Pleaseread theentireinstruction

manual supplied withthis product prior to using.The documentation

willassistyouin installingthe system properly to obtain the bestequip-

mentperformance. Please save this manual for later use.

B. Cautions and Warnings

1. Placement

Toprevent fireorelectric shock,donotexpose this appliance to

rainor moisture. Keep the unitawayfrom strong magnets, heat

sources,directsunlight, excessive dust.If the unit is brought di-

rectly from acold toa warmlocation, moisturemay condense in-

side theunit. When youmoveitfromacoldtoawarm location,

waitforabout one hour beforeoperating theunit, orremove the

disc andleave the unit turned on until the moisture evaporates.

2. Installation

Ensure that the D1917PK portableDVD player is used in accor-

dancewiththeinstructions andillustrations provided inthis manual.

3. Objects and Liquids

Do not push objects ofany kindinto the unit throughopenings;

do not spill or sprayliquid ofanykind on or in the system (this

mayresult in a fire or electric shock). Do not place anything

heavy onthe unit. Toensure proper ventilation and proper

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

operation,never cover or blocktheslots and openings with acloth

or other material. It is hazardousto replacethebattery incorrectly.

Replacethebattery only withthe same orequivalent type. Inorder

to protect the environment, please dispose the batteryproperly.

Do not use the unit in temperatures higher than 95 degrees Fahr-

enheit or 35 degrees Celsius.

4.Disassembly

Donot attempt to disassemblethe unit.Thereisa riskofelectric

shockand/orexposure to LaserRadiation. Contactqualifiedser-

vicepersonnel ifyour system needs repair.

5.Cleaning Unit

Whencleaning,makesurethesystem isunplugged fromthepower

source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth

lightly dampenedwith waterfor cleaningtheexterior ofthe system

only.

6. Discs

Do not use irregularlyshaped discs such asheart orstar-shaped

discs as theymay cause the unittomalfunction.Donotstickpaper,

tapeor glue on the disc. Do not expose thedisc to direct sunlight

or heat sources. Do not touchthe surface ofdisc. Handle thedisc

by itsedge. Cleanthedisc bywipingthedisc from the center out

with acleaning cloth. Removethe disc from the unit and store it in

its case after playing. Some playbackoperationsofdiscs maybe

intentionally fixed bysoftwareproducers. Since this unitplays discs

according to the disc contentsthesoftwareproducers designed,

some playbackfeatures maynot be available. Also refer to the in-

structionssuppliedwiththediscs.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7.RegionalCoding

Both theDVDplayer and disc are coded by region. These

regional codes must match inorder for thedisc toplay.Ifthe

codesdon’t match, the disc won’t play. This unit’s code is region

1. DVDs withother regional codes cannot be played in thisunit

C. Contents

1. 1 x 9’’ LCD Monitor & DVD Player

2. 1 xRemote Control with battery(CR2025)

3.1 x Audio/VideoAdapterCable

4. 1 xAC to DCAdapter

5. 1 xDC Power Adapter

6. 1x Instruction Manual

7. 1 xRechargeable Battery

8. 1 xCarryBagWith Straps

9. 2 x Foldable Headphones

D. Powering and Installation

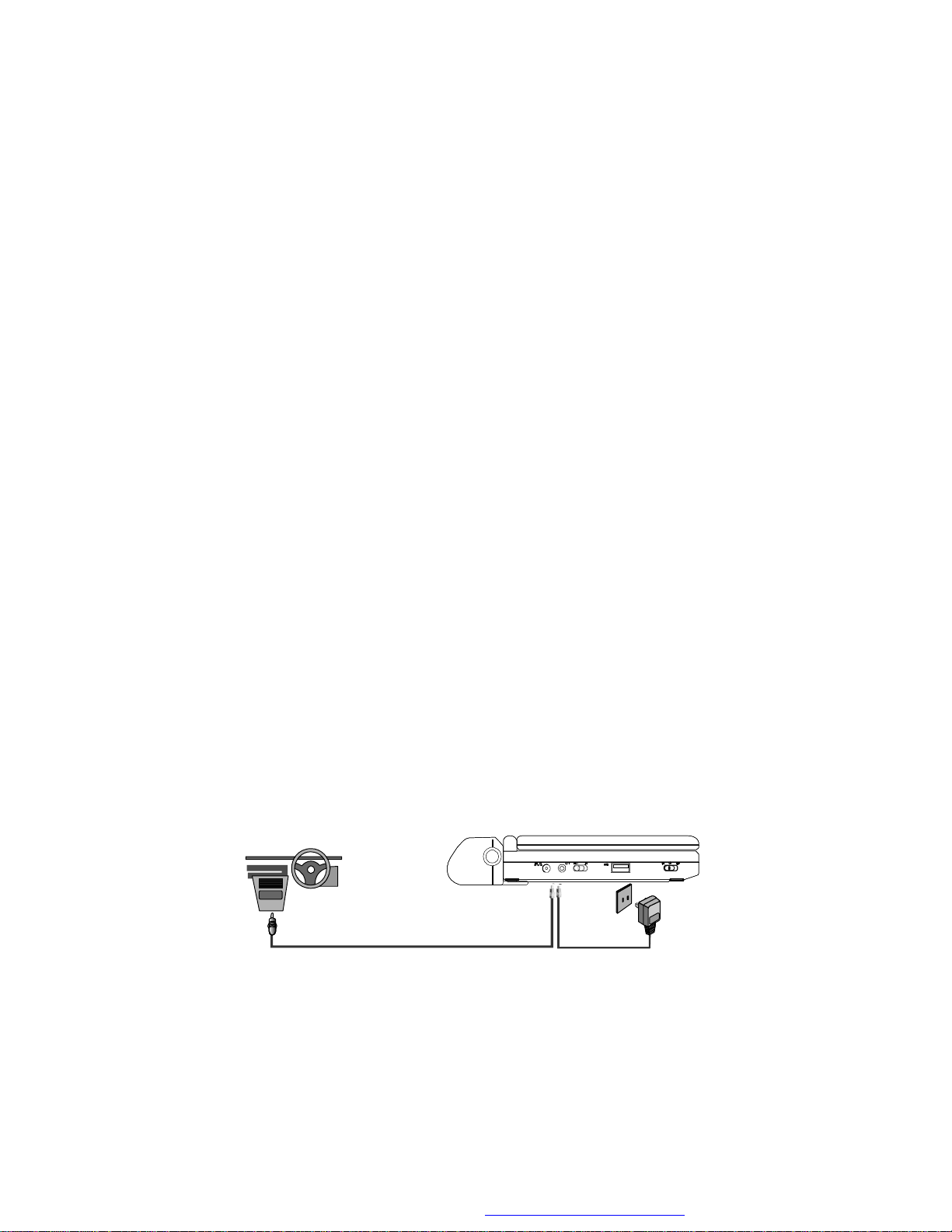

1. Powering the system indoors (Refer to Figure 1)

Plug one end of theAC to DC adapterinto the DCinputjackon the

left side ofthe mainunit, then plugthe otherend intothe 110~240V

AC power receptacle.

2. Powering the systemin a car

Plug one end ofthe DC Power adapter into the DC input jackon

theunit, then plug the other end intothe vehiclepower outlet.

Figure1

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

E. Vehicle Installation

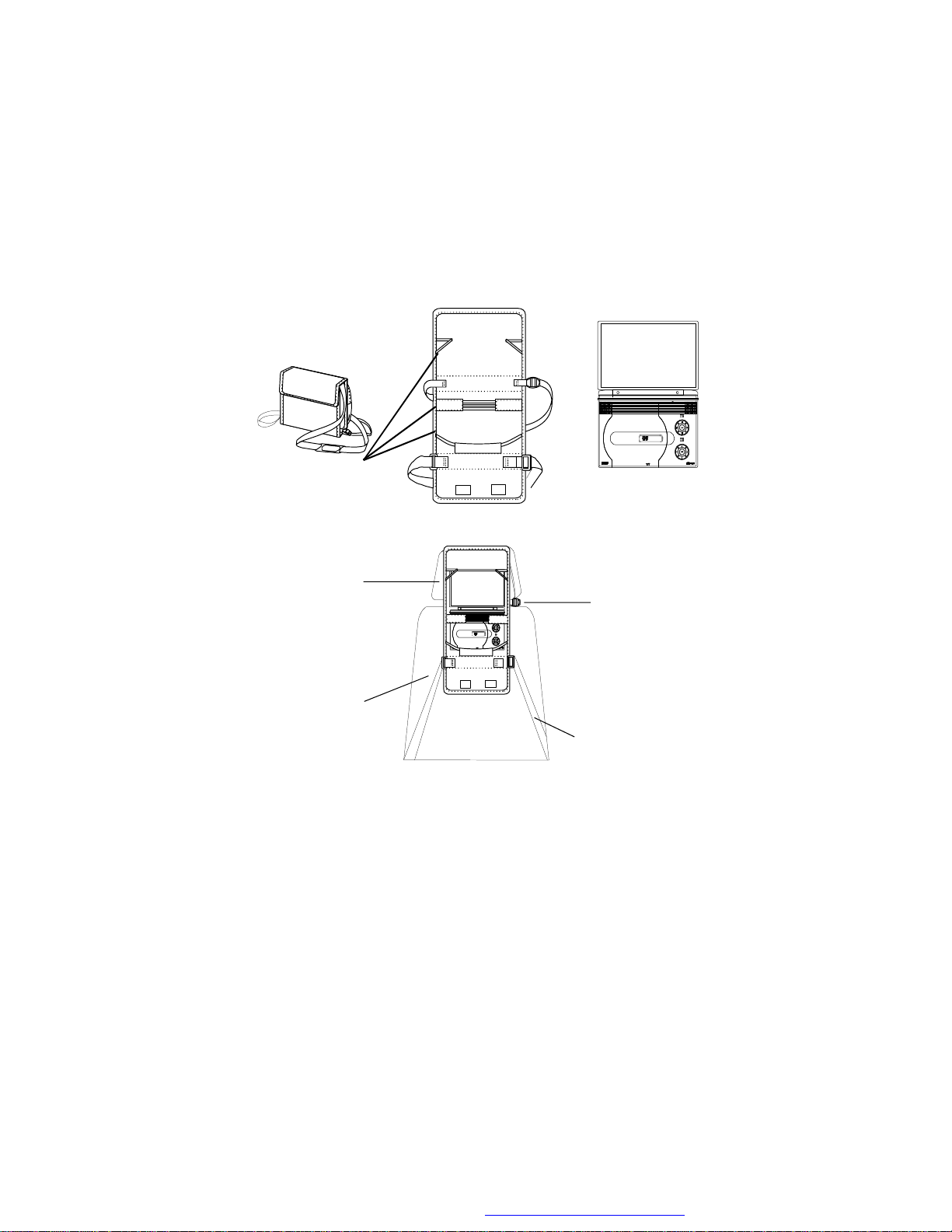

Installingthe DVD Player onto the seat back ina car

(Refer to Figure 2)

1).Unfoldthe carrybag, andplace the DVD player on the bag

beneaththe elastic straps. Ensurethat the unit’scornersare

secured bythe elasticstraps.

2).Securetheupper portion of the carry bag toheadrest support

barsusingthe headreststrap.Adjust the headreststrap untilthe

bag isfirmly secured.

3). Securethelowerportionofthecarry bagto the vehicleseat back

using the seatback strap.Adjust the seat back strap until the

bag isfirmly secured.

Elastic

Straps

CarryBagOpened

CarryBagClosed

Figure2

Headrest Strap

Seat Back

Strap

VehicleSeat

Back

VehicleHeadrest

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

F. Controls, Indicators, and Connectors

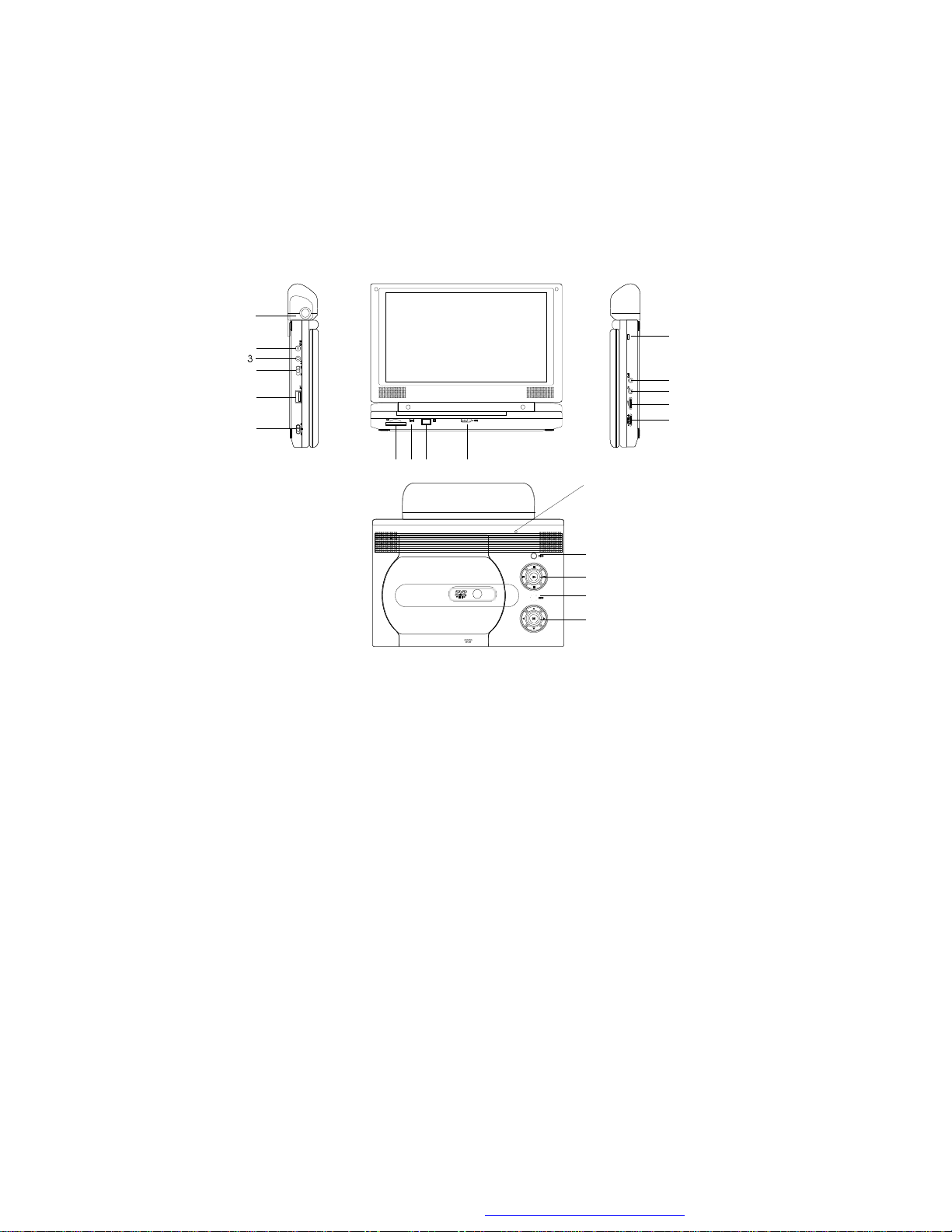

1. UnitView (Refer to Figure3)

1) Battery Release Button

2) DC 9V InputJack

3)AVJack

4)AVIn/Out Switch

5) USB Port

6)Power ON/OFF Switch

7) SD/MMC/MSCard Slot

8)Power LED

9)Remote Control Sensor

10) Cover Open Switch

11) Charge Indicator

12)Headphone Jack 1*

13)HeadphoneJack 2

14) Volume Up/DownControl

15) Brightness Up/Down Control

16)LCD Panel Shut Off Switch

17) Wide Button

18) Previous/Next/Pause/Stop/Play

19)MenuButton

20) Up/Down/Left/Right/OK Button

* Connectingto headphone jacknumber 1 will disable the

internal speakers

78910

Figure 3

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2.Remote Control (Refer to Figure4)

1) Setup Button

2) UpButton

3) Skip- Button

4) Enter Button

5) Reverse/Left Keypad

6)DownButton

7)Numeric Buttons

8) DisplayButton

9) Zoom Button

10)DVD/SD-USB Button

11) Skip + Button

12) A-B Repeat Button

13) Forward/Right Keypad

14)1/All Repeat Button

15) Stop Button

16)MenuButton

17) Subtitle Button

18)Audio Button

19) Play/Pause Button

G. Loading and Playing a Disc

a. After connectingpower to the unit, power on the DVD player with

the power switch. The power indicator will light.

b.Openthedisctrayby sliding theOPEN switch inthe directionof

the arrow. Place a disc in the traywith label sidefacingup.

c.Closethe trayby pressingthearea marked PRESS”.Theunitwill

load the discand start playing.

d. Rotate VOLUMEto adjust the LCD’sbrightness and the DVD

player’svolume.

e. To stopplaying adisc,pressSTOP.

Figure 4

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

H. Basic Operation

POWER

OPEN

PAUSE

STOP

PLAY

Skip +NEXT

Skip-PREVIOUS

FORWARD

REVERSE

ANGLE

LEFT/RIGHT/UP/DOWN

ENTER

NUMBERS

REPEAT

A-B

DISPLAY

SUBTITLE

AUDIO

SETUP

WIDE

Turnthe uniton/off

Remove/load the disc

Press topause play and againtore-start play.

Press once to stop and restart at thestop point

Press twice to stop and restart at the

beginning of thedisk

Start Play/Execute item or setting

Goto thenextchapter, track or scene

during play back

Gobacktothe previouschapter, track

or scene duringplayback

Scan forward at 2, 4, 8,16 or

32 times speed

Scan backward at 2, 4, 8, 16or

32 times speed

Changethe viewingangle of the scene

Used forMenu Navigation

Execute item or confirm setting

Select item or setting

Display the mainmenu ofthe disc

Repeat playingtitle, chapter, or track

Repeat a specific portionfrom

pointAto pointBof thedisc

Display information (title, chapter, track,

time, etc.).

Select thesubtitlelanguage andturn it

on/off

Selecttheaudio language

Displaythe setup menuto select and

set items, and exit the setup menu.

On the player only: change between wide

screen and 4:3 picture aspectratio.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Tabla de contenidos

Otros manuales de Reproductor de DVD portátil de Audiovox

Audiovox

Audiovox DS7521PK Manual de usuario

Audiovox

Audiovox D705PK Manual de usuario

Audiovox

Audiovox 1286808A Manual de usuario

Audiovox

Audiovox VBP50 Manual de usuario

Audiovox

Audiovox VOD1221 P Manual de usuario

Audiovox

Audiovox D1788ES Manual de usuario

Audiovox

Audiovox D1700 Manual de usuario

Audiovox

Audiovox D1915 Manual de usuario

Audiovox

Audiovox D1718PK - DVD Player - 7 Manual de usuario

Audiovox

Audiovox Eddie Bauer PE702 Manual de usuario

Audiovox

Audiovox D1708PK Manual de usuario

Audiovox

Audiovox D1809PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox VBP800 Manual de usuario

Audiovox

Audiovox DS9106 Manual de usuario

Audiovox

Audiovox FLO TV DFL710PK Manual de usuario

Audiovox

Audiovox PVS69701 Manual de usuario

Audiovox

Audiovox D1710 Manual de usuario

Audiovox

Audiovox DS7521PK Manual de usuario

Audiovox

Audiovox D2017 Manual de usuario

Audiovox

Audiovox VE1020 Manual de usuario

Audiovox

Audiovox D1788 - DVD Player - 7 Manual de usuario

Audiovox

Audiovox D1500A Manual de usuario

Audiovox

Audiovox D1718ES - DVD Player - 7 Manual de usuario

Audiovox

Audiovox D710 Manual de usuario

Manuales populares de Reproductor de DVD portátil de otras marcas

Philips

Philips PET718/77 Manual de usuario

Impecca

Impecca DVP775 Manual de usuario

NextBase

NextBase MULTI-VISION SET PRO Manual de usuario

Impecca

Impecca DVP-1017 Manual de usuario

Akura

Akura APDVD6008 Manual de usuario

TV Star

TV Star TD3 LCD COMBO Manual de usuario

LENCO

LENCO MES-202 Manual de usuario

Philips

Philips PET940/98 Manual de usuario

Philips

Philips PET702P Manual de usuario

Philips

Philips PD7016 Manual de usuario

Logik

Logik L7SPDVD11 Manual de usuario

LG DP650 Manual de usuario

Mustek

Mustek MVP850B Manual de usuario

Insignia

Insignia NS-MDDVD10 Manual de usuario

Philips

Philips PD9000/12 Manual de usuario

LENCO

LENCO DVP-1027 Manual de usuario

Philips

Philips PD7010/05 Manual de usuario

Technika

Technika PDVDTWINSS10 Guía del usuario
