Audiovox D1988 Manual de usuario

D1988

PORTABLE 9" LCD MONITOR AND

DVD PLAYER WITH BUILT-IN BATTERY

An LCD panel and/or video monitor may be installed in a motor

vehicle and visible to the driver if the LCD panel or video monitor

is used for vehicle information, system control, rear or side

observation or navigation. If the LCD panel or video monitor is

used for television reception, video or DVD play, the LCD panel or

video monitor must be installed so that these features will only

function when the vehicle is in “park” or when the vehicle’s park-

ing brake is applied.

An LCD panel or video monitor used for television reception, video

or DVD play that operates when the vehicle is in gear or when the

parking brake is not applied must be installed to the rear of the

driver’s seat where it will not be visible, directly or indirectly, to the

operator of the motor vehicle.

Notice:

This Product incorporates copyright protection technology that is

protected by method claims of certain U.S. Patents and other intel-

lectualpropertyrightsownedbyMacrovisionCorporationandother

rights owners. Use of this copyright protection technology must be

authorized by Macrovision Corporation, and is intended for home

andother limited viewing usesonlyunlessotherwiseauthorized by

Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

Content

A.Introduction............................................................................4

B. Cautions and Warnings ........................................................ 4

C.Contents...............................................................................6

D. Powering and installation ..................................................... 6

E. Controls, Indicators, and Connectors ................................... 7

F. Loading and Playing a Disc .................................................. 8

G.BasicOperation......................................................................9

H. Menu .................................................................... 10

I.Display................................................................................... 10

J.PlayingAudioCDS................................................................13

K. Playing MP3 Discs .......................................................... 17

L. Connecting to other Electronic Equipment.......................... 19

M.PlayingJPEGFiles............................................................20

N.Setup ....................................................................................21

O.Specifications......................................................................29

P.RechargeableBuilt-inBatteryuse........................................29

Q.Troubleshooting ................................................................. 31

A. Introduction

Thank you for choosing the D1988 portable DVD player. The main

features include a 9" wide Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit also contains a 3

in 1 card reader and a USB port. The unit is designed for use with

SD/MMC, MS memory cards and USB memory devices. The unit

applies the latest state of the art electronics and is designed for use

in hotels, offices or your home. The unit is constructed to provide

years of reliable, trouble-free service and is compact so that you can

takeit with you anywhereandisdesignedfor quick and easy installa-

tion.Pleasereadtheentireinstructionmanualsuppliedwiththisprod-

uct prior to using. The documentation will assist you in using the sys-

tem properly to obtain the best equipment performance. Please save

this manual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this unit to rain or

moisture. Keep the unit away from strong magnets, heat sources,

direct sunlight, excessive dust. If the unit is brought directly from a

cold to a warm location, moisture may condense inside the unit.

When you move the unit from a cold to a warm location, wait for

about one hour before operating the unit, or remove the disc and

leave the unit turned on until the moisture evaporates.

2. Installation

Ensure that the 9” portable DVD player is used in accordance with

the instructions and illustrations provided in this manual.

3. Caution

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the unit (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

coveror block the slots andopeningswithacloth or other material.

Keep the unit away from an open flame such as fire, candle etc.

Replacing the battery incorrectly is hazardous. Replace the bat-

tery only with the same or equivalent type. In order to protect the

environment, please dispose the battery properly. Do not use the

unit in temperatures higher than 95 degrees Fahrenheit or 35 de-

grees Celsius.

4.Disassembly

Do not attempt to disassemble the unit’s case. There is a risk of

electric shock and/or exposure to Laser Radiation. Contact quali-

fied service personnel if your system needs repair.

5. Cleaning Unit

Whencleaning,makesurethesystem isunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disc. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a clean cloth. Remove the disc from the unit and store it in

its case after playing. Some playback operations of discs may be

intentionallyfixedbysoftwareproducers.Sincethisunit plays discs

according to the disc contents the software producers designed,

some playback features may not be available. Also refer to the

instructions supplied with the discs.

C. Contents

1. 1 x 9’’ LCD Monitor and DVD Player

2. 1 x Remote Control with battery (CR2025)

3. 1 x Audio/VideoAdapterCable

4. 1 x AC to DCAdapter

5. 1 x DC Power Adapter

6. 1 x InstructionManual

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plugone end of theACtoDC adapter into theDC input jackon the

left side of the main unit, then plug the other end into the

100~240VAC power receptacle.

2. Powering the system in a car

Plug one end of the DC Power adapter into the DC input jack on

the unit, then plug the other end into the vehicle power outlet.

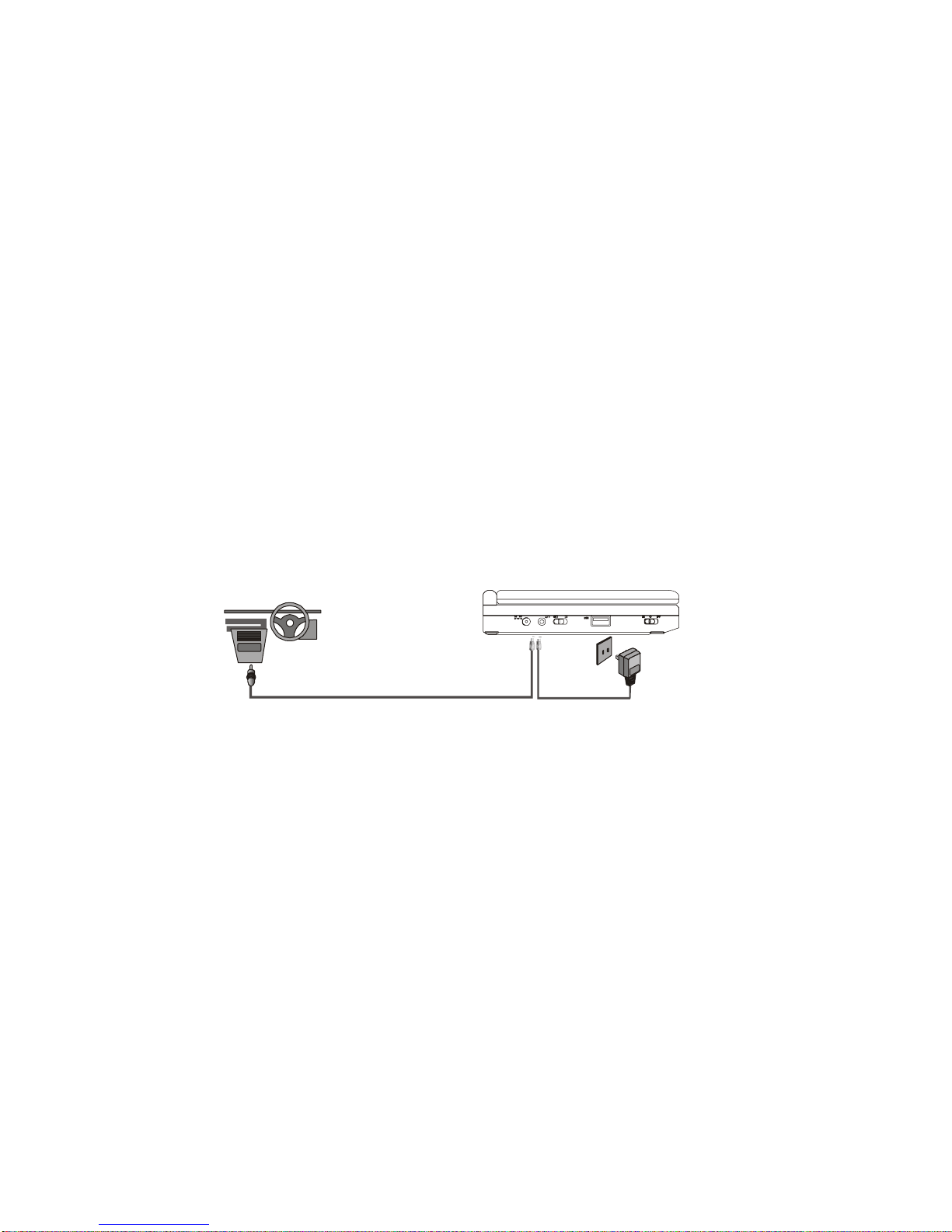

Figure 1

3. Built-in Battery

Plug one end of theAC to DC adapter into the DC jack on the side

ofthe player,thenplug the other endinto the 100~240VACpower

outlet. Make sure the player is in the “Power Off” mode. Once fully

charged, the LED indicator will turn off. Once the indicator is off,

remove the AC to DC adapter wall plug.

NOTE: Your new battery must be charged a minimum of 8 hours be-

fore the first usage. Each full recharge takes approximately five hours

and one full charge can provide power to the player for approximately

2 hours.

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

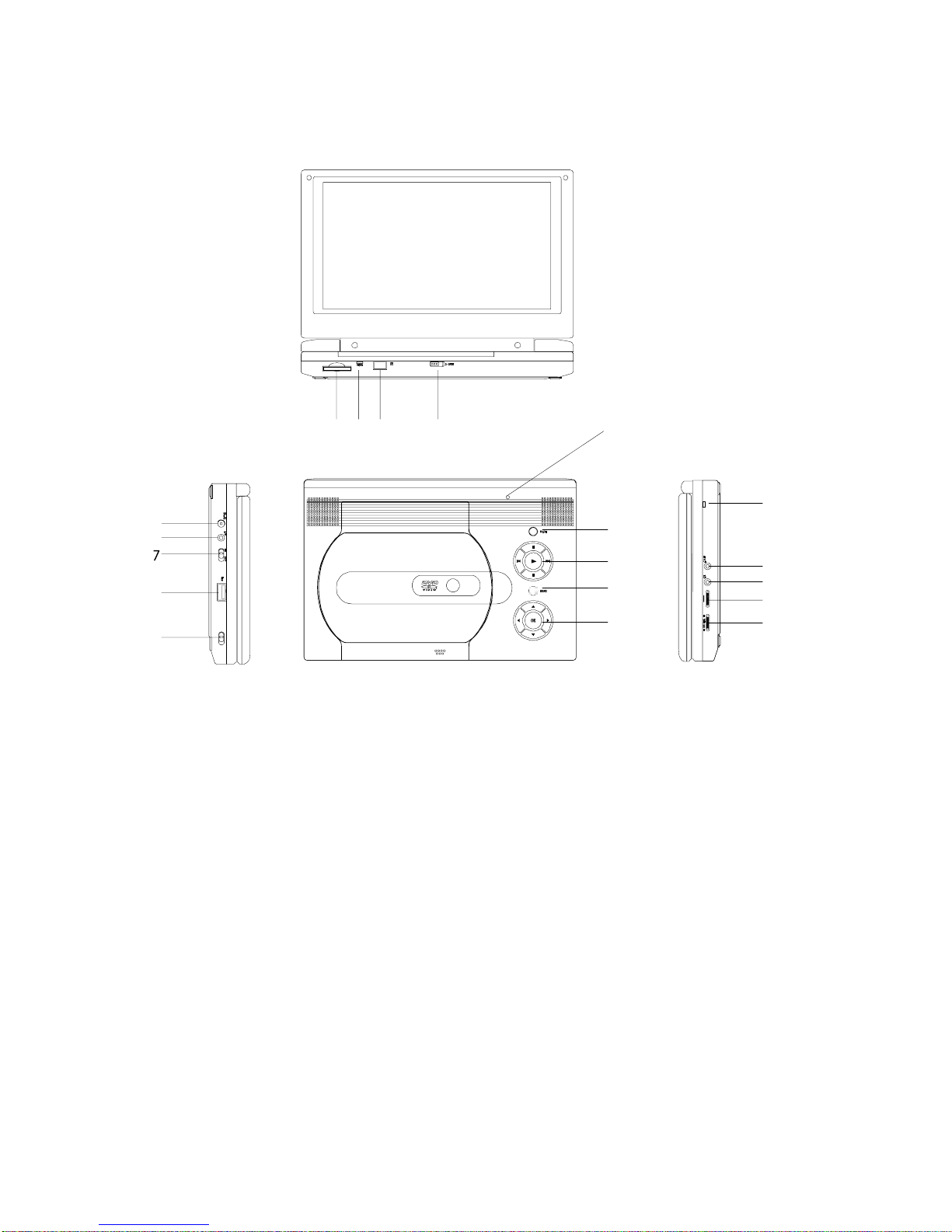

Figure 2

10) LCD Panel Shut Off Switch

11) Wide Button

12)Previous/Next/Pause/Stop/PlayButton

13) Menu Button

14) Up/Down/Left/Right/OK Button

15) Charge Indicator

16) Headphone Jack 1*

17) Headphone Jack 2

18) Volume Up/Down Control

19) Brightness Up/Down Control

1) SD/MMC/MS Card Slot

2) Power LED

3) Remote Control Sensor

4) Cover Open Switch

5) DC 9V Input JackPower

6) AV Jack

7) AV In/Out Switch

8) USB Port

9) ON/OFF Switch

* Connecting to headphone jack number 1 will disable the

internal speakers

123410

OFF ON

2. Remote Control (Refer to Figure 3)

F. Loading and Playing a Disc

a. After connecting power to the unit, power on the DVD player with

the power switch. The power indicator will light.

b. Open the disc tray by sliding the OPEN switch in the direction of

the arrow. Place a disc in the tray with label side facing up.

c. Close the tray by pressing the area marked “PRESS” . The unit will

load the disc and start playing.

d. Rotate BRIGHTNESS and VOLUME to adjust the LCD’s bright-

ness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF switch to

OFF.

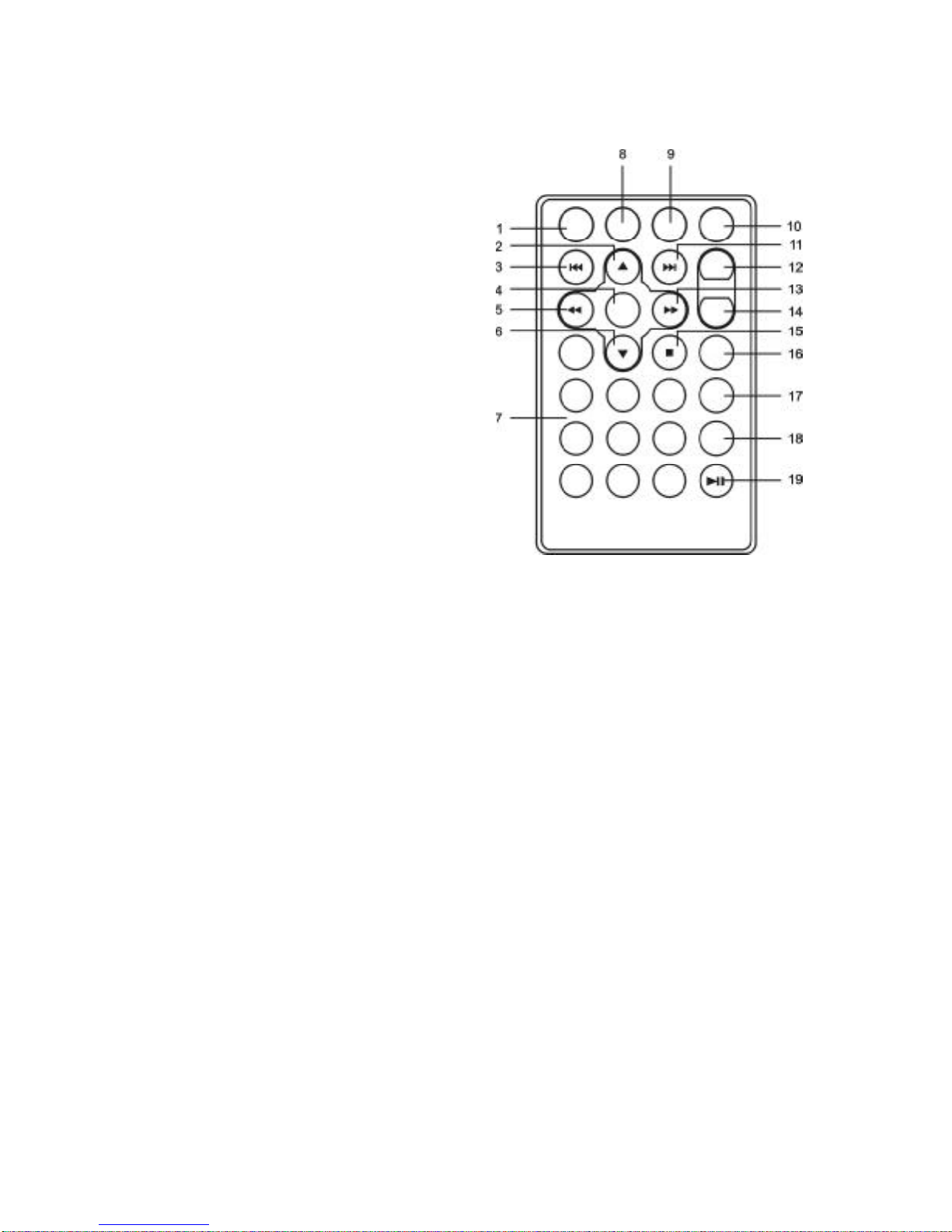

Figure 3

1) Setup Button

2) Up Button

3) Skip - Button

4) Enter Button

5) Reverse/Left Keypad

6) Down Button

7) Numeric Buttons

8) Display Button

9) Zoom Button

10) DVD/SD-USB Button

11) Skip + Button

12) A-B Repeat Button

13) Forward/Right Keypad

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Subtitle Button

18) Audio Button

19) Play/Pause Button

G. Basic Operation

POWER

OPEN

PAUSE

STOP

PLAY

Skip + NEXT

Skip - PREVIOUS

FORWARD

REVERSE

ANGLE

LEFT/RIGHT/UP/DOWN

ENTER

NUMBERS

REPEAT

A-B

DISPLAY

SUBTITLE

AUDIO

SETUP

WIDE

Turn the unit on/off

Remove/load the disc

Press to pause play and again to re-start play.

Press once to stop and restart at the stop point

Press twice to stop and restart at the

beginning of the disk

Start Play/Execute item or setting

Go to the next chapter, track or scene

during play back

Go back to the previous chapter, track

or scene during play back

Scan forward at 2, 4, 8,16 or

32 times speed

Scan backward at 2, 4, 8, 16 or

32 times speed

Change the viewing angles of the scene

UsedforMenu Navigation

Execute item or confirm setting

Select item or setting

Display the root menu of the disc

Repeat playing title, chapter, or track

Repeat a specific portion from

pointA to point B of the disc

Display information (title, chapter, track,

time, etc.).

Select the subtitle language and turn it

on/off

Select the audio language

Display the setup menu to select and

set items, and exit the setup menu.

On the DVD player only: change between wide

screen and 4:3 picture aspect ratio.

H. MENU

A DVD is divided into sections called titles and chapters. When you

play a DVD, a root menu of the disc will appear on the screen of your

TV or Monitor.The contents of the menu vary from disc to disc. Press

‘MENU’ duringplaybacktodisplaythemenu. Some DVDs only allow

you to select disc playback options using the DVD root menu.

I. DISPLAY (Display contents vary from disc to disc.)

1. PLAYING TIME AND REMAINING TIME

a. During playback press the ‘DISPLAY’ button to display the cur-

rent Title Number (1), the total Number of Titles (2), the current

Chapter Number (3), the total Number of Chapters (4), and the

elapsed playing Time for the title (5). The heading will disappear

automatically after 3 seconds if no buttons are pressed.

b.Press‘DISPLAY’againtodisplaythe RemainingTimeof thetitle.

The heading will disappear automatically in 3 seconds.

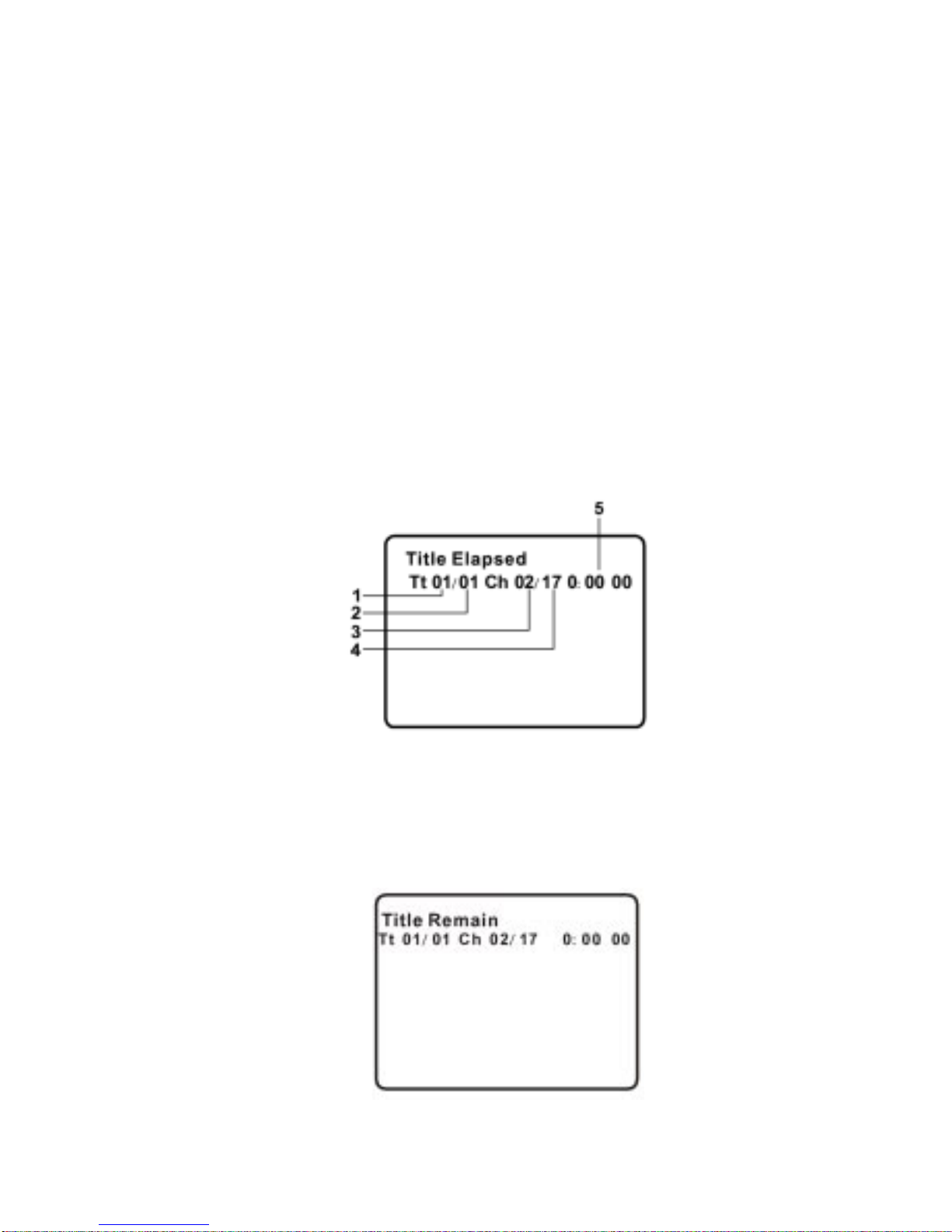

Title Remaining Time Screen Display

Title, Chapter Number and Time Screen Display

Tabla de contenidos

Otros manuales de Reproductor de DVD portátil de Audiovox

Audiovox

Audiovox DT102 Manual de usuario

Audiovox

Audiovox D7021 Manual de usuario

Audiovox

Audiovox D1718ES - DVD Player - 7 Manual de usuario

Audiovox

Audiovox 1286808A Manual de usuario

Audiovox

Audiovox D2010 - Widescreen Ultraslim Portable DVD... Manual de usuario

Audiovox

Audiovox VOD1221 P Manual de usuario

Audiovox

Audiovox D1917 Manual de usuario

Audiovox

Audiovox VBP500 Manual de usuario

Audiovox

Audiovox D8000XP Manual de usuario

Audiovox

Audiovox D2017PK Manual de usuario

Audiovox

Audiovox VBP700 Manual de usuario

Audiovox

Audiovox D1888 Manual de usuario

Audiovox

Audiovox DS9341 Manual de usuario

Audiovox

Audiovox D2017PK Manual de usuario

Audiovox

Audiovox DV 1680 Manual de usuario

Audiovox

Audiovox D1809PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox DS7521PK Manual de usuario

Audiovox

Audiovox VBP3800 Manual de usuario

Audiovox

Audiovox VBP58 Manual de usuario

Audiovox

Audiovox D705PK Manual de usuario

Audiovox

Audiovox D1788ES Manual de usuario

Audiovox

Audiovox D1788PK Manual de usuario

Audiovox

Audiovox D2011 Manual de usuario

Audiovox

Audiovox D1710 Manual de usuario

Manuales populares de Reproductor de DVD portátil de otras marcas

Philips

Philips PET718/77 Manual de usuario

Impecca

Impecca DVP775 Manual de usuario

NextBase

NextBase MULTI-VISION SET PRO Manual de usuario

Impecca

Impecca DVP-1017 Manual de usuario

Akura

Akura APDVD6008 Manual de usuario

TV Star

TV Star TD3 LCD COMBO Manual de usuario

LENCO

LENCO MES-202 Manual de usuario

Philips

Philips PET940/98 Manual de usuario

Philips

Philips PET702P Manual de usuario

Philips

Philips PD7016 Manual de usuario

Logik

Logik L7SPDVD11 Manual de usuario

LG DP650 Manual de usuario

Mustek

Mustek MVP850B Manual de usuario

Insignia

Insignia NS-MDDVD10 Manual de usuario

Philips

Philips PD9000/12 Manual de usuario

LENCO

LENCO DVP-1027 Manual de usuario

Philips

Philips PD7010/05 Manual de usuario

Technika

Technika PDVDTWINSS10 Guía del usuario
