Audiovox D1788ES Manual de usuario
D1788ES
7” LCD MONITOR, DVD PLAYER
WITH BUILT-IN BATTERY AND EXTRA MONITOR
2
Notice:
This Product incorporates copyright protection technology that is
protected by method claims of certain U.S. Patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is pro-
hibited.
Notice:
An LCD panel and/or video monitor may be installed in a motor
vehicle and visible to the driver if the LCD panel or video monitor is
used for vehicle information, system control, rear or side observation
or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must
be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or
DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver’s
seat where it will not be visible, directly or indirectly, to the operator of
the motor vehicle.
3
A. Introduction
Thank you for selecting the D1788ES portable DVD player. The main
features include two 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitors and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
home or vehicle. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please read
the entire instruction manual supplied with this product prior to
operation. The documentation will assist you in installing the system
properly to obtain the best equipment performance. Please save this
manuals for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
from strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location,
moisture may condense inside the unit. When you move it from a
cold to a warm location, wait for about one hour before operating
the unit, or remove the disc and leave the unit turned on until the
moisture evaporates.
2. Installation
Ensure that the D1788ES is used in accordance with the
instructions and illustrations provided in this manual.
3. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other
material.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of
electric shock and/or exposure to Laser Radiation. Contact
qualified service personnel if your system is in need of repair.
4
5. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
7. Regional Coding
Both the DVD player and disc are coded by region. These re-
gional codes must match in order for the disc to play. If the codes
don’t match, the disc won’t play. This unit’s code is region 1.
DVD’s with other regional codes cannot be played in this unit.
C. Contents
1. 1 x 7’’ LCD Monitor & DVD Player
2. 1 x7” LCD Monitor
3. 1 xAC to DC Adapters
4. 1 x Remote Control with battery (CR2025)
5. 1 x Instruction Manual
6. 1 x AV Adapter Cable (One to Three Female)
7. 1 x AV Adapter Cable (One to Three Male)
8. 1 xY Type DC Power Adapter
9. 1 x Mounting Bag With Straps for the Monitor
10. 1 x Carry Bag With Straps
5

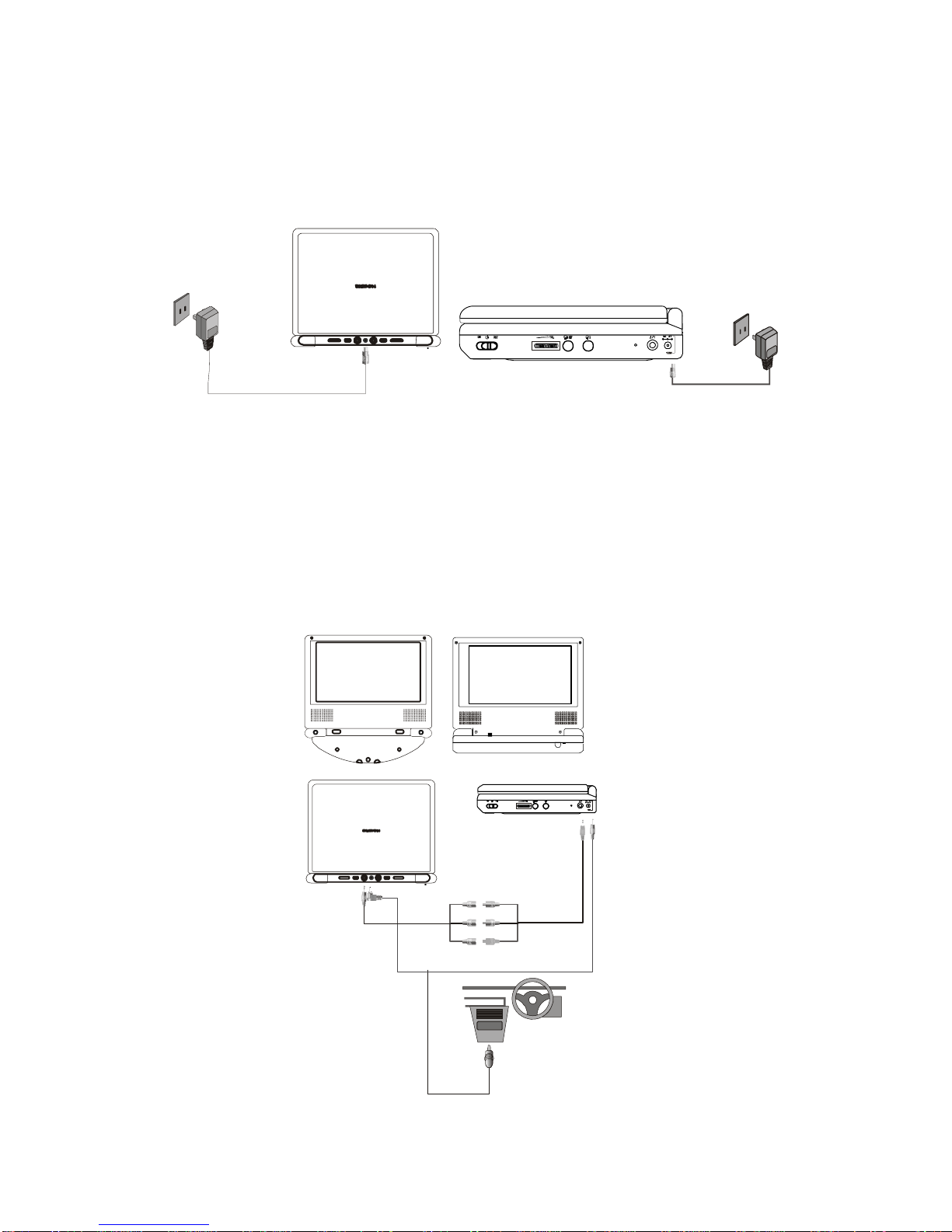

D. Powering and Installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9-12V jack on
the right side of the main unit, then plug the other end into the 100-
240V AC power receptacle.
2. Powering the system in a car (Refer to Figure 2)
The DC power adapter has two 9V output plugs. Plug the ends of
the DC power adapter output into the DC 9-12V jack on the main
unit and the extra screen and plug the input end into the vehicle
power socket. Connect the main unit AV OUT and extra screen AV
IN with the 2 suppliedAV cables as shown.
Figure 2
Figure 1
Monitor
Main Unit
Monitor Main Unit
7" LCD MONIT OR
6

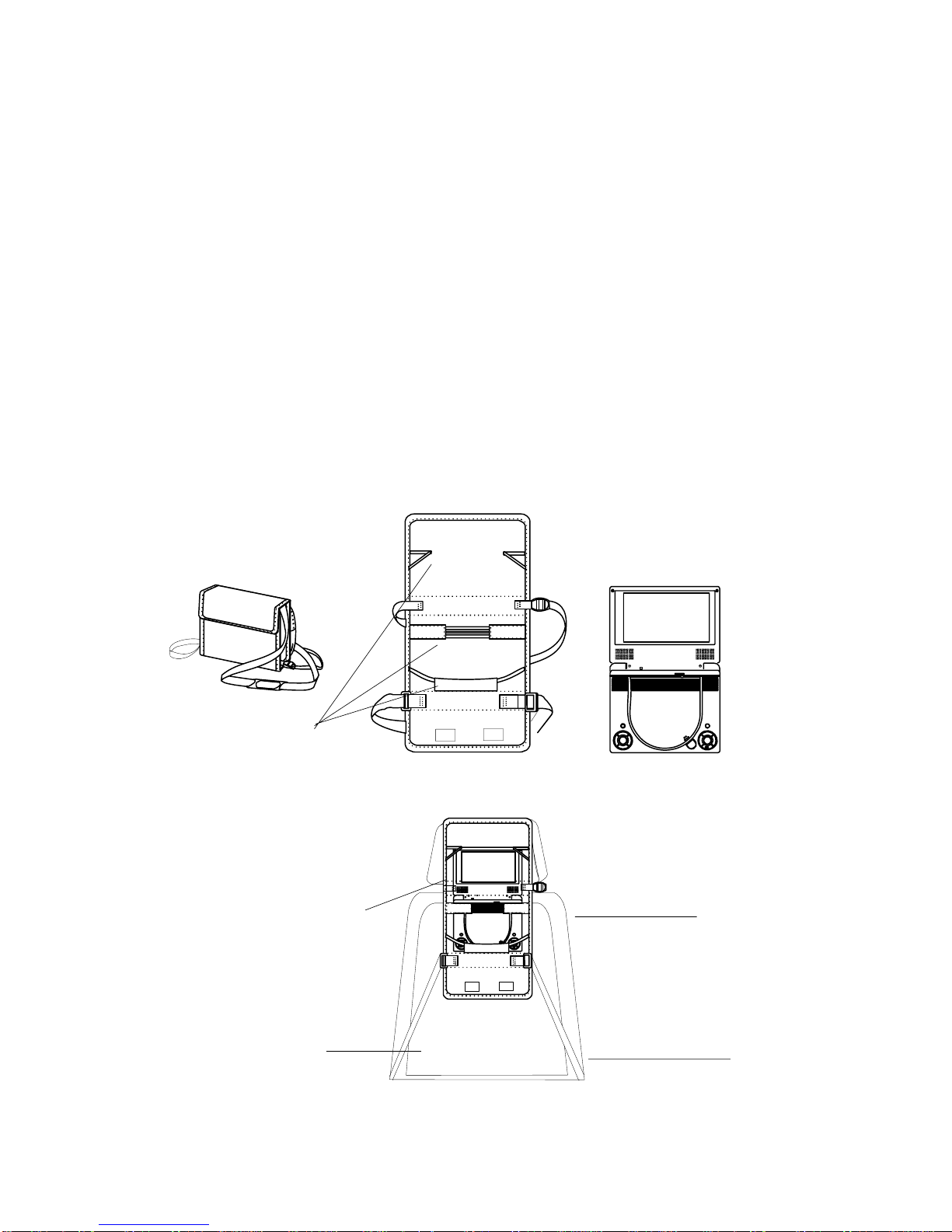

E. Vehicle Installation
Installing the DVD Player and monitor onto a car seat
(Refer to Figures 3 through 5)
Elastic
Straps
Carry Bag Closed
Vehicle Seat
Back
Vehicle Headrest
Figure 3
Carry Bag Opened
Headrest
Strap
Seat Back
Strap
3. Built-in Battery
Plug one end of the AC to DC adapter into the DC jack on the side of
the player, then plug the other end into the 120V AC power outlet.
Make sure the player is in the “Power Off” mode. Once fully charged,
the LED indicator will turn off. Once the indicator is off, remove the AC
to DC adapter wall plug.
NOTE: Your new battery must be charged a minimum of 8 hours be-
fore the first usage. Each full recharge takes approximately five hours
and one full charge can provide power to the player for approximately 2
hours.
7

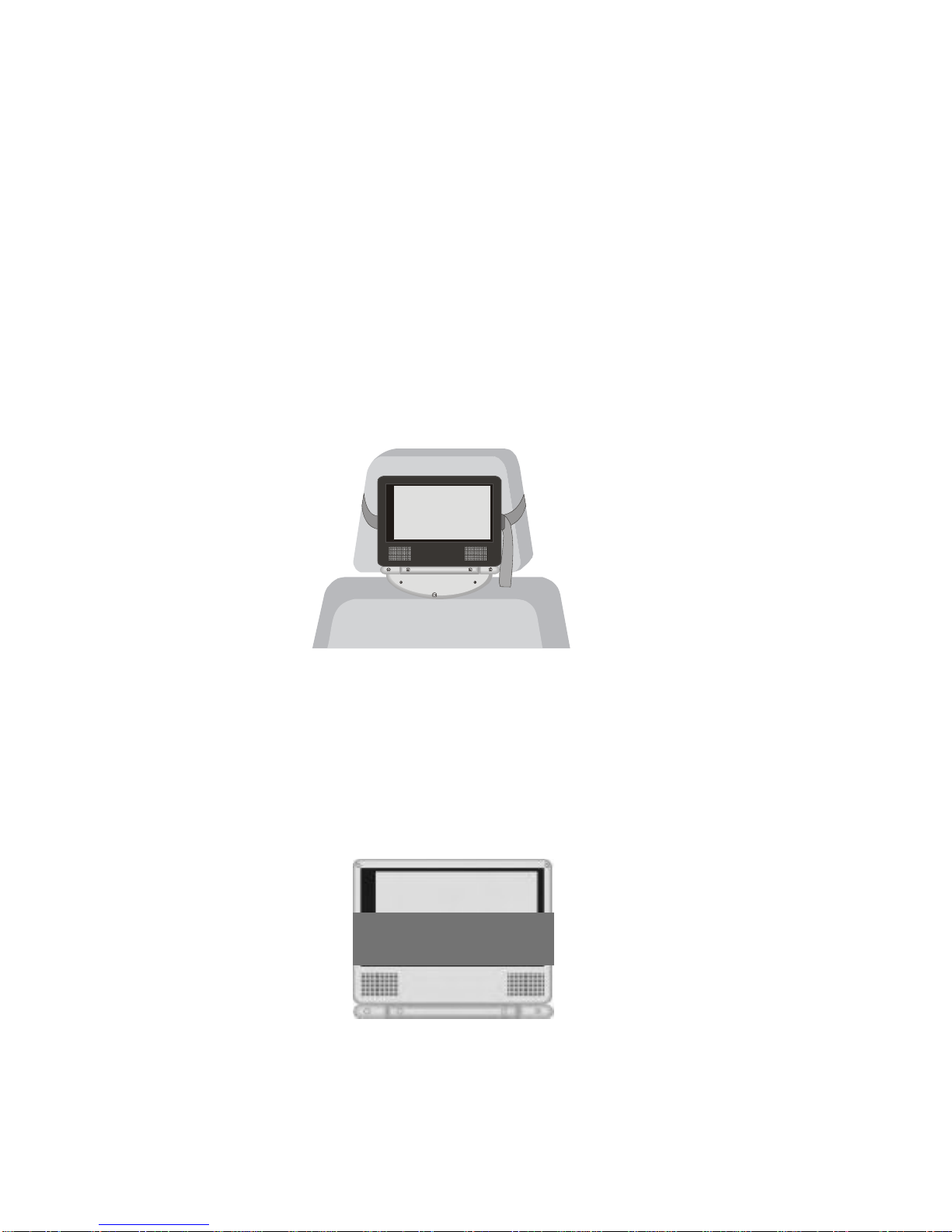

Installing the monitor
Option 1 Vehicle Headrest (Refer to Figure 4)
Figure 4
Slide the Monitor into the pouch and attach the Velcro straps to se-
cure the Monitor in the pouch. Loop the strap of the pouch around the
headrest and pull the end of the strap while holding the buckle to
secure the pouch to the headrest.
Option 2 Flat Surface (Refer to Figure 5)
Figure 5
Rotate the base of Monitor backward and place on a flat surface.
Adjust the screen for a proper viewing angle. This can be done with
the Monitor inside or outside the pouch.
1). Unfold the carry bag, and place the DVD player on the bag
beneath the elastic straps. Ensure that the unit’s corners are
secured by the elastic straps.
2). Secure the upper portion of the carry bag to headrest support
bars using the headrest strap. Adjust the headrest strap until the
bag is firmly secured.
3). Secure the lower portion of the carry bag to the vehicle seat back
using the seat back strap. Adjust the seat back strap until the
bag is firmly secured.
8

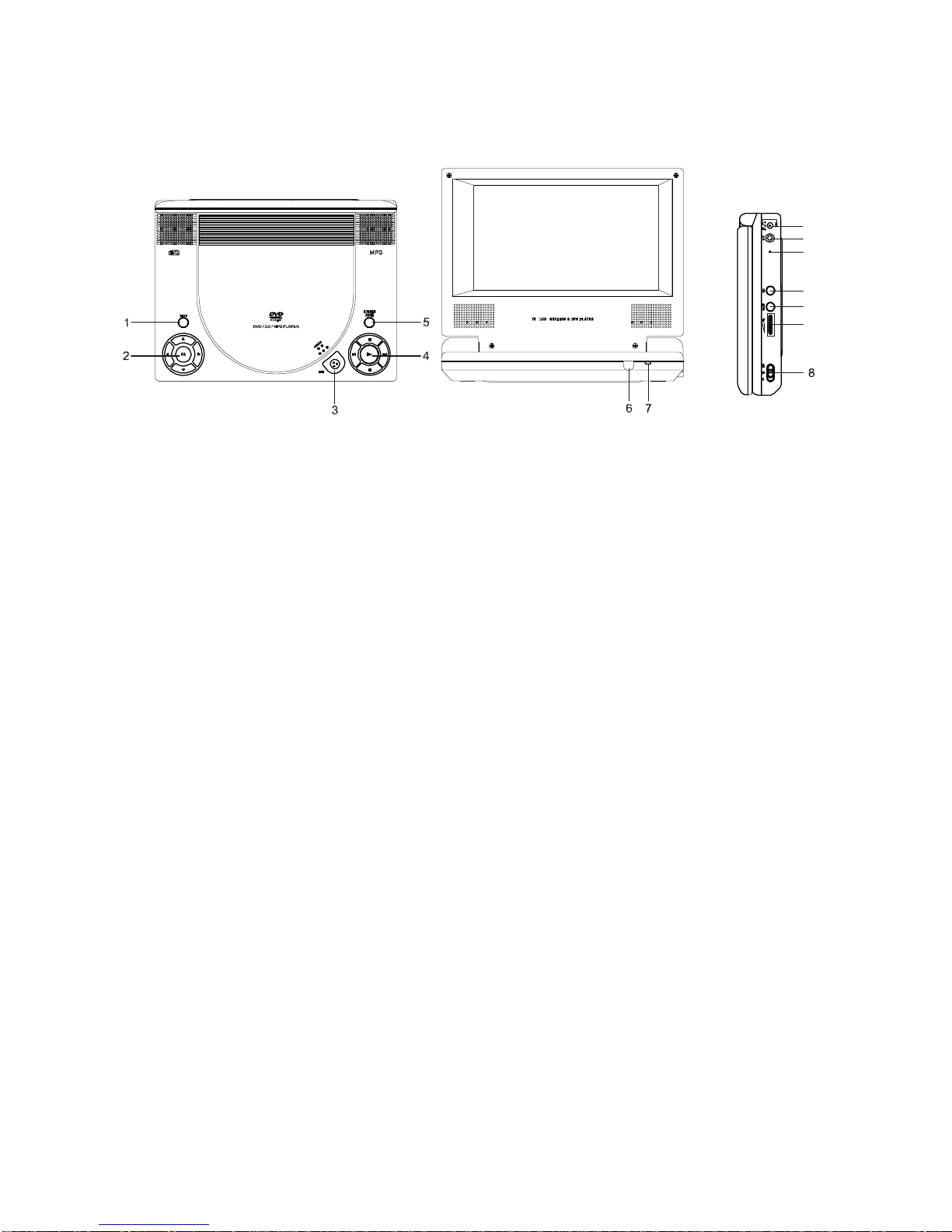

F. Controls, Indicators, and Connectors
1. Unit View(Refer to Figure 6)
Figure 6
1) Menu Button
2) Up/Down/Left/Right/OK
Buttons
3) Open Button
4) Previous/Next/Pause/
Stop/Play Buttons
5) Screen Mode Button
6) Remote Sensor
7) Power Indicator
8) Power On/Off Switch
9) Volume Up/Down Control
10) Headphone Jack 1
11) Headphone Jack 2
12) Charge Indicator
13) AV Out Jack
14) DC Input Jack
9
10
11
12
13
14
9

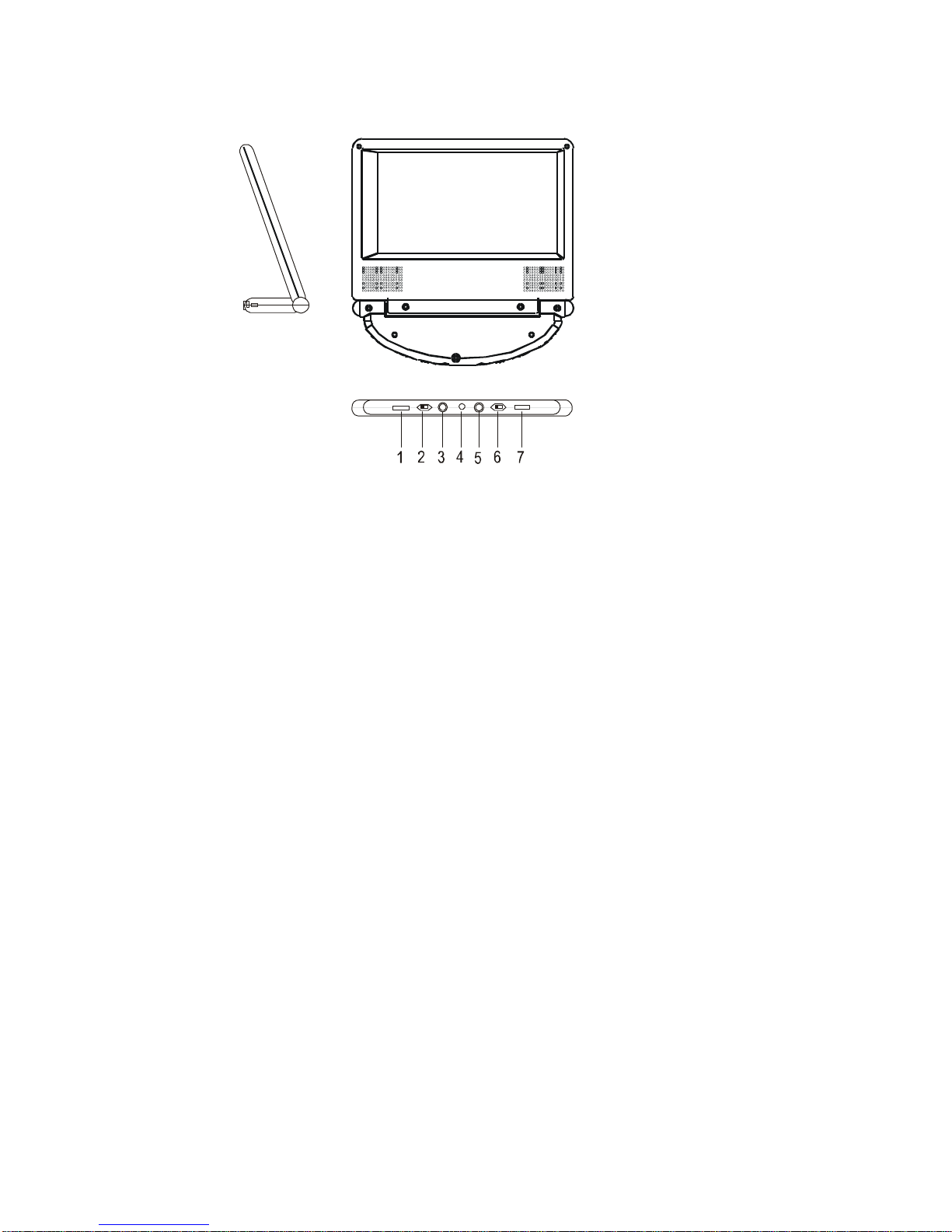

2. MonitorView (Refer to Figure 7)
Figure7
1). Volume Control
2). Reverse Switch
3). Headphone Jack
4). DC 9-12VInput Jack
5). AV InJack
6).PowerOff/OnSwitch
7).Brightness Control
NOTE: Slide theReverse Switch to rotate the picture 180 degrees.
10

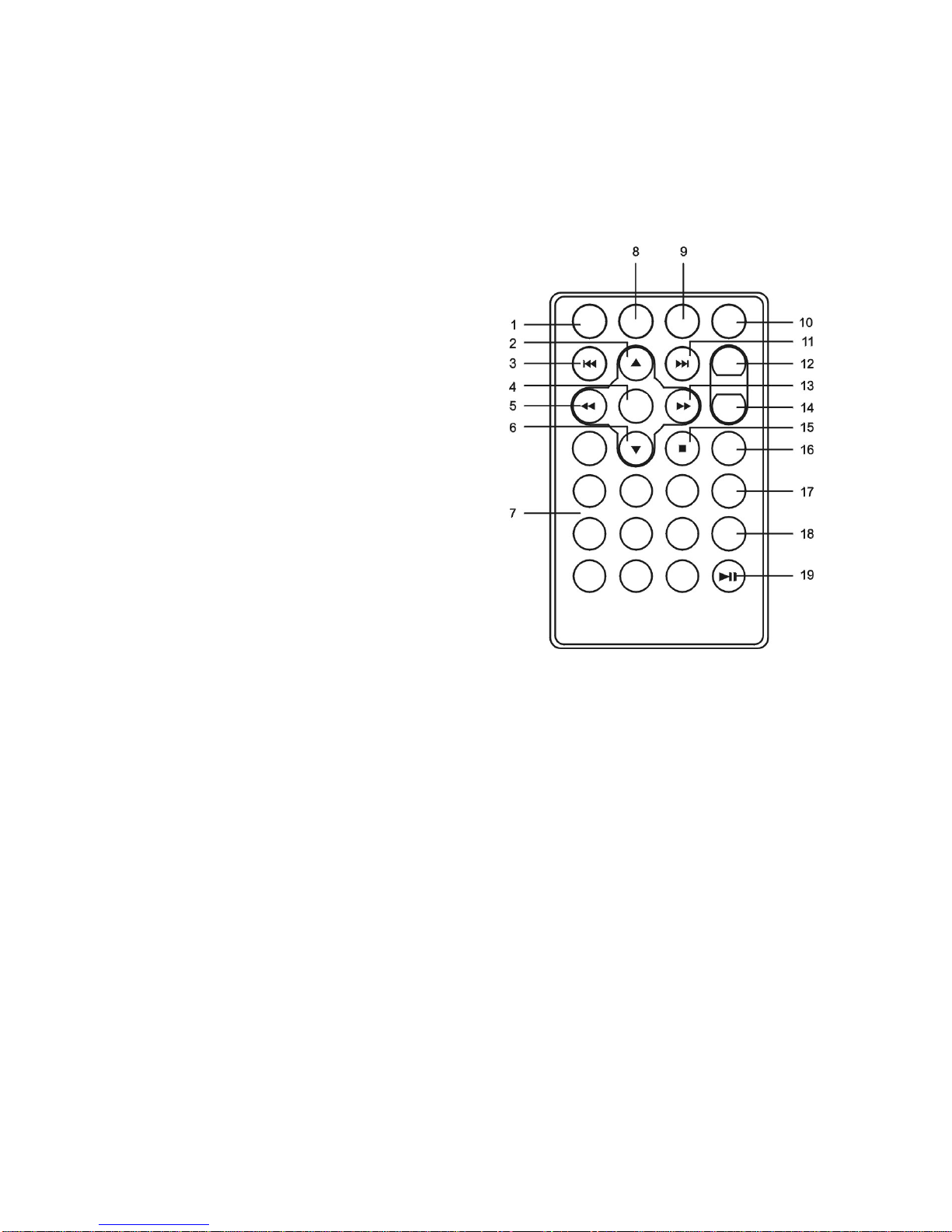

3. Remote Control View (Refer to Figure 8)
1) Setup Button
2) Up Button
3) Previous Button
4) Enter Button
5) Reverse Scan /Left Button
6) Down Button
7) Numeric Keypad
8) Display Button
9) Zoom Button
10) Subtitle Button
11) Next Button
12) A-B Repeat Button
13) Forward Scan /Right Button
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Audio Button
18) Angle Button
19) Play/Pause Button Figure 8
G. Loading and Playing a Disc
a. After connecting power to the unit, apply power to the DVD player
with the power switch. The power indicator will light.
b. Open the disc tray by pressing OPEN button and place a disc into
the tray with the label side facing up.
c. Close the tray by pressing the “PRESS” button. The unit will load
the disc and start playing.
d. Rotate the VOLUME control to adjust the DVD player’s
volume.
e. To stop playing a disc, press STOP.
f. To turn off the DVD player, slide the POWER ON/OFF switch to
OFF.
