1
D1705
PORTABLE 7" LCD MONITOR AND DVD PLAYER
128-6808A
WWW
.audiovox.com
For Customer Service
Visit Our Website At
Product Information, Photos,
FAQ’s Owner’s Manuals
2
Notice:
This Product incorporates copyright protection technology that is pro-
tected by method claims of certain patents and other intellectual prop-
erty rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
ing uses only unless authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
3
A. Introduction
Thank you for selecting the D1705 portable DVD player. The main
features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
or your home. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please
read the entire instruction manual supplied with this product prior to
operation. The documentation will assist you in installing the system
properly to obtain the best equipment performance. Please retain
this manual for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
fromstrongmagnets,heatsources,directsunlight,excessivedust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the D1705 is installed in accordance with the instruc-
tions and illustrations provided in this manual.
3. Object and Liquid
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
coveror block theslots and openingswith a clothor other material.
4.Disassemble
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4
5.Cleaning Unit
Whencleaning,makesurethesystemisunplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6.Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
thedisc from thecenter out witha cleaning cloth.Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
softwareproducersdesigned,someplaybackfeaturesmaynotbe
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 7.0’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Rechargeable Battery
4. 1 x Remote Control
5. 1 x Instruction Manual
6. 1 x Audio/Video Cable
7. 1 x Cigarette Lighter Adapter
D. Powering and installation

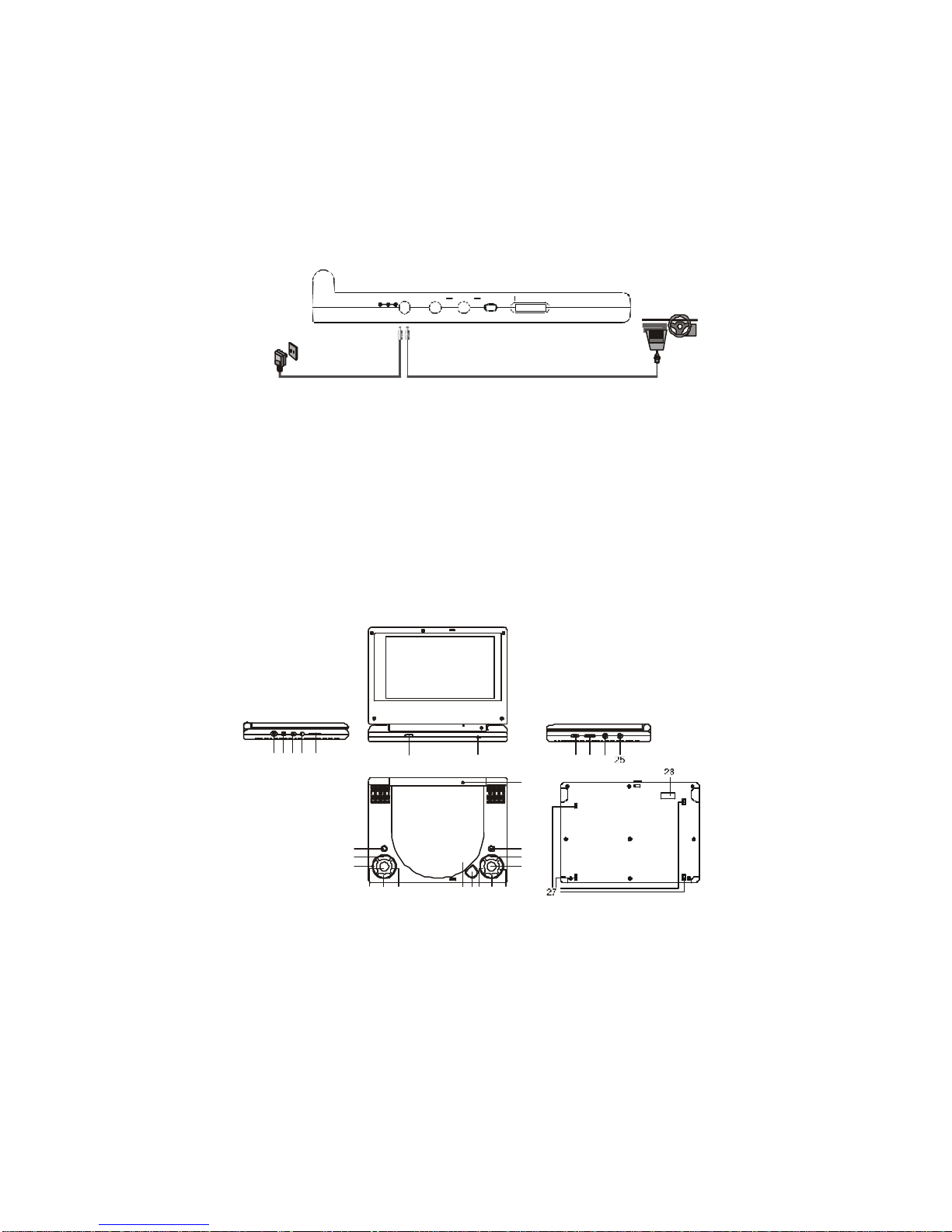

1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack
on the left side of the main unit, then plug the other end into
the 110V AC power socket.
2. Powering the system in a car
Plug one end of the cigarette lighter adapter into the
DC 9V jack on the unit, then plug the other end into
the cigarette lighter socket.
5
1 2
Figure 1
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)
Figure 2
BRIGHT.
DC 9V VIDEOAUDIO IN OUT
1
2
3
4 5 6
7
8
9
10
14
16
15
11
13
12
18 2019 21
23
22
17
24
26
6
1) Menu
2) Up button
3) Left Button
4) OK Button
5) Down Button
6) Right Button
7) Close disc cover point
8) Open Button
9) Previous Button
10) Stop Button
11) Next Button
12) Play Button
13) Pause Button
14) Screen Mode ( wide) Button
15) Remote Control Sensor
16) Power LED
17) DC 9V Input Jack
18) Audio Jack (L+R)
19) Video Jack
20) AV Input /Output Switch
21) Brightness Up/Down Thumbwheel
22) Power On/ Off Switch
23) Volume Up/Down Thumbwheel
24) Hi-Fi Headphone Jack
25) Coaxial Jack
26) Power Saving Mode Switch (Screen closed shut off switch)
27) Battery Catch
28) Battery Port
7

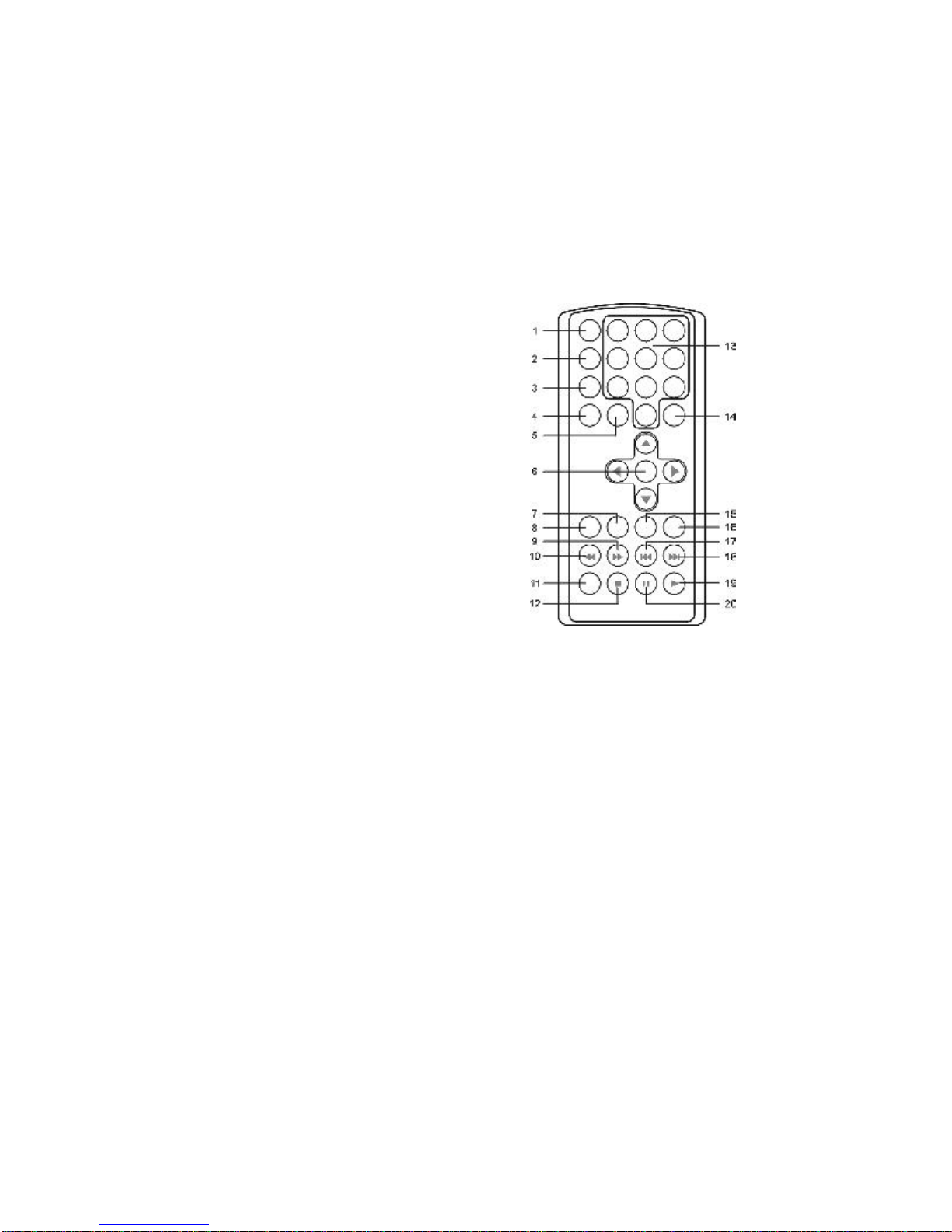

2. Remote Control View (Refer to Figure 3)
1) Display Button
2) Angle Button
3) Subtitle Button
4) Audio Button
5) Zoom Button
6) Up/Down/Left/Right/Enter Buttons
7) Return Button
8) A-B Button
9) Forward Button
10) Reverse Button
11) Slow Button
12) Stop Button
13) Number Buttons
14) Setup Button
15) Menu Button
16) Repeat Button
17) SKIP-
18) SKIP+
19) Play Button
20) Pause Button Figure 3
F. Loading and Playing a Disc
a. After connecting power to the unit, power on”DVD player” with
the power switch.
b. Open the disc tray by pressing OPEN , place a disc into the
tray with label side of disc facing up.
c. Close the tray by pressing “PRESS” button.The unit will load
the disc and go to the root menu. Start playback by pressing
“PLAY”.
d. Rotate the BRIGHT and VOLUME controls to adjust the picture
brightness and the DVD player’s volume.
e. To stop playing a disc, press STOP.
8
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menuon
the screen. Press ‘SETUP’ again to exit the SETUP Menu.
Figure 4. Main SETUP Menu Screen
1) Select ‘GENERAL SETUP’ using the Left /Right buttons, then
press ‘ENTER’ to enter the GENERAL Setup screen.
Figure 5. General SETUP Menu Screen
a)Select “SPDIF Output RAW” use this option to select the audio
signal output from”Coaxial”port.
* SPDIF OFF: the digital signal Audio output will be off.
* SPDIF/RAW: the signal output from “COAXIAL” is RAW.
* SPDIF/PCM: the signal output from “COAXIAL” is PCM.
b)Select TV DISPLAY using UP/DOWN, and then press RIGHT
to enter the submenu. Select the TV display mode on the
screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal
TV, and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
.. General Setup Page ..
Go To General Setup Page
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off
.. General Setup Page ..
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off
SPDIF Off
SPDIF/RAW
SPDIF/PCM
Setup SPDIF
9
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
Figure 6. TV DISPLAY Screen Display
c). Select‘ANGLEMARK’usingUP/DOWN,andthenpress
the RIGHT button to enter the submenu. Choose Angle
Mark on or off displayed on the screen using the UP/DOWN
and then press ENTER to confirm the setting. Press the
LEFT button to return.
Figure 7. ANGLE MARK Screen Display
* ON: The screen will show angle mark.
(*If angle option is available)
OFF: The screen will not display the Angle Mark
d). Select ‘SCREEN SAVER’ using UP/DOWN key,
Figure 8. SCREEN SAVER Display
.. General Setup Page ..
Set TV Display Mode
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off
Nomal/PS
Normal/LB
Wide
.. General Setup Page ..
Set Angle Mark
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off
On
Off
.. General Setup Page ..
Screen Saver
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off
On
Off
10
*ON: screen saver on.
*OFF: screen saver off.
*NOTEThe DVD player will enter the Screen Saver mode after 5
minutes if the image on the screen remains the same formorethan5
minutes.
e). Select “ Last Memory’ by Up/Down button
Figure 9. LAST MEMORY Screen Display
*on: The unit will retain the last position of playback in
memory. This feature is cancelled when power is turned off.
*off: The unit will not retain the last position of playback.
2)Select“Videoquality”setupbyusingtheleft/rightbuttons,press
enter to enter the video quality set up page.
Figure 10. Main SETUP Menu VIDEO QUALITY
a).Select “Brightness by using the Up/Down buttons,then press
“Enter”. Adjust can change the Brightness by pressing the
left/right arrow buttons. When complete, press “Enter”
again to return to the “Video Quality” set up page.
.. Video Quality Setup ..
Go To Video Setup Page
Brightness
Hue
Contrast
Saturation 00
00
00
00
.. General Setup Page ..
Set Last Memory STATE
SPDIF Output RAW
Angle Mark Off
TV Display PS
Screen Saver Off
Last Memory Off On
Off
