Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a screen that is located

in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the

driver while operating the vehicle. In the interest of safety, the PROV916/PROV916 S/PROV916 P should never be

installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the

screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television

reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal

strength. Television viewing in a stationary vehicle will result in an improvement, but may still be marginal due to signal

strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by

weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color

loss.

128-6745

3 of 31

-3-

Congratulations on your purchase of the Audiovox

PROV916/PROV916 S/PROV916 P DVD Player with

Drop-Down Video TV/Monitor. The PROV916/

PROV916 S/PROV916 P has been designed to give

you and your family many years of video entertainment

in the mobile environment. Please read the directions

that follow to familiarize yourself with the product and

to ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

•9 Inch TFT (Thin Film Transistor) Active Matrix

LCD (Liquid Crystal Display) Monitor

•OSD (On Screen Display) for Control of Picture

Quality and Functions

•Built-in TV Tuner

•Full Function Remote Control

•Six Frequency FM Modulator with remote

control and OSD

•Dual Channel Infrared Transmitter for IR

Wireless Headphones (Satellite Radio Ready)

•Two Audio / Video Inputs

•Headphone / Speaker Amplifier

•Two Headphone Jacks

•Forward and Side Remote Sensor

•Dome Lights with Switch

•Backlit Controls for Low Light Operation

•Last Position Memory for DVD

128-6745

4 of 31

-4-

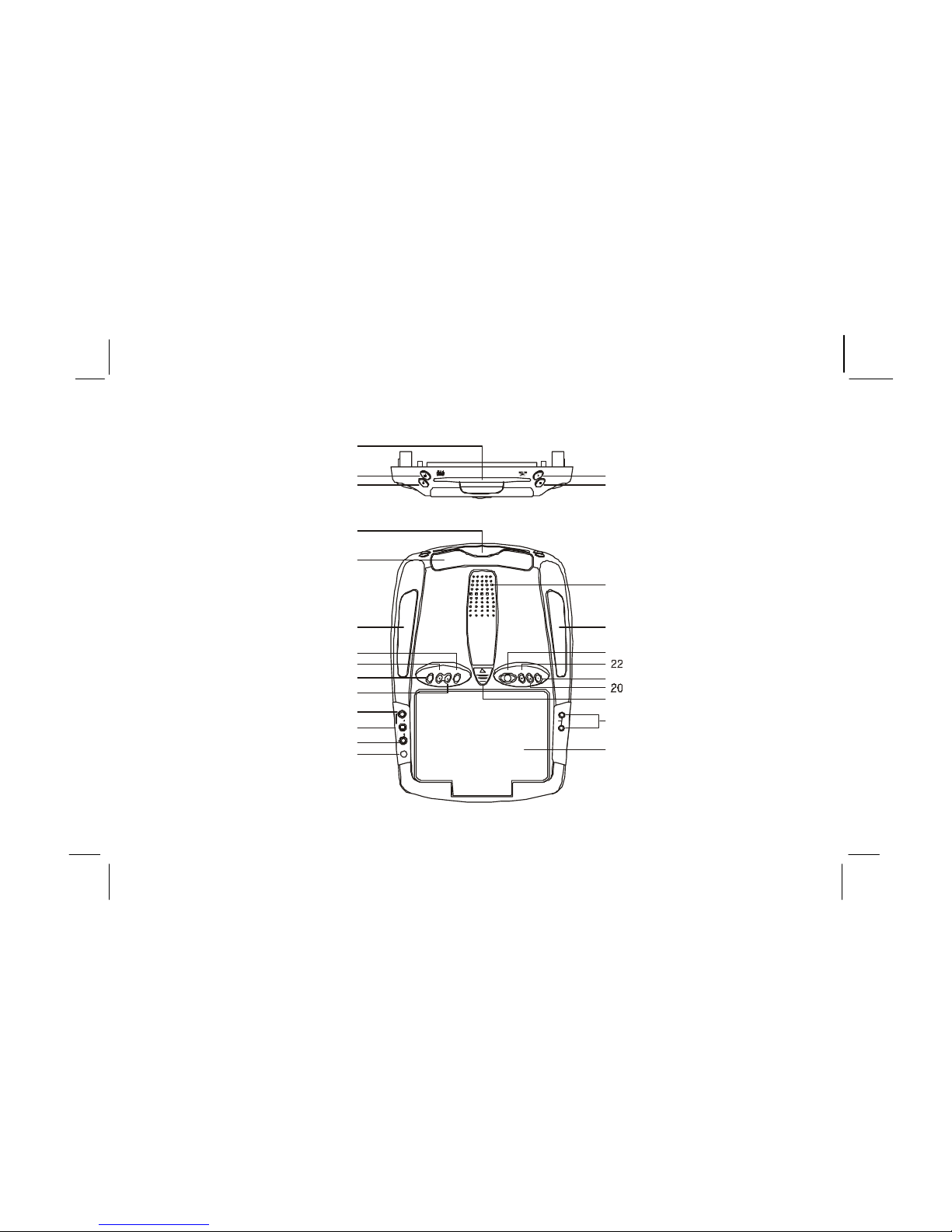

Controls and Indicators Diagram

CHANNEL SOURCE VOLUME FM

SELECT

ON OFF AUTO

AUTO

PROG

INPUT

AUDIO

VIDEO

POWER

EJECT

PLAY

STOP

128-6745

5 of 31

-5-

Main Function Descriptions

1. DVD Disc insertion slot – For loading Disc.

2. POWER Button – Bright red when system is on dim when

off.

3. EJECT ( ) Button – For ejecting discs from the disc

compartment.

4. PLAY ( ) Button – This button is used to enter the play

mode.

5. STOP ( ) Button – To stop playing.

6. Infrared Transmitter and Sensor – Use to transmit audio

to wireless headphones. Also allows the remote control to

operate the PROV916/PROV916 S/PROV916 P and to

control other accessories in the system.

7. PROV916/PROV916 S/PROV916 P Ventilation Opening.

8. Dome Lights – Provide additional interior illumination.

9. SOURCE Select – Used to select one of the four sources

(TV,AV1, AUX, DVD).

10. CHANNEL ( ) Button – Use this button to decrease the

channel number to the desired number. Note : When TV

function is selected.

11. AUTO PROGRAM Button – Allows the user to scan and

store active TV stations into memory.

12. CHANNEL( )Button – Use this button to increase the

channel number to the desired number. Note : When TV

function is selected.

13. Auxiliary Audio Right Input.

14. Auxiliary Audio Left Input.

15. Auxiliary Video Input.

16. Side Remote Sensor Eye – Allows the remote control to

operate the PROV916/PROV916 S/PROV916 P, control

volume to wired headphone jacks and control the other

accessories.

17. Drop Down LCD Panel.

18. Headphone Jack – Allow the use of wired headphones

with a 1/8” plug for listening to video program audio.

19. Screen release – Moves in direction of the arrow to release

the drop down screen.

20. VOLUME ( ) Button – Use this button to raise the volume

level of the headphone jacks. It is also used to make picture

adjustments in picture select mode. Note : Audiovox

recommends the use of the Audiovox HP275 Headphones

when using wired headphones.

128-6745

6 of 31

-6-

21. FM Select Button – Each time this button is pressed will

switched FMM cycles through (FM OFF – POD AUDIO –

SAT AUDIO) and the frequency of the channel of modulator

will remain same.

22. VOLUME ( ) Button – Use this button to decrease the

volume level of the headphone jacks. It is also used to

make picture adjustments in picture select mode.

Note:These buttons will not affect the volume of wireless

headphones or the wired RF modulator. When using these

devices the volume must be adjusted with the wireless

headphone volume control or with your radio’s volume control

(see page 15, Wireless Headphones, or page 16, Wired

FM Modulator).

23. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunction with the vehicle’s interior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

128-6745

7 of 31

-7-

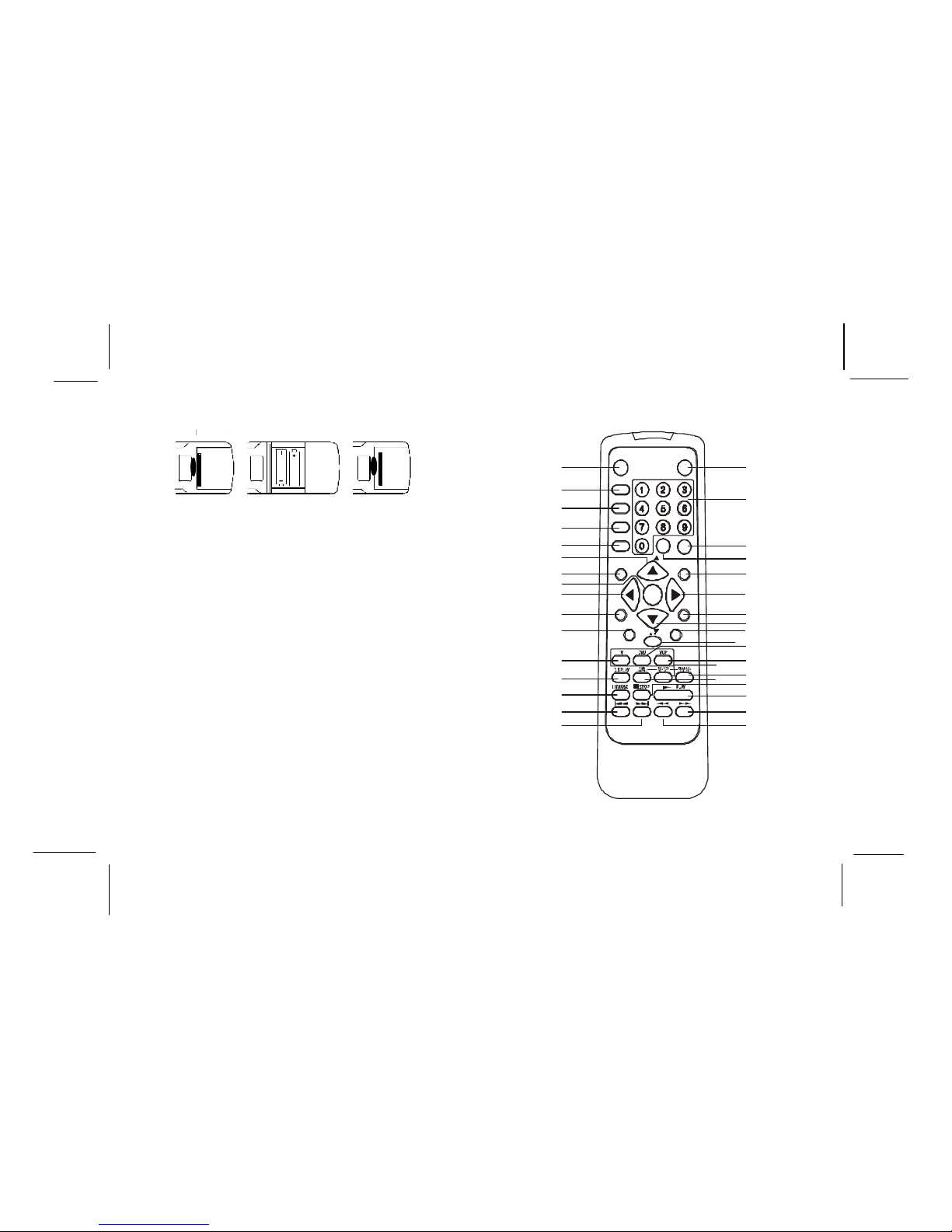

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the PROV916/

PROV916 S/PROV916 P and most Audiovox VCP’s.

It is not a universal remote control and will not control

equipment from other manufacturers.

If a universal remote control is to be used with the

PROV916/PROV916 S/PROV916 P , choose the

remote encoding scheme for Audiovox Televisions when

programming the remote control.

POWER

SOURCE

RETURN

SETUP

PIX

Enter

ERASE/

WRITE

SKIP/

AUTO

MEMORY

VOL

–+

MUTE

REPEAT

EJECT

128-6745

8 of 31

-8-

DVD Function Descriptions

*Function control is available on the unit and the remote control.

1. POWER Button*

Press this button to turn the PROV916/PROV916 S/PROV916 P on. Press the button again to turn the PROV916/

PROV916 S/PROV916 P off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,

TV, AV1 and AUX.

3. AUTO MEMORY Button (AUTO PROGRAM Button)*

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signals of sufficent levels are automatically stored.

4. SKIP/SEARCH Button

This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP

mode is disable, the TV will stop on all active channels.

5. ERASE/WRITE Button

While tuned to a channel, pressing this button will store or erase the channel from memory. The stored channel

numbers are displayed in “GREEN” on the LCD display screen, and the non-stored channel numbers are in

“RED”.

128-6745

9 of 31

-9-

6. Channel Up ( ) Button*

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores sound to the previously set level.

8. ENTER Button

Used to implement setting selected.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to return to the menu while PBC on.

Note: This function only present on VCD2.0.

12. TV Mode Select Button

Switches certain function keys on the remote control for TV functions.

128-6745

10 of 31

-10-

13. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times Display current AUDIO language & channel

4 times Display current ANGLE

5 times Display A-B current status

6 times Display REPEAT current status

7 times Display is turn off

For Title & Chapter, use cursor buttons to do title/chapter selection, then press Enter button to implement the selection.

For Subtitle, Audio, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options may vary

from disc to disc.

14. PAUSE ( ) Button*

Allows the user to pause the playback.

15. PREVIOUS ( ) Button

Allows the user to return to the previous chapter or track.

16. NEXT ( ) Button

Allows the user to skip to the next chapter or track.

Otros manuales para PROV916 P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de DVD portátil de Audiovox

Audiovox

Audiovox DS9521PK Manual de usuario

Audiovox

Audiovox D2016 Manual de usuario

Audiovox

Audiovox D1812PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox 1286808A Manual de usuario

Audiovox

Audiovox D1817PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox D1830 Manual de usuario

Audiovox

Audiovox DT7 Manual de usuario

Audiovox

Audiovox D1710 Manual de usuario

Audiovox

Audiovox VBP3900 Manual de usuario

Audiovox

Audiovox 1287082 Manual de usuario

Audiovox

Audiovox VBP3800 Manual de usuario

Audiovox

Audiovox DS2058 Manual de usuario

Audiovox

Audiovox VBP620 Manual de usuario

Audiovox

Audiovox DS9341 Manual de usuario

Audiovox

Audiovox D7121ESK Manual de usuario

Audiovox

Audiovox D1988 Manual de usuario

Audiovox

Audiovox DS7321 Manual de usuario

Audiovox

Audiovox D2017 Manual de usuario

Audiovox

Audiovox D1708 - DVD Player - 7 Manual de usuario

Audiovox

Audiovox DS7521PK Manual de usuario

Audiovox

Audiovox DT85 Manual de usuario

Audiovox

Audiovox MMDV2 Manual de usuario

Audiovox

Audiovox MVDV4A Manual de usuario

Audiovox

Audiovox D1750T Manual de usuario

Manuales populares de Reproductor de DVD portátil de otras marcas

Philips

Philips PET718/77 Manual de usuario

Impecca

Impecca DVP775 Manual de usuario

NextBase

NextBase MULTI-VISION SET PRO Manual de usuario

Impecca

Impecca DVP-1017 Manual de usuario

Akura

Akura APDVD6008 Manual de usuario

TV Star

TV Star TD3 LCD COMBO Manual de usuario

LENCO

LENCO MES-202 Manual de usuario

Philips

Philips PET940/98 Manual de usuario

Philips

Philips PET702P Manual de usuario

Philips

Philips PD7016 Manual de usuario

Logik

Logik L7SPDVD11 Manual de usuario

LG DP650 Manual de usuario

Mustek

Mustek MVP850B Manual de usuario

Insignia

Insignia NS-MDDVD10 Manual de usuario

Philips

Philips PD9000/12 Manual de usuario

LENCO

LENCO DVP-1027 Manual de usuario

Philips

Philips PD7010/05 Manual de usuario

Technika

Technika PDVDTWINSS10 Guía del usuario
