Audiovox Eddie Bauer PE702 Manual de usuario

PE702

PORTABLE 7" LCD MONITOR AND DVD PLAYER

1286823

WWW

.audiovox.com

For Customer Service

Visit Our Website At

Product Information, Photos,

FAQ’s Owner’s Manual

Notice:

ThisProductincorporatescopyrightprotectiontechnologythatispro-

tectedbymethodclaimsofcertainpatentsand other intellectual prop-

ertyrightsownedbyMacrovisionCorporation andotherrightsowners.

Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

inguses only unless authorizedbyMacrovisionCorporation. Reverse

engineeringordisassemblyisprohibited.

A. Introduction

ThankyouforselectingthePE702portableDVD player.The main

featuresinclude a7"WideScreen(16:9AspectRatio)LiquidCrystal

Display (LCD)monitorandaDVDplayer.Theunit applies thelatest

stateof the art electronicsandisdesignedfor use in hotels, offices

or your home. The unit is constructed to provide years of reliable,

trouble-freeservice,andis compact sothatyou cantake itwithyou

anywhere and is designed for quick and easy installation. Please

readthe entireinstructionmanual supplied withthisproduct priorto

operation.Thedocumentationwillassistyouininstalling the system

properly to obtain the best equipment performance. Please retain

thismanualforlateruse.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rainormoisture.Do not place the set on an unstablecart, stand,

tripod,bracketortabletopreventitfromfalling.Keeptheunitaway

fromstrongmagnets,heatsources,directsunlight,excessivedust.

Ifthe unit isbroughtdirectlyfrom a cold toawarmlocation, mois-

turemaycondenseinside theunit. Whenyou moveitfrom acold

to a warm location, wait for about one hour before operating the

unit,orremovethediscandleavetheunitturnedonuntilthemois-

ture evaporates.

2. Installation

Ensurethat thePE702isinstalled inaccordance withthe instruc-

tionsandillustrationsprovidedinthismanual.

3. Object and Liquid

Donot pushobjectsofanykindintotheunit throughopenings;do

not spill or spray liquid of any kind on or in the system (this may

resultin a fire or electric shock). Do not place anything heavy on

theunit.To ensureproperventilationandproper operation,never

coverorblocktheslotsandopeningswithaclothorothermaterial.

4.Disassemble

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning,makesurethesystem is unplugged from thepower

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1.1x 7.0’’LCDMonitor&DVDPlayerCombo

2.1xACtoDCAdapter

3.1xRechargeableBattery

4.1xRemoteControl

5.1xInstructionManual

6.1xAudio/VideoCable

7.1xCigaretteLighterAdapter

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plugoneendof theACtoDC adapterinto theDC9V jack

ontheleftsideofthemainunit,thenplug theother endinto

the110V ACpowersocket.

2. Powering the system in a car

Plugoneendof thecigarettelighteradapterinto the

DC9Vjackon the unit,thenplug the otherendinto

the cigarette lighter socket.

1 2

Figure 1

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

Figure 2

BRIGHT.

DC 9V VIDEOAUDIO IN OUT

456 7 8 9 10

1615

18 2019 21 2322

17 24

1)Menu

2) Upbutton

3) LeftButton

4) OKButton

5) DownButton

6) RightButton

7) Closedisc cover point

8) OpenButton

9) PreviousButton

10) StopButton

11) NextButton

12) PlayButton

13) PauseButton

14) ScreenMode(wide)Button

15) RemoteControl Sensor

16) PowerLED

17) DC9VInputJack

18) AudioJack(L+R)

19) VideoJack

20)AVInput/OutputSwitch

21)BrightnessUp/DownThumbwheel

22)Power On/ Off Switch

23)VolumeUp/DownThumbwheel

24)Hi-FiHeadphoneJack

25)CoaxialJack

26)PowerSavingMode Switch(Screenclosed shutoff switch)

27)BatteryCatch

28)BatteryPort

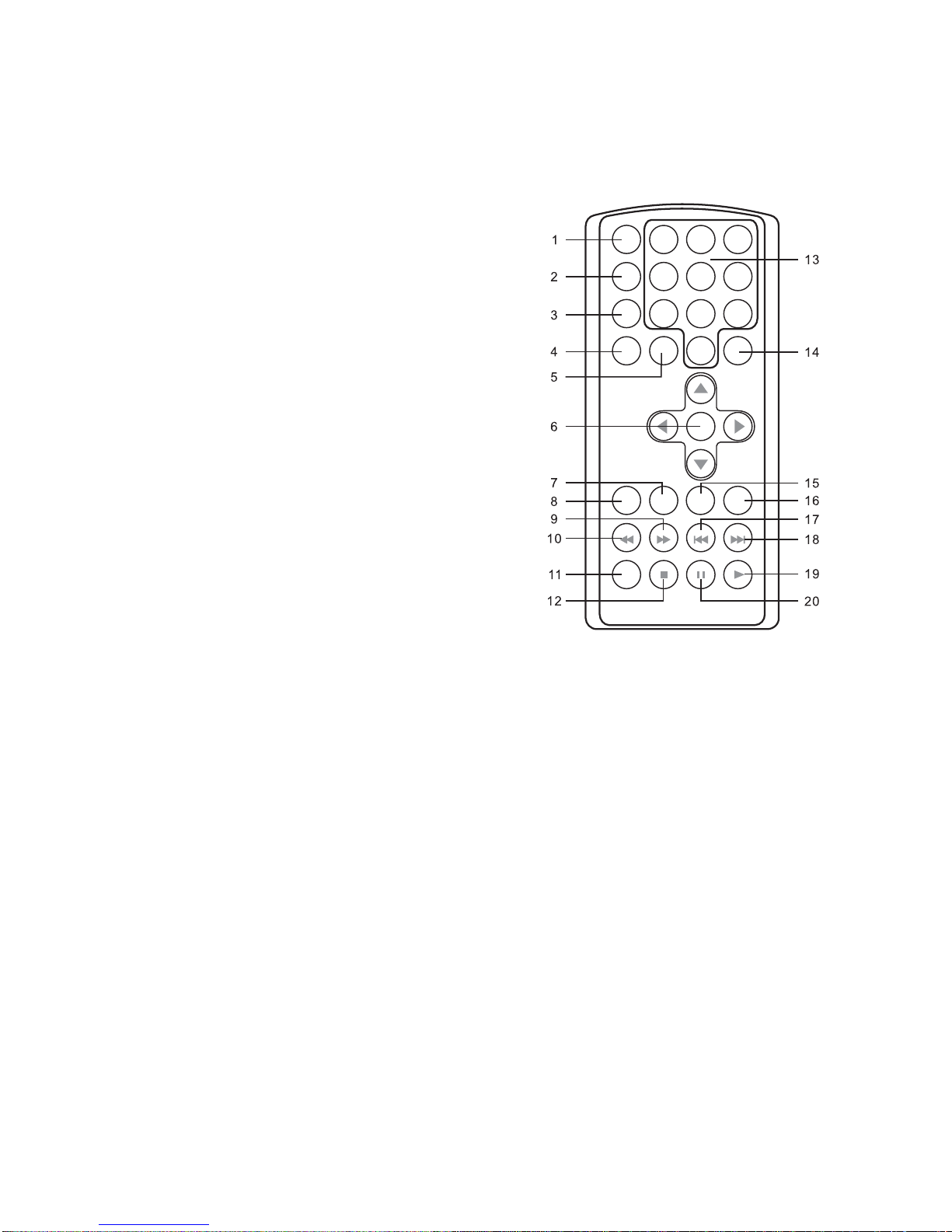

2. Remote Control View (Refer to Figure 3)

1) DisplayButton

2) AngleButton

3) SubtitleButton

4) AudioButton

5) ZoomButton

6) Up/Down/Left/Right/EnterButtons

7) ReturnButton

8) A-BButton

9) ForwardButton

10) ReverseButton

11) Slow Button

12) StopButton

13) NumberButtons

14) SetupButton

15) MenuButton

16) RepeatButton

17) SKIP-

18) SKIP+

19) Play Button

20) Pause Button Figure 3

F. Loading and Playing a Disc

a. Afterconnectingpowertotheunit,poweron”DVDplayer”with

thepowerswitch.

b. Openthe disc tray by pressingOPEN, placeadisc into the

traywith labelsideof discfacingup.

c. Close thetray bypressing“PRESS”button.Theunitwill load

thedisc andgoto therootmenu. Startplaybackbypressing

“PLAY”.

d. RotatetheBRIGHTandVOLUMEcontrolstoadjust thepicture

brightnessand theDVDplayer’svolume.

e. Tostopplayingadisc, press STOP.

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUP Menu on

the screen. Press ‘SETUP’ again to exit the SETUP Menu.

Figure 4. Main SETUP Menu Screen

1) Select ‘GENERAL SETUP’ using the Left /Right buttons, then

press ‘ENTER’ to enter the GENERAL Setup screen.

Figure 5. General SETUP Menu Screen

a)Select “SPDIF Output RAW” use this option to select the audio

signal output from”Coaxial”port.

* SPDIF OFF: the digital signalAudio output will be off.

* SPDIF/RAW: the signal output from “COAXIAL” is RAW.

* SPDIF/PCM: the signal output from “COAXIAL” is PCM.

b)Select TV DISPLAY using UP/DOWN, and then press RIGHT

to enter the submenu. Select the TV display mode on the

screen using UP/DOWN, and press ENTER to confirm the

setting. Press LEFT to return.

* NORMAL/PS: When the player is connected to a normal

TV, and a wide picture is shown on the full screen.

* NORMAL/LB: When the player is connected to a normal TV,

.. General Setup Page ..

Go To General Setup Page

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

.. General Setup Page ..

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

SPDIF Off

SPDIF/RAW

SPDIF/PCM

Setup SPDIF

and a wide picture is shown on the screen with a black strip

at both the top and bottom of the screen.

* WIDE: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

Figure 6. TV DISPLAY Screen Display

c). Select‘ANGLEMARK’usingUP/DOWN,andthenpress

the RIGHT button to enter the submenu. Choose Angle

Mark on or off displayed on the screen using the UP/DOWN

and then press ENTER to confirm the setting. Press the

LEFT button to return.

Figure 7. ANGLE MARK Screen Display

* ON: The screen will show angle mark.

(*If angle option is available)

OFF: The screen will not display the Angle Mark

d). Select ‘SCREEN SAVER’ using UP/DOWN key,

Figure 8. SCREEN SAVER Display

.. General Setup Page ..

Set TV Display Mode

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

Nomal/PS

Normal/LB

Wide

.. General Setup Page ..

Set Angle Mark

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

Off

.. General Setup Page ..

Screen Saver

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off On

Off

*ON: screensaver on.

*OFF:screen saveroff.

*NOTE The DVD player will enter the Screen Saver mode after 5

minutes if the image on the screen remains the same formorethan5

minutes.

e). Select “ Last Memory’ by Up/Down button

Figure 9. LAST MEMORY Screen Display

*on: The unit will retain the last position of playback in

memory. This feature is cancelled when power is turned off.

*off: The unit will not retain the last position of playback.

2)Select“Videoquality” set upbyusingtheleft/right buttons, press

enter to enter the video quality set up page.

Figure 10. Main SETUP Menu VIDEO QUALITY

a).Select “Brightness by using the Up/Down buttons, then press

“Enter”. Adjust can change the Brightness by pressing the

left/right arrow buttons. When complete, press “Enter”

again to return to the “Video Quality” set up page.

.. General Setup Page ..

Set Last Memory STATE

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off On

Off
