Atmel AT01080: XMEGA E Schematic Checklist

Atmel AVR XMEGA E

Features

•Power supplies

•Reset circuit

•Clocks and crystal oscillators

•PDI

•TWI

Introduction

This application note describes a common checklist which should be used when

starting and reviewing the schematics for an Atmel®AVR®XMEGA® E design.

42087A

−

AVR

−

04/2013

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

Table of Contents

1.Power Supplies ....................................................................................3

1.1Power supply connections ................................................................................ 3

1.2External analog reference connections ............................................................. 4

2.External Reset Circuit ..........................................................................4

3.Clocks and Crystal Oscillators .............................................................5

3.1External clock source ........................................................................................ 5

3.2Crystal oscillator................................................................................................ 6

3.3Real-time oscillator............................................................................................ 6

4.PDI Interface

........................................................................................8

5.TWI Interface .......................................................................................9

6.Suggested Reading .............................................................................9

6.1Datasheets and manual .................................................................................... 9

7.Revision History

.................................................................................10

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

1. Power Supplies

1.1 Power supply connections

All power supply pins of the device must be connected to the microcontroller supply.

Both VCC (digital) and AVCC (analog) must be connected to the same microcontroller positive supply, thus ensuring that

they both share an identical supply profile. Likewise both ground pins must be connected to the same microcontroller

ground reference supply.

Figure 1-1. Power supply schematic.

Table 1-1. Power supply checklist.

Signal name Recommended pin connection Description

VCC

1.6V to 3.6V

Decoupling/filtering capacitors 100nF (1)(2) and 10µF (1)

Decoupling/filtering inductor 10µH (1)(3)

Digital supply voltage

AVCC

1.6V to 3.6V

Decoupling/filtering capacitors 100nF (1)(2) and 10µF (1)

Ferrite bead (4) prevents the VCC noise interfering the AVCC

Analog supply voltage

GND Ground

Notes: 1. These values are given only as a typical example (that is, ceramic capacitors: 100nF, SMD 0402, X7R,

16V and 10µF, SMD1206, X5R, 6.3V) (that is, inductor: 10µH, 1.2A).

2. Decoupling capacitor should be placed close to the device for each supply pin pair in the signal group, low

ESR caps should be used for better decoupling.

3. Wire wound inductor should be added between the external power and the VCC for power filtering.

4. Ferrite bead has better filtering performance than the common inductor at high frequency. It can be added

between VCC and AVCC for preventing digital noise from entering the analog power. The BEAD should

provide enough impedance (for example, 220Ωat 100MHz, rated current 200mA, that is, Murata

BLM15BB221SN1D) for separating the digital power to the analog power.

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

1.2 External analog reference connections

Atmel AVR XMEGA E proposes one ADC using internal references or an external analog reference (AREFA on PORTA

or AREFD on PORTD).

The following schematic checklist is only recommended if the design is using the external analog reference. If the

internal reference is used, the circuit is not necessary.

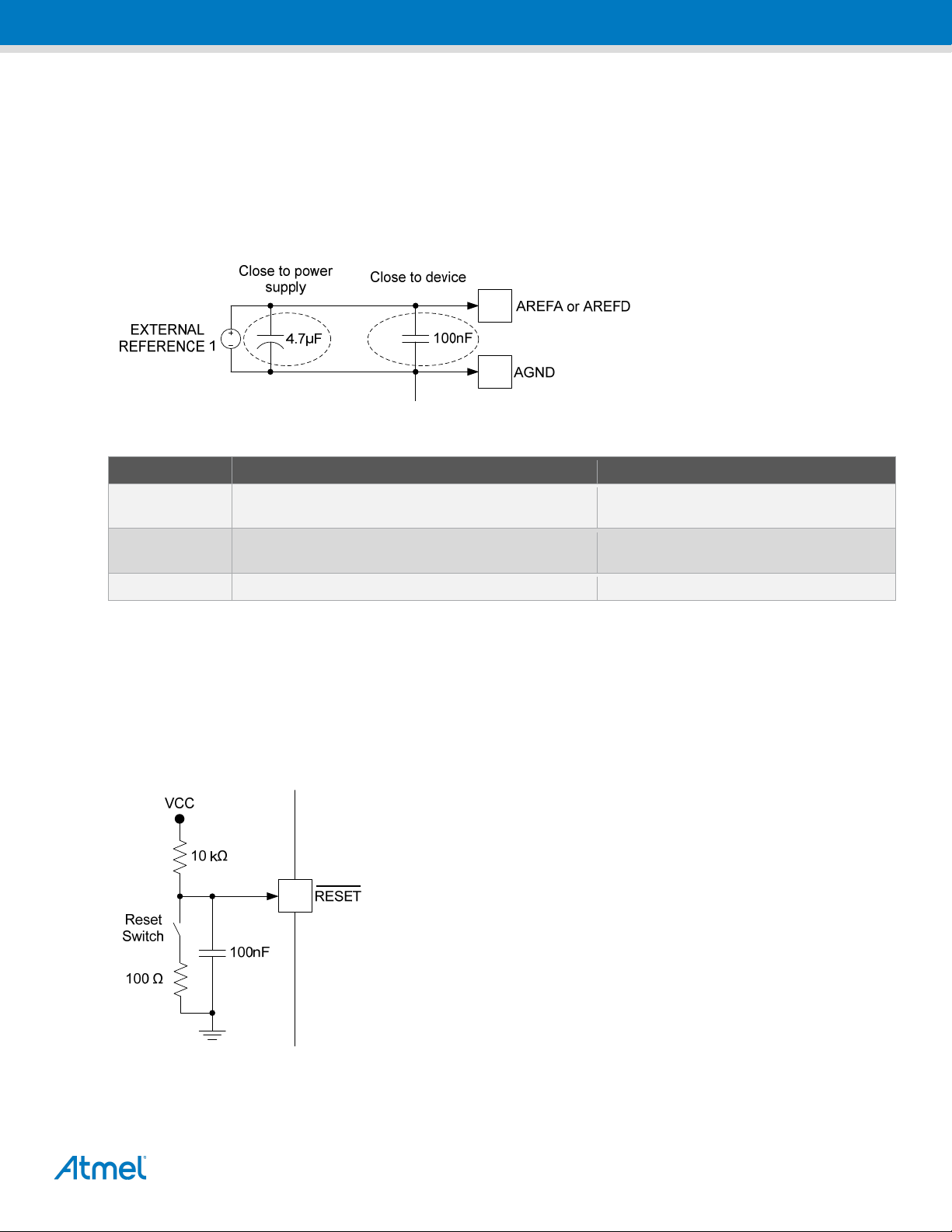

Figure 1-2. External VREF schematic.

Table 1-2. External analog reference checklist.

Signal name Recommended pin connection Description

AREFA 1.0V to AVCC-0.6V for ADC

Decoupling/filtering capacitors 100nF (1)(2) and 4.7µF (1) External reference from AREF pin on PORT A

AREFD 1.0V to AVCC-0.6V for ADC

Decoupling/filtering capacitors 100nF (1)(2) and 4.7µF (1) External reference from AREF pin on PORT D

GND Ground

Notes: 1. These values are given only as a typical example.

2. Decoupling capacitor should be placed close to the device.

2. External Reset Circuit

The external reset circuit is connected to /RESET pin only if the external reset function is used.

Figure 2-1. External reset circuit example schematic.

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

Table 2-1. Reset circuit checklist.

Signal name Recommended pin connection Description

______

RESET

Reset low level threshold voltage

VCC = 2.7 - 3.6V: Below 0.45 × VCC

VCC = 1.6 - 2.7V: Below 0.42 × VCC (VCC = 2.7V included)

Reset pin

Notes: The pull-up resistor makes sure that reset does not go low unintended. When the PDI programming and

debugging is used, the reset line is used as clock. The reset pull-up should be 10kΩor weaker, or be

removed.

The pull-down resistor prevents from overvoltage on the RESET pin when the switch is pressed.

Any reset capacitors should be removed if PDI programming and debugging is used. Other external reset

sources should be disconnected.

3. Clocks and Crystal Oscillators

3.1 External clock source

Figure 3-1. External clock source example schematic.

Table 3-1. External clock source checklist.

Signal name Recommended pin connection Description

XTAL1 XTAL1 is used as input for an external clock signal EXTCLK: input for external clock signal on

PORT R pin 1

XTAL2 Can be left unconnected or used as GPIO

PC4 PC4 is used as input for an external clock signal EXTCLK: input for external clock signal on

PORT C pin 4

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

3.2 Crystal oscillator

Figure 3-2. Crystal oscillator example schematic.

Table 3-2. Crystal oscillator checklist.

Signal name Recommended pin connection Description

XTAL1 Load capacitor 15pF (1)(2)

External crystal between 0.4MHz to 16MHz

XTAL2 Load capacitor 15pF (1)(2)

Notes: 1. These values are given only as a typical example. Please refer to the crystal datasheet to determine the

capacitor value for the crystal used or refer to the application note “AVR1003: Using the XMEGA Clock

System”.

2. Load capacitors should be placed close to the device and crystal pins.

3.3 Real-time oscillator

The low-frequency crystal oscillator is optimized for use with a 32.768kHz watch crystal. When selecting crystals, load

capacitance and crystal’s equivalent series resistance, ESR must be taken into consideration. Both values are specified

by the crystal vendor.

The Atmel AVR XMEGA E oscillator is optimized for very low power consumption, and thus when selecting crystals,

see Table 3-3 for maximum ESR recommendations on 9pF and 12.5pF crystals.

Table 3-3. Maximum ESR recommendation for 32.768kHz watch crystal.

Crystal CL [pF] Maximum ESR [kΩ] (1)

9.0 65

12.5 30

Note: 1. Maximum ESR is typical value based on characterization.

The low-frequency crystal oscillator provides an internal load capacitance of typical 3.0pF. Crystals with recommended

3.0pF load capacitance can be without external capacitors as shown in Figure 3-3.

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

Figure 3-3. Real-time oscillator without load capacitor.

Crystals specifying load capacitance (CL) higher than 3.0pF, require external capacitors applied as described in Figure

3-4.

Figure 3-4. Real-time oscillator with load capacitor.

32. 768 k Hz

18 pF

TOSC1

TOSC2

To find suitable load capacitance for a 32.768kHz crystal, please consult the crystal datasheet.

Table 3-4. External real-time oscillator checklist.

Signal name Recommended pin connection Description

TOSC1 Load capacitor 18pF (1)(2) Timer oscillator pin 1

TOSC2 Load capacitor 18pF (1)(2) Timer oscillator pin 2

Notes: 1. These values are given only as a typical example. Please refer to the crystal datasheet to determine the

capacitor value for the crystal used or refer to the application notes “AVR1003: Using the XMEGA Clock

System” and “AVR4100: Selecting and testing 32kHz crystal oscillators for Atmel AVR microcontrollers”.

2. Load capacitors should be placed close to the crystal, GND and device oscillator pins.

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

4. PDI Interface

Figure 4-1. PDI interface example schematic.

The connector pinout that is shown in Figure 4-1 mates with Atmel tools like the Atmel AVR JTAGICE3 and Atmel AVR

ONE!

Table 4-1. PDI port interface checklist.

Signal name Recommended pin connection Description

PDI_CLK

This pull-up resistor makes sure that reset does not go low

unintended. When the PDI programming and debugging is used,

the reset line is used as clock. The reset pull-up should be 10kΩ

or weaker, or be removed.

Any reset capacitors should be removed if PDI programming

and debugging is used. Other external reset sources should be

disconnected.

PDI clock input / reset pin

PDI_DATA PDI_DATA: PDI data input /

output

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

5. TWI Interface

Figure 5-1. TWI interface example schematic.

The TWI module in XMEGA devices follows the electrical specifications and timing of I2C bus and SMBus.

The two lines are open-collector lines (wired-AND), and pull-up resistors (Rp) are the only external components needed

to drive the bus.

Table 5-1. TWI interface checklist.

Signal name Recommended pin connection Description

SCL

This pull-up resistor is mandatory on the TWI bus topology since this

line is open-collector line. The value of pull-up resistor Rp will depend

on the SCL frequency:

(fSCL ≤100kHz, fSCL ≤400kHz, fSCL ≤1MHz).

Refer to chapter Two-wire interface characteristics in the datasheet

for choosing the right value.

SCL serial clock line

SDA

This pull-up resistor is mandatory on the TWI bus topology since this

line is open-collector line. The value of pull-up resistor Rp will depend

on the SCL frequency:

(fSCL ≤100kHz, fSCL ≤400kHz, fSCL ≤1MHz).

Refer to chapter Two-wire interface characteristics in the datasheet

for choosing the right value.

SDA serial data line

6. Suggested Reading

6.1 Datasheets and manual

The datasheet and the manual contain block diagrams of the peripherals and details about implementing firmware for

the device. The datasheet and the manual are available on http://www.atmel.com/AVR in the Datasheets and Manuals

section.

Atmel AT01080: XMEGA E Schematic Checklist [APPLICATION NOTE]

42087A−AVR−04/2013

7. Revision History

Doc. Rev. Date Comments

42087A 04/2013 Initial document release
