Atmel STK502 Manual de usuario

STK502

..............................................................................................

User Guide

STK502 User Guide i

2528A–AVR–11/02

Table of Contents

Section 1

Introduction...........................................................................................1-1

Section 2

Using the STK502 Top Module.............................................................2-1

2.1 Connecting the STK502 to the STK500 Starter Kit...................................2-1

2.1.1 Placing an ATmega169 on STK502...................................................2-1

2.2 PORT Connectors.....................................................................................2-2

2.2.1 PORT E/PORT F................................................................................2-2

2.2.2 PORT G/RST......................................................................................2-2

2.3 Programming the ATmega169..................................................................2-4

2.3.1 In-System Programming.....................................................................2-4

2.3.2 High-voltage Programming.................................................................2-5

2.4 JTAG Connector .......................................................................................2-6

2.5 LCD Display..............................................................................................2-7

2.5.1 Connecting the STK502 LCD to the ATmega169...............................2-7

2.5.2 Default Segment Configuration ..........................................................2-7

2.5.3 Using Both Colons on the Display......................................................2-8

2.6 TOSC Switch...........................................................................................2-10

2.7 Sensor.....................................................................................................2-11

2.7.1 Sensor Switches...............................................................................2-11

Section 3

Troubleshooting Guide .........................................................................3-1

Section 4

Technical Specifications .......................................................................4-1

4.1 STK502 LCD Bit Mappings.......................................................................4-3

4.1.1 Alphanumeric Digit Number Two........................................................4-3

4.1.2 Alphanumeric Digit Number Three .....................................................4-3

4.1.3 Alphanumeric Digit Number Four .......................................................4-3

4.1.4 Alphanumeric Digit Number Five........................................................4-3

4.1.5 Alphanumeric Digit Number Six..........................................................4-4

4.1.6 Alphanumeric Digit Number Seven ....................................................4-4

Table of Contents

ii STK502 User Guide

2528A–AVR–11/02

Section 5

Technical Support.................................................................................5-1

Section 6

Complete Schematics...........................................................................6-1

STK502 User Guide 1-1

Rev. 2528A–AVR–11/02

Section 1

Introduction

The STK502 board is a top module designed to add ATmega169 support to the STK500

development board from Atmel Corporation.

STK502 includes connectors and hardware allowing full utilization of the new features of

the ATmega169. The Zero Insertion Force (ZIF) socket makes it easy to use of TQFP

packages for prototyping.

This user guide is a general getting started guide as well as a complete technical refer-

ence for advanced users.

The STK502 board also includes a demonstration application, and comes with two

application notes, “AVR064: STK502 – A Temperature Monitoring System with LCD

Output” and “AVR065: LCD Driver for the STK502”. These application notes explain

how to use the different modules in the device. Included in the kit is a pre-programmed

ATmega169. Insert the device in the ZIF socket and the demonstration application will

start immediately.

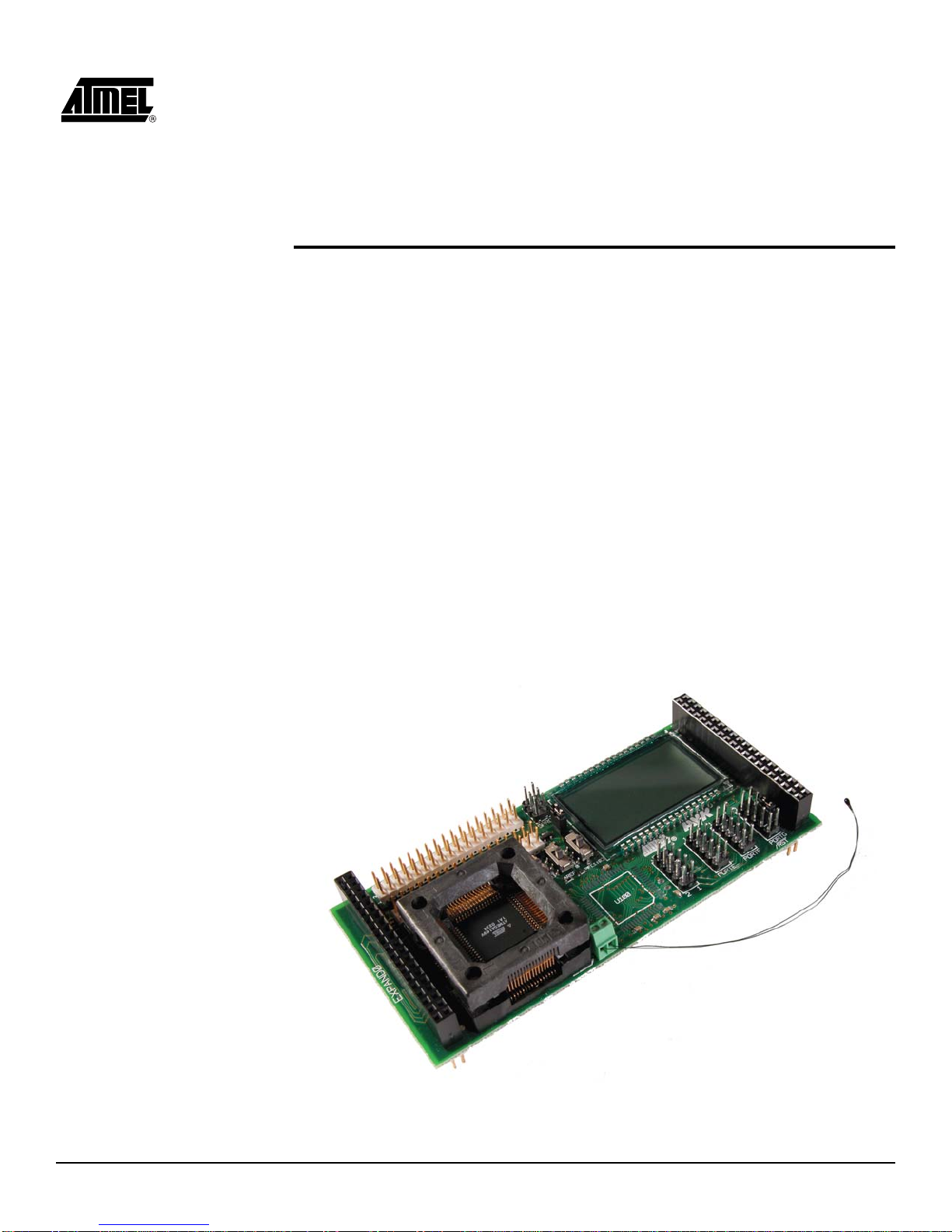

Figure 1-1. STK502 Top Module for STK500

Introduction

1-2 STK502 User Guide

2528A–AVR–11/02

1.1 Features Supports the ATmega169 with Built-in LCD Controller.

LCD-on-glass Display for Demonstrating the ATmega169 LCD Controller.

Supported by AVR Studio®4.

Zero Insertion Force Socket for TQFP Packages.

High Voltage Parallel Programming.

Serial Programming.

TQFP Footprint for Emulator Adapters.

Port Extension Connectors for Port E, F, and G.

LCD Display Header for Using an External LCD Display.

LCD and Other Peripherals Can be Disconnected from the Device.

JTAG Connector for On-chip Debugging Using JTAG ICE.

On-board 32 kHz Crystal for Easy Real Time Clock Implementations.

Temperature Sensor for the Demo Application.

Quick Reference to all Switches and Jumpers in the Silk-Screen of the PCB.

Pre-programmed ATmega169 with Demonstration Application. Includes C-code

Examples for all Major Peripherals on the ATmega169 Device.

– The Way to Get Going with your ATmega169

STK502 User Guide 2-1

Rev. 2528A–AVR–11/02

Section 2

Using the STK502 Top Module

This section describes in detail how the STK502 is used with the STK500.

2.1 Connecting the

STK502 to the

STK500 Starter

Kit

Connect STK502 to the STK500 expansion header 0 and 1. It is important that the top

module is connected in the correct orientation as shown in Figure 2-1. EXPAND0 written

on the STK502 top module should match EXPAND0 written beside the expansion

header on the STK500 board.

Figure 2-1. Connecting STK502 to the STK500 Board

Note: Connecting STK502 with wrong orientation may damage the board.

2.1.1 Placing an

ATmega169 on

STK502

STK502 contains both a ZIF socket, and a footprint for a TQFP package which allows an

easy way of soldering an emulator adapter directly into the STK502. Care should be

taken so that the device (or adapter) is mounted with the correct orientation. Figure 2-2

shows the location of pin1 for the ZIF socket and the TQFP footprint.

Using the STK502 Top Module

2-2 STK502 User Guide

2528A–AVR–11/02

Figure 2-2. Pin1 on ZIF Socket and TQFP Footprint

Caution: Do not mount an ATmega169 on the STK502 at the same time as an AVR is

mounted on the STK500 board. Neither of the devices will work as intended.

2.2 PORT

Connectors ATmega169 have additional ports to those available on the STK500. The ports are

located on the STK502 board. They have the same pin out and functionality as the ports

on the STK500 board. Port A to Port D are already present on the STK500 board. They

are not duplicated on the STK502.

2.2.1 PORT E/PORT F Figure 2-3 shows the pin out for the I/O port headers Port E and Port F.

Figure 2-3. General I/O Ports

Note: Port E is also present on the STK500, but only PE0 to PE2 (three least signifi-

cant bits) are accessible there. To access all Port E bits the connector on the

STK502 must be used.

2.2.2 PORT G/RST In addition to the normal Port G pins, this connector has the RESET-signal. Se Figure 2-

PE0

PE2

PE4

PE6

GND

PE1

PE3

PE5

PE7

VTG

PORTE

PF0

PF2

PF4

PF6

GND

PF1

PF3

PF5

PF7

VTG

PORTF

1 2 1 2

Using the STK502 Top Module

STK502 User Guide 2-3

2528A–AVR–11/02

Figure 2-4. PORTG/RST

2.2.2.1 PG0 - PG5 These are general I/O ports connected to ZIF socket and the TQFP footprint.

2.2.2.2 RST On the ATmega169 the RESET-signal and PG5 share the same pin. The “RST” is the

RESET-signal that comes from the STK500 board. Please note that it is not directly con-

nected to the ZIF socket or the TQFP footprint on the STK502. This because the

RESET-signal on the STK500 has an pull-up resistor to VCCT which will interfere with

PG5 when used as an ordinary I/O-pin.

If RESET/PG5-pin on ATmega169 shall be used as a Reset pin, the RST and PG5 on

the PORTG /RST must be connected with a jumper. See Figure 2-5.

If the pin shall be used as an I/O-pin the jumper must be removed.

Figure 2-5. The RESET Signal on PORTG/RST

PG0

PG2

PG4

GND

PG1

PG3

PG5

RST

VTG

PORTG/RST

1 2

Using the STK502 Top Module

2-4 STK502 User Guide

2528A–AVR–11/02

2.3 Programmingthe

ATmega169 The ATmega169 can be programmed using both SPI and High-voltage Parallel Pro-

gramming. This section will explain how to connect the programming cables to

successfully use one of these two modes. The AVR Studio STK500 software is used in

the same way as for other AVR parts as described in the STK500 User Guide.

Note: The ATmega169 also support Self Programming, See AVR109 application note

for more information on this topic.

Note: The jumper for the Reset-signal on PORTG/RST must be mounted before any

programming can take place. See Section 2.2.2.2

2.3.1 In-System

Programming Figure 2-6. In-System Programming

To program the ATmega169 using ISP Programming mode, connect the 6-wire cable

between the ISP6PIN connector on the STK500 board and the ISP connector on the

STK502 board as shown in Figure 2-6. The device can be programmed using the Serial

Programming mode in the AVR Studio4 STK500 software.

Note: See STK500 User Guide for information on how to use the STK500 front-end

software for ISP Programming.
