Atmel ATSAMB11 BluSDK SMART Manual de usuario

ATSAMB11 BluSDK SMART

Blood Pressure Profile - Getting Started Guide

USER GUIDE

Introduction

The Blood Pressure Profile (BLP) enables a device to connect and interact with a Blood Pressure Sensor

device for use in consumer and professional health care applications.

The Blood Pressure Profile is used to enable a device to obtain blood pressure measurement and other

data from a non-invasive blood pressure sensor that exposes the Blood Pressure Service. For example, a

nurse or doctor could use a non-invasive blood pressure sensor on a patient that sends blood pressure

measurements to a laptop or other hand held device.

This example demonstrates a Blood Pressure sensor application (GATT Server role).

Features

Device Discovery and Disconnection

Pairing/Bonding

Blood Pressure Measurements

Console Display

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

Table of Contents

1Purpose .....................................................................................................................3

2Demo Setup..................................................................................................................3

3Hardware Setup ...........................................................................................................3

4Blood Pressure Measurements...................................................................................4

5Software Setup.............................................................................................................5

5.1 Installation Steps...................................................................................................................................5

5.2 Build Procedure.....................................................................................................................................5

6Console Logging .........................................................................................................7

7Running the Demo.......................................................................................................8

8BluSDK SMART Software Architecture....................................................................12

9ATMEL EVALUATION BOARD/KIT IMPORTANT NOTICE AND DISCLAIMER........13

10 Revision History ........................................................................................................14

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

1 Purpose

This getting started guide describes the setup of an Atmel®ATSAMB11 Xplained board and bringing up

an example profile supplied as part of the BluSDK SMART release. The Bluetooth®Blood Pressure Profile

is an example application that is embedded as part of the software release package.

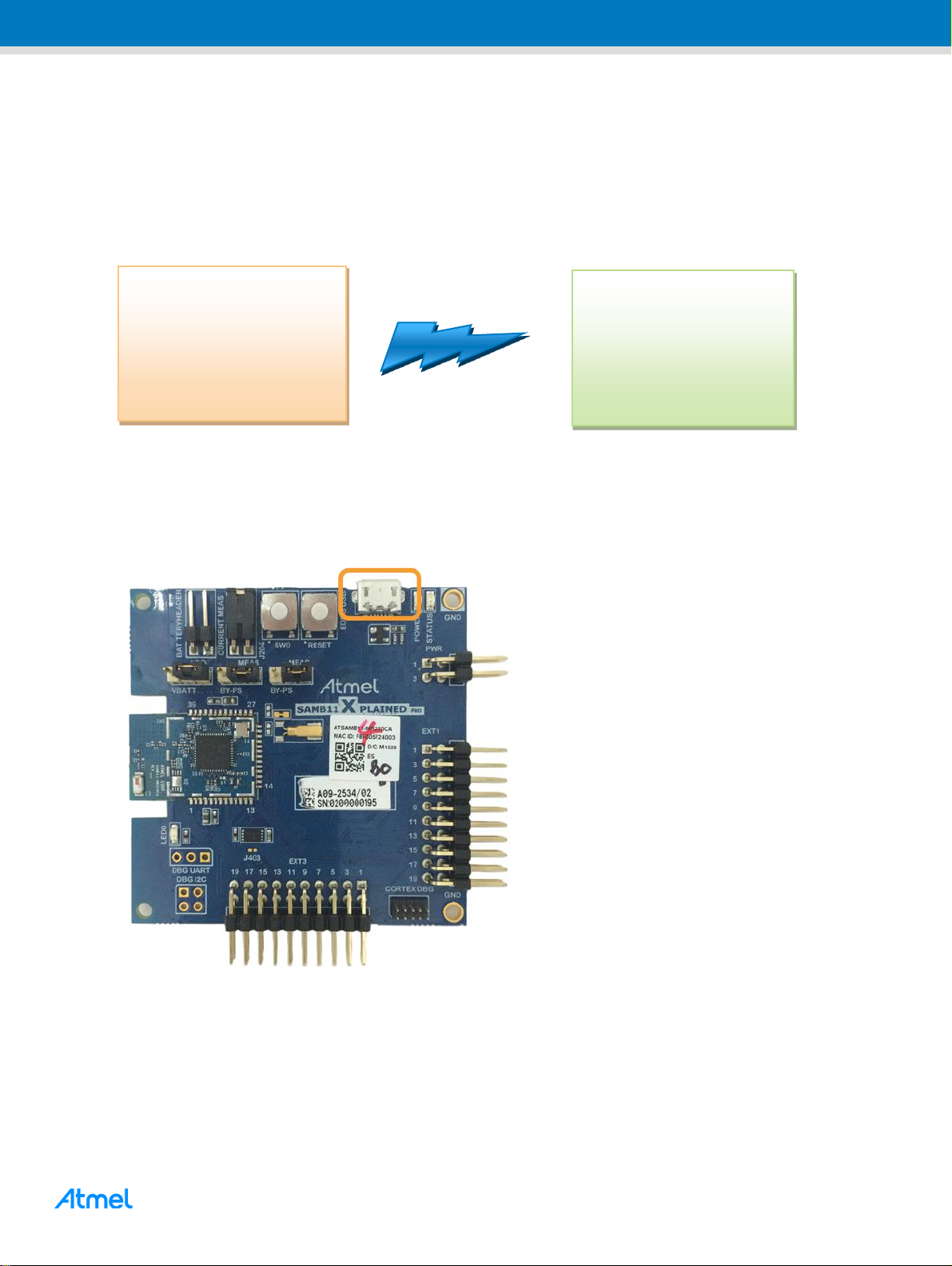

2 Demo Setup

3 Hardware Setup

Connect the ATSAMB11 board to the host PC using a Micro-USB cable.

Figure 3-1. EDBG USB Port

BLE Link

iPhone®

(Blood Pressure Monitor)

ATSAMB11

(Blood Pressure Sensor)

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

4 Blood Pressure Measurements

The Blood Pressure Measurement characteristic shall be used to send blood pressure measurements.

Included in the characteristic there is a Flags field (containing units of blood pressure and used to show

presence of optional fields), the Blood Pressure Measurement Compound Value field and, depending

upon the contents of the Flags field, Time Stamp (time of the measurement), Pulse Rate, User ID, and

Measurement Status fields.

The Intermediate Cuff Pressure characteristic may be notified frequently during the course of a

measurement so that a receiving device can effectively update the display on its user interface during the

measurement process.

When the Client Characteristic Configuration descriptor is configured for indications and a blood pressure

measurement is available, this characteristic shall be indicated while in a connection.

The Blood Pressure Measurement Application, which is the GATT server, will hold the characteristics and

will send the measurement values to the Blood Pressure Monitor.

The Blood Pressure Measurement characteristic shall be used to send blood pressure

measurements

The Intermediate Cuff Pressure characteristic, which is used to send Current Cuff Pressure values

to a device for display purposes while the measurement is in progress

The Blood Pressure Feature characteristic shall be used to describe the supported features of the

Blood Pressure Sensor

ATSAMB11 simulates a Blood Pressure Sensor (GATT Server Role) and sends simulated values to the

Blood Pressure Monitor (SmartConnect mobile application).

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

5 Software Setup

5.1 Installation Steps

1. Install the latest Atmel Studio [Atmel Studio 7.0 (build 629 or later) web installer

(recommended)]

http://www.atmel.com/tools/ATMELSTUDIO.aspx.

2. Install the latest Atmel Software Framework.

This package will install the following examples within the Atmel Studio environment:

Blood Pressure application for ATSAMB11

5.2 Build Procedure

The following procedure is explained for ATSAMB11 application example.

1. Select New Example Project.

Figure 5-1. Creating a New Example Project

2. Select “SAMB11” in device family, enter “Blood Pressure” in search window, and expand Atmel

Corp Projects. The location and the name of the project can be selected in the respective fields.

Click OK.

Figure 5-2. Selecting Blood Pressure Application from Example Projects

3. Accept the license Agreement. The Atmel studio will generate the Blood Pressure Profile project for

ATSAMB11.

4. Build the solution.

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

Figure 5-3. Building the Blood Pressure Application

5. Download the application via the USB to the ATSAMB11 board by using the Device Programing

option available in Tools as shown below.

Figure 5-4. Programming the Blood Pressure Application

6. Inside the device programming the user has to select the correct configuration for the device and

finally program the device by using the program button.

Figure 5-5. Flash the Blood Pressure Application

7. Once the application is flashed, the Blood Pressure application is ready for usage.

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

6 Console Logging

For the purpose of debugging, a logging interface had been implemented in the Blood Pressure

Application.

The logging interface utilizes the same EDBG port that connects to ATSAMB11. A serial port monitor

application (for example TeraTerm) shall be opened and attached to the corresponding COM port

enumerated on the PC by the device. Baud rate should be set at 115200.

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

7 Running the Demo

1. Power on the ATSAMB11 by connecting the USB cable.

2. Open a console window using TeraTerm or any equivalent serial port monitor application and

connect to the corresponding COM port enumerated on the PC. Configure the COM Port with the

following settings: Baudrate 115200, Parity None, one Stop bit, one Start bit, no Hardware

Handshake.

3. Press the Reset button on the ATSAMB11 board.

4. The device is now in advertising mode.

Figure 7-1. Console Display for Advertising Mode

Initializing Blood Pressure Sensor Application

Initializing SAMB11

BD Address:0xF8F005F23FFF, Address Type:0

Device is in Advertising Mode

5. On the iPhone, enable Bluetooth in the Settings page. Use the Atmel SmartConnect mobile app

and scan for devices. ATMEL-BLP will be appear amongst the devices scanned. Click on ATMEL-

BLP to connect to the ATSAMB11 device.

Figure 7-2. Atmel BLP Device Discovery on iPhone

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

6. Once connected, on the client side will request for pairing procedure with iPhone. The console log

provides a guidance to the user to enter the pass-key on iPhone.

Figure 7-3. Console Log for Pairing Procedure

Initializing Blood Pressure Sensor Application

Initializing SAMB11

BD Address:0xF8F005F23FFF, Address Type:0

Device is in Advertising Mode

Connected to peer device with address 0xccfa00710852

Connection Handle 0

Peer device request pairing

Sending pairing response

Please Enter the following Pass-code(on other Device):123456

Pairing procedure completed successfully

7. Once the device is connected, the following services shall be displayed on the mobile app.

Figure 7-4. Discovery of Services for BLP Application

ATSAMB11 BluSDK SMART –Blood Pressure Profile –Getting Started Guide [USER GUIDE]

Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015

8. Since the service level connection is now established, the user will see the notifications of the Blood

Pressure measurements as shown.

Figure 7-5. Console Log for Blood Pressure Measurements

Please Enter the following Pass-code(on other Device):123456

Pairing procedure completed successfully

Notifications enabled by the remote device for interim cuff pressure

Indications enabled by the remote device for blood pressure

Systolic 10 kpa

Diastolic 07 kpa

Map 08 kpa

Pulse rate 60 bpm

Press the button to receive the blood pressure parameters

Started sending Interim Cuff Pressure Values

Cuff pressure 80 mmhg

Cuff pressure 81 mmhg

Cuff pressure 82 mmhg

Cuff pressure 83 mmhg

Cuff pressure 84 mmhg

Cuff pressure 85 mmhg

Cuff pressure 86 mmhg

Cuff pressure 87 mmhg

Cuff pressure 88 mmhg

The Blood Pressure Values are:

Systolic 81 mmhg

Diastolic 61 mmhg

Map 71 mmhg

Pulserate 61 bpm

Press the button to receive the blood pressure parameters
