Atmel ATWINC1500 Manual de usuario

USER GUIDE

Getting Started Guide for ATWINC1500 Wi-Fi using SAM

D21 Xplained Pro

Atmel SmartConnect

Introduction

This getting started guide describes the Atmel®ATWINC1500 Wi-Fi Network

Controller to build state-of-the-art Internet of Things (IoT) applications. The guide

explains hardware information and how to install Atmel Studio (IDE), compile

examples, and download ATWINC1500 firmware.

The following topics will be covered:

How to get Atmel Studio (IDE) and install it

Update new ASF package

Target board information

How to get weather client example project

How to get log message

How to download firmware and certificate

Prerequisites

Hardware Prerequisites

–Atmel SAM D21 Xplained Pro Evaluation Kit

–Atmel ATWINC1500 extension

–Atmel IO1 extension

–Micro-USB cable (Micro-A / Micro-B)

Software Prerequisites

–Atmel Studio

–Weather client example project source code

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

Table of Contents

Icon Key Identifiers.............................................................................................................3

1Getting Started with Atmel Studio..............................................................................4

1.1 Download and Install Atmel Studio 6.2..................................................................................................4

1.2 Download and Install the latest ASF .....................................................................................................4

1.3 Download and Install the latest ATWINC1500 Extension Package.......................................................6

2Getting Started with Atmel Hardware.........................................................................8

2.1 Atmel SMART SAMD21-XPRO Evaluation Kit......................................................................................8

2.2 Atmel SmartConnect ATWINC1500-XPRO Wi-Fi Extension Board......................................................9

2.3 Atmel IO1-XPRO Sensor Extension Board .........................................................................................10

2.4 Atmel OLED1-XPRO Display Extension Board...................................................................................10

3Getting Started with ATWINC1500 IoT Examples.................................................... 12

3.1 Organization of ATWINC1500 IoT Examples......................................................................................12

3.2 Connect the Board ..............................................................................................................................13

3.3 How to Get Weather Client Example Project.......................................................................................14

3.4 How to Build and Execute...................................................................................................................16

3.5 Provisioning.........................................................................................................................................18

4How to Debug ATWINC1500 Wi-Fi Firmware...........................................................21

5How to Download New ATWINC1500 Firmware....................................................... 22

5.1 Download Firmware ............................................................................................................................22

5.2 Download Certificate File ....................................................................................................................25

6Conclusion................................................................................................................. 26

7Revision History........................................................................................................ 27

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

Icon Key Identifiers

Delivers contextual information about a specific topic.

Highlights useful tips and techniques.

Highlights objectives to be completed.

Highlights the expected result of an assignment step.

Indicates important information.

Highlights actions to be executed out of the target.

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

1 Getting Started with Atmel Studio

1.1 Download and Install Atmel Studio 6.2

Atmel Studio 6 is the integrated development platform (IDP) for developing and debugging Atmel ARM®

Cortex®-M and Atmel AVR®microcontroller (MCU) based applications. The Atmel Studio 6 IDP gives you a

seamless and easy-to-use environment to write, build, and debug your applications written in C/C++ or

assembly code.

Atmel Studio 6.2 is now available, adding advanced debugging features such as Data and Interrupt Trace,

improved RTOS integration, and better ability to debug code that has been optimized.

With the introduction of Atmel Gallery and Atmel Spaces, Atmel Studio 6 further simplifies embedded MCU

designs to reduce development time and cost. Atmel Gallery is an online apps store for development tools and

embedded software. Atmel Spaces is a cloud-based collaborative development workspace allowing you to host

software and hardware projects targeting Atmel MCUs.

Download and install Atmel Studio 6.2 from http://www.atmel.com/microsite/atmel_studio6/.

You can find the installed directory: C:\Program Files\Atmel\Atmel Studio 6.2.

1.2 Download and Install the latest ASF

Atmel Studio 6 is free of charge and is integrated with the Atmel Software Framework (ASF) —a large library

of free source code with 1,600 ARM and AVR project examples. ASF strengthens the IDP by providing, in the

same environment, access to ready-to-use code that minimizes much of the low-level design required for

projects. Use the IDP for our wide variety of AVR and ARM Cortex-M processor-based MCUs, including our

broadened portfolio of Atmel SAM3 ARM Cortex-M3 and M4 Flash devices.

If the ASF version in your Atmel Studio is not the latest one you will be notified when Atmel Studio starts. The

following procedure demonstrates how to update the ASF to the latest version. You can install other extensions

in the list as well.

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

1.2.1 How to update Atmel Studio to the latest version

1. Run Atmel Studio 6.2.

2. You can see the start page of Atmel Studio 6.

3. Update ASF to the latest version.

Menu → Tools → Extension Manager

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

Available Downloads → Updates → Atmel Software Framework

Select an extension and proceed with download and installation:

Restart Atmel Studio to take effect of the newly installed extension.

1.3 Download and Install the Latest ATWINC1500 Extension Package

ATWINC1500 Extension package contains the ATWINC1500 software (latest firmware, Firmware update

Tools, and Example projects).

As an Atmel Studio Extension (.vsix file), which can be found on the Atmel Gallery web

site (http://gallery.atmel.com/) or using the Atmel Studio Extension manager.

1. Atmel Studio → Menu → Tools → Extension Manager.

2. Input “winc” in the search window then you can find the ATWINC1500 extension.

3. Select the extension and proceed with download and installation.

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

Restart Atmel Studio to take effect of the newly installed extension.

4. Restart Atmel Studio.

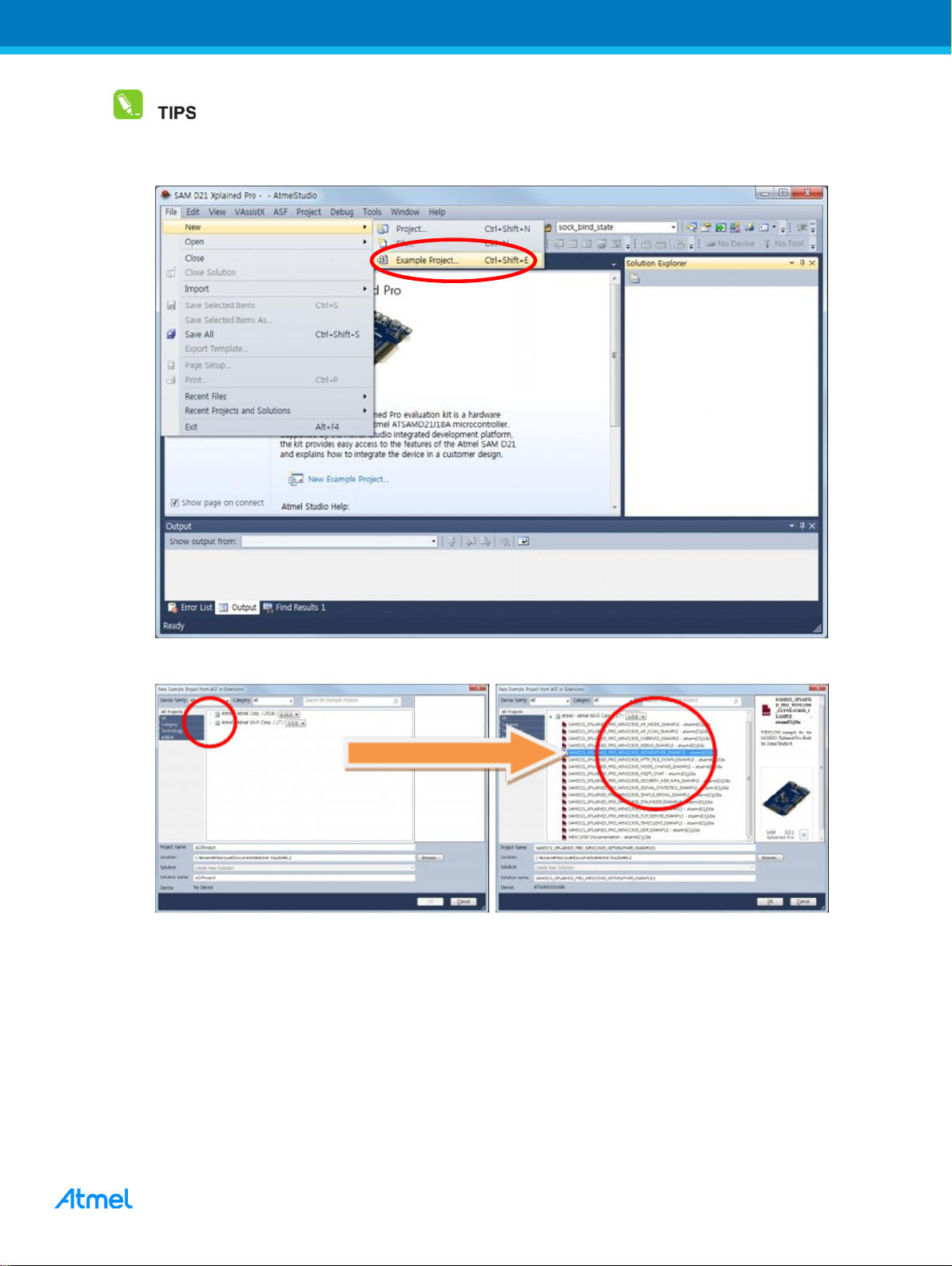

5. Open the Tools and Document via File → New → Example Project (Ctrl + Shift + E).

6. Input “FIRMWARE” in the search window then you can find an example named like

“WINC1500_FIRMWARE_UPDATE_AND_DOCUMENTATION”.

This project contains documentation and tools to upgrade ATWINC1500 firmware to the specific version which

is matched up with the Wi-Fi driver in example projects. It also contains documentation on how to run example

projects in this extension.

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

2 Getting Started with Atmel Hardware

This chapter introduces Atmel Evaluation Kits for testing IoT applications. The SAMD21 and the ATWINC1500

are essential but the IO1 and the OLED1 extension boards are optional.

2.1 Atmel SMART SAMD21-XPRO Evaluation Kit

The Atmel SAM D21 Xplained Pro evaluation kit is ideal for evaluating and prototyping with the Atmel SAM

D21 ARM Cortex-M0+ based microcontrollers. Extension boards to the SAM D21 Xplained Pro can be

purchased individually.

SAMD21J18A microcontroller

One mechanical reset button

One mechanical user pushbutton (wake-up, bootloader entry, or general purpose)

One yellow user LED

32.768kHz crystal

USB interface, device and reduced host mode

8Mb Serial Flash

Three Xplained Pro extension headers

Embedded Debugger

–Auto-ID for board identification in Atmel Studio 6.1

–One yellow status LED

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

–One green board power LED

–Symbolic debug of complex data types including scope information

–Programming and debugging

–Data Gateway Interface: SPI, I²C, four GPIOs

–Virtual COM port (CDC)

USB powered

Supported with application examples in Atmel Software Framework

More detailed information about SAM D21: http://www.atmel.com/tools/atsamd21-xpro.aspx

2.2 Atmel SmartConnect ATWINC1500-XPRO Wi-Fi Extension Board

Atmel SmartConnect ATWINC1500 is an IEEE®802.11 b/g/n IOT network controller SoC. It is the ideal add-on

to existing MCU solutions bringing Wi-Fi and Network capabilities through SPI-to-Wi-Fi interface. The

ATWINC1500 connects to any Atmel AVR or SMART MCU with minimal resource requirements. The

ATWINC1500 most advanced mode is a single stream 1x1 802.11n mode providing up to 72Mbps PHY

throughput. ATWINC1500 features fully integrated Power Amplifier, LNA, Switch, and Power Management.

The ATWINC1500 provides internal Flash memory as well as multiple peripheral interfaces including UART,

SPI, and I2C. The only external clock source needed for the ATWINC1500 is a high-speed crystal or oscillator

with a wide variety of reference clock frequencies supported (between 12 –32MHz). The ATWINC1500 is

available in a QFN package.

IEEE 802.11 b/g/n (1x1) for up to 72Mbps

Integrated PA and T/R Switch

Superior sensitivity and range via advanced PHY signal processing

Wi-Fi Direct, station mode and Soft-AP support

Supports IEEE 802.11 WEP, WPA2 Security Enterprise

On-chip memory management engine to reduce host load

4Mb internal Flash memory with OTA firmware upgrade

SPI as host interfaces

TCP/IP protocol stack (client/server) sockets applications

Network protocols (DHCP/DNS)

Secure TLS stack

WSC (wireless simple configuration WPS)

On-Chip Network Stack to offload MCU

–Integrated Network IP stack to minimize host MCU requirements

Getting Started Guide for ATWINC1500 W-Fi using SAM D21 Xplained Pro [USER GUIDE]

Atmel-42417A-Getting-Started-Guide-for-ATWINC1500WiFi-using-SAMD21-Xplained-Pro_UserGuide_032015

–Network features: TCP, UDP, DHCP, ARP, HTTP, SSL, and DNS

More detailed information about ATWINC1500: http://www.atmel.com/devices/ATWINC1500.aspx

2.3 Atmel IO1-XPRO Sensor Extension Board

Atmel IO1 Xplained Pro extension board is a generic extension board for the Xplained Pro platform. It connects

to any Xplained Pro standard extension header on any Xplained Pro MCU board. The extension board utilizes

all functions on the standard Xplained Pro extension header to further enhance the feature set of Xplained Pro

MCU boards.

microSD card connector

–2GB microSD card included

–Accessed with SPI interface

PWM

–LED control

–PWM → Low pass filter → ADC

ADC

–PWM → Low pass filter → ADC

–Light sensor

UART

–Loopback interface via pin header

TWI

–AT30TSE758 Temperature sensor with EEPROM

Xplained Pro hardware identification system

More detailed information about AT IO1:

http://www.atmel.com/images/atmel-42078-io1-xplained-pro_user-guide.pdf

2.4 Atmel OLED1-XPRO Display Extension Board

Atmel OLED1 Xplained Pro is an extension board to the Atmel Xplained Pro evaluation platform. The board

enables the user to experiment with user interface applications with buttons, LEDs, and a display.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Atmel

Atmel

Atmel AVR ATmega88PA Manual de usuario

Atmel

Atmel AT91SAM7L-STK Manual de usuario

Atmel

Atmel ATSAMB11 BluSDK SMART Manual de usuario

Atmel

Atmel SMART SAMA5D3 Series Manual de usuario

Atmel

Atmel ATF16V8B Manual de usuario

Atmel

Atmel AT85DVK-07 Manual de usuario

Atmel

Atmel Diopsis 940HF Manual de usuario

Atmel

Atmel REB233-XPRO Manual de usuario

Atmel

Atmel RCB256RFR2 Instrucciones de uso

Atmel

Atmel 7698AAUTO01/07 Manual de usuario

Atmel

Atmel 8-bit AVR Microcontrollers AVR430: MC300 Manual de usuario

Atmel

Atmel AVR ATmega324PA Manual de usuario

Atmel

Atmel SAMA5D3 Series-EK Manual de usuario

Atmel

Atmel SMART ATBTLC1000 Manual de usuario

Atmel

Atmel FPSLIC AT94KAL Series Manual de usuario

Atmel

Atmel AT24C16C Manual de usuario

Atmel

Atmel AT88CK109STK3 Manual de instalación

Atmel

Atmel ATAN0008 Manual de usuario

Atmel

Atmel ATSAMD21BLDC24V-STK Manual de usuario

Atmel

Atmel Microcontroller with LIN Transceiver ATA6602 Manual de usuario

Atmel

Atmel AVR AT90S8515-4 Manual de usuario

Atmel

Atmel AVR STK500 Manual de usuario

Atmel

Atmel AT89C51SND1C Manual de usuario

Atmel

Atmel AT73C246-EK1 Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
