ATCOM D2X Manual de usuario
D2X Quick Start Guide
Version：1.1
2018-12-14
A2X(W) Quick Start Guide
2
Content
1、 Packaging .................................................................................................................................................................... 1
2、 Installation ................................................................................................................................................................... 3
3、 Power up ................................................................................................................................................................... 10
4、 Connetion .................................................................................................................................................................. 10
5、 Quick configuration .................................................................................................................................................. 19
A2X(W) Quick Start Guide
3
1. Packing
In the packaging box, we can see one IP phone, one handset, one bracket, one network cable,
one handset cable and one 5V,1A power adapter.
2. Installation
2.1 Stand bracket installation instruction
A. Bottom up the IP phone, press the joints of stand bracket into the slots and push it to
the right to fasten:
B. After installation, the picture is as below:
A2X(W) Quick Start Guide
4
C. Remove the stand bracket:
Push the joint of stand to left and pull the stand according to the direction of the arrow.
When the joints are pulled out of the slot, you can take off the stand bracket
2.2 Connecting port introduction
From as below picture show the connecting port:
A2X(W) Quick Start Guide
5
2.3 Keypad introduction
Please check the following picture:
You can refer the Guide document to check the keypad introduction in the LCD menu.
3. Power up
3.1 Connect to DC 5V/1000mA power adapter or PoE power.
3.2 The status indicator will be on during power-on, and the Welcome dialog will appear on the
LCD.
3.3 After boot up finished, User can select the Language and time zone manually.
A2X(W) Quick Start Guide
6
4. Connection
4.1 Connect to network cable:
D2X if connected to network via LAN port, then under the Bridge mode, other devices
(Laptop, IP phone) are able to access network via the phone PC port.
The topology is as follows:
4.2 Check the phone status
You can review its current IP address by pressing key when it is powered on and
connected to the network.
Then press ↓ key, it could see MAC , Model, Firmware and More.
5. Quick Configuration
A2X(W) Quick Start Guide
7
5.1 Configure ways
D2X can configure the phone network and account in three ways:
Enter to the phone LCD Menu configuration, access to the phone webpage and auto
provision.
5.2 Phone LCD Menu configuration
5.2.1 Configure the network feature
Press Menu→Settings→Advanced settings (default password: admin)→
Network→LAN port→Press↓key, enter to IPv4 settings, the default is DHCP.
You can also press Switch key, change to Static IP→Press↓key, input the IPv4
address, Subnet mask and Default gateway, then press Save key. The Static IP
address configure successful.
5.2.2 Configure the account feature
Press Menu→Settings→Advanced settings (default password: admin)→
Accounts, input the account info.
5.3 Access to the phone webpage
5.3.1 Access to the webpage
While input the phone IP address at a browser, you will be required to input the
username and password to access the webpage.
The username/password as below:
Username Password Description
admin admin For Administrators
user user For General Users
5.3.2 Configure the network feature
Press the web “Network”→“Basic”, Please check as below photo,
You can configure the DHCP or Static IP address.
A2X(W) Quick Start Guide
8
5.3.3 Configure the account feature
Press web “Account”→“Basic” and configure the account info.
5.4 Auto provision

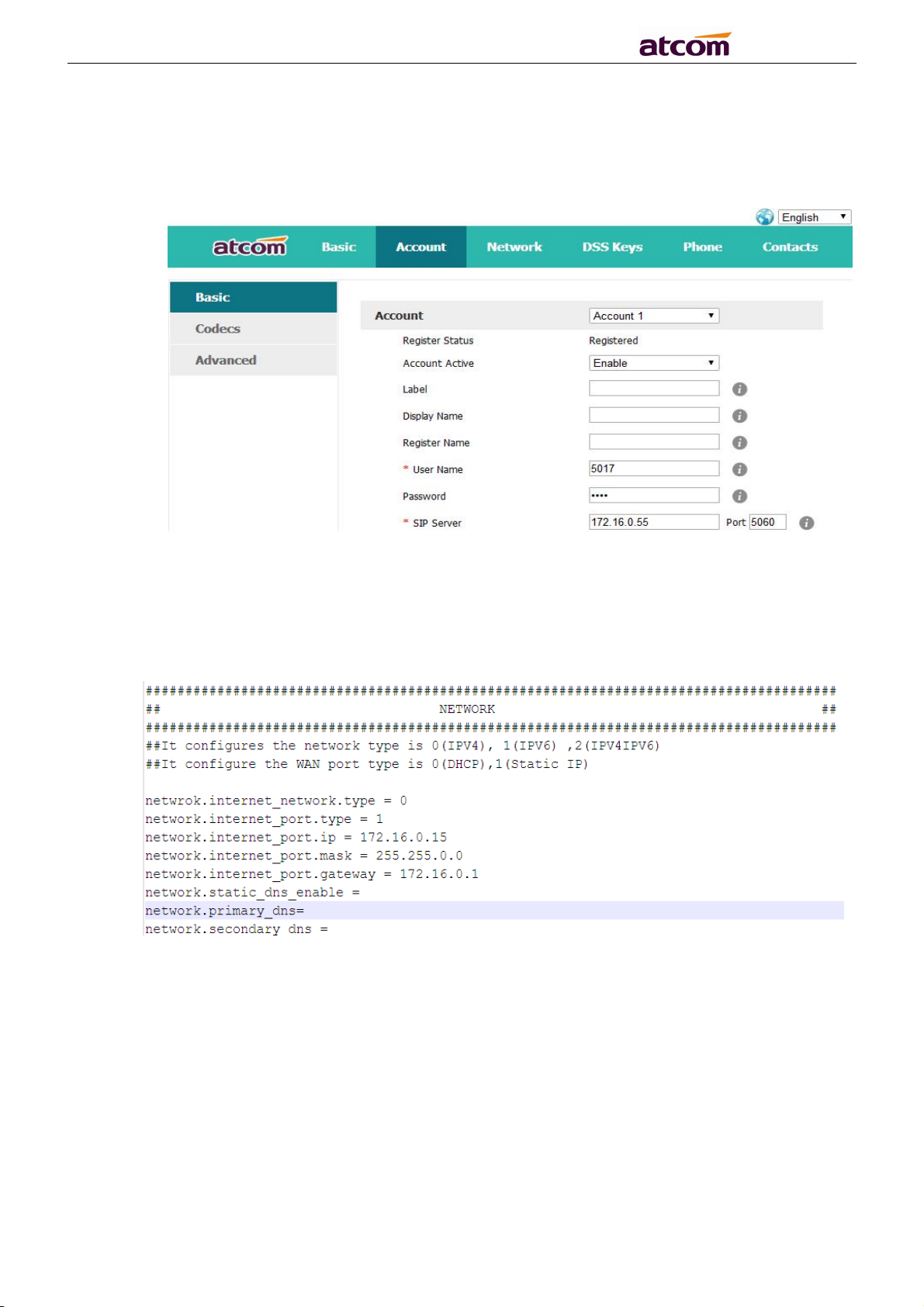

You can use auto provision configure file input the phone network info and account info,
after provision successful, the network feature and account also configure successful.
Please refer to the screenshot as below:
The more information you can check our auto provision file.
A2X(W) Quick Start Guide
9
