A40/A41(W) Quick Start Guide
Version 1.0
2016-05-19
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
Content
1. Installation and access ................................................................................................................ 3
1.1 Connection .......................................................................................................................... 3
1.2 Stand bracket installation instruction .................................................................................. 3
1.3 Programmable keys’ paster using instruction ...................................................................... 7
1.4 Wiring instruction ............................................................................................................... 8
2. Configuring phone ...................................................................................................................... 9
2.1 Configuring via keypad ..................................................................................................... 10
2.2 Configuring via Webpage .................................................................................................. 10
2.2.1 Login to web .......................................................................................................... 10
2.2.2 Network Configuration .......................................................................................... 11
2.2.3 Account Configuration ........................................................................................... 12
2.3 Wi-Fi(only for A40W/A41W) ........................................................................................... 13
2.3.1 Configure the wifi on the phone ............................................................................. 13
2.3.2 Configure the wifi on the WEB .............................................................................. 13
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1. Installation and access
1.1 Connection
Set up A41(W) as below:
1.2 Stand bracket installation instruction
A. Put the bottom side of the IP phone upside and press one-side joints of stand
bracket into the slot, please refer the picture as below:
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
B. Press the other side joints into the slot according to the direction of the
arrow:
C. It is the right picture after fixing the stand bracket below:
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
D. Disassemble the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the
arrow. When the joints are pulled out of the slot, you can take off the stand
bracket.
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1.3 Programmable keys’ paster using instruction
Step1. Use needle or some other tools to insert into the hole of the plastic sheet,
hog the plastic sheet.
Step2. Lift out the plastic sheet
Step3. Take off the plastic sheet
Step4. Use needle or some other tools to insert into the edge of the paster, hog
and lift out the paster
Step5. Write down the identification of each programmable key on the paster
after taking off the paster
Step6. Put back the paster
Step7. Insert the plastic sheet into the slot
Step8. Push the other side of the plastic sheet into the other slot
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1.4 Wiring instruction

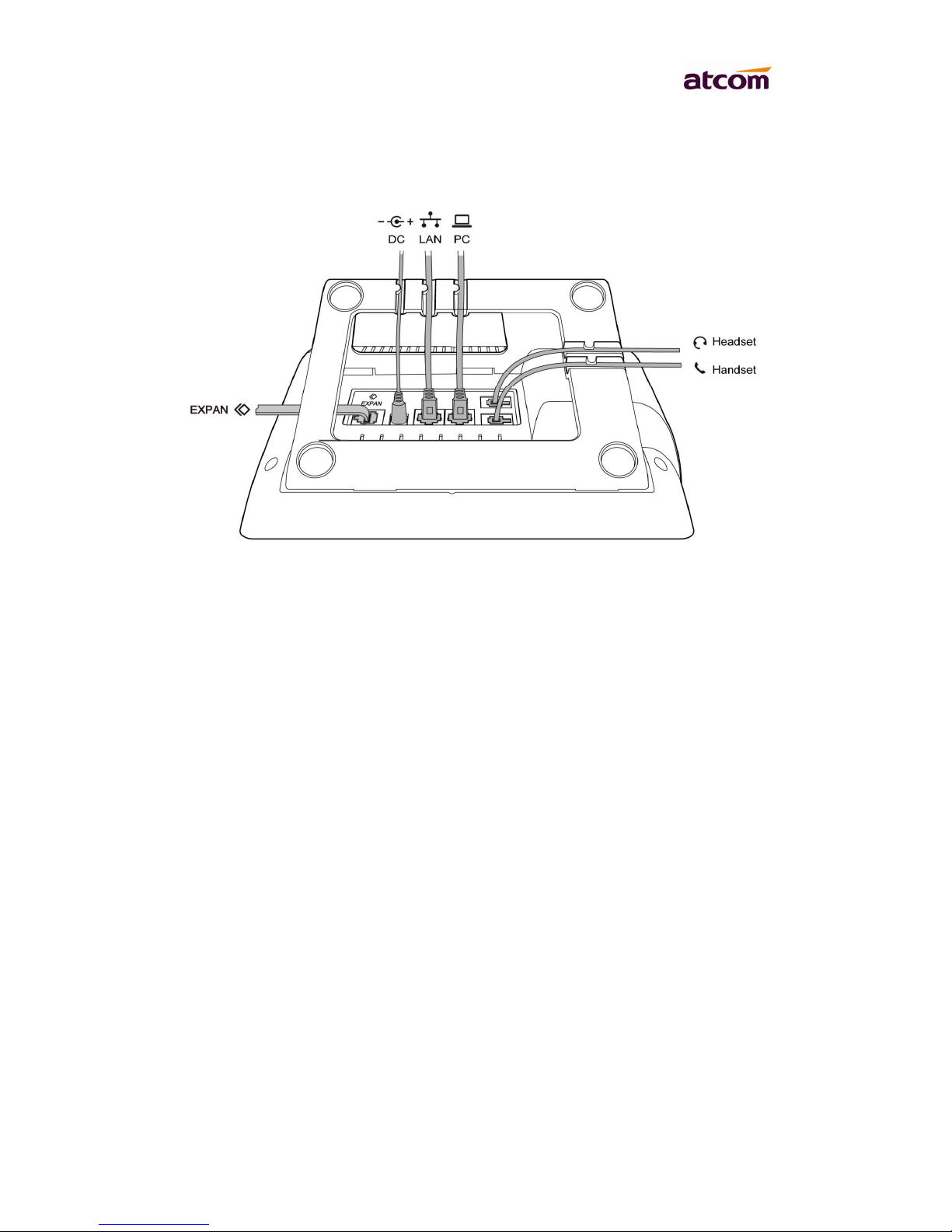

After stand bracket fixed, please plug in all wires or cables as below:
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
2. Configuring phone
A40/A41(W)
A40/A41(W) with RE
A40/A41(W)Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
2.1 Configuring via keypad
Language Setting: The default language of the phone is English, it supports
Chinese, Russian, Arabic, German, French, Portuguese, Turkish, Spanish,
Hebrew, Hungarian, Italian.
Press Menu- Preferences- Language to edit the language list,
choose the one you’d like to set on the phone.
Note: The available language maybe different, it depends on the language
packs currently loaded to the IP phone.
Network Setting:
Press Menu- Network- Connect Mode/IP Setting- to set connect
mode and IP address.
Or review its current IP address by pressing key when it is powered on and
connected to the network.
Account Setting:
Press Menu- SIP Account- to configure the account setting. You
can refer to the bellow ‘Configuring via Web page’ for the parameter details.
2.2 Configuring via Webpage
2.2.1 Login to web
Connect the PC and telephone in one network, input the IP address of telephone
at a browser and press “Enter”, you will be required to input the username and
password to access the web page. The username/password as below:
Username Password Description
admin admin For Administrators
user user For General Users
