WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

1. Package Contents

• WL-520GU/GC wireless router x 1

• Power adapter x 1

• Utility CD x 1

• RJ45 cable x 1

• Quick Start Guide x 1

* Use only the adapter included in the package.

2. Specication summary

IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE802.3x, IEEE

802.3u, IEEE 802.1x, IEEE 802.11i, IPv4, IPv6, CSMA/CA,

CSMA/CD, ICMP

2.4G ~ 2.5GHz

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps

11 for N. America, 14 Japan, 13 Europe (ETSI)

WAN x 1, LAN x 4 RJ45 for 10/100 BaseT, 1 x USB2.0 for

printer sharing(

WL-520GU only

)

Support Antenna Diversity, 1 x Reverse-SMA antenna

connector

Automatically SSID and WEP or WPA conguration

WL-520GU: DC: +5V with max. 2A current

WL-520GC: DC EU/UK: +9V/1A; TW/US: +9V/800mA

WEP-64bits, WEP-128bits, WPA-Personal, WPA2-Personal,

WPA-Auto-Personal (TKIP. AES. TKIP+AES), WPA-Enterprise,

WPA2-Enterprise, WPA-Auto-Enterprise (TKIP. AES.

TKIP+AES), Radius with 802.1x

MAC-level Access Control, Inbound/Outbound IP Filter,

Domain Access Control

NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN

ping control

BOD (

WL-520GU only

), WMM

Support UPnP, DHCP Server, DNS Proxy, NTP Client, DDNS,

Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through

Operating: 0~40oC Storage: -30~50oC

Operating: 50~90% Storage: 20~90%

Network standard

Operating

frequency

Date rate

Operational channel

Port

Antenna

EZSeup Button

Power Supply *

Security

Access Control

Firewall

Quality of Service

Network

Management

Temperature

Humidity

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

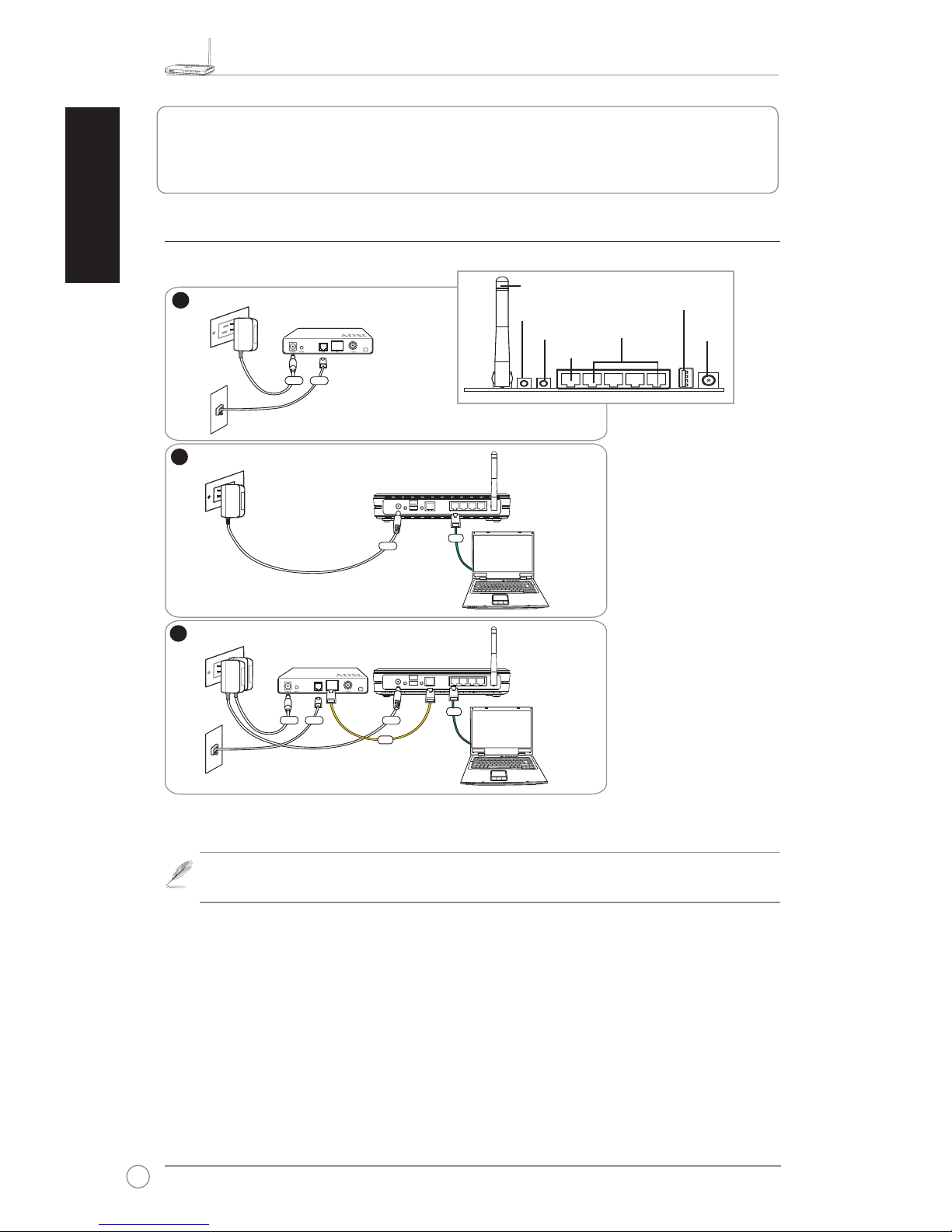

3. Connecting Wireless Router to Cable/DSL/

Satellite Modem

1) Cable connection

Note: Use only the adapter included in the package. Using other adapters may

damage the device.

Modem

Wall Telephone Outlet

Wall Power Outlet

Phone

Power

Wall Power Outlet

ASUS Wireless Router

LAN

Modem

Wall Telephone Outlet

Wall Power Outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power

EZ Setup

Reset LAN Power

USB

WAN

Antenna

Rear Panel

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

2) Status indicators

PWR (Power)

Off No power

On System ready

Flashing-slow Firmware upgrade failed

Flashing-quick EZsetup processing

AIR (Wireless Network)

Off No power

On Wireless system ready

Flashing Transmitting or receiving data (wireless)

WAN (Wide Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

LAN 1-4 (Local Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (through Ethernet cable)

3) Mounting options

Out of the box, the ASUS WL-520GU/GC Broad

Range Wireless Router is designed to sit on a

raised at surface like a le cabinet or a book shelf.

The unit may also be converted for mounting to a

wall or ceiling.

To mount the ASUS WL-520GU/GC

1 Look on the underside for the two mounting

hooks.

2. Mark two upper holes on a wall or on a raised at

surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS WL520GU/GC onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the

screws or if it is too loose.

PWR

AIR WAN LAN

WL-520GU

125M High Speed

AIR WAN LAN1 LAN2 LAN3 LAN4

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

Wireless settings, including network name and network keys, are generated automatically.

You can modify these settings manually. Note if your wireless router is congured before,

select Preserve original wireless router settings to use the current value. Click Next to

continue.

Insert the Utility CD into your PC’s CD drive,

and run Install ASUS Wireless Router

Utilities.

After installing the ASUS Wireless Router

Utilities, run the EZSetup Wizard from

[Startup] -> All Utilities [ASUS Utility] ->

[WL-520GU/GC Wireless Router].

The EZSetup utility enables you to easily complete the wireless LAN setup in just two steps.

First, launch the EZSetup from the Start menu, then push the EZSetup button, located at the

rear panel, for three seconds.

1) If the setup button is pushed without running the EZsetup wizard utility, the PWR

indicator will ash and Internet connections will pause for a short period but will then

return to normal operation without change.

2) To use EZSetup, we recommend using an ASUS wireless adapter such as WL-106gM,

WL-100gE, and WL-169gE.

Note: Use EZSetup Wizard with one

wireless client at a time. If the wireless

client computer cannot discover the

wireless router while in EZSetup

mode, shorten the distance between

the client and the router.

Push EZSetup over

3 sec. and release.

4. EZ Setup

WL-520GU/GC Broad Range Wireless Family Router Quick Start Guide

English

If you need to congure the ISP settings for your wireless router, select Congure ISP

settings, click Next and follow the instructions to complete the settings.

Setup is completed. Press Print/Save

Wireless LAN Settings button for future

reference. Click Finish to exit the EZSetup

utility.
