Table of contents

1 Getting to know your wireless router 6

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

1.5 Setup Requirements ................................................................ 10

1.6 Router Setup............................................................................... 11

1.6.1 Wired connection..................................................................12

1.6.2 Wireless connection.............................................................13

2 Getting started 14

2.1 Logging into the Web GUI ..................................................... 14

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15

2.3 Connecting to your wireless network................................ 19

3 Conguring the General settings 20

3.1 Using the Network Map ......................................................... 20

3.1.1 Setting up the wireless security settings......................21

3.1.2 Managing your network clients.......................................22

3.2 Creating a Guest Network...................................................... 23

3.3 AiProtection ................................................................................ 25

3.3.1 Network Protection ..............................................................26

3.3.2 Setting up Parental Controls.............................................29

3.4 Using the Trac Manager ...................................................... 31

3.4.1 Managing QoS (Quality of Service) Bandwidth..........31

Table of contents

3.5 Trac Analyzer........................................................................... 34

4 Conguring the Advanced Settings 35

4.1 Wireless......................................................................................... 35

4.1.1 General......................................................................................35

4.1.2 WPS ............................................................................................38

4.1.3 WDS............................................................................................40

4.1.4 Wireless MAC Filter ...............................................................42

4.1.5 RADIUS Setting ......................................................................43

4.1.6 Professional.............................................................................44

4.2 LAN................................................................................................. 47

4.2.1 LAN IP ........................................................................................47

4.2.2 DHCP Server............................................................................48

4.2.3 Route .........................................................................................50

4.2.4 IPTV ............................................................................................51

4.3 WAN ............................................................................................... 52

4.3.1 Internet Connection.............................................................52

4.3.2 Port Trigger..............................................................................55

4.3.3 Virtual Server/Port Forwarding........................................57

4.3.4 DMZ............................................................................................60

4.3.5 DDNS .........................................................................................61

4.3.6 NAT Passthrough...................................................................62

4.4 IPv6................................................................................................. 63

4.5 Firewall.......................................................................................... 64

4.5.1 General......................................................................................64

4.5.2 URL Filter ..................................................................................64

4.5.3 Keyword lter .........................................................................65

4.5.4 Network Services Filter .......................................................66

Table of contents

4.6 Administration ........................................................................... 68

4.6.1 Operation Mode ....................................................................68

4.6.2 System.......................................................................................69

4.6.3 Firmware Upgrade................................................................70

4.6.4 Restore/Save/Upload Setting ...........................................70

4.7 System Log .................................................................................. 71

5 Utilities 72

5.1 Device Discovery....................................................................... 72

5.2 Firmware Restoration .............................................................. 73

6 Troubleshooting 75

6.1 Basic Troubleshooting............................................................. 75

6.2 Frequently Asked Questions (FAQs) .................................. 78

Appendices 87

Notices ....................................................................................................... 87

ASUS Contact information..................................................................103

1 Getting to know your wireless1 Getting to know your wireless

routerrouter

1.1 Welcome!

Thank you for purchasing an ASUS RT-AX55 Wireless Router!

The ultra-thin and stylish RT-AX55 features a 2.4GHz and 5GHz

dual bands for an unmatched concurrent wireless HD streaming

and the ASUS Green Network Technology, which provides up to

70% power-saving solution.

1.2 Package contents

RT-AX55 Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support. Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

1.3 Your wireless router

5GHz LED

O: No 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

2.4GHz LED

O: No 2.4GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WAN (Internet) LED

Red: No IP or no physical connection.

On: Has physical connection to a wide area network (WAN).

Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode

Reset button

This button resets or restores the system to its factory default settings.

WPS button

This button launches the WPS Wizard.

Power switch

Press this switch to power on or off the system.

Power (DCIN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with max 1A/1.5A current

Operating Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest firmware.Visit the ASUS website at

http://www.asus.com to get the latest firmware updates.

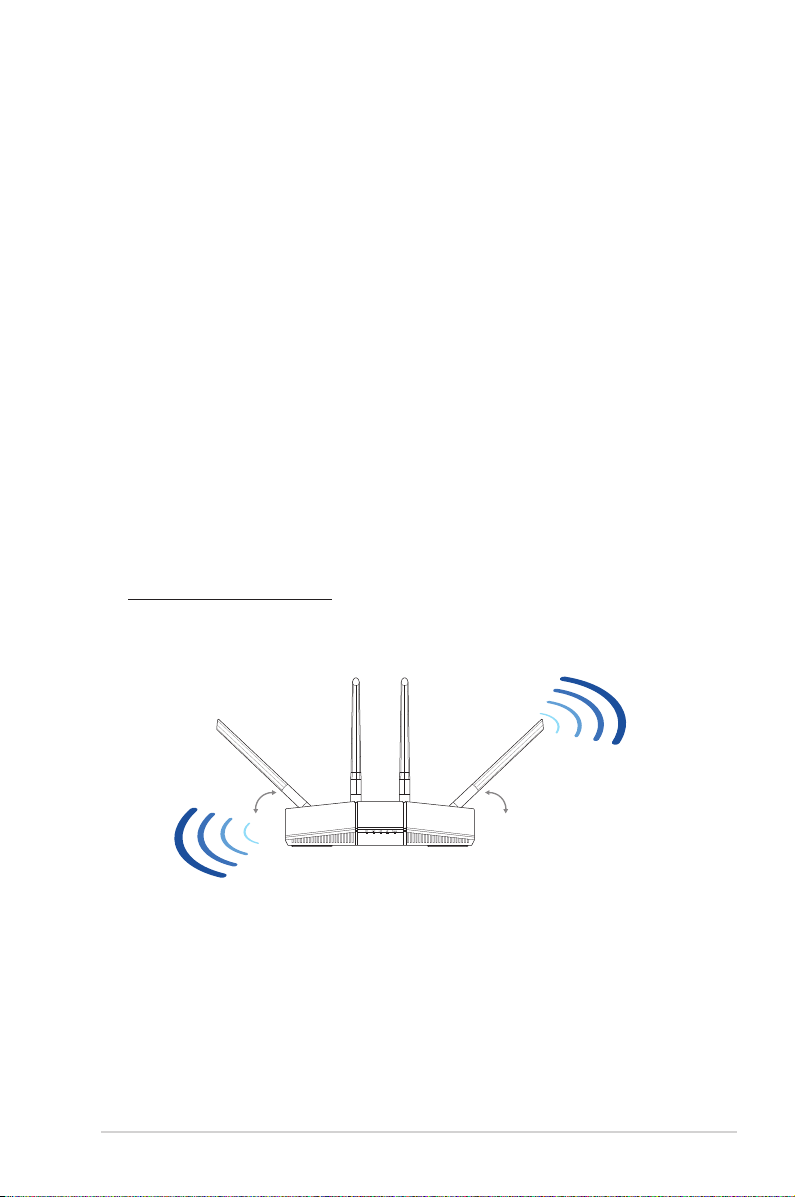

90°

45° 45°

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000BaseTX)

• IEEE 802.11a/b/g/n/ac/ax wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac/ax WLAN adapter to your computer

to connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• Some IEEE 802.11n devices that you want to connect to your network

may or may not support 5GHz band. Refer to the device's manual for

specications.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

Otros manuales para RT-AX55

Tabla de contenidos

Otros manuales de Enrutador de red de Asus

Asus

Asus RT-N66R Dark Knight Manual de usuario

Asus

Asus BLUE CAVE Manual de usuario

Asus

Asus RT-AX3000P Manual de usuario

Asus

Asus 90IG02W1-BU9G10 Manual de usuario

Asus

Asus ExpertWiFi EBM68 Manual de usuario

Asus

Asus DSL-AC55U Manual de usuario

Asus

Asus RT-AC54U Manual de usuario

Asus

Asus 4G-AC53U Manual de usuario

Asus

Asus RT-AC1300UHP Manual de usuario

Asus

Asus RP-AC56 Manual de usuario

Asus

Asus RTAXE5H00 Manual de usuario

Asus

Asus RT-AC85P Manual de usuario

Asus

Asus 90IG04K0-BU9100 Manual de usuario

Asus

Asus RT-AC53 Manual de usuario

Asus

Asus RX3041 Manual de usuario

Asus

Asus RT-N14UHP Manual de usuario

Asus

Asus SL6000 Manual

Asus

Asus RT-ACRH12 Manual de usuario

Asus

Asus DSL-AC88U Manual de usuario

Asus

Asus RT-AC1300G PLUS Manual de usuario

Asus

Asus ROG Rapture GT6 Manual de usuario

Asus

Asus DSL-N10 Manual de usuario

Asus

Asus RTAXI600 Manual de usuario

Asus

Asus ZenWiFi AC Mini CD6 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
