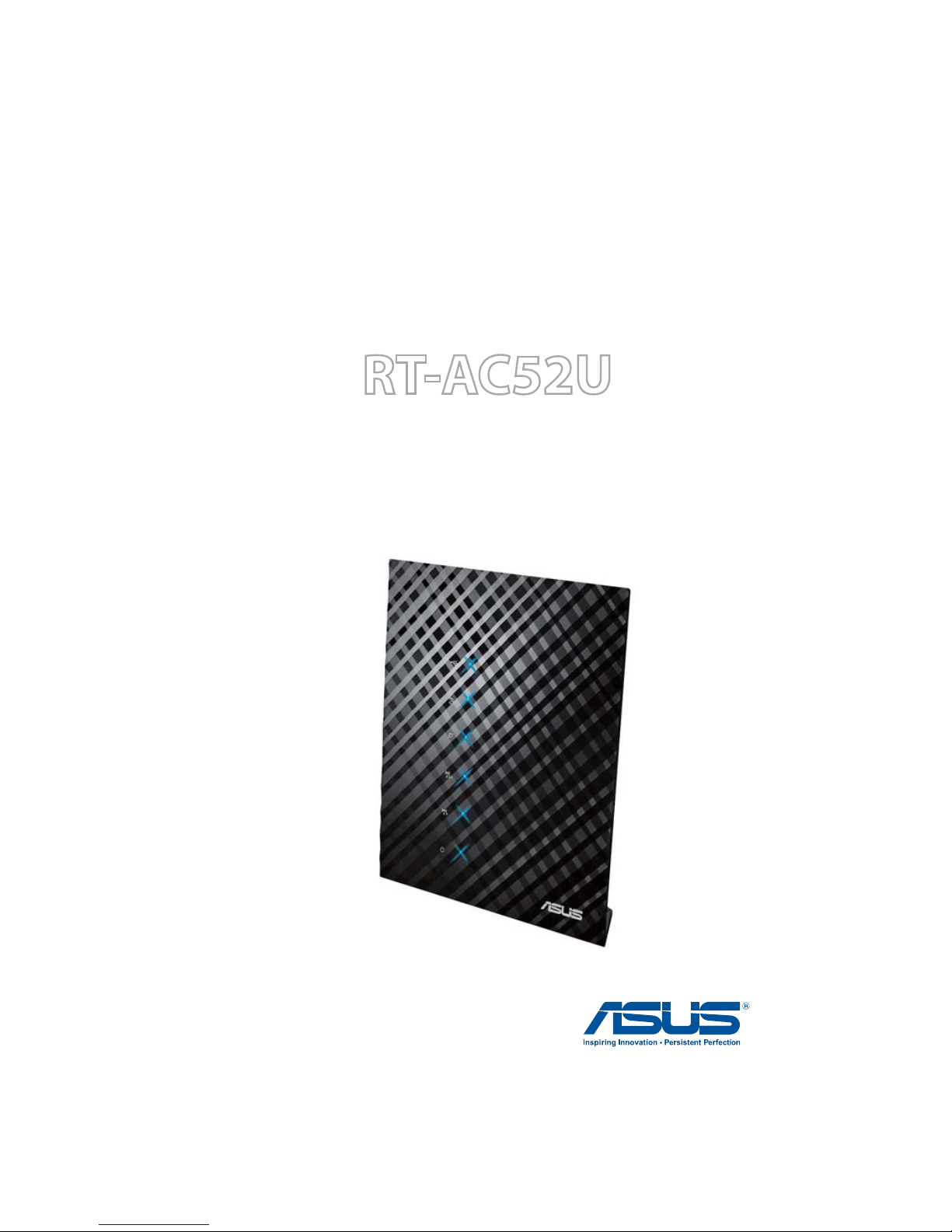

Asus RT-AC52U Manual de usuario

RT-AC52U

802.11ac Dual Band Router

User Guide

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modied or altered, unless such repair, modication of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent

to infringe.

E8161

First Edition

Feburary 2013

Table of contents

1 Getting to know your wireless router

1.1 Welcome! ........................................................................................6

1.2 Package contents.........................................................................6

1.3 Your wireless router.....................................................................7

1.4 Positioning your router..............................................................9

Mounting placement........................................................................10

1.5 Setup Requirements ................................................................ 11

1.6 Router Setup............................................................................... 12

1.6.1 Wired connection..................................................................12

1.6.2 Wireless connection.............................................................13

2 Getting started

2.1 Logging into the Web GUI ..................................................... 15

2.2 Quick Internet Setup (QIS) with Auto-detection ........... 16

2.3 Connecting to your wireless network................................ 20

3 Conguring the General settings

3.1 Using the Network Map ......................................................... 21

3.1.1 Setting up the wireless security settings......................22

3.1.2 Managing your network clients.......................................23

3.1.3 Monitoring your USB device.............................................24

3.2 Creating a Guest Network...................................................... 27

3.3 Using the Trac Manager...................................................... 29

3.3.1 Managing QoS (Quality of Service) Bandwidth..........29

3.3.2 Monitoring Trac .................................................................32

3.4 Setting up Parental Control................................................... 33

3.5 Using the USB Application..................................................... 34

3.5.1 Using AiDisk...............................................................................34

3.5.2 Using Servers Center............................................................36

3.5.3 3G/4G ........................................................................................42

Table of contents

3.6 Using AiCloud............................................................................. 44

3.6.1 Cloud Disk................................................................................45

3.6.2 Smart Access...........................................................................47

3.6.3 Smart Sync...............................................................................48

4 Conguring the Advanced Settings

4.1 Wireless......................................................................................... 49

4.1.1 General......................................................................................49

4.1.2 WPS ............................................................................................52

4.1.3 Bridge ........................................................................................54

4.1.4 Wireless MAC Filter ...............................................................56

4.1.5 RADIUS Setting ......................................................................57

4.1.6 Professional.............................................................................58

4.2 LAN................................................................................................. 60

4.2.1 LAN IP ........................................................................................60

4.2.2 DHCP Server............................................................................61

4.2.3 Route .........................................................................................63

4.2.4 IPTV...............................................................................................64

4.3 WAN ............................................................................................... 65

4.3.1 Internet Connection.............................................................65

4.3.2 Port Trigger..............................................................................68

4.3.3 Virtual Server/Port Forwarding........................................70

4.3.4 DMZ............................................................................................73

4.3.5 DDNS .........................................................................................74

4.3.6 NAT Passthrough...................................................................75

4.4 IPv6................................................................................................. 76

4.5 VPN Server................................................................................... 77

4.6 Firewall.......................................................................................... 78

4.6.1 General......................................................................................78

4.6.2 URL Filter ..................................................................................78

4.6.3 Keyword lter .........................................................................79

Table of contents

4.6.4 Network Services Filter .......................................................80

4.7 Administration ........................................................................... 82

4.7.1 Operation Mode ....................................................................82

4.7.2 System.......................................................................................83

4.7.3 Firmware Upgrade................................................................84

4.7.4 Restore/Save/Upload Setting ...........................................84

4.8 System Log .................................................................................. 85

5 Utilities

5.1 Device Discovery....................................................................... 86

5.2 Firmware Restoration .............................................................. 87

5.3 Setting up your printer server .............................................. 88

5.3.1 ASUS EZ Printer Sharing .....................................................88

5.3.2 Using LPR to Share Printer .................................................92

5.4 Download Master...................................................................... 97

5.4.1 Conguring Bit Torrent download settings .................98

5.4.2 NZB settings............................................................................99

6 Troubleshooting

6.1 Basic Troubleshooting...........................................................100

6.2 Frequently Asked Questions (FAQs) ................................103

Appendices

Notices .....................................................................................................113

ASUS Contact information..................................................................127

Networks Global Hotline Information.............................................128

1 Getting to know your wireless

router

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support, Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

RT-AC52U Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Support CD (Manual, utility software) Warranty card

Stand

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC52U Wireless Router!

The ultra-thin and stylish RT-AC52U features a 2.4GHz and 5GHz

dual bands for an unmatched concurrent wireless HD streaming;

SMB server, UPnP AV server, and FTP server for 24/7 le sharing;

a capability to handle 300,000 sessions; and the ASUS Green

Network Technology, which provides up to 70% power-saving

solution.

1.2 Package contents

1.3 Your wireless router

USB LED

O: No power or no physical connection.

On: Has physical connection to USB devices.

LAN LED

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WAN LED

O: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

2.4GHz LED

O: No 2.4GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

5GHz LED

O: No 5GHz signal.

On: Wireless system is ready.

Flashing: Transmitting or receiving data via wireless connection.

Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick: WPS is processing.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with max. 1A current

Operating

Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

WPS button

This button launches the WPS Wizard.

USB 2.0 port

Insert a USB 2.0 device such as a USB hard disk or USB ash drive into the port.

LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

Power button

Press this button to power on or o the system.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a

power source.

Reset button

This button resets or restores the system to its factory default settings.

Wi-Fi On/O button

Press this button to turn on /off the Wi-Fi connection

Wall-mount hooks

The wall-mount hooks allow you to mount the router to the wall.

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• To prevent signal interference or loss, keep the device away

from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer

peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, uorescent lights, microwave ovens,

refrigerators, and other industrial equipment.

• For the best front-to-rear coverage, place the wireless router in

an upright position.

• For the best up-to-down coverage, place the wireless router in

an inclined position.

Mounting placement

To mount the wireless router onto

its stand:

1. Locate the two mounting holes

at the bottom of the wireless

router.

2. Latch the stand’s two mounting

hooks to the wireless router’s

mounting holes.

3. Slide the wireless router towards

direction of the arrow to secure

it to its stand.

Otros manuales para RT-AC52U

Tabla de contenidos

Otros manuales de Enrutador de red de Asus

Asus

Asus RT-N10U Manual de usuario

Asus

Asus WL-500gP Manual de usuario

Asus

Asus RT-AC57U V3 Manual de usuario

Asus

Asus INET-810 Manual de usuario

Asus

Asus ISDNLink INET-800 Manual de usuario

Asus

Asus RT-AX3000P Manual de usuario

Asus

Asus ZenWiFi Pro ET12 Manual de usuario

Asus

Asus ROG Rapture GT-AC2900 Guía de instalación

Asus

Asus RX3041 V2 Manual de usuario

Asus

Asus SL1200 Manual de usuario

Asus

Asus DSL-AC87VG Manual de usuario

Asus

Asus AIMESH Manual de usuario

Asus

Asus RT-AC57U Manual de usuario

Asus

Asus TUF Gaming AX4200 Manual de usuario

Asus

Asus RT-N12+ Manual de usuario

Asus

Asus RT-BE96U Manual de usuario

Asus

Asus SuperSpeed RT-N12 B1 Manual de usuario

Asus

Asus WL-500W SuperSpeed N Manual de usuario

Asus

Asus AAM6000EV Manual

Asus

Asus RT-AC87U Dual Band Manual de usuario

Asus

Asus RT-AC65 Manual de usuario

Asus

Asus 4G-AC68U Manual de usuario

Asus

Asus RT-AC65P Manual de usuario

Asus

Asus RT1D00 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
