Asus ISDNLink INET-800 Manual de usuario

ISDNLink

INET-800

ISDN Router

User’s Guide

FCC Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interfer-

ence that may cause undesired operation.

CE Marking Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Document Version: 1.0

All trademarks and trade names are the properties of their respective owners.

TABLE OF CONTENTS

CHAPTER 1 ABOUT YOUR INTERNET ROUTER........................................... 1

Internet Router Features................................................................................. 1

Requirements................................................................................................... 4

Package Contents............................................................................................. 4

LED Indicators................................................................................................ 5

Rear Panel Connectors & Switches................................................................. 5

DIP Switches.................................................................................................... 6

Reset The

Device………………………………………………………………….6

CHAPTER 2 SETUP: INTERNET ROUTER....................................................... 7

Overview.......................................................................................................... 7

Hardware Installation ..................................................................................... 7

Internet Router Configuration........................................................................ 8

Web Browser Configuration ........................................................................... 8

Home Setup Screen.........................................................................................11

Configuration Utility ......................................................................................15

Quick Setup

Screen……………………………………………………………..17

Status

Screen…………………………………………………………………….21

Password

Screen………………………………………………………………...25

LAN

Screen……………………………………………………………………...27

Dial-In Access

Screen…………………………………………………………...30

Access Control

Screen…………………………………………………………..34

Internet Application Screen……………………………………………………39

LAN-to-LAN Screen……………………………………………………………46

ISDN Screen…………………………………………………………………….50

CHAPTER 3 PC CONFIGURATION……………………………………………..55

PC Configuration……………………………………………………………….55

Operation -Internet Access……………………………………………………56

CHAPTER 4 ADVANCED FEATURES...............................................................59

Available Options ...........................................................................................59

CHAPTER 5 ROUTING .....................................................................................641

Overview.......................................................................................................641

Router Configuration .....................................................................................61

Routing Example............................................................................................62

Routing Table

Entries…………………………………………………………..64

iii

About Internet Router

CHAPTER 6 STATUS & MONITORING............................................................67

Overview.........................................................................................................67

Status Screen...................................................................................................67

APPENDIX A TROUBLESHOOTING..................................................………...70

APPENDIX B SPECIFICATIONS........................................................................73

Chapter 1

About Internet Router

This Chapter provides an overview of the Internet Router's

features and capabilities.

The Internet Router allows multiple SOHO (Small Office Home Office) users to

share a single Internet user account (IP address) over an ISDN phone link. It

provides a low-cost method of giving users of your network easy access to the vast

resources available on the Internet.

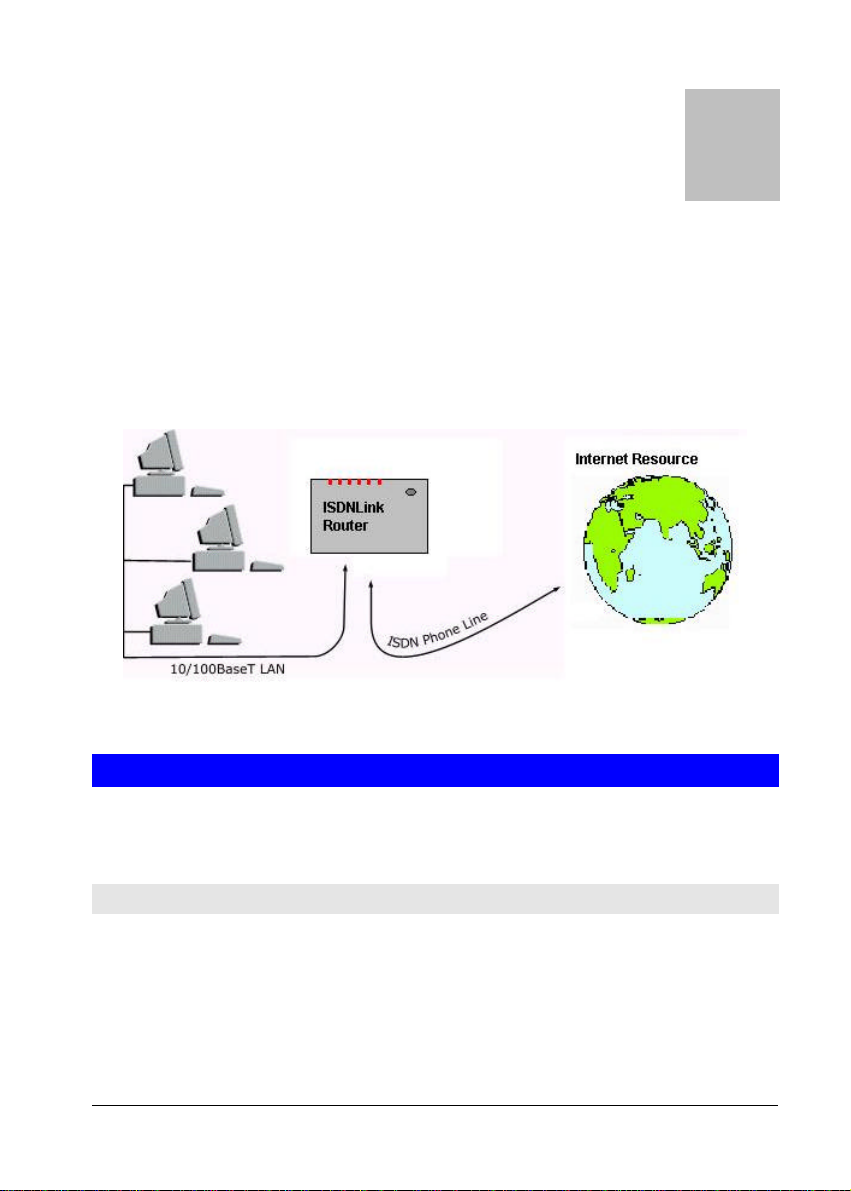

Figure 1: Office to Internet

Internet Router Features

The Internet Router incorporates many advanced features, carefully designed to

provide sophisticated functions while being easy to use.

LAN Features

Ø10/100 BaseT Support. The LAN connection will auto-detect 10BaseT and

100BaseT connections

ØDHCP Server Support. Dynamic Host Configuration Protocol provides a

dynamic IP address to PCs and other devices upon request.

The Internet Router can act as a DHCP Server.

Internet Router User Guide

ØMulti Segment LAN Support. If you have a Router, PCs on other LAN

segments can use the ISDN Internet Router to access the Internet. A static rout-

ing table is provided to support multiple routers if needed.

Internet Access Features

ØShared Internet Account. All users on the LAN can share the same Internet

Account (IP address).

ØDial-On-Demand & Auto-Disconnect. A connection is established to the

Internet as required, and automatically disconnected when no longer needed.

This reduces on-line charges to the minimum possible level.

ØPPP Authentication. This is used to validate the log-on to your Internet

Service Provider.

ØAdvanced Internet Functions.

üVirtual Servers. This feature allows Internet users to access Internet serv-

ers on your LAN. The required setup is quick and easy.

üUser-Defined Virtual Servers. Internet users can access non-standard

Internet Servers on your LAN by using this feature.

üSpecial Internet Applications. Internet applications such as Internet Vid-

eoconferencing, Telephony, Games Servers, and other special-

purpose Servers are supported.

üExposed Computer. One (1) PC on your local LAN can be exposed to the

Internet. This allows unrestricted 2-way communication be-

tween this PC and servers or users on the Internet.

ISDN Features

ØEasy Configuration. No complex technical data or unintelligible prompts.

You’ll be finished in minutes!

ØIntelligent B Channel Utilization. Internet access will automatically switch

between 1 or 2 B channels, depending on the volume of data.

ØOutgoing call ID. The Internet Router supports Outgoing call ID for both

MSN (Multiple Subscriber Numbering) and SAD (Sub Address).
