Aries S223044 Manual de usuario

PAGE 1 • S223044-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Brackets

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For gloss black ﬁnishes, mild soap may be used to clean the product.

Level of Difﬁculty

Easy

Parts List

1Driver / left side bar

1Passenger / right side bar

4Mounting bracket, universal

12 Flat washer, M8

12 Flat washer, M8 nylon

12 Nylock nut, M8 x 1.25, CL8.8

8Flat washer, 10mm

8Lock washer, 10mm

8Hex bolt, 10mm

INSTALLATION MANUAL

S223044

Tools Required

Ratchet Level

Socket, 13mm Socket, 16mm

Scan

for helpful

install tips

Front

Rear

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • S223044-INS-RA • PAGE 2

Step 1

Starting on the driver side, locate the

two mounting locations on the inside

of the rocker panel.

There will be three 8mm studs in

each location to secure the brackets.

Step 2

Locate the four mounting brackets. The

mounting brackets are universal and will

ﬁt on both the driver and passenger sides.

Step 3

Starting at the front, place a nylon

washer over the factory bolts, followed

by the bracket.

Note: It is important to install the nylon

washers ﬁrst to prevent a corrosion

effect from the aluminum body and steel

bracket.

Step 4

Add an 8mm ﬂat washer, and

secure with a nylock nut.

Snug the hardware with a

13mm socket, but do not fully tighten.

PAGE 3 • S223044-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

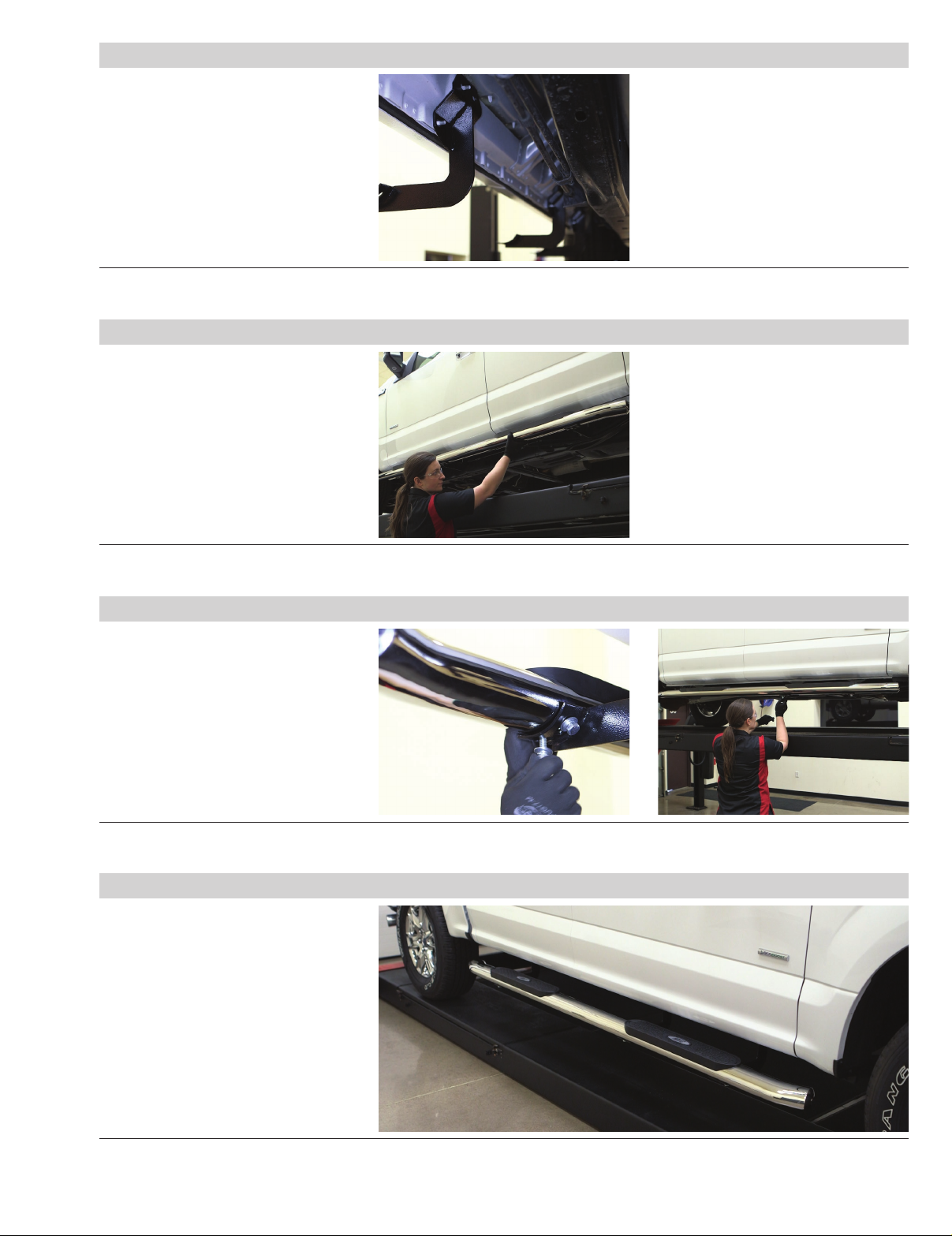

Step 5

Repeat steps 3 and 4 to install the

rear bracket on the driver side mounting

locations.

Snug the hardware,

but do not fully tighten.

Step 6

Carefully place the side bar onto the

brackets and ensure the rivet nuts on

the bottom of the side bar line up with

the brackets.

Attach the side bar to the brackets

using the supplied 10mm hex bolt,

lock washers and ﬂat washers.

Snug the hardware,

but do not fully tighten.

Step 7

With all the hardware installed, we

recommend tightening all of the vehicle

connections ﬁrst, followed by the side

bar connections.

Check for level and adjust if necessary.

Once aligned, tighten all hardware.

Repeat this entire process

on the passenger side.

Step 8

Remember to do periodic inspections

to make sure that all hardware is secure

and tight.

To protect your investment, we

recommend you apply a layer of

nonabrasive wax.

Congratulations on the installation of

your brand new Aries 4" oval side bars.
