Aries AL235041 Manual de usuario

PAGE 1 • AL235041-INS-RC• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Level of Difﬁculty

Easy

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL AL235041

Brackets and Hardware

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Tools Required

Torque wrench Socket, 13mm

Level Socket, 16mm

Socket, 18mm

Parts List

1Driver / left side bar

1Passenger / right side bar

1Driver / left

mounting bracket, front

1Driver / left

mounting bracket, rear

1Passenger / right

mounting bracket, front

1Passenger / right

mounting bracket, rear

2Bolt plate, M8

5Hex bolt, M8

7Flat washer, M8

7Lock washer, M8

2Hex nut, M8

2Plastic bolt retainer, M8

12 Hex bolt, M10

12 Flat washer, M10

12 Lock washer, M10

4Bolt and nut plate, M12

4Flat washer, M12

4Lock washer, M12

4Hex nut, M12

4Plastic bolt retainer, M12

1Spacer plate

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL235041-INS-RC• PAGE 2

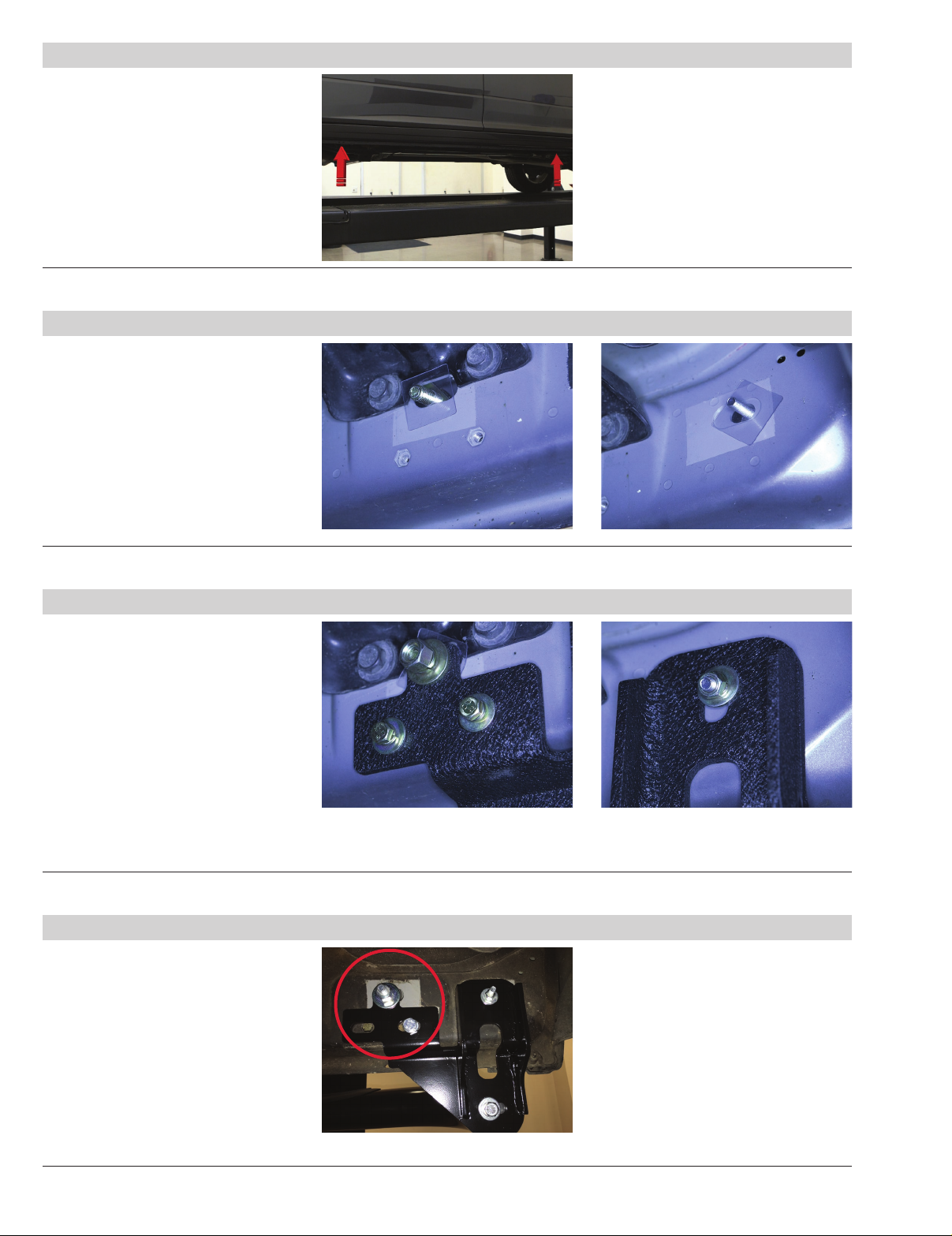

Step 1

Starting on the driver side, locate

the two mounting locations

underneath the vehicle.

Step 2

Locate the driver-side front mounting

location and remove the tape plug from

each hole.

Insert an M8 bolt plate into the hole

closest to the front of the vehicle. Slide

a plastic bolt retainer over the thread of

the bolt to hold it in place.

Insert an M12 bolt and nut plate into

the remaining hole. Slide a plastic bolt

retainer over the thread of the bolt to

hold it in place.

Step 3A - 2015 and newer with factory inserts

Place the driver-side front mounting

bracket onto the vehicle and secure the

left side of the bracket with an M12 ﬂat

washer, M12 lock washer and M12 hex

nut on the bolt plate and two M8 hex

bolts, two M8 ﬂat washers and two M8

lock washers on the bottom.

Note: The M10 nut on the M12 bolt

plate will not be used on vehicles with

threaded inserts.

Finish securing the right side of the

bracket with an M8 ﬂat washer, M8

lock washer and M8 hex nut. Snug the

hardware, but do not fully tighten.

Step 3B - 2015 and older without factory inserts

On older model vehicles without factory

threaded inserts, install the bracket with

the provided M8 bolt plate and M12 bolt /

M10 nut plate as directed in step 3A.

Align the M10 nut with one of the bottom

holes in the rocker panel and secure with

an M10 hex bolt, lock washer and nut.

Note: Older model vehicles may not have

a support bracket (indicated by the red

arrow) at this location. In this case, use

the provided spacer plate between the

front mounting bracket and the rocker panel.

PAGE 3 • AL235041-INS-RC• 877.287.8634 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

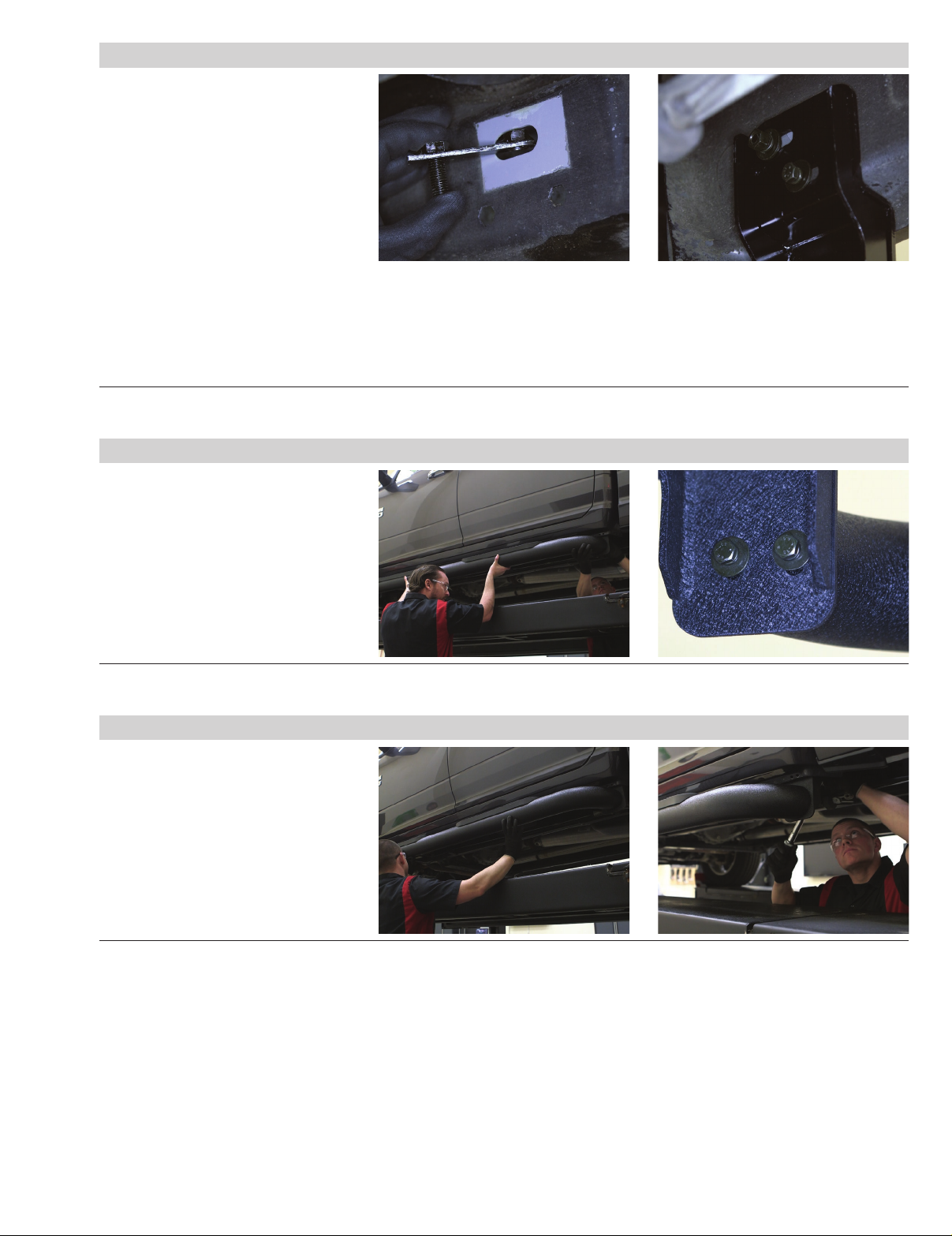

Step 4

To install the rear bracket, insert an M12

bolt / M10 nut plate into the slot in the

rocker panel. Secure the M12 stud with

a plastic retainer and place the rear

bracket in position.

Secure the top of the bracket to the

M12 stud with a ﬂat washer, lock washer

and nut.

On 2015 and newer models (with M8

factory inserts): Secure the bottom of

the bracket with one M8 hex bolt, lock

washer and ﬂat washer.

On 2015 and older models (without

M8 factory inserts): Rotate the bolt

plate to position the nut behind the lower

mounting position and secure with an M10

hex bolt, ﬂat washer and lock washer.

Step 5

Place the side bar onto the brackets and

align the mounting holes with the holes in

the brackets on the vehicle.

Attach the side bar to the brackets

using four M10 hex bolts, four M10 lock

washers and four M10 ﬂat washers.

Snug the hardware,

but do not fully tighten.

Step 6

Adjust and level the side bar.

With the side bar in position, it is

recommended to tighten all brackets

to the vehicle ﬁrst, followed by the

side bar connections.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • AL235041-INS-RC• PAGE 4

Step 7

Locate the passenger-side front

mounting location. Insert an M12 bolt /

M10 nut plate into the body panel. Slide

a plastic bolt retainer over the thread of

the bolt to hold it in place.

Insert a second M8 bolt plate into the

remaining top slot on the rocker panel.

Slide a plastic bolt retainer over the

thread of the bolt to hold it in place.

Step 8

Place the passenger-side front mounting

bracket onto the vehicle and secure the

top, front location with an M8 ﬂat washer,

lock washer and nut.

Secure the top rear location with an

M12 ﬂat washer, lock washer, and nut.

On 2015 and newer models (with M8

factory inserts): Secure the bottom of

the bracket with one M8 hex bolt, lock

washer and ﬂat washer.

On 2015 and older models (without

M8 factory inserts): Rotate the bolt

plate to position the nut behind the lower

mounting position and secure with an M10

hex bolt, ﬂat washer and lock washer.

Step 9

Repeat steps 4 through 6 to complete

side bar installation on the passenger

side of the vehicle.

Congratulations on the installation of your

new ARIES Big Step™4" round side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
