Aries 4524 Manual de usuario

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •4524-INS-RA •PAGE 1

INSTALLATION MANUAL 4524

Parts List

1Driver / left side bar

1Passenger / right side bar

6Mounting brackets

6Bolt plate

18 Flat washer, M8

18 Lock washer, M8

18 Hex nut, M8

24 Flat washer, M6

24 Hex nut, M6

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

Tools Required

Socket set Utility knife

Ratchet Level

Level of Difﬁculty

Easy

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Product Photo

6" Oval Side Bars (not included)

Front

FrontFront

Rear

RearRear

Product Registration

CURT Group stands behind our products with industry leading warranties.

You can help us continue to improve our product line and help us understand

your needs by registering your purchase by visiting:

warranty.curtgroup.com/surveys

At CURT Group, customer is king. We value your feedback and we use that information to make

improvements on our products. Please, take a minute and let us know how we are doing.

Additional Hardware*

24 T-bolt bolt, M8

24 Flat washer, M8

24 Lock washer, M8

24 Hex nut, M8

* Aluminum side bars are supplied with

additional hardware. Quantities listed are in

addition to the standard supplied hardware.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •4524-INS-RA •PAGE 2

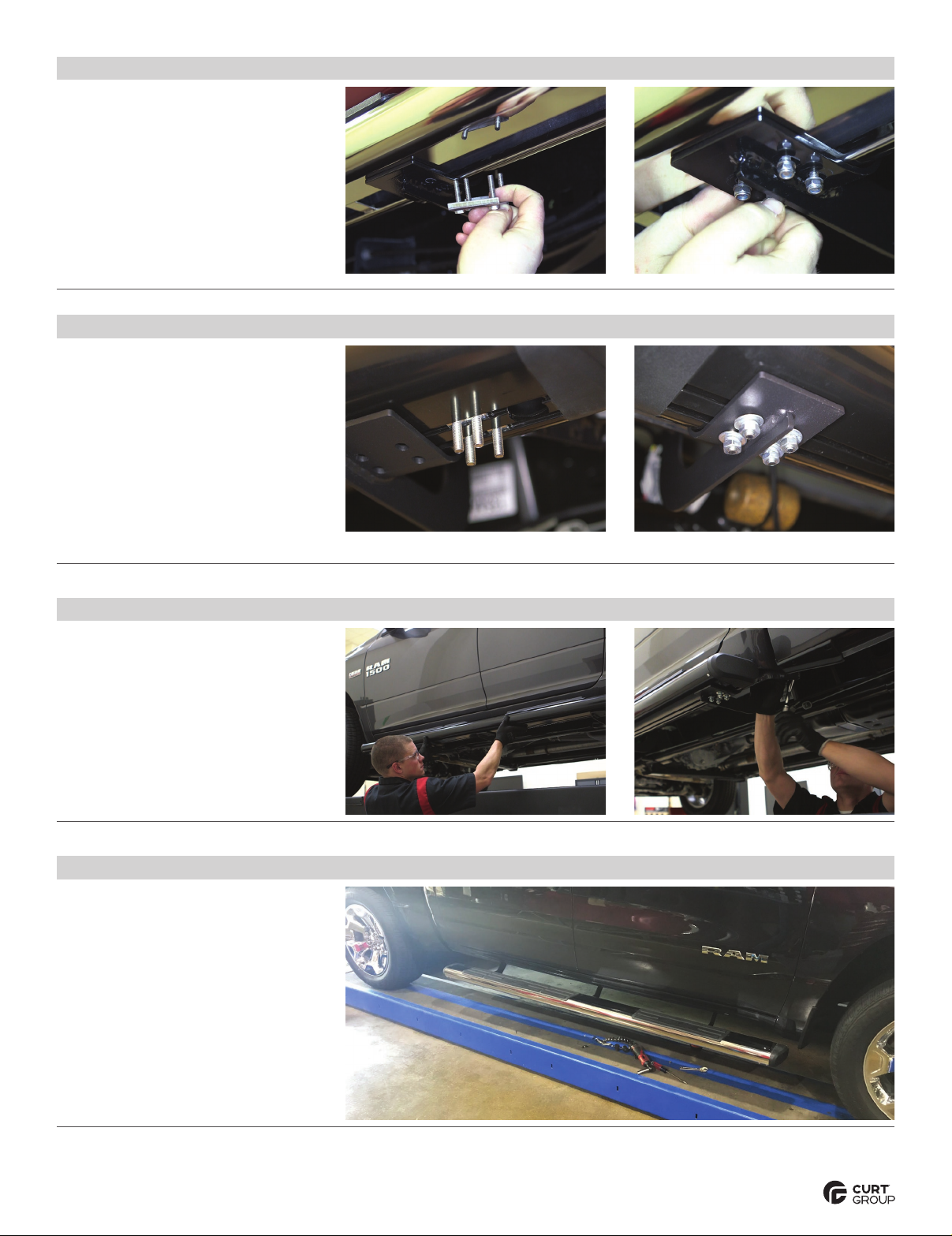

Step 1

Starting on the driver side, locate the

three mounting tabs along the bottom

edge of the vehicle body.

Step 4

Carefully place the side bar onto

the brackets with the larger step pad

towards the front of the vehicle.

Step 2

Starting at the front mounting location,

remove any debris from the factory studs.

Secure a mounting bracket using an M8 flat

washer, lock washer and hex nut.

Note: Apply anti-seize to the studs to keep the

nuts from seizing up. Repeat this process for

the middle and rear mounting locations.

Snug the hardware,

but do not fully tighten.

Step 3

Repeat step 2 for the front, middle and rear

mounting locations on the passenger side.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •4524-INS-RA •PAGE 3

Step 5A - For Polished Stainless Steel Side Bars

Insert a bolt plate into the bottom

channels of the side bar as shown.

Slide the bolt plate forward to the front

bracket and insert the studs through the

bracket cradle. Repeat this for the middle

and rear brackets.

Secure the side bar to the brackets

using twelve M6 flat washers and hex nuts.

Snug the hardware,

but do not fully tighten.

Step 7

Repeat steps 5 through 7 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES 6" oval side bars.

With the side bars installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the first page of this instruction manual.

Step 5B - For Semi-Gloss Black, Aluminum Side Bars

Insert four T-bolts into the bottom

channels of the side bar as shown.

Slide the bolts forward to the front

bracket and insert through the bracket

cradle. Repeat this for the middle and

rear brackets.

Secure the side bar to the brackets

using twelve M8 flat washers,

lock washers and hex nuts.

Snug the hardware,

but do not fully tighten.

Step 6

Adjust and level the side bar, centering it

between the front and rear wheel wells.

With the side bar in position, it is

recommended to tighten all brackets

to the vehicle first, followed by the

side bar connections.
