INSTALLATION MANUAL 2055100

Level of Difﬁculty

Easy

Tools Required

Ratchet Socket, 13mm

Extension

Parts List

1Driver / left,

side bar / running board

1Passenger / right,

side bar / running board

4Mounting bracket

8Clip-on nut, 8mm*

8 Hex bolt, 1.25 x 30mm

8 Hex bolt, 1.25 x 25mm

16 Lock washer, 8mm

16 Flat washer, 8mm

8Hex nut, 8mm

* Depending on the year of the vehicle,

clip-nuts may or may not be needed

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For chrome powder coat, polish may be used to clear small scratches

and scuffs on the ﬁnish. Mild soap may be used also to clean the product.

For black ﬁnishes, mild soap may be used to clean the product.

Product Image

Rear

Front

AdvantEDGE™ AdvantEDGE™

RidgeStep™

Front

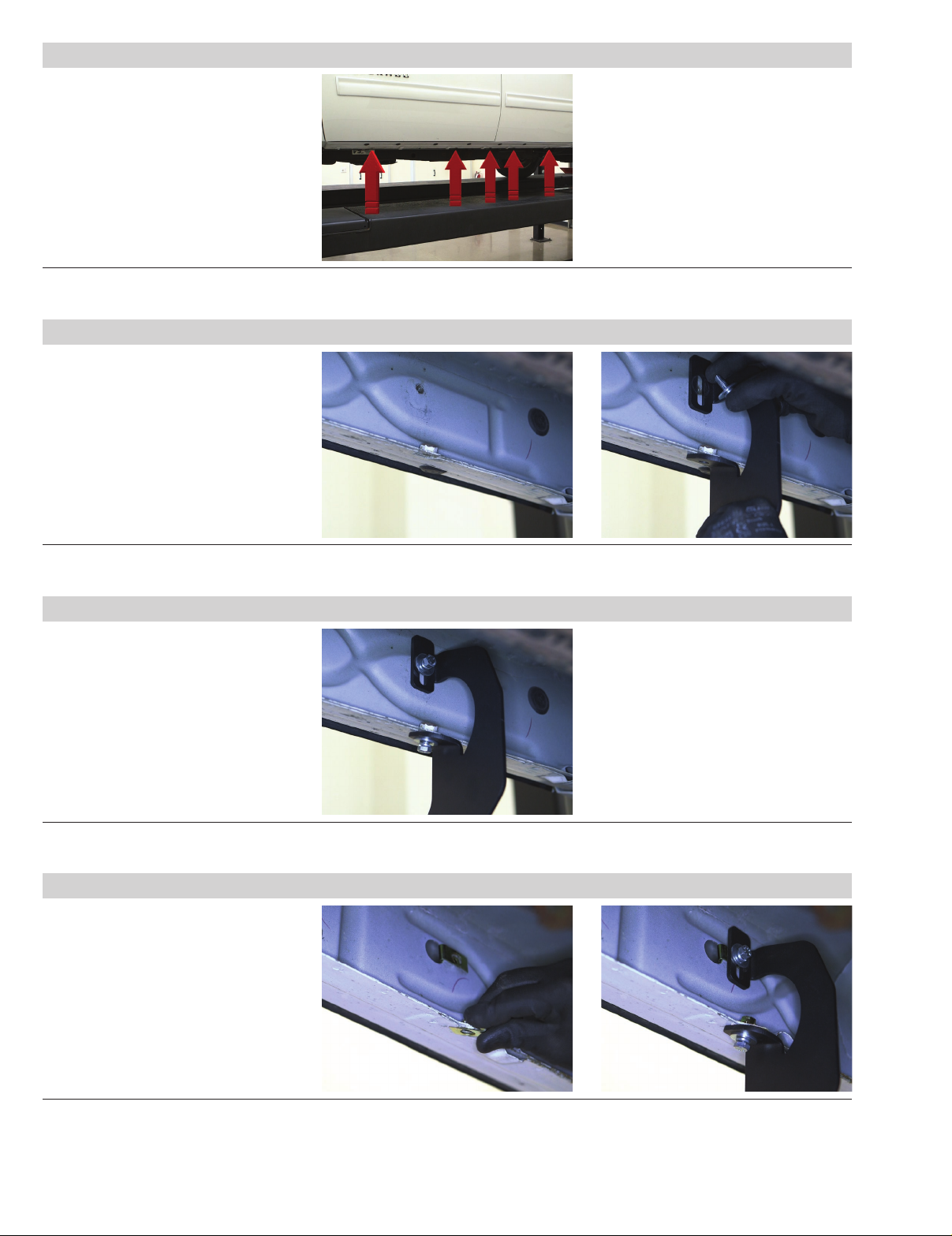

Step 1

Locate the ﬁve mounting tabs along

the bottom edge of the vehicle body.

This installation will use the ﬁrst

and ﬁfth mounting tabs.

Step 2

Starting at the front driver side mounting

location, locate the threaded hole on the

inside of the body panel.

Attach the bracket to the body panel

using an 8mm hex bolt, lock washer

and ﬂat washer.

The bolt should only be ﬁnger tight

to allow for adjustment later in the

installation process.

Step 3

Secure the bracket with a second 8mm

hex bolt, lock washer and ﬂat washer

using the factory threaded nut on the

edge of the body panel.

Step 4

Locate the ﬁfth tab location from step 1.

Insert a clip nut through the access hole

and align it over the adjacent small hole

and over the lower mounting tab.

Secure the bracket to the vehicle with

an 8mm hex bolt, lock washer and ﬂat

washer in each mounting location.

Step 5A - AdvantEDGE™Side Bars

Carefully place the side bar

onto the mounting brackets.

Ensure outer edge of the side bar

is lined up with the outer edge of

the mounting brackets.

Begin by locating the round rail

slots closest to the front tire

underneath the side bar.

Step 5B - AdvantEDGE™Side Bars

Insert four 8mm hex bolts into the rail

slots, two by the front tire opening and

two by the back tire opening.

Step 5C - AdvantEDGE™Side Bars

Slide the bolts down the rail next

to the mounting brackets.

Carefully lift the side bar up and move

the bolts so they are in line with the

slots on the mounting brackets.

Secure the bracket to the side bar using

a ﬂat washer, lock washer and 8mm hex

nut loosely to allow for adjustments to

the side bar.

Step 5A - RidgeStep

™Running Boards

Slide the C-shaped track mounting

brackets into the rail slot.

Insert all both of the brackets into the

rail slot before placing RidgeStep™board

onto the mounting brackets.

Step 5B - RidgeStep

™Running Boards

Carefully place the RidgeStep™board

onto the mounting brackets.

Align the C-shaped track mounting

brackets with the mounting brackets

on the vehicle.

Step 5C - RidgeStep

™Running Boards

Attach the C-shaped track mounting

brackets to the mounting brackets using

an 8mm hex bolt, lock washer and ﬂat

washer.

Step 6

At this time, adjust the side bars /

running boards to the desired location.

With the side bars / running boards in

position, tighten all hardware to them

and the vehicle.

Step 7

Repeat steps 1 through 6 on the

passenger side of the vehicle.

Congratulations on the installation

of your brand new ARIES AdvantEDGE™

side bars / RidgeStep™running boards.

With the side bars / running boards

installed, periodic inspections should

be performed to ensure all mounting

hardware remains tight.

To protect your investment, we

recommend you apply a layer

of nonabrasive wax.
