NITROGEN PRO: ASSEMBLY GUIDE
Valid for MY2016 Nitrogen Pro
Revision 7.0 - 04-01-2016
1. Frame Inspection . . . . . . . . . . . . . . . . . . . . . ...................2
2. Frameset Parts . . . . . . . . . . . . . . . . . . . . . ......................3
3. Headset Installation . . . . . . . . . . . . . . . . . . . . ..................5
4. Stem/Handlebar Installation . . . . . . . . . . . . . . . . . . . . ..........8
5. Front Brake Installation. . . . . . . . . . . . . . . . . . . . . . . . . . ........16
6. Rear Brake Installation . . . . . . . . . . . . . . . . . . . . . . ............20
7. Cable Housing Installation . . . . . . . . . . . . . . . . . . . . . . . . . .....22
8. Electronic Drive-train Specication . . . . . . . . . . . . . . . . . .. . . .28
9. Seatpost Installation. . . . . . . . . . . . . . . . . . . . . . . . . ...........32
10. Saddle Adjustment . . . . . . . . . . . . . . . . . . . . . . . .............33
11. Derailleur Hanger Adjustment. . . . . . . . . . . . . . . . . . . . . . . . ..34
12. Frameset Parts Checklist . . . . . . . . . . . . . . . . . . . . . . . ........36
For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High end components,
particularly carbon parts, need extra care when assembled. These components must be installed using a calibrated torque
wrench to make sure every bolt is at the right torque setting to prevent damage.
NITROGEN PRO: Table of Contents
1
My Nitrogen Pro
Date of purchase:
Retailler:
Size:
Serial Number:
Parts installed on the frame Description Screw Tork Detail
type Nm
1 Front derailleur hanger Screw (2) 3mm 4Nm Loctite
2 Rear derailleur hanger Screw (2) 3mm 4Nm Loctite
3 Bottle cage Screw (4) 4mm 3Nm Grease
4 Bottom bracket cable guide Screw 5mm 1.5Nm Grease
IMPORTANT:
The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts according to their torque
specifications.
NITROGEN PRO: 1. Frame Inspection
2
BEFORE ASSEMBLING YOUR NEW NITROGEN PRO, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:
1. Brakes and gears cables and housing set
2: Frameset parts checklist (see p.36)
3: Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)
4: For reference, check serial number and write it on p.1
5: All the necessary bolts (refer to Frameset Parts, p.3)
6: For optimal shifting performance, use a dropout alignment gauge to make sure that the drive-side dropout is
straight (p.35)
NITROGEN PRO: 2. Frameset Parts
Images are for reference only. Proportions are not accurate.
Argon 18 reserves the right to modify/change parts of the frameset at any moment without prior notice.
16
17 18
3
3g
3c
3e
3h
3f
3d
3b
3a
3i
20
15 4 514 13
109
67128
2
11
17b
17f
17a
17g
17d
17e
17c
17h
17i
17h
17i
17h 18b
18f
18a
18g
18d
18e
18c
18h
18i
18h
18i
18h
19
21
Brake & derailleur
cable / housing kit
JB527AR01, JD527AR01
3
NITROGEN PRO: 2. Frameset Parts
AHB5000 (38cm, 40cm, 42cm, or 44cm)
Spacer
20mm
Stem A.03
Large
Stem A.02
Medium
Stem A.01
Small
Elastic Cover
Large
Elastic Cover
Small
Washer
M8
Screw
M8x50mm
Screw
M8x30mm
Screws
M5x16mm
4
22
23 24 25 26 27 28 29 30 31 32
Frameset Handlebar Width
Stem Size 20mm
Size 38 40 42 44 Small Medium Large Spacer
X-Small
Small
Medium
Large
X-Large
Notes: 38cm Handlebar is only available aftermarket.
If you wish to purchase the third non-included stem, you can do so by ordering it as a spare part
Install the 3D headset (16) according to
the AERO Presst assembly guide. You can
choose from 3 dierent heights: 25mm,
15mm or 0mm.
5
NITROGEN PRO: 3. Headset Installation
16
GREASE
GREASE
GREASE
GREASE
6
NITROGEN PRO: 3. Headset Installation
25mm
15mm
0mm
setup
setup
setup
5
3
4
1
1
1
5
3
4
5
3
4
5
6
7
2
6
2
7
8
6
5 5
Compressor
Top cap (including O-ring & seal)
Micro spacers
Compression ring
Bearing
3D bearing holder
Plastic sleeve (no need for 0mm setup)
Top cap for 0mm setup
1
2
3
4
5
6
7
8
head tube
(bike)
head tube
(bike)
head tube
(bike)

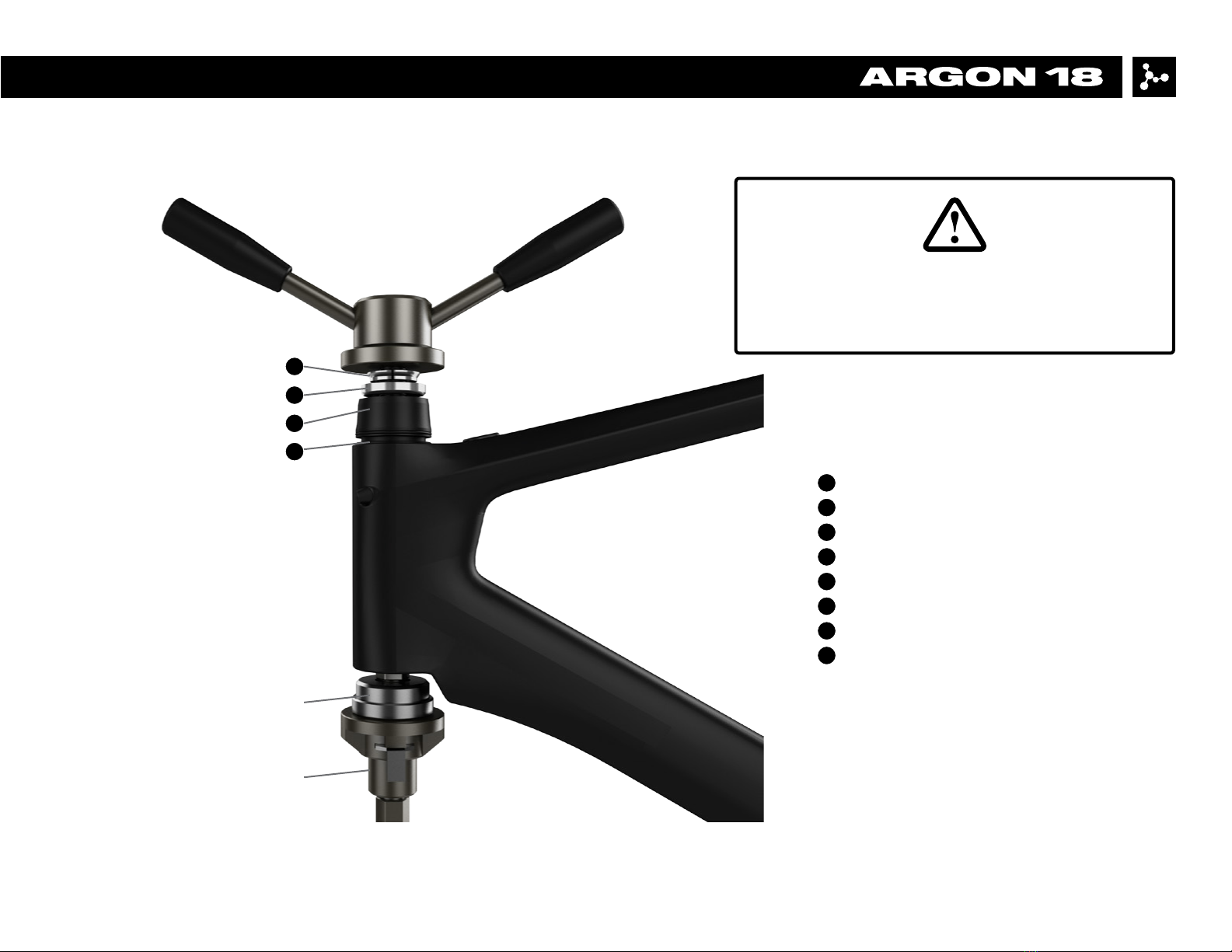

To remove the 3D bearing holder, insert the Park Tool
RT-1 and then tap it carefully until the spacer comes out.
1
STEP
Inspect the bike’s head tube for any sharp edges and
apply a small amount of grease.
2
STEP
For the 25mm and 15mm setups, lightly grease the
bottom section of the 3D bearing holder (6) and insert
the plastic sleeve (7).
3
STEP
Position the headset inside the head tube. Place
the top 3D assembly with the headset bearing inside
(this will prevent the sleeve from getting damaged).
Add the compression ring on top of the bearing, then
add the press t 3D system tool and softly press down
the assembly until it bottoms out using a Bearing Cup
Press (Park Tool HHP-2). Then, insert the bottom
bearing (5), compression ring (4) micro spacers (3) and
top cap (2), slide the fork and stem and measure the
steerer length needed.
For the 0mm setup , do not use the plastic sleeve.
Install the 3D bearing holder (6) with grease applied
directly inside the frame.
4
STEP
First, you must assess which setup suits your needs:
25mm, 15mm or 0mm.
7
NITROGEN PRO: 3. Headset Installation
Compressor
Top cap (including O-ring and seal)
Micro spacers
Compression ring
Bearing
3D bearing holder
Plastic sleeve (no need for 0mm setup)
Top cap for 0mm setup
1
2
3
4
4
5
5
6
6
7
7
8
Press Fit 3D system tool 1 1/4”
Bearing Cup Press (Park Tool HHP-2)
IMPORTANT: Use the Press Fit 3D system tool 1 1/2” with
the Bearing Cup Press (ParkTool HHP-2) to avoid any
damage on the bike frame.
8
NITROGEN PRO: 4. Stem/Handlebar Installation
Handlebar Width (cm)
Stems size (stems included)
38
40
42
44
S M L 20mm spacer

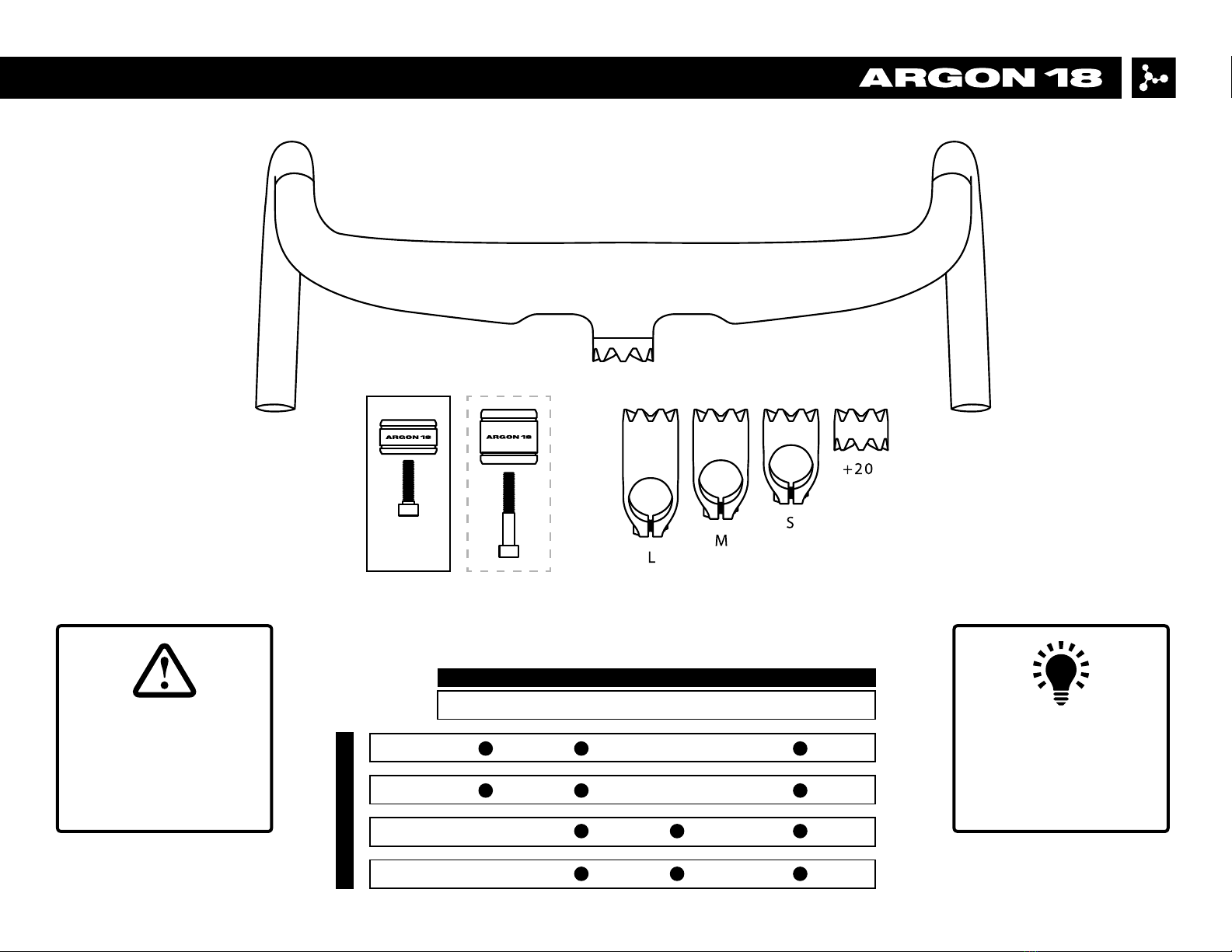

CONFIGURATION MATRIX
If you wish to purchase
the third non-included
stem, you can do so by
ordering it as a spare
part.
Failure to use long
screw when assembling
bar with +20mm spacer
of any conguration can
lead to serious injury
9
NITROGEN PRO: 4. Stem/Handlebar Installation
1. Choose the desired stem length, bolt, and spacer
needed (refer to the Product Matrix chart on p.X) – note
that the bolt comes pre-coated with Loctite. In the event
of assembling and disassembling, one drop of blue
Loctite (#242 or #243) must be applied on the bolt
threads.
