GALLIUM DISC 339A / 339B: ASSEMBLY GUIDE

Valid for MY2021 Gallium Disc 339A

Revision 0.0 - 27.09.2020

GALLIUM DISC 339A / 339B: ASSEMBLY GUIDE

Valid for MY2021 Gallium Disc 339B

Revision 0.0 - 27.09.2020

1. Tools Needed and First Aid Kit ..........................3

2. Frameset Inspection ...................................4

3. Frameset Parts, SKUs and descriptions ................5-6

4. Assembly instructions ..............................7-21

4.1. Headset Installation ...............................7

4.2. Seat Post Collar Assembly..........................8

4.3. Seat Post Assembly .............................9-10

4.4. Rear Derailleur Hanger Adjustment ................11

 4.5.Mechanicalgroupsetspecication ..............12-14

 4.6.Electronic(Di2)groupsetspecication ..........15-18

 4.7.Electronic(Wireless)groupsetspecication .....19-21

5.Troubleshooting/Tips/Specication ..................22

6. Min/Max Seat Post Insertion ...........................23

GALLIUM DISC 339A / 339B: Table of Contents

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,

particularly carbon parts, need extra care when assembled. These components must be installed using a calibrated torque

wrench to make sure every bolt is at the right torque setting to prevent damage.

My Gallium Disc

Date of purchase:

Retailer:

Size:

Serial Number:

Tools needed for assembly

1: Bearing Cup Press (Park Tool HHP-2)

2: Allen Key Set

3: Grease

4: Utility Pick Set (Park Tool Item #UP-SET)

5: Clean Rags

6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2)

7: Cables and Housing Cutter

8: Carbon Paste

9: Loctite #242

10: Torque Wrench

First Aid Kit: Essential parts to always have on hand

IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!

1: Spare rear derailleur hanger assembly

2: Seat post collar

GALLIUM DISC 339A / 339B: 1. Tools Needed and First Aid Kit

80546 80802 80832

(Direct mount option if utilized)

GALLIUM DISC 339A / 339B: 2. Frameset Inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

Water bottle cage screws Screw (4x) 5 mm 3 Nm Grease

Chain stay cable guide Screw (2x) 3 mm 1.5 Nm Grease

Seat post collar M5 Screw (1x) Socket head 4Nm Grease

Seat post head M5 Screws (2x) Socket head 4.5Nm Grease

Rear derailleur hanger M4 Screw (1x) Flat head 2Nm Loctite

BEFORE ASSEMBLING YOUR NEW GALLIUM DISC, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:

1. Frameset parts (see p.5)

2. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)

3. For reference, check serial number and write it on p.2

4. All the necessary bolts (refer to Frameset Parts, p.5)

5. For optimal shifting performance, use a derailleur hanger alignment gauge to make sure that the derailleur hanger is straight (p.11)

IMPORTANT:

The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts according to their

torquespecications.

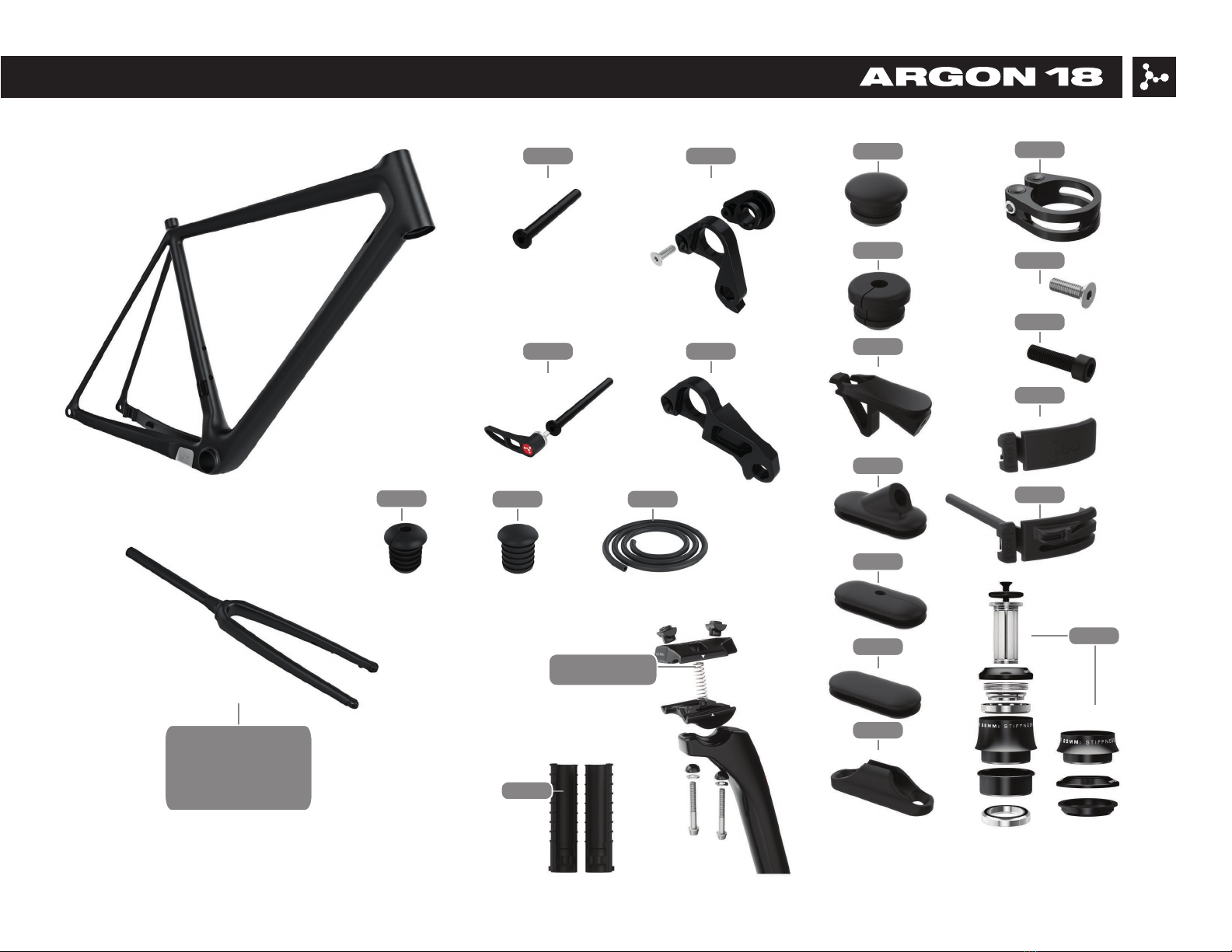

GALLIUM DISC 339A / 339B: 3. Frameset Parts

80554

80802 80546

80555

80553

38879

80551

38884

80548

80547

80550

81453

80552

SP.GAPD.338A

80549

38446

80812

80813 80832

FK.GAD.XXS-S.339A

FK.GAD.M-XL.339A

FK.GAD.XXS-S.339B

FK.GAD.M-XL.339B

80805 80804 80811

*Except for the frame itself, which is not sold as a spare part, all parts can be ordered by referring to their respective SKU number.

GALLIUM DISC 339A / 339B: 4. Parts’ SKUs and Descriptions*

No. Name Assembled on A18 SKU# Qty

Parts already assembled

Parts

- Gallium Disc Fork (XXS/XS/S), 254mm steerer - FK.GAD.XXS-S.339A

-OR- FK.GAD.XXS-S.339B

Gallium Disc Fork (M/L/XL), 302mm steerer FK.GAD.M-XL.339A

- - FK.GAD.M-XL.339B 1

- DT Swiss RWS Thru-axle FRONT 12 x 119mm Fork 80812 1

- DT Swiss RWS Thru-axle REAR 12 x 161mm

with removable handle Frame 80813

2 Seat Post Collar Frame

80546 1

3 Gallium Seat Post Assembly - SP.GPD.338A 1

4 Oblong Cable Guide Frame

80551 2

7 Round Plug Frame

80554 3

9 Headset No.37 + 3D Assembly, with compressor TH-881-1 Fork 81453 1

10 Oblong Plug Frame 80549 2

11 Oblong Grommet Frame 80550 1

12 Bottom Bracket Cover, Electronic Frame 80548 1

13 Round Grommet Frame 80553 2

14 Internal Di2 Battery Support Seat Post 38446 1 Set

15 Direct Mount Rear Derailleur Hanger Frame 80832 1

- Flat Head Socket Cap Screw - M3 x 0.5 x 10mm LG Frame 80555 2

- Round Cap Screw - M5 x 16mm LG Frame 38884

1 Rear Derailleur Hanger Assembly (incl. Hanger, Dropout, screw) Frame 80802 1

5 Cable Stopper Frame 38879

6 Bottom Bracket Cable Guide Frame 80547 1

8 Removable Cable Stopper Frame 80552 1

GALLIUM DISC 339A / 339B: 4.1. Headset Installation

Install the 3D headset (9) according to

the presst assembly guide. You can

choose from 3 dierent heights: 25mm,

15mm or 0mm.

IMPORTANT:

No more than 30mm of spacers can be placed between the

stem and the top cap of the 3D system.

The steerer must be trimmed no more than 5mm above the

stem. The use of more than 5mm of spacers above the stem

could void the eciency of the compressor.

These practices will automatically cancel any warranty

claim against the manufacturer.

GALLIUM DISC 339A / 339B: 4.2. Seat Post Collar Assembly

Assemble the seat post collar (2) with the seat

post (3). Apply carbon paste inside the frame’s

seat tube and on the seat post where it inserts

inside the frame. Tighten the bolt at 4 Nm.

4Nm

CARBON

PASTE

GALLIUM DISC 339A / 339B: 4.3. Seat Post Assembly

The seat post (3) is supplied fully assembled.

It’s equipped with a spring-loaded head for

easy installation of the saddle.

1. Unscrew both bolts slightly until the top

clamp (a) and the cradle (b) are separated

enough to insert the saddle rail. Do not

unscrew the bolts completely.

2. Screw both bolts in order to adjust the

angle of the saddle and clamp the rail.

3. Tighten bolts at 4.5Nm.

4,5 Nm
