ARGON18 NITROGEN 231A Manual de usuario

NITROGEN 231A/231B: ASSEMBLY GUIDE

Valid for MY2017 Nitrogen 231A/231B

Revision 6.0 - 05-23-2017

Overview of the assembly . . . . . . . . . . . . . . . . . . . . . . . .........2-3

1. Frame inspection . . . . . . . . . . . . . . . . . . . . . ...................4

2. Headset installation . . . . . . . . . . . . . . . . . . . . ..................5

3. Cable housing installation . . . . . . . . . . . . . . . . . . . . . . . . .....6-11

4. Electronic drive train specication . . . . . . . . . . . . . . . . . . . .12-15

5. Front brake installation. . . . . . . . . . . . . . . . . . . . . . . . . . .... 16-18

6. Rear brake installation . . . . . . . . . . . . . . . . . . . . . . ........ 19-20

7. Seatpost installation. . . . . . . . . . . . . . . . . . . . . . . . . ...........21

8. Saddle adjustment . . . . . . . . . . . . . . . . . . . . . . . .......... 22-23

9. Derailleur hanger adjustment. . . . . . . . . . . . . . . . . . . . . . . . ....24

10. Parts’ SKUs and Descriptions. . . . . . . . . . . . . . . . . . . . . . . . 25-27

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High end components,

particularly carbon parts, need extra care when assembled. Those components must be installed using a calibered torque

wrench to make sure every bolt is at the right torque setting to prevent damage.

IMPORTANT: No more than 30mm of spacer can be place between the stem and the top cap of the 3D system.

And the use of more than 5mm spacer on top of the stem could void the eciency of the compressor.

These practices will automatically cancel any warranty claim against the manufacturer.

NITROGEN 231A/231B: Table of contents

2. Headset installation

6. Rear brake installation

3. Cable housing installation

IMPORTANT NOTICE: It is easier to install the

cable housings before the bottom bracket, crank

& fork.

5. Front brake installation4. Electronic drive train

specication

NITROGEN 231A/231B: Overview of the assembly

1. Frame inspection

9. Derailleur hanger adjustment

NITROGEN 231A/231B: Overview of the assembly

8. Seatpost adjustment

10. Part listing

7. Seatpost installation

Parts installed on the frame Description Screw Tork Detail

type Nm

1 Front derailleur hanger Screw (2) 3mm 4Nm Loctite

2 Rear derailleur hanger Screw (2) 3mm 4Nm Loctite

3 Bottle cage Screw (4) 4mm 3Nm Grease

4 Bottom bracket cable guide Screw 5mm 3Nm Grease

When assembling a new frame, be sure to check if the following parts are assembled correctly.

NITROGEN 231A/231B: 1. Frame inspection

Install the 3D headset (16) according to

the AERO Presst assembly guide. You can

choose from 3 dierent height : 25mm,

15mm or 0mm.

NITROGEN 231A/231B: 2. Headset installation

NITROGEN 231A/231B: 3. Cable housing installation

1. Install the rear derailleur cable

housing starting at the drive side’s

drop-out until it comes out in the top

tube.

2. Install the front derailleur cable

housing starting under the bottom

bracket shell.

3. Install the rear brake cable housing

(see page 8 for details). Use supplied

Jagwire housing (KEB).

Note: For maximum braking performance

it is strongly recommended to use the

non-compressible jagwire KEB housing

(Jagwire 5mmKEB-SL / RCK###).

See the table below for the cable housing

length suggested.

Suggested lengths of the cable housing

housing/size

Front brake

Rear brake front section

Rear brake rear section

Front derailleur

Rear derailleur

40cm

30cm

20cm

110cm

185cm

45cm

35cm

20cm

110cm

190cm

50cm

40cm

20cm

120cm

195cm

55cm

45cm

25cm

125cm

200cm

XS SM L

A : 5mm barrel adj. brake and speed adjustment

B : 4mm barrel adj.

C : metal cap “pop”

D : metal cap for rear derailleur

brake adjustment : A+C

speed adjustment : B

It’s better to install cables housing before

installing the bottom bracket, crank and fork.

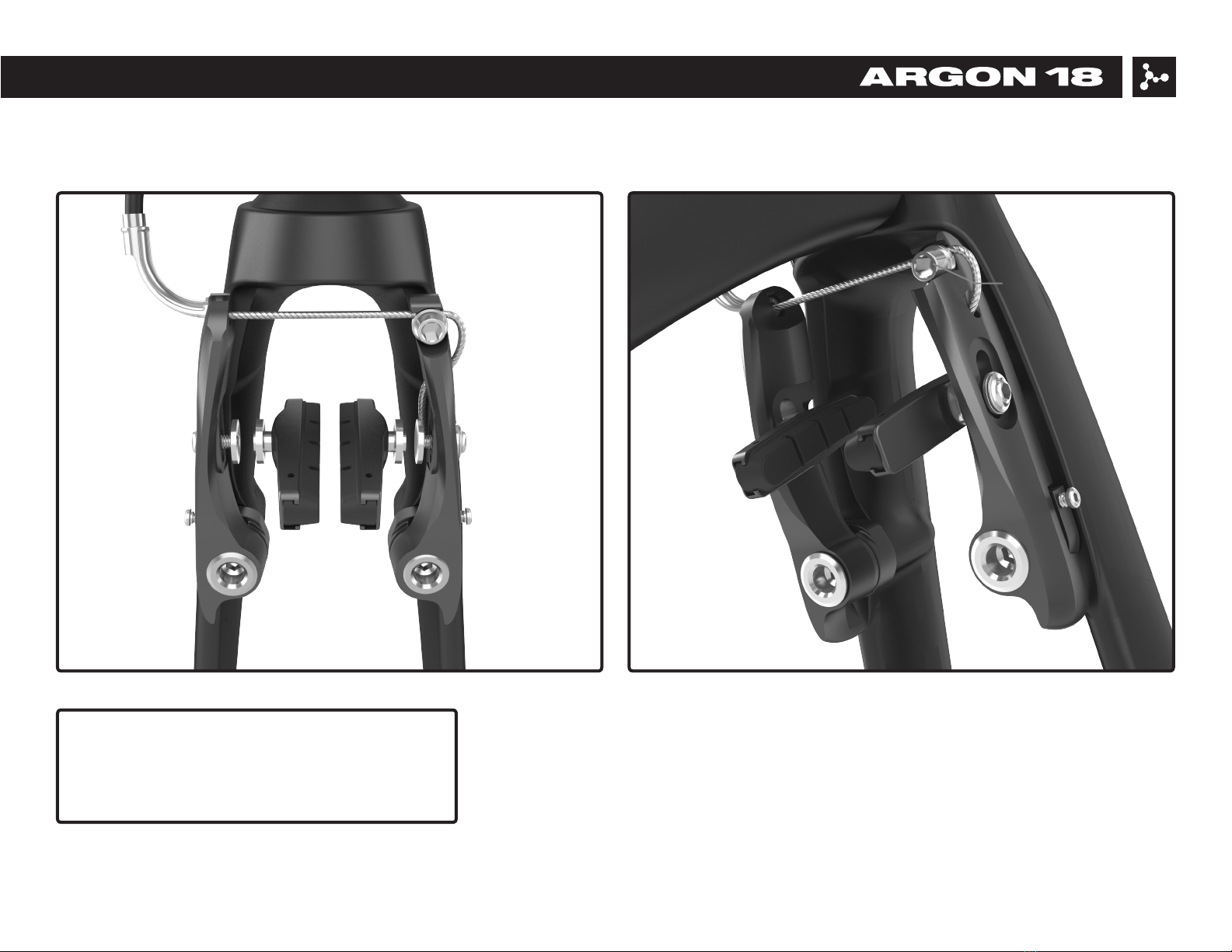

Note: The front brake cable guide (17h)

should be front oriented to ensure a

good rotation of the handle bar.

Front brake cable guide

17h

NITROGEN 231A/231B: 3. Cable housing installation (continued)

Pass the cable through the cable guide (17h).

Create a “hook” with the cable, it will be easier to

pass it inside the retainer nut.

6Nm

NITROGEN 231A/231B: 3. Cable housing installation (continued)

Rear brake cable housing

Remove the 2 cable stopper (on the

head tube and near the seat collar).

Font section: Mesure the necessairy

cable housing to ensure a proper

rotation of the handlebar. Insert the

“KEB” cable housing and the cable

trough the top tube.

Rear section: With a magnet, get the

rear brake cable out of the frame, and

pass it trough the rear cable stopper.

Mesure the “KEB” rear housing correctly

to avoid interference with the rider’s

left leg.

KEB cable housing
