Antari Z-390 Series Manual de usuario

Z-390 Fazer

User Manual

- ENGLISH

- 中文

- ENGLISH-

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

Keep this device dry.

Always connect to a grounded circuit to avoid risk of electrocution.

Before connecting the machine to power, always check the voltaged indicate on the

machine matches to your local AC voltage. Do not use the machine if AC power

voltage does not match.

Disconnect the machine from AC power before servicing and when not in use.

If the supply cord is damaged, contact your local Antari dealer for replacement.

This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic

parts, immediately unplug the machine and contact your local Antari dealer for advice.

No user serviceable and modifiable parts inside. Never try to repair this product, an

unauthorized technician may lead the machine to damage or malfunction.

For adult use only. Children being supervised not to play with the machine. Never

leave the machine running unattended.

The machine is not to be used by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge.

Installed in a well ventilated area. Provide at least 50 cm space around the machine.

Never add flammable liquid of any kind to the machine.

Make sure there are no flammable materials close to the machine while operating.

Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

328

If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for .

Before transporting the machine, make sure the fluid tank is completely drained.

Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it

securely. In case of eye contact or if fluid is swallowed immediately look for medical

advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retain the

packing material for inspection.

What is included: 1 x Z-390 Fazer

1 x Power Cord

1 x User Manual

Product Dimensions

343.9 mm

368 mm

339.7 mm

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm

of open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to a suitably rated power supply. To determine the power

requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 1.5

mintues. Once the machine has reached operating temperature, the LCD display will show

“Ready to Faze”. Now the machine is ready for operation.

Step 5: To start making haze, locate the Volume button on the control panel, and press the

button to start making faze.

Step 6: To turn off the machine, press the Stop button and put the power switch to the OFF

position.

XLR 3-Pin DMX Connector

LCD display Control Panel

Power Inlet

Fan Speed Adjustment Knob

Wire Remote Sock

Main Power Switch

XLR 5-Pin DMX Connector

Output Level Adjustment Knob

Wireless Operation (Optional)

Operation

Control Panel Operation

The machine can be operated with the onboard digital control interface or two rotary knobs

located on the rear.

Rotary Knob

Function

SMOKE

Turn haze on/off, adjust output volume from 1~100%

FAN

Adjust fan speed from 20%~100%

Button

Function

[MENU]

Scroll through setting menu

▲[UP]/[TIMER]

Up/Activate Timer function

▼[DOWN]/[VOLUME]

Down/Activate Volume function

[STOP]

Deactivate Timer/Volume function

Control Menu

Set the interval from 1 to 180 seconds

Set the duration from 1 to 120 seconds

Set the timer output from 1 to 100%

Interval

Set 180s

Duration

Set 120s

Timer

Out 100%

Set the output volume from 1 to 100%

Set the DMX address from 1 to 511

Set the DMX mode Sync, 1Ch or 2Ch

Turn On or Off wireless control

Turn On/Off run last setting function

Check machine info

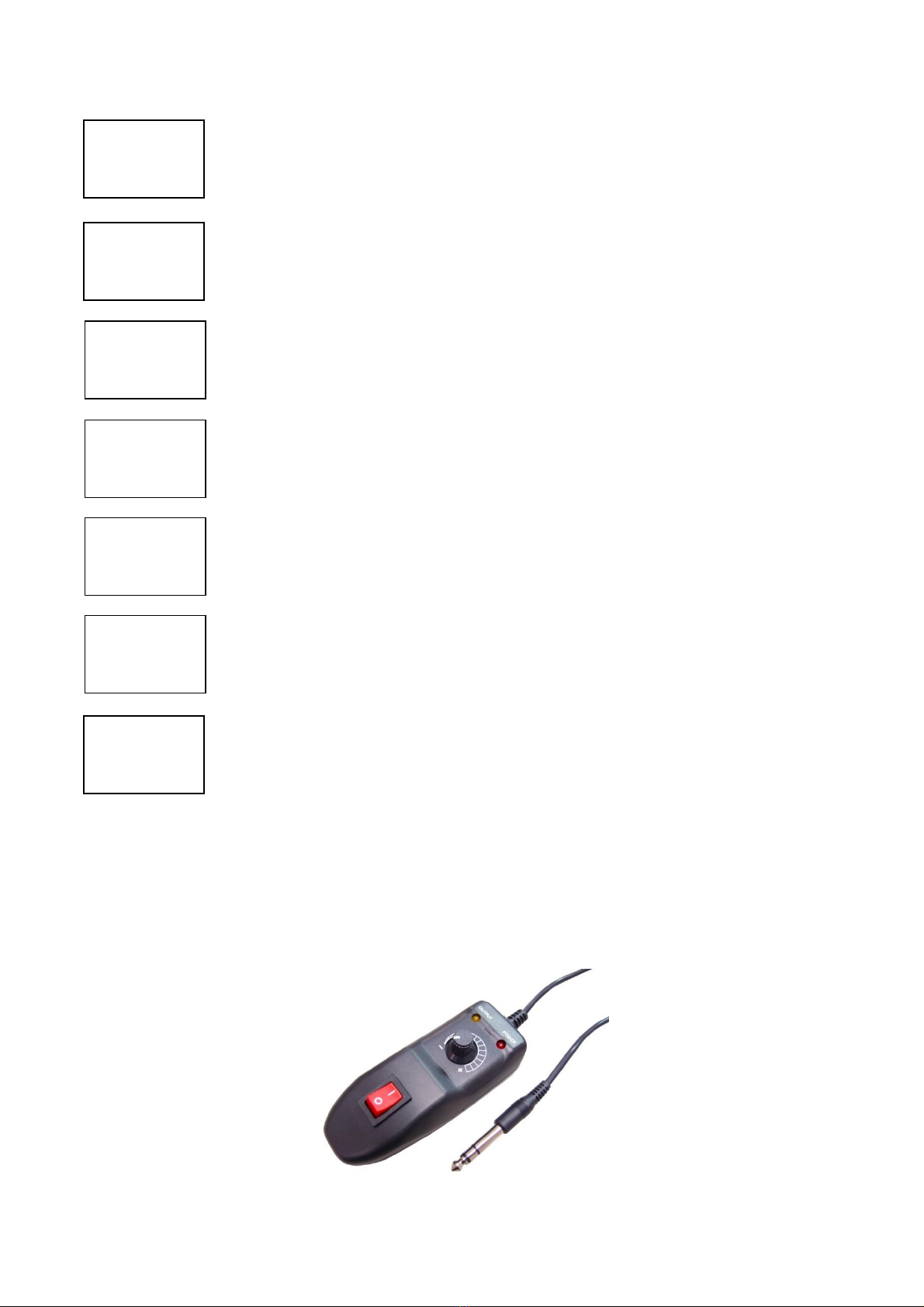

Remote Control Operation (Optional)

To operate the machine by remote control, connect the remote to the microphone jack

located on the rear of the machine. Use the switch to turn wind on/off, and use the rotary

knob to adjust the output volume from 0~100%.

Info

Ver: 1.0

Volume

Out 100%

Fan

Out 100%

DMX512

Add. 511

DMX Mode

1Ch

Wireless

OFF

Quick

Start OFF

WTR-20 Wireless Operation (Optional)

The wireless remote control system W-2 consists of a transmitter equipped with four buttons

to turn faze output on or off, and adjust the output volume; with an onboard receiver attached

to the rear panel of the Z-390.

W-2 Wireless Transmitter

Wireless Receiver

Wireless remote control function:

[A] button –Turn on faze output

[B] button –Turn off faze output

[C] button –Increase output volume

[D] button –decrease output volume

In an open and unobstructed space the effective distance is 50 meters, usage depending

on obstacle level, is 10-25 meters.

Registering a transmitter

Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 10

transmitters. Follow below steps to pair or delete a transmitter from a receiver.

Step 1: Set Wireless to ON

Step 2A: Press [UP] to pair a new transmitter; press any button on the W-2 remote to finish

pairing.

Step 2B: Press [DOWN] button to delete existing transmitter.

Transmitter battery replacement

If the effective distance seems to decrease, it is possible the battery level is low and

requires replacement. In order to replace the battery, undo the three screws on the back of

the transmitter to release the cover. Replace with same type and specification of battery

which is 27A 12V

DMX Connector Pin Assignment

The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below

indicates pin assignment information.

Function

Ground

Data-

Data+

N/A

DMX Operation

Making the DMX Connection –Connect the machine to a DMX controller or to one of the

UP: Pair

DOWN:Del

Wireless

machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX

connection, the connector are located on the front of the machine.

DMX Channel Function

Channel Mode

Channel

Value

Function

0-5

6-255

Faze off

Faze 1-100%

6-255

Fan 20-100%

0-5

Faze off

Fan 100%

6-255

Faze 1-100%

Fan 100%

Sync

0-5

Faze Off

Fan 20%

6-255

Faze 1-100%

Fan 21 –100%

Fluid

Only use Antari FLG water-based liquid for the Z-390 Fazer. The machine is tested and

calibrated with this liquid to get the best output performance. Warranty will be voided if any

other type of liquid is used, improper use of liquid may lead to machine failure and

malfunction.

Service and Maintenance

․Do not allow the machine to become contaminated.

․Remove dust from the air vents with air compressor, vacuum or a soft brush.
