Antari Z-380 Manual de usuario

Z-380 Fazer

Machine User Manual

English Français Deutsch • • • 中文

User Manual

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

․Keep this device dry.

․Always connect to a grounded circuit to avoid risk of electrocution.

․Before connecting the machine to power, always check the voltage indicated on the

machine matches to your local AC voltage. Do not use the machine if the AC power

voltage does not match.

․Disconnect the machine from AC power before servicing and when not in use.

․This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic

parts, immediately unplug the machine and contact your local Antari dealer for advice.

․No user serviceable or modifiable parts inside. Never try to repair this product, an

unauthorized technician may cause damage or malfunction to the machine.

․For adult use only. Never leave the machine running unattended.

․Install the machine in a well-ventilated area. Provide at least 50 cm of space around

the machine.

․Never add flammable liquid of any kind to the machine.

․Make sure there are no flammable materials close to the machine while operating.

․Only use Antari fluid. Other fluid may lead to heater clogging and malfunction.

․If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advice.

328

․Before transporting the machine, make sure the fluid tank is completely drained.

․Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely.

In case of eye contact or if fluid is swallowed, immediately seek medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retain the

packing material for inspection.

What is included: 1 x Z-380 Fazer

1 x Power Cord

1 x User Manual

Product Dimensions

264.9

328 mm

247.7 mm

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm

of open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to a suitably rated power supply. To determine the power

requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 1.5

mintues. Once the machine has reached operating temperature, the LCD display will show

“Ready to Faze”. Now the machine is ready for operation.

Step 5: To start making haze, locate the Volume button on the control panel, and press the

button to start making faze.

Step 6: To turn off the machine, press the Stop button and put the power switch to the OFF

position.

XLR 3-Pin DMX Connector

LCD display Control Panel

Power Inlet

Fan Speed Adjustment Knob

Wire Remote Sock

Main Power Switch

XLR 5-Pin DMX Connector

Output Level Adjustment Knob

Wireless Operation (Optional)

Operation

Control Panel Operation

The machine can be operated with the onboard digital control interface or two rotary knobs

located on the rear.

Rotary Knob

Function

SMOKE

Turn haze on/off, adjust output volume from 0~100%

FAN

Adjust fan speed from 20%~100%

Button

Function

[MENU]

Scroll through setting menu

▲[UP]/[TIMER]

Up/Activate Timer function

▼[DOWN]/[VOLUME]

Down/Activate Volume function

[STOP]

Deactivate Timer/Volume function

Control Menu

Set the interval from 1 to 180 seconds

Set the duration from 1 to 120 seconds

Set the timer output from 1 to 100%

Interval

Set 180s

Duration

Set 120s

Timer

Out 100%

Set the output volume from 1 to 100%

Set the DMX address from 1 to 511

Set the DMX mode Sync, 1Ch or 2Ch

Turn On or Off wireless control

Turn On/Off run last setting function

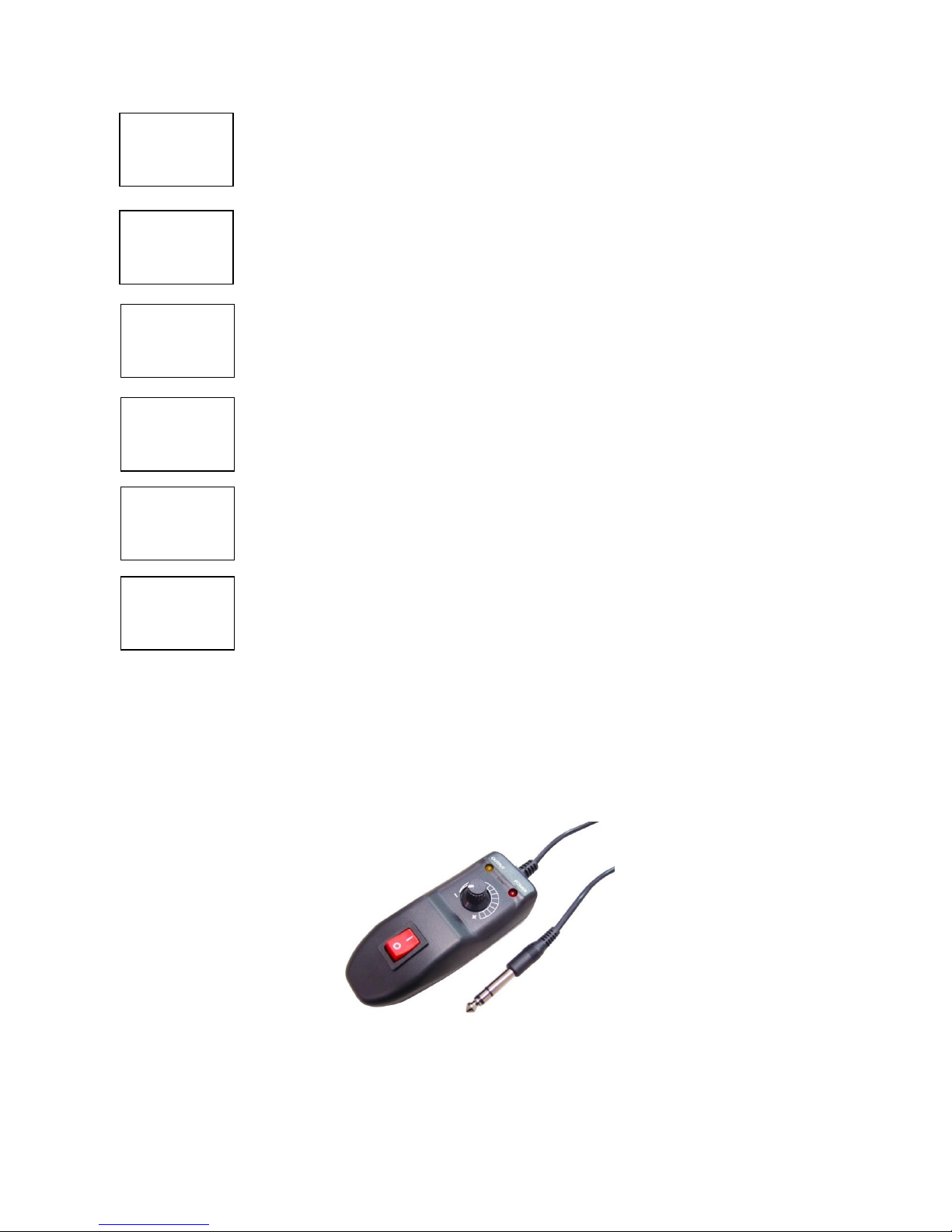

Remote Control Operation (Optional)

To operate the machine by remote control, connect the remote to the microphone jack

located on the rear of the machine. Use the switch to turn wind on/off, and use the rotary

knob to adjust the output volume from 0~100%.

WTR-20 Wireless Operation (Optional)

The wireless remote control system W-2 consists of a transmitter equipped with four buttons

to turn faze output on or off, and adjust the output volume; with an onboard receiver attached

Volume

Out 100%

Fan

Out 100%

DMX512

Add. 511

DMX Mode

1Ch

Wireless

OFF

Quick

Start OFF

to the rear panel of the Z-380.

W-2 Wireless Transmitter

Wireless Receiver

Wireless remote control function:

[A] button –Turn on faze output

[B] button –Turn off faze output

[C] button –Increase output volume

[D] button –decrease output volume

In an open and unobstructed space the effective distance is 50 meters, usage depending

on obstacle level, is 10-25 meters.

Registering a transmitter

Transmitters can be paired or deleted from the receiver. Each receiver can pair up to 10

transmitters. Follow below steps to pair or delete a transmitter from a receiver.

Step 1: Power off the Z-380 Fazer

Step 2: Press and hold [DOWN] button

Step 3: Turn power on and hold [DOWN] button until the below display is on the menu.

Step 4A: Press [UP] to pair a new transmitter; press any button on the W-2 remote to finish

pairing.

Step 4B: Press [DOWN] button to delete existing transmitter.

Transmitter battery replacement

If the effective distance seems to decrease, it is possible the battery level is low and

requires replacement. In order to replace the battery, undo the three screws on the back of

the transmitter to release the cover. Replace with same type and specification of battery

which is 27A 12V

DMX Connector Pin Assignment

The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below

indicates pin assignment information.

Function

Ground

Data-

Data+

N/A

UP: Pair

DOWN:Del

DMX Operation

Making the DMX Connection –Connect the machine to a DMX controller or to one of the

machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX

connection, the connector are located on the front of the machine.

DMX Channel Function

Channel Mode

Channel

Value

Function

0-5

Faze off

6-255

Faze 1-100%

0-5

Faze off

Fan 100%

6-255

Faze 1-100%

Fan 100%

Sync

0-5

Faze Off

Fan 20%

6-255

Faze 1-100%

Fan 21 –100%

Fluid

Only use Antari FLG water-based liquid for the Z-380 Fazer. The machine is tested and

calibrated with this liquid to get the best output performance. Warranty will be voided if any

other type of liquid is used, improper use of liquid may lead to machine failure and

malfunction.
