Antari FT-20X Manual de usuario

FT-20XFire Training

Fog Machine User Manual

English

User Manual - English

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

․Keep this device dry.

․Always connect to a grounded circuit to avoid risk of electrocution.

․Do not operate if power cord is damaged. If power cord is damaged, replace it

immediately with a new one of same power rating.

․Remove the machine from battery or power adaptor before servicing and when not in

use.

․This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

remove machine from battery or power adaptor and clean with a damp cloth. If fluid is

spilled onto electronic parts, immediately unplug the machine and contact your local

Antari dealer for advice.

․No user serviceable and modifiable parts inside. Never try to repair this product, an

unauthorized technician may cause damage or malfunction to the machine.

․For adult use only. Never leave the machine running unattended.

․For persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge, supervision or instruction must be given concerning use of applicance

in a safe way and understand the hazards involved.

․Install the machine in a well-ventilated area. Provide at least 50 cm space around the

machine.

․Never add flammable liquid of any kind to the machine.

․Make sure there are no flammable materials close to the machine while operating.

․Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

․If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advise.

․Before transporting the machine, make sure the fluid tank is completely drained.

․Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely.

In case of eye contact or if fluid is swallowed, immediately look for medical advice.

․Do not charge battery while using, even if battery is low. Remove head unit or make

sure head unit’s power switch is off before charging.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retain the

packing material for inspection.

What is included: 1 x FT-20X Fog Machine

1 x Battery base

1 x Battery charger

1 x FLM-05P water-based liquid

1 x User Manual

1 x Flightcase

Product Dimensions

Product Overview

293 mm

238 mm

108 mm

Main Power Switch

Lock lever

Charger Input

Output Level Adjustment Knob

Wireless Receiver Socket

Wire Remote Socket

XLR 3-Pin DMX Connector

ON / OFF Switch Control

Fog Output Nozzle

Dip Switch

FT-20S Power Base (Optional)

Setting Up

DO NOT CHARGE THE BATTERY WHILE MAKING FOG OR SWITCH IS ON

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm

of open space around the machine.

Step 2: Fill the fluid tank with Antari FLM-05W fluid.

Step 3: Please fully charge the battery upon receipt of the machine and before and after

each operation. The head unit should be seperated while charging.Charge the battery by

plugging the charger adaptor into a grounded electrical outlet. Yellow light on the adaptor

indicates charging, when it turns green then the charge complete. Please note the battery

requires 3 hours charge time. A fully charged battery can run the machine for roughly 12

minutes.

Power Input

Plug in the charger

Red indicates charging

Green indicates charging

complete

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Connect the battery base or power base to the machine. Turn on the machine to

start operation.

Pull to release locking lever

Align and insert head unit to base

Step 5: To start making fog, locate the rotary knob on the back for output level adjustment,

and press the button to start making fog, release to stop.

Step 6: To turn off the machine, disconnect the machine (head-unit) from the battery base

or power base.

Operation

Control Panel Operation

The machine can be operated with the On/Off button and output level control knob located

on the rear. When using On/Off Mode press and hold the button to make fog, release to

stop. In Continuous Mode, press button once to produce fog, press again to stop.

Dip Switch 12

Function

OFF

On/Off Mode

Continuous Mode

Rotary Knob

Function

SMOKE

Turn fog on/off, adjust output volume from 0~100%

DMX Connector Pin Assignment

The machine provides 3-pin XLR connectors for DMX connection. The diagram below

indicates pin assignment information.

Function

Ground

Data-

Data+

DMX Operation

Making the DMX Connection –Connect machine to a DMX controller or to one of the

machines in the DMX chain. The machine uses a 3-pin XLR connector for DMX connection,

the connector is located on the rear of the machine.

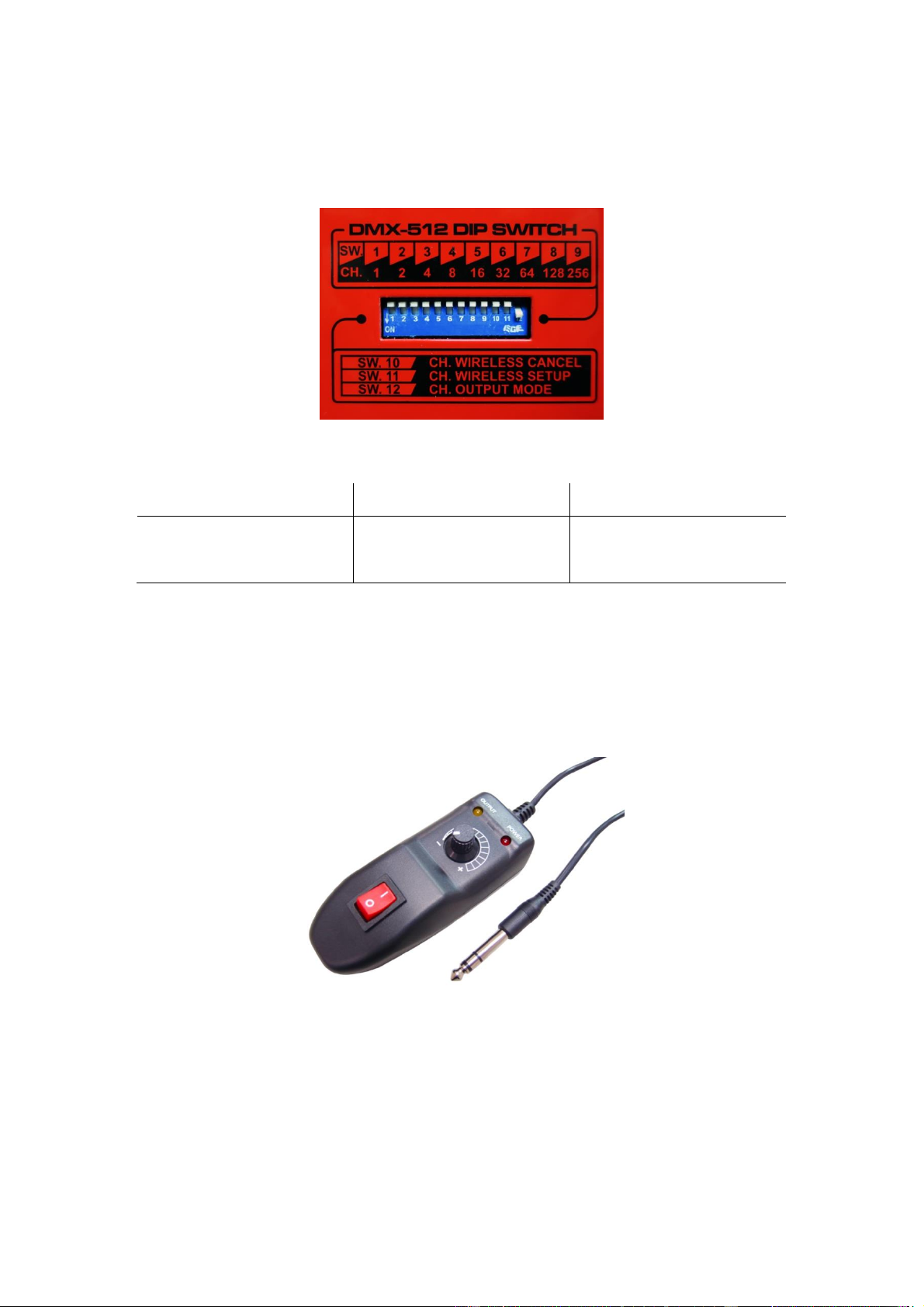

Address Setup –Use the DIP switch located on the rear of the machine to set the DMX

address. The machine occupies 1 control channels. The starting address is defined as the

first channel from which the machine will respond to the controller. Always double check to

make sure there are no overlapping channles in order to control the machine correctly.

DMX Channel Function

Channel 1

DMX Value Range

Function

Fog

0 –4

5 –255

Fog Off

Output 1-100%

Z-3 Remote Control Operation (Optional)

To operate the machine by remote control, connect the remote to the microphone jack

located on the rear of machine. Use the switch to turn fog on/off, and use the rotary knob to

adjust the output volume from 0~100%.

WTR-20 Wireless Operation (Optional)

Wireless remote control system WTR-20 consists of a transmitter equipped with four buttons to

activate, deactivate, increase and decrease fog output and an onboard receiver attached to the

rear panel of FT-20X fog machine.
