Ameriwood AX1 9293096COM Manual de usuario

WARNING

ameriwoodhome.com

Follow Ameriwood Home

Keep this Assembly Manual for future reference

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

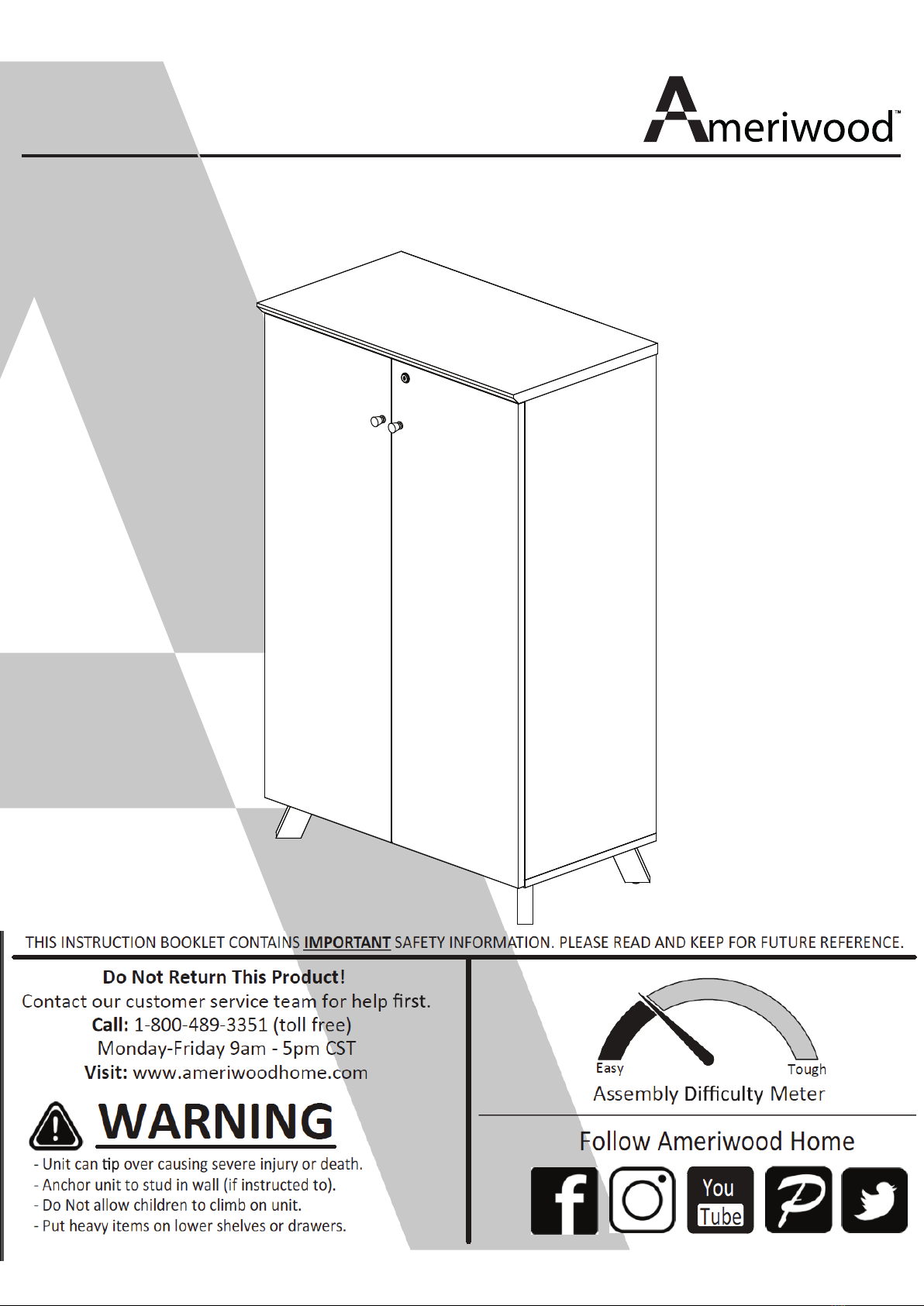

9293096COM

AX1 Medium Height Cabinet

With Wooden Doors

BB349293096COM

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy liing.

- Idenfy, sort and count the parts before aempng assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(le) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY:1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Before You Start

ameriwoodhome.com



Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Failure to do so may result in stripping the screw.

Quick

Tip

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

1 2

ameriwoodhome.com

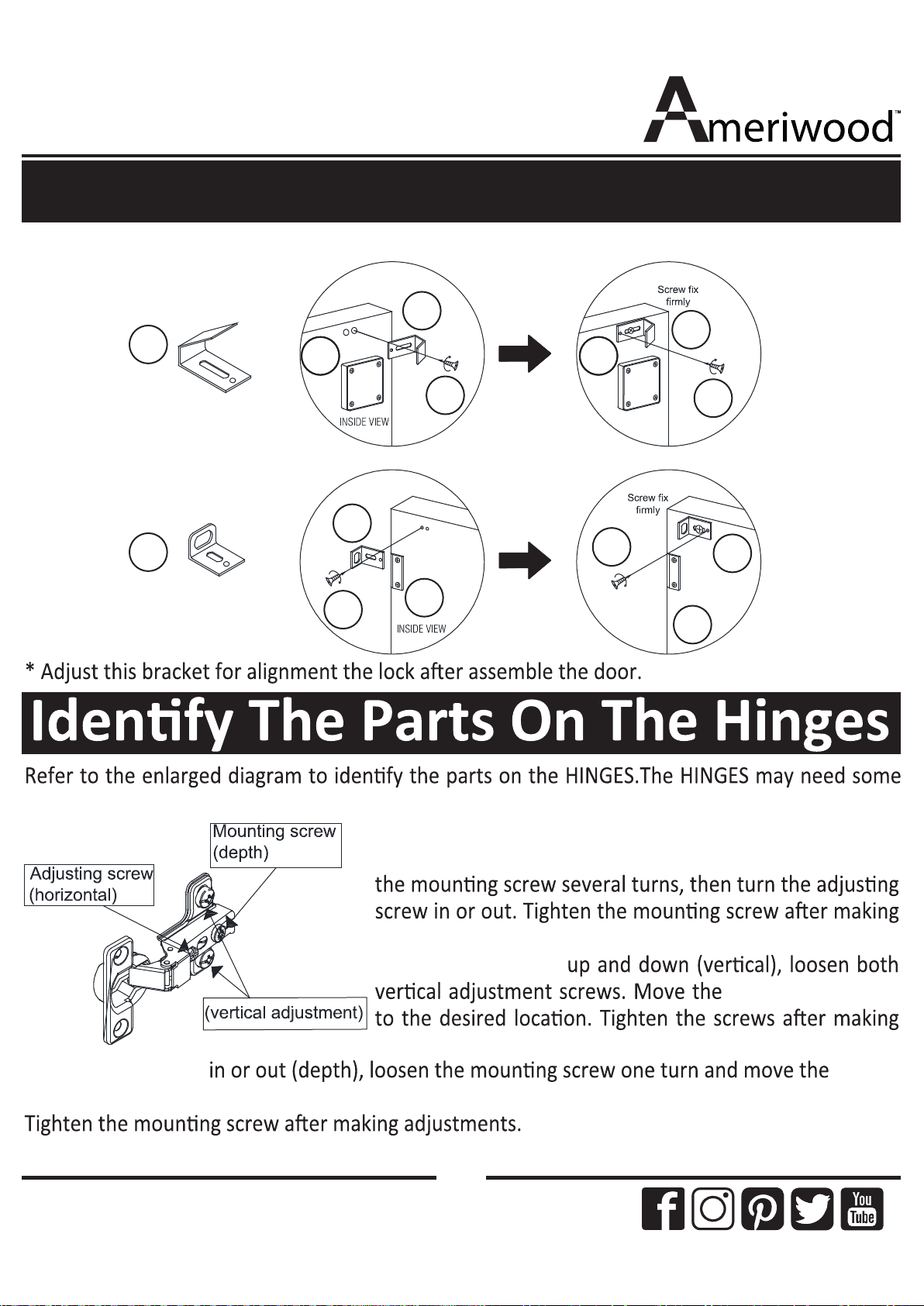

Locking System

This Locking System will be used throughout the assembly process.

adjustments. Follow the text below to make needed adjustments.

HINGES ADJUSTMENTS:

To adjust the

DOOR

from side to side (horizontal), loosen

adjustments.

To adjust the

DOOR

up or down

adjustments.

To adjust the

DOOR DOOR

in or out, as needed.

1 2

H H

Board

Not actual size

ameriwoodhome.com

T9293096010

TOP PANEL

T9293096020

BOTTOM PANEL

T9293096030

ADJUSTABLE SHELF

T9293096040

LEFT SIDE PANEL

T9293096050

RIGHT SIDE PANEL

T9293096060

BACK PANEL

T9293096070

LEFT SIDE DOOR

T9293096080

RIGHT SIDE DOOR

T9293096090

SMALL WOODEN LEGS

Part List

Actual Size

ameriwoodhome.com

x14

TAT0061

CAM COVER

TAT0071

SHELF SUPPORT

x14

TAT0051

CAM BOLT 15/18

x14

TAT0052

CAM LOCK 15/18

7 85

TAT0001

WOOD SCREW

3.5 X 16

TAT0003

WOOD SCREW

3.5 X 18

x12

TAT0091

WOOD DOWEL

8 X 30

TAT0004

WOOD SCREW

3 X 12

TAT0081

HOLE PLUG

15 MM

Part List

Not Actual Size

ameriwoodhome.com

TAT0037

HINGES WITH SCREW

TAT0033

CABINET LOCK

TAT0044

ADJUSTABLE GLIDE

M6 X 25MM X 22MM

TAT0101

BOLT M6

M6 X 35MM

1614

TAT0034

CATCH KIT

TAT0121

L-KEY M4

TAT0111

KNOB HANDLE

WITH SCREW

TAT0130

ANTI-TIPPING

RESTRAINT

ameriwoodhome.com

Screw the ADJUSTABLE GLIDES (10) into the four SMALL WOODEN LEGS (I).

IX4

Step 1

TAT0044

Step 2

TAT0001

x214

TAT0034

Front Side NOTE!

(A) with WOOD SCREW (6).

Front Side

ameriwoodhome.com

Fasten the SMALL WOODEN LEGS (I) to the BOTTOM PANEL (B).

IMPORTANT! Align holes of SMALL WOODEN LEGS (I) with proper holes of BOTTOM PANEL (B) .

Step 3

TAT0101

x48

TAT0081

x4 16

TAT0121

ameriwoodhome.com

Insert WOOD DOWELS (9) into PANELS (D) , (E) & (F).

Step 4

TAT0091

x12 9
