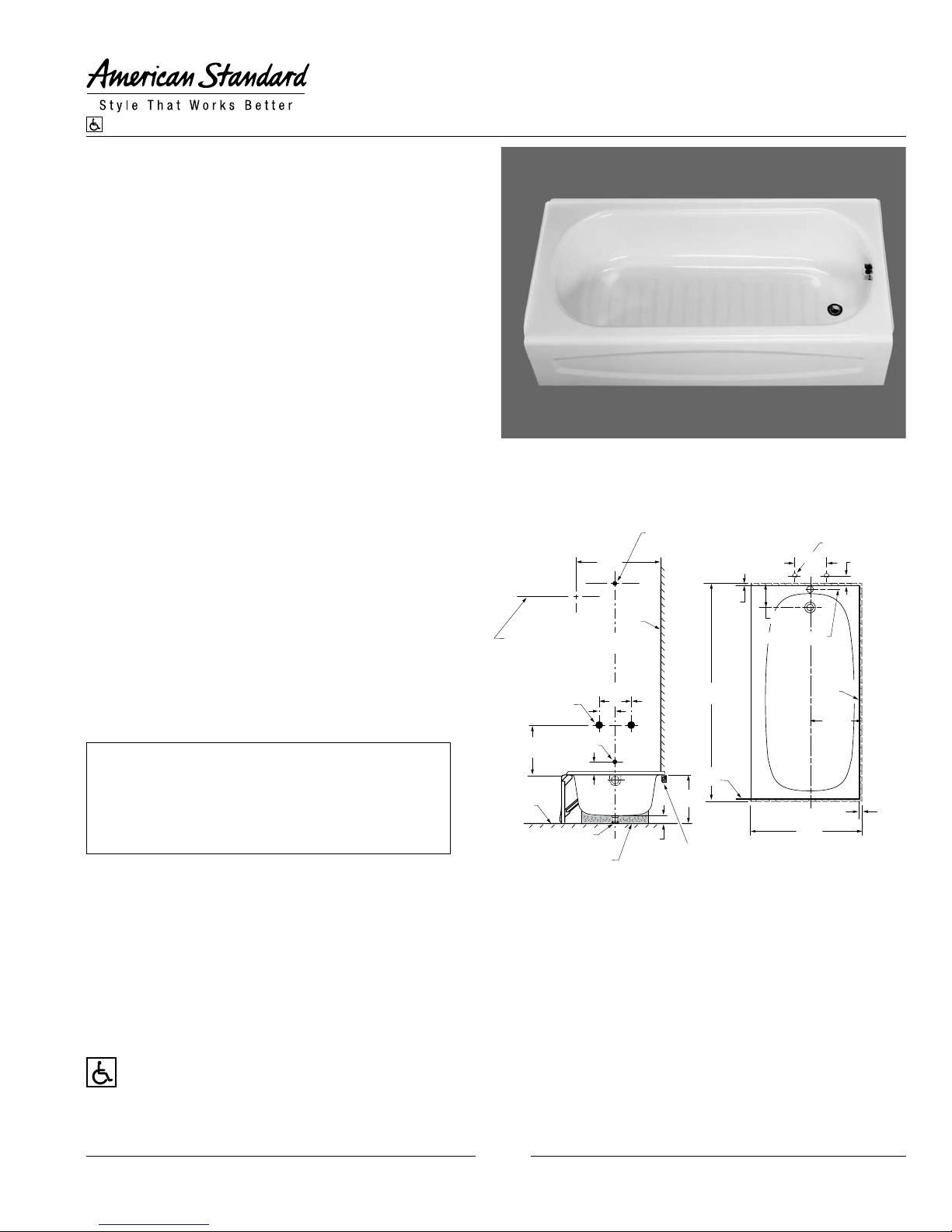

American Standard Solar Bathtub 0163.060 Manual de usuario

H161

NOTES:

0165.060 LEFT HAND OUTLET (SHOWN).

0163.060 RIGHT HAND OUTLET (REVERSE DIMENSIONS).

SHOWN WITH POP-UP C.D. & O.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

CONCEALED PIPING NOT INCLUDED.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range

of tolerances established by ANSI Standard A112.19.4. These measurements

are subject to change or cancellation. No responsibility is assumed for use of

superseded or voided leaet.

To Be Specied:

❏ Color:

❏ Bath Faucet*:

❏ Faucet Finish:

❏ Drain: 1583.470

* See faucet section for additional models available

SOLAR™

BATH

ENAMELED STEEL

SOLAR BATH™ FOR ABOVE FLOOR

ROUGH INSTALLATION

❏ 0163.060 Right hand outlet

❏ 0165.060 Left hand outlet

Product Features:

• Acid resisting, enameled steel construction

• One-piece bath

• Integral apron

• For above-oor rough installations

• End drain outlet

• Full slip-resistant pattern

• Straight tiling ange

• Fully-bonded support pad

Nominal Dimensions:

1524 x 762 x 445mm

(60" x 30" x 17-1/2")

Bathing Well Dimensions:

1346 x 610 x 337mm

(53" x 24" x 13-1/4")

Compliance Certications -

Meets or Exceeds the Following Specications:

• ASME A112.19.4 for Enameled Steel Plumbing

Fixtures

• ASTM F-462 for Slip-resistant Bathing Facilities

Revised 2/08

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES

AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND

USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.

INSTALL WITH SEAT AT HEAD END.

762mm

(30)

19mm

(3/4)

305mm

(12)

102 (4)

102

(4)

102mm

(8)

C/L OF VALVES

(44mm [1-3/4"]

DIA. HOLES)

FINISHED

WALL

DRAIN SHOE 95mm

SPOUT

1/2" S.P.S.

ROUGH

FLOOR

PLUMBER NOTE:

PROVIDE SUITABLE FULL LENGTH

SUPPORT AT THIS POINT.

OPTIONAL TO FINISHED TO FINISHED

FLOOR (USALLY BETWEEN 1651 to

1981mm ( 65" & 78')

C/L OF SHOWER CURTAIN ROD

(USUALLY 1930mm (76")

FROM FIN. FLOOR)

1/2 S.P.S. OR 1/2"

C.W.T. SUPPLIES

FINISHED

WALL

FINISHED

WALL

C/L OF DRAIN

SHOWER 1/2" S.P.S.

NOTE: NO CONCEALED

PIPING FURNISHED

SUMP PAD

445mm

(17-1/2)

711mm

(28)

1524mm

(60)

19mm

(3/4)

365mm

(14-3/8)

197mm

(7-3/4)

203mm

(8)

76mm

(3)

BARRIER FREE
