American Standard TOWN SQUARE 2742 Manual de usuario

754532-100 Rev. 3 3/19

THANK YOU...

for selecting an American Standard bath.Your new bath is shipped to you after careful inspection. The whirlpool

and air bath versions are completely assembled with pump/blower and system piping. All you need to finish the

installation are your selected fittings and electrical connections.

To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.

For questions or service issues, please call Technical Support 1-(800)-442-1902.

Please do not contact or return product to the store.

MODEL 2742

MODEL 2748

MODEL 2806

MODEL 2903

MODEL 2932

MODEL 2934

MODEL 2938

MODEL 2940

MODEL 3571

MODEL 3572

MODEL 3573

MODEL 3574

MODEL 3575

MODEL 3581

INSTALLATION AND

OPERATION MANUAL

BATHTUBS, WHIRLPOOLS, AIR BATHS

AND COMBINATION TUBS WITH

OPTIONAL CHROMATHERAPY

All product names listed herein are trademarks of AS America, Inc. unless otherwise noted.

2754532-100 Rev. 3 3/19

TABLE OF CONTENTS:

Safety Instructions Notice.................................................................Page 3

Installation, Framing and Post Installation

Clean-Up Instructions.......................................................................Page 4

Roughing-in References for Recess Type Installations.....................Page 5

Roughing-in References for Pier Type Installations...........................Page 6

Under Deck Mounting Instructions....................................................Page 6

Roughing-in References for All Model Series...................................Page 7

Electrical Installation Instructions

.....................................................Page 18

Whirlpool Heater Operation

......

..........................................................Page 23

Remote Air Blower Location Option..................................................Page 24

Operation: Single Speed Whirlpool...................................................Page 26

Operation: EcoSilent Whirlpool with Lights.......................................Page 27

Operation: Air Bath............................................................................Page 28

Operation: Air Bath with Lights..........................................................Page 29

Operation: Combination Tub with Lights...........................................Page 31

Cleaning and Maintenence...............................................................Page 33

Warranty

......................................

.....................................................Page 34

754532-100 Rev. 3 3/19

IMPORTANT SAFETY

INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS!

WARNING: Risk of personal injury. Do not permit children to use this bathtub without adult supervision. Never drop

or insert any object into any opening. Do not operate this unit without the guard over the suction fitting.

WARNING: Risk of electric shock. Do not permit electrical appliances near any bathtub when bathtub contains water.

WARNING: Risk of hyperthermia and possible drowning. People using medications and/or having adverse

medical history should consult a physician before using this product.

WARNING: Risk of personal injury. Do not overfill bathtub before entering. Entering tub when filled more than 2/3 can

cause overflow and slippery conditions. Exercise caution when entering and exiting.

WARNING: No Food or Alcoholic Beverages. Use of your bathtub immediately after meals is not recommended.

Avoid alcohol consumption before or during bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in

loss of consciousness or even drowning.

WARNING: Pregnancy. If you are or think you may be pregnant, consult your physician before using the bathtub.

Use this unit only for its intended use as described in this manual.

Do not use any attachments not recommended by American Standard.

The unit must be connected only to a supply circuit that is properly protected by a ground-fault circuit-interrupter (GFCI).

Such a GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test

button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this

manner, the GFCI is defective. If the GFCI interrupts power to the bathtub without the test button being pushed, a ground

current is flowing, indicating the possibility of an electric shock. Do not use this air bath. Disconnect the air bath and have

the problem corrected by a licensed electrician before using.

SAVE THESE INSTRUCTIONS

4754532-100 Rev. 3 3/19

Each bath arrives ready for installation, completely equipped with the pump/blower electronics

and plumbing necessary for operation. However, a drain/overflow kit is required for each bath

and it is not included.

The variety of installations for this bath may require framing procedures other than those shown.

Locate studs as required. Ensure roughing-in dimensions are proper, plumb, and square.

Installation and Framing Instructions

Remove the bath from the carton. Retain the shipping carton until satisfactory

inspection of the product has been made. Do not lift the bath by the plumbing at

any time; handle by the shell only.

All bath units are factory tested for proper operation and watertight connections

prior to shipping. Prior to installation, the bath must be filled with water and

operated to check for leaks that may have resulted from shipping damage or

mishandling.

The sumps of these baths are supported by feet and no additional sump

support is required. Once the bath is in place, the feet should be shimmed and

secured accordingly so that the rim of the bath contacts the stringer or pier but

supports no weight.

Provisions must be made in all installations for an access opening for servicing the

bath pump/blower. Unless an access opening of at least 12" x 24" (305mm x 610mm)

is provided, warranty service will not be performed. It is strongly recommended that an

additional opening be provided for access to drain components.

Each bath has a nominal length (L), width (W), and Height (H) along with a rim

height. Unless otherwise noted in the following rough-in references, assume

that the nominal tolerances are as much as +/-1/4 inch (6mm). Therefore, it is

strongly recommended that the installer build the surrounding structure after

receiving the actual bath. Structural measurements should be verified against

the actual bath received to ensure proper fit.

POST INSTALLATION CLEAN-UP

Remove all construction debris from bath. Tile grout can be removed with a wooden

popsicle stick or tongue depressor.

Do not use wire brushes or any other metal implement on bath surface.

Post installation clean-up generally can be completed using warm water and liquid

dishwashing detergent.

Stubborn dirt or stains may be removed using granular Spic and Span®mixed with water.

Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

754532-100 Rev. 3 3/19

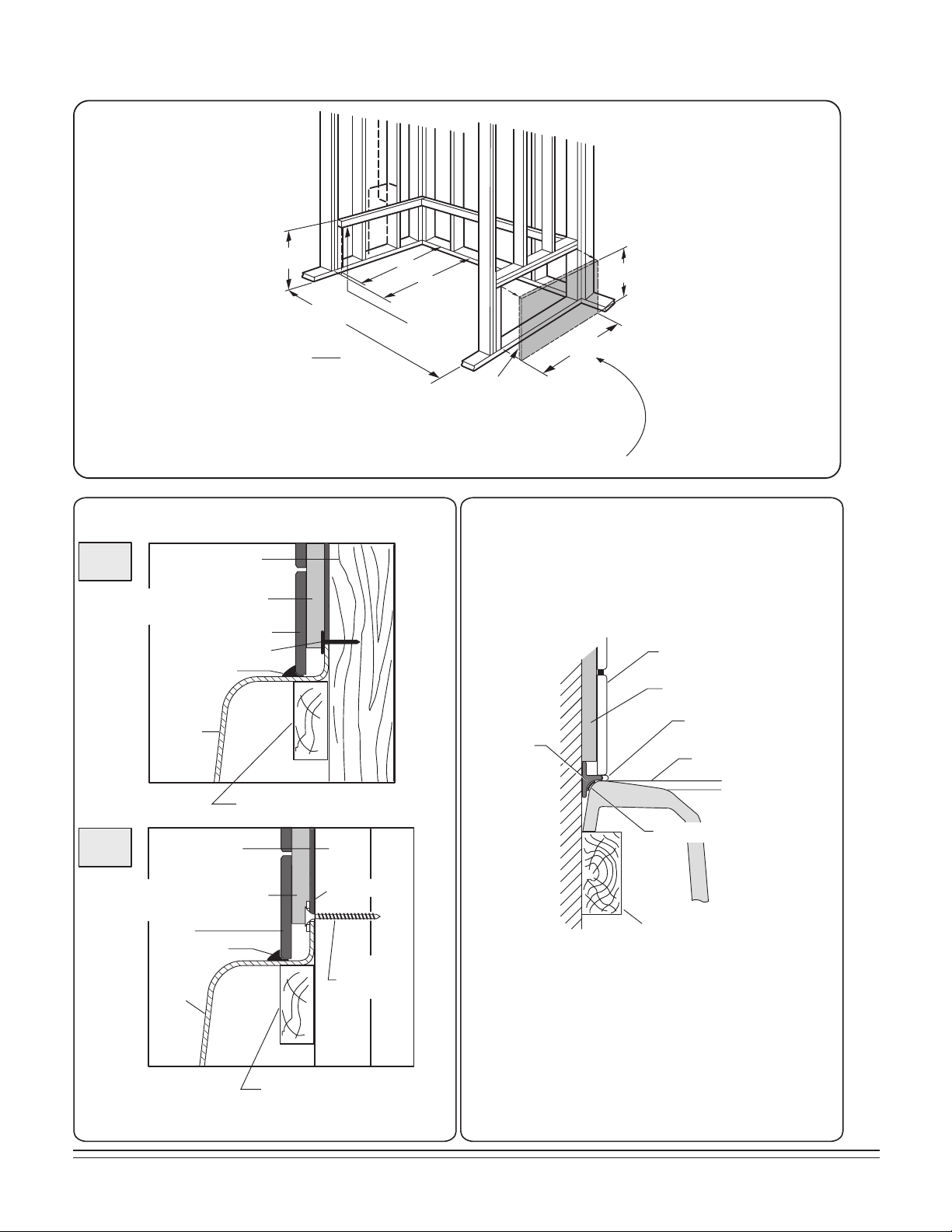

ROUGH-IN REFERENCES FOR RECESS TYPE INSTALLATIONS

TILE

BEAD

STRIP

LEVELING STRINGER

1" x 4" (25mm x 102mm) not for support

BATH

ADHESIVE

SEALANT

WALLBOARD

NOTE: Tile bead kit not included and must

be purchased separately.

SECURE THE BATH TO THE STUDS AS SHOWN

FOR WOOD OR STEEL STUD CONSTRUCTION.

TYPICAL TILE FLANGE INSTALLATION TYPICAL TILE BEAD INSTALLATION

STUD

WATERPROOF DRYWALL

OR CEMENT BOARD

WATERPROOF DRYWALL

OR CEMENT BOARD

TILE

SEALANT

TUB

ROOFING NAIL

1" x 3" (25 x 76mm) WOOD

STRINGER FULL LENGTH

1" x 3" (25 x 76mm) WOOD

STRINGER FULL LENGTH

STEEL

STUD

WASHER

TILE

SEALANT

TUB

4" (102mm)

DRYWALL

SCREW

STEEL

STUDS

WOOD

STUDS

24"

(610 mm)

12"

(305 mm)

LEVELING

STRINGERS

ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

UNLESS AN ACCESS OPENING OF AT LEAST 12" x 24" (305 x 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

NOTE:

FRONT EDGE

OF BATH MUST

BE SUPPORTED

BY STUD WALL OR

AMERICAN STANDARD

APRON KIT

ACCESS PANELS NOT

REQUIRED FOR BATH TUBS

6754532-100 Rev. 3 3/19

Please note that care must be taken to protect the surface of the tub during all aspects of the installation.

Do not drill or cut the bath deck with the tub directly beneath it as damage to the tub may result.

1. Install the tub per the installation instructions provided with the unit.

2. Prepare the bath deck support structure per the local codes. Note - the bath deck must be self supporting.

3. Cut bath deck to your specifications.

4. Place the bath deck in position and trace the opening on the tub with a soft pencil. Do not drill or cut the bath

deck with the tub directly beneath it as damage to the tub may result.

5. Remove the bath deck and apply a generous bead of waterproof sealant on the outer edge of the traced line.

6. Replace the bath deck and secure it into place.

7. Apply additional sealant along the tub and bath deck interface as necessary to ensure a watertight seal.

8. Remove excess sealant per the manufacturer's instructions.

Finished bath deck surface material must be

self-supporting and secured per local codes

Tub support structure per installation

instructions provided with the tub

Bath deck support material

Bathtub

Waterproof

Sealant

UNDER DECK MOUNTING INSTRUCTIONS

ROUGH-IN REFERENCES FOR PIER TYPE INSTALLATIONS

AS DESIRED

CUTOUT

AS DESIRED

CUTOUT

24"

(610 mm)

12"

(305 mm)

MOUNTING

SURFACE

WATERPROOF

SEALANT

BATH ACCESS PANEL MUST BE LOCATED

ON THE SAME SIDE AS THE MOTOR.

ALLOW OPEN FRAMING ON

PUMP/MOTOR END FOR SERVICE.

ACCESS PANELS NOT REQUIRED

FOR BATH TUBS

UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)

IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.

754532-100 Rev. 3 3/19

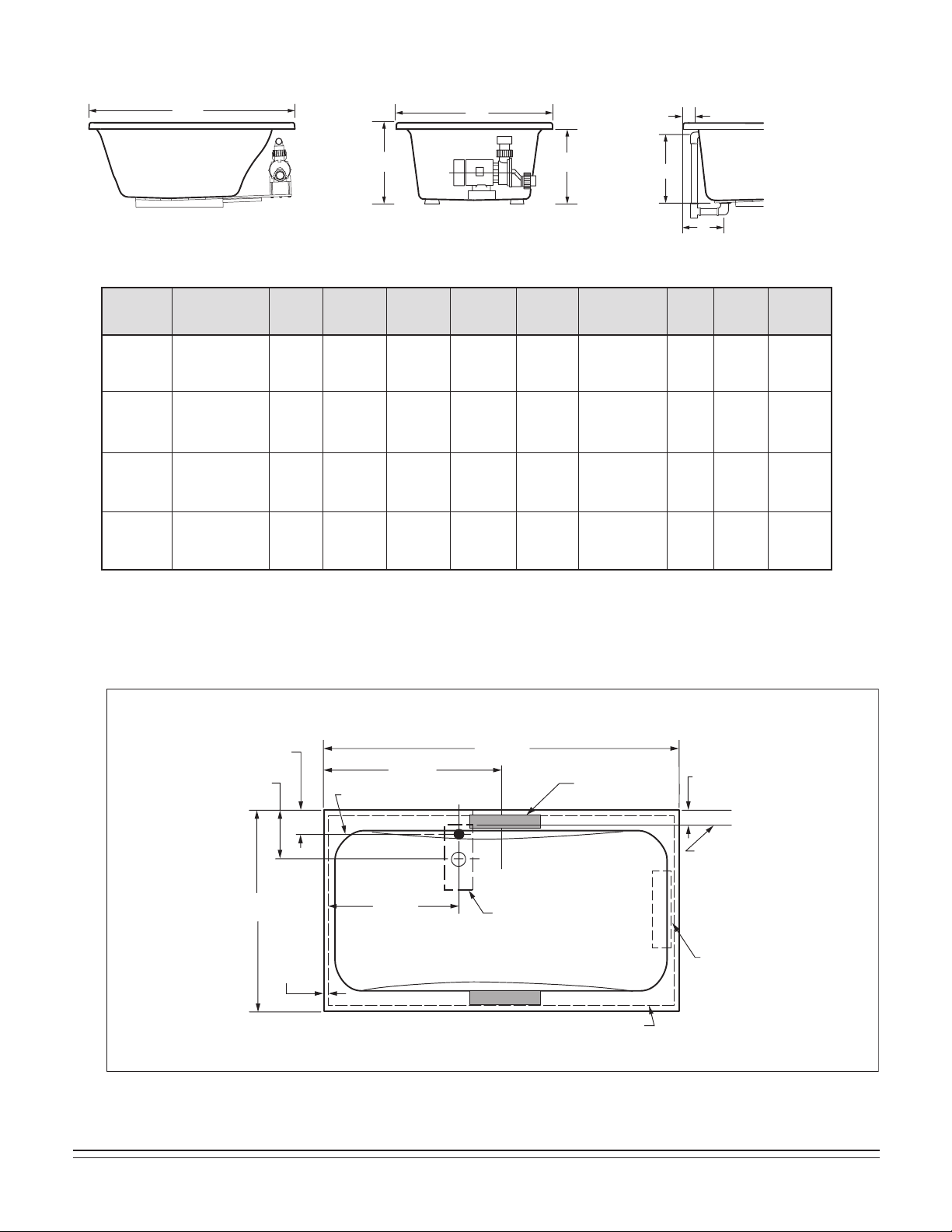

SPECIFICATIONS:

GENERAL SPECIFICATIONS FOR WHIRLPOOLS AND BATH TUBS

SIDE VIEW DRAIN / OVERFLOW

END VIEW

A 16-1/4"

(413mm)

B 13-1/4"

(337mm)

A 14-1/2"

(368mm)

B 14-1/2"

(368mm)

A 17"

(432mm)

B 11"

(279mm)

A 17"

(432mm)

B 9-1/2"

(241mm)

(102mm)

5-1/4"

(133mm)

5-1/2"

(140mm)

(76mm)

C 20"

(508mm)

C 21"

(533mm)

C 19-1/2"

(495mm)

C 19-1/4"

(489mm)

70"

(1778mm)

x 40-1/4"

(1022mm)

58"

(1473mm)

x 40-1/8"

(1019mm)

Template

Provided

Template

Provided

71-11/16"

(1821mm)

x 40-1/4"

(1022mm)

59-11/16"

(1517mm)

x 40-1/8"

(1019mm)

As Desired

L 71-1/2" (1816mm)

W 41-3/4" (1060mm)

H 22" (559mm)

L 59-1/2" (1511mm)

W 41-5/8" (1057mm)

H 23" (584mm)

L 72" (1829mm)

W 35-3/4" (908mm)

H 21-1/2" (546mm)

L 60" (1524mm)

W 42-1/4" (1073mm)

H 21-1/4" (540mm)

115 lb.

(52 kg.)

110 lb.

(50 kg.)

135 lb.

(61 kg.)

107 lb.

(49 kg.)

690 lb. (313 kg)/

33 lb./sq.ft.

(161 kg/sq.m)

611 lb. (277 kg)/

40 lb./sq.ft.

(196 kg/sq.m)

744 lb. (338 kg)/

41 lb./sq.ft.

(200 kg/sq.m)

640 lb. (291 kg)/

35 lb./sq.ft.

(171 kg/sq.m)

69 gal.

(261 l.)

60 gal.

(227 l.)

73 gal.

(276 l.)

64 gal.

(242 l.)

60 gal.

(227 l.)

55 gal.

(208 l.)

44 gal.

(166 l.)

53 gal.

(200 l.)

Description

Drain /

Overflow

Cut Out

Pier

G x F

Rough-In

Recess

E x D

Tub Edge to

Centerline

Overflow: J

Weight with

Water / Floor

Product

Weight Gallon to

Overflow

Whirlpool

Operating

Volume

Height to

Underside of

Deck Edge: C

Dimensions

L-W-H

2742

Town Square

6' x 42"

2748

Town Square

5' x 42"

2806

Heritage Oval

6' x 36"

2903

Savona Oval

5' x 42"

TABLE 1

MODEL SERIES 2742

41-3/4"

(1060mm) 26-3/4"

(679mm)

C/L OF DRAIN OUTLET

71-1/2"

(1816mm)

35-3/4"

(908mm)

13-1/4"

(337mm)

(102mm)

(76mm)

FLOOR CUTOUT

5" X 15"

(127 X 381mm)

OUTLINE OF CUTOUT

70" X 40-1/4"

(1778 X 1022mm)

INTEGRAL

FITTING DECK

3" x 14"

(76 x 356mm)

3/4"

(19mm)

EDGE

OF FLOOR

CUTOUT

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

ROUGH-IN REFERENCES

8754532-100 Rev. 3 3/19

ROUGH-IN REFERENCES

MODEL SERIES 2748

59-1/2"

(1511mm) INTEGRAL

FITTING DECK

3" X 14"

(76 X 356mm)

29-7/8"

(759mm)

41-5/8"

(1057mm)

OUTLINE OF CUTOUT

58-1/4" X 40-1/4"

(1480 X 1022mm)

C/L OF

DRAIN

OUTLET

FLOOR CUTOUT

5" X 12"

(127 X 305mm)

3/4"

(19mm)

14-1/2"

(368mm)

5-1/4"

(133mm)

(76mm)

EDGE OF

FLOOR

CUTOUT

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

INTEGRAL

FITTING

DECK

72"

(1829mm)

9" x 13"

(229 x 330mm)

FLOOR CUTOUT

11"

(279mm)

35-3/4"

(908mm)

18"

(457mm)

5-1/2"

(140mm) C/L OF DRAIN

OVERFLOW

OUTLINE

OF CUTOUT

MODEL SERIES 2806

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

754532-100 Rev. 3 3/19

OUTLINE OF

CUTOUT - USE

TEMPLATE

9-1/2"

(241mm)

42-1/4"

(1073mm)

21-1/8"

(537mm)

(76mm)

60"

(1524mm)

LOF DRAIN

OUTLET

12" (305mm) X 9"(229mm)

CUTOUT IN FLOOR FOR DRAIN

ROUGH-IN REFERENCES

MODEL SERIES 2903

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

10 754532-100 Rev. 3 3/19

SPECIFICATIONS:

GENERAL SPECIFICATIONS FOR STUDIO 5' x 32" WHIRLPOOLS AND BATH TUBS

SIDE VIEW DRAIN / OVERFLOW

END VIEW

A 17-3/4"

(451mm)

B 10-3/4"

(273mm)

A 17-3/4"

(451mm)

B 10-7/8"

(276mm)

C 21-7/8"

(556mm)

C 20-1/2"

(521mm)

58"

(1473mm)

x 30"

(762mm)

58-1/4"

(1480mm)

x 30-1/4"

(768mm)

59-11/16"

(1516mm)

x 30"

(762mm)

59-15/16"

(1522mm)

x 30-1/4"

(768mm)

3-1/4"

(83mm)

3-1/4"

(83mm)

L 59-1/2" (1511mm)

W 31-1/2" (800mm)

H 22-1/2" (572mm)

L 59-3/4" (1518mm)

W 31-3/4" (806mm)

H 22-1/2" (572mm)

90 lb.

(198 kg.)

90 lb.

(198 kg.)

581 lb. (264 kg)/

44 lb./sq.ft.

(213 kg/sq.m)

581 lb. (264 kg)/

44 lb./sq.ft.

(213 kg/sq.m)

59 gal.

(224 l.)

59 gal.

(224 l.)

54 gal.

(205 l.)

54 gal.

(205 l.)

Description

Drain /

Overflow

Cut Out

Pier

G x F

Rough-In

Recess

E x D

Tub Edge to

Centerline

Overflow: J

Zero

(5/8")

Deck

Trim

Option

Weight with

Water / Floor

Product

Weight Gallon to

Overflow

Whirlpool

Operating

Volume

Height to

Underside of

Deck Edge: C

Dimensions

L-W-H

2932

Studio

5' x 32"

2932

Studio

5' x 32"

TABLE 2

ROUGH-IN REFERENCES

MODEL SERIES 2932

60" NOMINAL

(1524mm)

32" NOMINAL

(813mm)

C/L DRAIN

OUTLINE OF

CUTOUT

9" x 15"

(229 x 305mm)

DRAIN ASS’Y

FLOOR CUTOUT

OVERFLOW

PROVIDE ACCESS

TO PUMP

SERVING ON

ALL INSTALLATIONS

Otros manuales para TOWN SQUARE 2742

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Bañera de American Standard

American Standard

American Standard Savona Elite Corner Whirlpool 2902EC Manual de usuario

American Standard

American Standard Ellisse Built-In 2703.118W Manual de usuario

American Standard

American Standard Ellisse 2711.002 Manual de usuario

American Standard

American Standard Rondo Whirlpool 7242.028W Manual de usuario

American Standard

American Standard Green Tea 5' x 42" Premium Air Bath 3574.328 Manual de usuario

American Standard

American Standard Savona Corner Whirlpool 2902.028WC Manual de usuario

American Standard

American Standard Ellisse Elite 2711E Series Manual de usuario

American Standard

American Standard Lifetime 2771L Manual de usuario

American Standard

American Standard Green Tea 3571.328 Manual de usuario

American Standard

American Standard Lifetime 2422LA Manual de usuario

American Standard

American Standard Colony Corner 1730.002 Manual de usuario

American Standard

American Standard Enfield Bathtub 2742.020 Manual de usuario

American Standard

American Standard Savona Oval Whirlpool 2903.018W Manual de usuario

American Standard

American Standard Green Tea Whirlpool and Bath Tubs 3572 Manual de usuario

American Standard

American Standard Reminiscence Drop-In Whirlpool 2908.XXXW Manual de usuario

American Standard

American Standard Standard 2083 SERIES Manual de usuario

American Standard

American Standard Savona 2901.028WC Manual de usuario

American Standard

American Standard Scala Corner Whirlpool and Bathing Pool... Manual de usuario

American Standard

American Standard Scala Corner 5' 2664.118 Manual de usuario

American Standard

American Standard Reminiscence 2908E Manual de usuario

American Standard

American Standard CAMBRIDGE 2460.XXXW SERIES Manual de usuario

American Standard

American Standard Savona Oval Whirlpool and Bathing Pool... Manual de usuario

American Standard

American Standard Savona Elite Corner Whirlpool 2902E Manual de usuario

American Standard

American Standard Ellisse 2711.018 Manual de usuario

Manuales populares de Bañera de otras marcas

Agua

Agua BARTOLI-66 Manual de usuario

PAA

PAA PRELUDE Manual de usuario

BETTE

BETTE SILHOUETTE Manual de usuario

Kohler

Kohler K-820-GC Guía de inicio rápido

Oliveri

Oliveri Naples Manual de usuario

Lyons

Lyons Elite ETLxx663219 Series Manual de usuario

Woodbridge

Woodbridge BJ500 Instrucciones de montaje

Whirlpool

Whirlpool Ariel ARL-702 Manual de usuario

TEIKO

TEIKO EXCELLENT DUO Manual de usuario

Kohler

Kohler K-1111-H2 Guía de inicio rápido

agape

agape MARSIGLIA AVAS1075 Manual de usuario

Kohler

Kohler K-1151 Instrucciones de montaje

Kohler

Kohler K-1158 Guía de inicio rápido

Kohler

Kohler K-1244 Instrucciones de montaje

Kallista

Kallista P50045-G5 Instrucciones de montaje

Kohler

Kohler K-1164-HB Guía de inicio rápido

Kohler

Kohler Hourglass K-1209-LA Guía de inicio rápido

Ariel

Ariel AM Series Manual de usuario
