Alliance Laundry Systems UM202 Series Manual de usuario

Installation/Operation/Maintenance

www.comlaundry.com

Washer-Extractor

Top Loading

UM202

Design 2 Models

CAR2C

NOTA: El manual en

español aparece después

del manual en inglés.

Part No. F232212R1

January 2005

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

F232212 1

Table of

Contents

Introduction......................................................................................... 3

Model Identification ............................................................................. 3

Nameplate Location.............................................................................. 3

Replacement Parts ................................................................................ 3

Customer Service.................................................................................. 3

Safety Information.............................................................................. 5

Explanation of Safety Messages........................................................... 5

Important Safety Instructions ............................................................... 5

Specifications and Dimensions........................................................... 7

Installation........................................................................................... 11

Dimensional Clearances ....................................................................... 11

Machine Foundation ............................................................................. 11

Machine Anchoring .............................................................................. 11

Electrical Installation............................................................................ 12

Input Voltage Requirements ............................................................ 12

Connection Specifications ............................................................... 12

Grounding ........................................................................................ 12

Phase Adder ..................................................................................... 12

Drain Connection.................................................................................. 14

Water Connection ................................................................................. 15

Control Function Test........................................................................... 16

Operation............................................................................................. 17

Control Panel ........................................................................................ 17

Operating Instructions .......................................................................... 18

Maintenance ........................................................................................ 21

Daily ..................................................................................................... 21

Weekly.................................................................................................. 21

Monthly................................................................................................. 21

Care of Stainless Steel .......................................................................... 22

2F232212

Notes

F232212

Introduction

Model Identification

Information in this manual is applicable to this model:

* This manual applies to models with U2 in the 9th and 10th

positions in the model number (e.g. UM202M1OU20001).

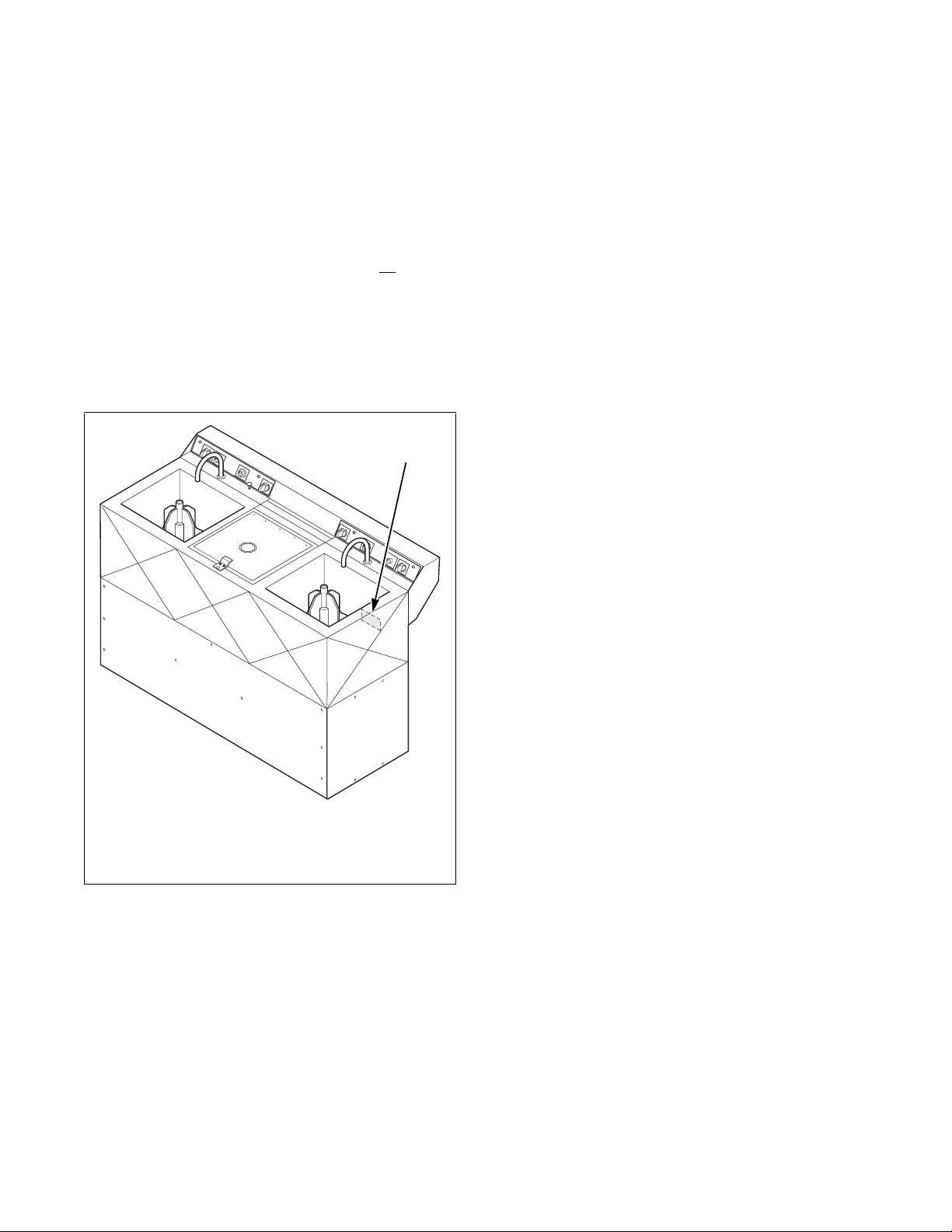

Nameplate Location

The nameplate decal is located at the rear of the

machine. Always provide the machine’s serial number

and model number when ordering parts or when

seeking technical assistance.

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems LLC at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call (920) 748-3121.

UM202*

CAR2C

1Nameplate

CAR2C

Introduction

F232212

Figure 2

Model Number Familiarization Guide

SampleModel Number: UM202M1OU20001

UM Model Number Prefix

202 Washer-Extractor Capacity (pounds dry weight of laundry)

MType of Electrical Control

1Washer-Extractor Speed Capability (1 = 1 speed)

OElectrical Characteristics

U2 Design Series

0001 Option Identification (varies from machine to machine)

CAR17N

Max Load:

Model No:

CAR17N

UM202M1OU20001

xxxxxxxxx

208 – 240

60 3 3

0.0

15 amps

24 lbs 11 kg

N/A N/A

1750

ETL Listed

Conforms To ANSI/UL Std. 1206, 4th Ed

Certified To CAN/CSA Std. C22.2 No. 53-1968

Certified for use in wet locations

Serial No:

Voltage:

Circuit Breaker:

Amps:

Hz: Wire: Phase:

Max Speed: rpm

Electric Heat: Steam Pressure: psi bar

EXAMPLE OF NAMEPLATE

F232212

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the extract

compartment.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

F232212

8. Do not reach into the washer if the extract drum

or the wash agitator is moving.

9. Do not tamper with the controls.

10. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

11. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

12. Use washer only for its intended purpose,

washing textiles.

13. ALWAYS disconnect the washer from electrical

supply before attempting any service.

14. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

15. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

16. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

17. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

18. Replace worn power cords and/or loose plugs.

19. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

20. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

21. Always follow the fabric care instructions

supplied by the textile manufacturer.

22. Never operate the washer with any guards

and/or panels removed.

23. DO NOT operate the washer with missing or

broken parts.

24. DO NOT bypass any safety devices.

25. Failure to install, maintain, and/or operate this

washer according to the manufacturer's

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Specifications and Dimensions

F232212

Specifications and Dimensions

Specification

Overall Dimensions

Overall width, in. (mm) 60 (1524)

Overall depth, in. (mm) 29-1/2 (749)

Overall height, in. (mm) 40 (1016)

Weight & Shipping Information

Net weight, lb. (kg) 510 (232)

Wash Compartment Information

Width, in. (mm) 20-1/4 (514)

Length, in. (mm) 22-1/4 (565)

Depth, in. (mm) 11-3/4 (298)

Volume, cu. ft. (liter) 2.74 (77.6)

Dry weight capacity, lb. (kg) 12 (5.45)

Extractor Basket Information

Basket volume, cu. ft. (liter) 1.09 (30.9)

Basket diameter, in. (mm) 16-1/16 (409)

Basket depth, in. (mm) 9-1/4 (235)

Basket dry weight capacity, lb. (kg) 12 (5.45)

Perforation open area, % 1.5

Drive Train Information

Number of motors in drive train 3

Wash motor power, hp (kW) 2 x 0.33 (0.25)

Extract motor power, hp (kW) 1 x 1.0 (0.75)

Water Consumption

Average water consumption

per agitation cycle, gallons (liters)

Low 14 (53)

Medium 17 (64)

High 21 (80)

Drain Information

Drain connection size, in. (mm) 2 (50)

Number of drain outlets 1

Drain flow capacity, gallons (liters) per min. 27 (101)

Recommended drain pit size, cu. ft. (liters) 7.7 (219)

Water Supply Information

Water inlet connection size, in. (mm) 3/4NH (G3/4)

Number of water inlets (1 hot, 2 cold) 3

Inlet flow capacity, gallons (liters) per min. 21 (79)

Table 1

Specifications and Dimensions

F232212

Table 1 (Continued)

Specification

Operating Speeds

Wash agitator speed, reversals per minute

(Input frequency: 60 Hz/50 Hz)

60/50

Power Consumption

Average power consumption per cycle, kW-hr 0.25

Average HVAC load, Btu/hr (kcal/hr) 200 (51)

Centrifugal Force Data

Extract centrifugal force, G’s 208-240 V, 60 Hz 690

220-240 V, 50 Hz 496

380-415 V, 50 Hz 499

440-480 V, 60 Hz 698

Machine Capacity Dimensions

Refer to Figure 3

A60 in. (1524 mm)

B11-3/4 in. (298 mm)

C18-3/8 in. (467 mm)

D22-1/4 in. (565 mm)

E16-1/ in. (419 mm)

F29-1/2 in. (749 mm)

G19-7/8 in. (505 mm)

H40-1/2 in. (1029 mm)

Ta b l e 2

Otros manuales para UM202 Series

Tabla de contenidos

Idiomas:

Otros manuales de Arandela de Alliance Laundry Systems

Alliance Laundry Systems

Alliance Laundry Systems LTS90A*N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Cabinet Hardmount SC27SN Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems 802753R4 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washer Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HC18NC2 Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems F232201R4 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems FLW700C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CFD14C Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems UW35PV Series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems B-Series Manual de instalación y operación

Alliance Laundry Systems

Alliance Laundry Systems UW35TV Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems W446I Guía

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CL9163 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems LWS01A*C series Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems PHM798N Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems F232198R4 Guía de solución de problemas

Alliance Laundry Systems

Alliance Laundry Systems 802750R2 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems BWNBC2PP113TW01 Manual de instalación

Alliance Laundry Systems

Alliance Laundry Systems MB26 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems Cygnus Ultra Pro Manual del propietario

Alliance Laundry Systems

Alliance Laundry Systems HFNKCASG116TN01 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems CS018 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
